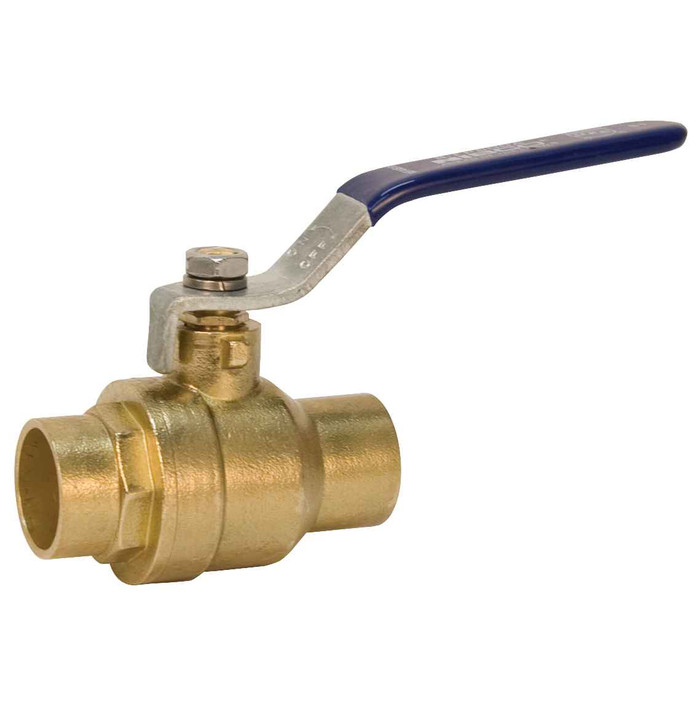

Nibco S-FP600A Ball Valve - Brass, Two-Piece, Full Port, C x C

Nibco S-FP600A Ball Valve - Brass, Two-Piece, Full Port, C x C

(No reviews yet) Write a Review

Model: NJ998HA

In Stock (leaves warehouse same day if ordered before 3pm ET)

$61.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
The NIBCO® brass ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve features solder end connections for easy installation. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO® specialty valves are backed by a NIBCO INC. 2-year limited warranty.

  • Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure (1/4" to 2")
  • Valve pressure rating 400 psi/27.6 bar non-shock cold working pressure (2-1/2" to 4")
  • Full port
  • Chrome-plated brass ball and stem
  • Blowout-proof stem
  • Standard lever handle
  • Female solder cup end connections
  • Use in U.S. drinking water applications is prohibited after January 3, 2014

2-Piece Bronze/Brass Ball Valves IOM Manual

Manufacturer Resources

Product Specs

All Basic Material:
Brass
Classification:
Brass Ball Valves
End Connection:
Solder
Product Group:
Valve
System Use:
Residential Plumbing
Type of Valve:
Ball Valve
Valve Ball Material:
Brass
Valve Ball Operator:
CS Standard Lever Handle
Valve Ball Port Style:
Full Port
Valve Ball Stem Material:
BRS - Brass Ball and Stem
Valve End Connection Type:
S -- Female Solder Cup
Valve Stem Material:
Brass
Product Subgroup:
Valves
Product Type:
Brass Ball Valves
Department:
Plumbing

Nibco NJ998HA – Frequently Asked Questions

1) Does the Nibco S-FP600A ball valve need to be soldered, or can I thread it onto copper?
It solders. The S-FP600A has female solder cup ends on both sides (C x C), so it slips over copper tube and gets sweated in place. There is no thread on it. If you need a threaded connection you want an FNPT-end ball valve instead, not this one. Because the seats are soldered in proximity to heat, follow Nibco's 2-piece bronze/brass ball valve IOM instructions for torch work.
2) What copper pipe sizes does the Nibco S-FP600A come in?
Five sizes: 1/2 inch, 3/4 inch, 1 inch, 1-1/4 inch, and 3 inch. Order by the copper tube size you are sweating into, since the cups are sized to the tube. The 1/2, 3/4, 1 and 1-1/4 inch valves fall in the range Nibco rates at 600 psi non-shock cold working pressure; the 3 inch is in the larger group rated 400 psi.
3) Can I use the Nibco S-FP600A on potable drinking water?
No. Nibco states that use of this valve in U.S. drinking water applications is prohibited after January 3, 2014. It is a brass-bodied valve and does not meet the current lead-free requirement for potable lines. Use it on non-potable service: hydronic heating, chilled water, compressed air, and similar. For domestic water supply you need a valve certified to the lead-free standard.
4) Is the S-FP600A full port or standard port, and does it matter for flow?
Full port. The ball bore matches the nominal pipe size, so you get essentially no restriction across the valve and very little pressure drop. That matters on pump suction lines, on long hydronic runs where you are counting head, and anywhere you might want to push a brush or probe through. A standard-port valve of the same nominal size necks down internally and will cost you flow.
5) Two-piece versus three-piece ball valve - which should I be buying for a copper riser?
The S-FP600A is a two-piece body, which is the normal choice for a soldered copper line that you are not planning to service in place. It is compact and cheaper, but you cannot pull the center section out to rebuild it; if the seats fail you cut it out. A three-piece valve is what you want where the valve is on a line you expect to maintain, since the body bolts apart between two union end pieces and the ball and seats come out with the pipe left undisturbed. For a shutoff on a branch or riser, two-piece is the standard spec.
6) Is the Nibco S-FP600A appropriate for residential plumbing service?
It is classified for residential plumbing use, and it is a common general-service shutoff in both residential and commercial work. The one hard limit: not on drinking water lines in the U.S. after January 3, 2014. Keep it on hydronic heat, chilled water, and other non-potable service in the house or building.
7) Does this Nibco ball valve come with a handle, or do I order one separately?
A standard lever handle is included, carbon steel construction. Quarter turn, 90 degrees from full open to full closed, so you can see valve position at a glance from across a mechanical room. Nothing extra to buy to operate it.
8) Is the stem on the S-FP600A blowout-proof?
Yes, the stem is blowout-proof, meaning it is retained from inside the body so line pressure cannot drive it out if the packing nut is backed off or the handle hardware is removed. The ball and stem are both chrome-plated brass. That is the detail an MRO crew cares about when they are repacking a valve under partial pressure.
