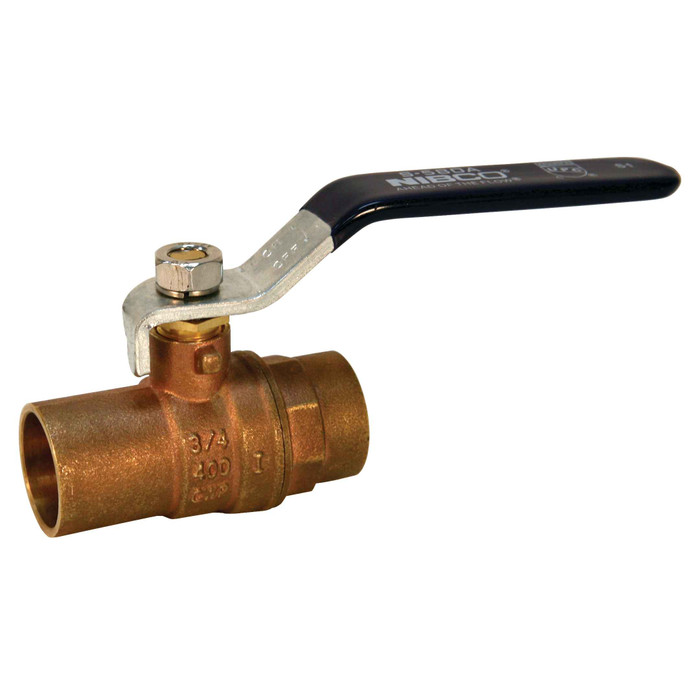

Nibco S-580-A Ball Valve - Brass, Two-Piece, Standard Port, C x C

Nibco S-580-A Ball Valve - Brass, Two-Piece, Standard Port, C x C

(No reviews yet) Write a Review

Model: NJ9600A

In Stock (leaves warehouse same day if ordered before 3pm ET)

$54.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
The NIBCO® brass ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve features solder end connections for easy installation. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO® ball valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO® specialty valves are backed by a NIBCO INC. 2-year limited warranty.

  • Valve pressure rating 400 psi/28 bar non-shock cold working pressure
  • Standard port
  • Chrome-plated brass ball and brass stem
  • Blowout-proof stem
  • Standard lever handle
  • Solder end connections
  • Use in U.S. drinking water applications is prohibited after January 3, 2014

2-Piece Bronze/Brass Ball Valves IOM Manual

Manufacturer Resources

Spec Sheet

Product Specs

All Basic Material:
Brass
Classification:
Brass Ball Valves
End Connection:
Solder
Product Group:
Valve
Seat Seal Material:
PTFE
System Use:
Residential Plumbing
Type of Valve:
Ball Valve
Valve Ball Operator:
CS Standard Lever Handle
Valve Ball Port Style:
Conventional Port
Valve Ball Stem Material:
BRS - Brass Ball and Stem
Valve End Connection Type:
S -- Female Solder Cup
Valve Pressure Rating (CWP):
400 PSI / 27.6 Bar CWP
Product Subgroup:
Valves
Product Type:
Brass Ball Valves
Department:
Plumbing

Nibco NJ9600A – Frequently Asked Questions

1) Can I use the Nibco S-580-A brass ball valve on a potable water line?
No. The S-580-A is prohibited from use in U.S. drinking water applications after January 3, 2014. It is a brass valve without lead-free certification for potable service, so keep it on non-potable work: hydronic heating loops, chilled water, compressed air, and similar closed systems. For domestic water you need a lead-free rated ball valve instead.
2) Does the Nibco S-580-A solder onto copper tube or does it thread on?
It solders. Both ends are female solder cups, C x C, so the valve sweats directly onto copper tube of the matching nominal size. There are no threads on either end. If your piping is threaded iron or you want a serviceable union joint, you want a threaded (FIPT) ball valve or a press-end valve instead.
3) Is the S-580-A a full port valve?
No, it is a standard (conventional) port valve. The ball bore is smaller than the pipe bore, so there is more pressure drop through it than a full port valve of the same size. For isolation duty on a branch that is fine. Where flow restriction matters, such as a pump suction or a main shutoff sized tight, step up to a full port model.
4) Can I use this valve as a shutoff behind a washing machine or under a sink in an apartment?
Not for domestic water. Even though it is listed for residential plumbing systems, its use in U.S. drinking water is prohibited after January 3, 2014, which rules out fixture supply and laundry hookups. Property managers standardizing shutoffs on potable lines need a lead-free valve. Keep the S-580-A for boiler, hydronic and other non-potable circuits in the building.
5) What copper pipe sizes does the Nibco S-580-A ball valve come in?
Six sizes: 1/2, 3/4, 1, 1-1/4, 1-1/2 and 2 inch, ordered as NJ96006, NJ96008, NJ9600A, NJ9600B, NJ9600C and NJ9600D respectively. Size is nominal copper tube size and the cups match that tube directly, so a 3/4 inch valve sweats onto 3/4 inch copper.
6) What pressure will the Nibco S-580-A hold?
400 psi (27.6 bar) non-shock cold working pressure. That covers ordinary building water and hydronic pressures with wide margin. It is a CWP rating, so it applies to cold non-shock service, not steam.
7) Do I need to take the S-580-A apart before soldering it in?
It is a two-piece brass valve with PTFE seats, and PTFE will not survive unlimited torch heat. Open the valve fully before sweating, keep the flame on the tube rather than the body, and follow the Nibco 2-Piece Bronze/Brass Ball Valves IOM Manual for the soldering procedure. The manual is the governing instruction for installation.
8) Is a two-piece ball valve like this one rebuildable, or is it a throwaway?
Treat it as a replace-in-kind valve. The S-580-A two-piece body is not built for in-line seat service the way a three-piece union-end valve is; a three-piece lets you pull the center body and reseat it without cutting the pipe. If a valve sits on a line you expect to service repeatedly, specify a three-piece. For general shutoff and isolation, the two-piece solder-end is the usual choice.
9) What are the ball, stem and seats made of on this Nibco two-piece valve?
Chrome-plated brass ball with a brass stem, running on PTFE seats, in a brass body. The stem is blowout-proof, so it cannot be driven out of the body under line pressure if the packing nut is loosened. Handle is a standard lever, giving quarter-turn open to close.
