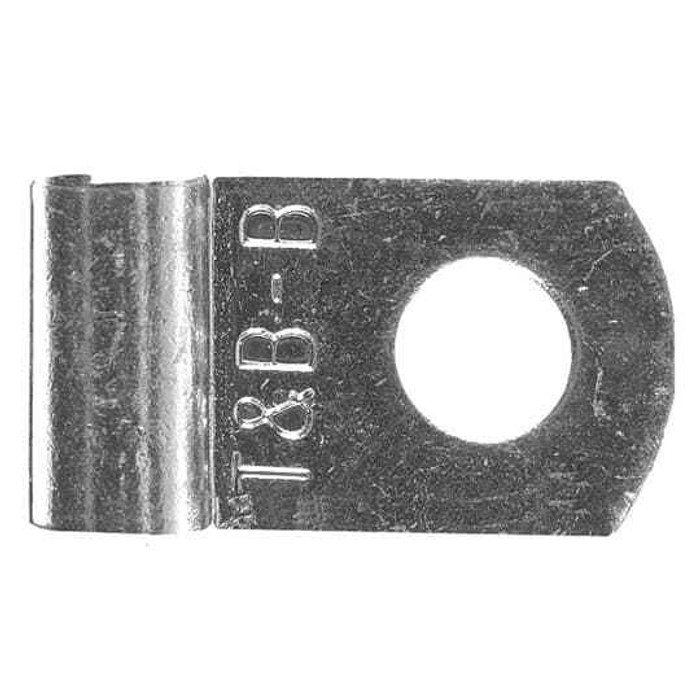

NON-INS FLAG TERM, 9, 8, 7, 1/4, ME
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- Flag Terminals
- Product Type:
- Non-Insulated Flag Terminal
- Standards:
- UL E9809
- Wire Size:
- 9-7 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon D271 – Frequently Asked Questions
1) What wire sizes does the Sta-Kon D271 flag terminal accept?
The D271 is built for 9, 8 and 7 AWG conductors. If your conductor is outside that 9-7 AWG band, the barrel won't crimp to a reliable connection and you need a different terminal size.
2) What stud size does the Sta-Kon D271 flag terminal fit?
It takes a 1/4 inch stud or screw. The tongue sits at a right angle to the wire, so the conductor runs parallel to the mounting surface instead of straight into it, which is what you want in tight panel or motor terminal boxes where a straight ring terminal would force a sharp bend.
3) Is the Sta-Kon D271 insulated?
No. The D271 is a non-insulated flag terminal, bare copper with a metallic finish. If the connection needs covering you have to add heat shrink or a boot, or choose an insulated flag terminal instead.
4) Is the Sta-Kon D271 terminal UL recognized?
It carries UL file E9809. That is the reference an inspector or submittal reviewer will want for a terminated connection in an electrical panel or control enclosure.
5) Is the Sta-Kon D271 made in the USA?
Yes, country of origin is the United States, which matters if you're buying against a Buy American or domestic-preference requirement on a government or institutional job.
6) Can I crimp the Sta-Kon D271 with hand tools or does it need a hydraulic crimper?
The D271 is a copper barrel terminal for 9-7 AWG, so it needs a crimper rated for that range. A small insulated-terminal plier sized for 22-10 AWG will not fully form an 8 AWG barrel, so plan on a heavy-duty ratcheting or hydraulic crimp die for the proper conductor range.
