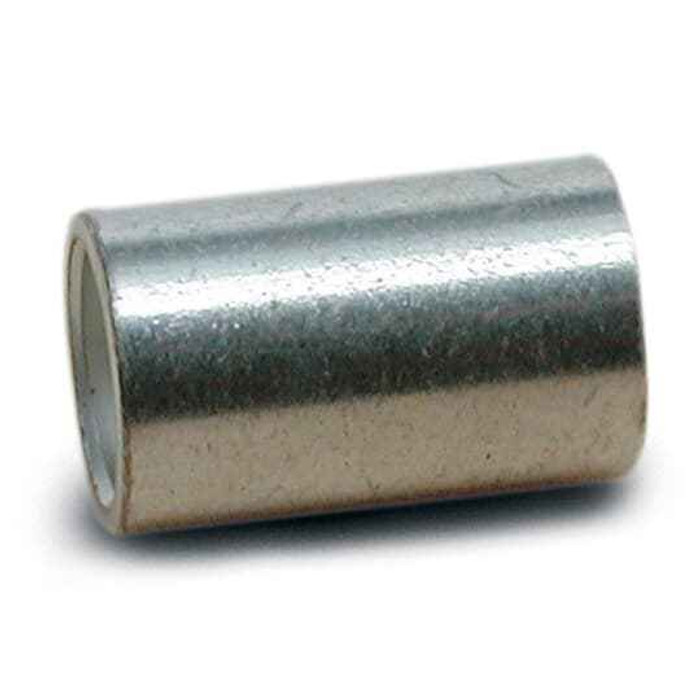

NON-INS PRL SPLICE, 400 MCM, CMA 38
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Insulation Material:
- Non-Insulated
- Product Subgroup:
- Wire Connectors
- Product Type:
- Parallel Splice
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Department:
- Electrical
- Product Group:
- Wire Connectors & Terminals
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon P400-PS-X – Frequently Asked Questions
1) What size conductor does the Sta-Kon P400-PS-X parallel splice take?
The P400-PS-X is sized for 400 MCM conductor. It is a parallel splice, so both conductors enter from the same side and lie side by side rather than butting end to end. Using it on a smaller conductor than 400 MCM leaves the barrel oversized and the crimp will not hold.
2) Does this Sta-Kon splice come insulated, or do I have to tape or heat shrink it?
It ships non-insulated, bare metallic copper. You supply the insulation after crimping, normally heat shrink tubing or tape rated for the circuit voltage. The splice itself is rated 600 V, so whatever covering you apply should be at least that.
3) Is the Sta-Kon P400-PS-X UL listed for 600 volt branch circuits and feeders?
It carries UL file E9809 and a 600 V rating, which covers typical commercial feeder and branch circuit work at 600 V or less. For anything above 600 V you need a medium-voltage connector instead.
4) Will this splice work on aluminum conductor?
No. The P400-PS-X barrel is copper and is intended for copper conductor. Aluminum or copper-clad aluminum needs a connector specifically rated AL or AL9CU, otherwise you get a dissimilar-metal joint that corrodes and loosens.
5) Can I use a parallel splice instead of a butt splice to tap a feeder?
A parallel splice like the P400-PS-X is the right choice when both conductors run the same direction out of the connection, such as tapping or paralleling a run. A butt splice is for end-to-end inline joints where the two conductors approach from opposite sides. They are not interchangeable; the barrel geometry differs.
6) Do I need a special crimp tool for a 400 MCM Sta-Kon parallel splice?
Yes. At 400 MCM you are into hydraulic or battery-powered compression territory; a hand-held mechanical crimper will not develop the force to compress this barrel properly. The splice is supplied bare, with no tool or insulation included, so budget for the die set that matches the barrel as well as the covering you will apply over the finished crimp.
7) Where is the Sta-Kon P400-PS-X manufactured?
Country of origin is Mexico. That is the detail institutional and government buyers usually need for domestic-preference or Buy American documentation on a submittal package.
