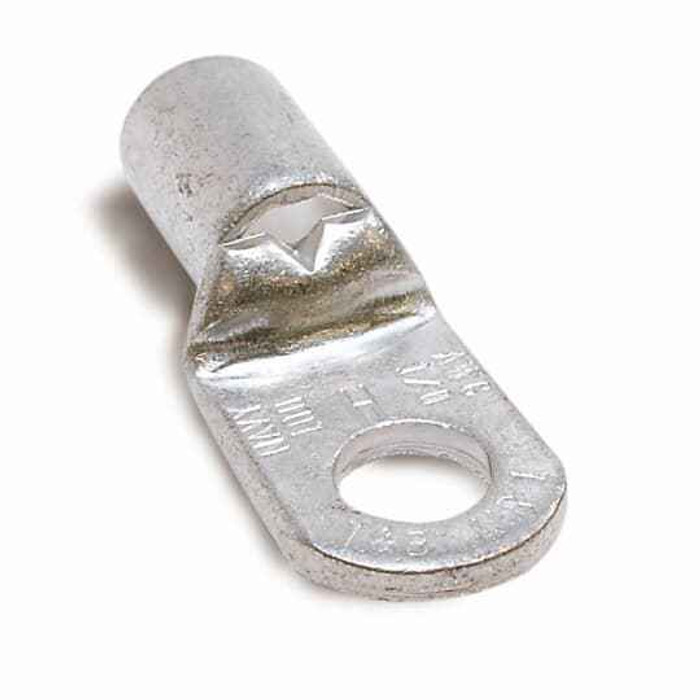

NON-INS - TUB RING TERM, 1/0, 1/4,
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 1/0 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon H10-14 – Frequently Asked Questions
1) What wire size and stud size does the Sta-Kon H10-14 ring terminal take?
The H10-14 is built for 1/0 AWG conductor, and the ring accepts a 1/4 inch stud or bolt. If your cable is 2 AWG or 2/0, this barrel won't crimp correctly, you need the matching size in the same family.
2) Is the H10-14 terminal insulated, and does it need heat shrink or tape over it?
It's a non-insulated tubular ring terminal, so the barrel is bare copper once crimped. On a 1/0 feeder inside a panel or disconnect that's normal practice, but if the lug sits where it could be touched or could contact an adjacent phase, cover it with heat shrink or a terminal boot after crimping.
3) Is the Sta-Kon H10-14 lug UL listed for an inspected job?
Yes. The H10-14 is covered under UL file E9809, which is the reference an inspector or a submittal package will want for the terminal itself.
4) Will this terminal work on aluminum conductor?
No. The H10-14 is a copper terminal intended for copper conductor. For aluminum or for an aluminum-to-copper transition you need a lug marked AL9CU or AL7CU, otherwise you have a dissimilar metal joint that will degrade.
5) Should I use a ring terminal or a spade terminal for a 1/0 battery or panel connection?
Use the ring. A closed ring like the H10-14 can't vibrate off the stud if the nut backs off slightly, which is why it's the standard choice for battery, generator, and bus stud terminations. Spade or fork terminals are for places you need to pull the wire off without removing the screw entirely, typically on small control conductors, not 1/0 power cable.
6) Do I need a special crimper for the Sta-Kon H10-14?
Yes. A 1/0 tubular barrel is beyond hand-plier range, so it takes a hydraulic or heavy mechanical crimper with the die set matched to 1/0 copper. Hand-squeezing or using an undersized die on a lug this size gives a high resistance joint that heats up under load.
7) What is the exact part number and origin for ordering this Sta-Kon 1/0 ring terminal?
Order it as Sta-Kon H10-14. It's a bare metallic copper finish and is manufactured in Mexico, which is the data a distributor or government buyer needs for a country-of-origin declaration.
