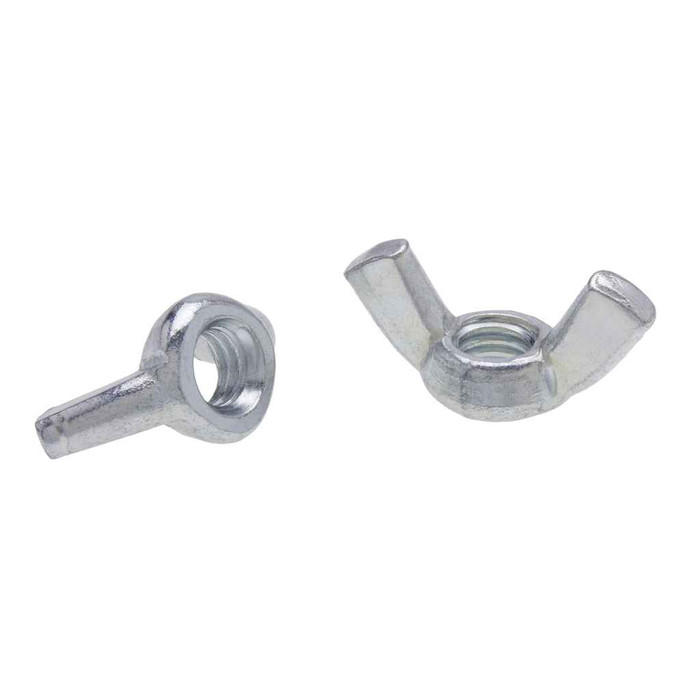

Nuts 1/2-13 Wing Nut Forge-St (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Base Diameter:
- 0.86 - 0.93
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Wing_Nuts_Cold_Forged_Steel.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 7.38 lbs
- Product Width:
- 4.5 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 13
- Thread Standard:
- ANSI/ASME B18.17
- Wing Height:
- 0.87 - 1.00
- Wing Spread:
- 1.81 - 1.94
- Wing Thickness:
- 0.26 - 0.33
- Department:
- Electrical
- Product Subgroup:
- Nuts
- Product Type:
- Wing Nut
- Type2:
- Wing Nut
- Series:
- JWN
- Product Finish:
- Zinc
- Product Details:
- Wing Nut
- Product Material:
- Forged Steel
Metallics JWNCF9 – Frequently Asked Questions
1) What thread size does the Metallics JWNCF9 wing nut take?
The JWNCF9 is a 1/2-13 wing nut, so it threads onto 1/2 inch diameter coarse thread rod or bolts at 13 threads per inch. That is standard UNC for 1/2 inch, so it mates with 1/2-13 all-thread, hanger rod, or hex bolts. It will not run on 1/2-20 fine thread.
2) Do these wing nuts meet Buy American requirements for a government job?
The JWNCF9 is flagged both ARRA compliant and Buy American compliant in Metallics' product data, which is what a federal, municipal, or school district procurement package normally asks for on fasteners. Country of origin is listed as multiple.
3) Are these wing nuts cast or forged, and will they strip under repeated hand-tightening?
Cold forged steel, not cast. The wings on the JWNCF9 run 0.26 to 0.33 inch thick, which is what keeps them from folding over when crews tighten and loosen the same nut repeatedly on removable covers, guards, or temporary bracing.
4) Is the Metallics JWNCF9 wing nut plated for indoor electrical work?
The finish is zinc plating, which suits dry interior electrical and mechanical work, panel covers, strut assemblies, and equipment access panels. For wet or exterior corrosive exposure, specify a stainless or hot dip galvanized wing nut instead.
5) How are these 1/2-13 wing nuts packaged and what is the minimum I can order?
They ship in a jar of 100, and 100 count is the order minimum, so the jar is the buying unit. Shelf weight for the full jar is 7.38 lbs. Metallics does make other sizes and quantities available by request.
6) What dimensional standard do Metallics JWN wing nuts follow?
They are built to ANSI/ASME B18.17, the standard covering wing nut dimensions. If a drawing or spec section calls out B18.17 wing nuts in 1/2-13, the JWNCF9 answers it.
7) What is the right part number to order for a 1/2-13 wing nut from Metallics?
JWNCF9 is the part number, from the Metallics JWN cold forged wing nut series, 1/2-13 thread in zinc finish. That single model is the whole offering at this size, so there is no finish or pack variation to pick between.
