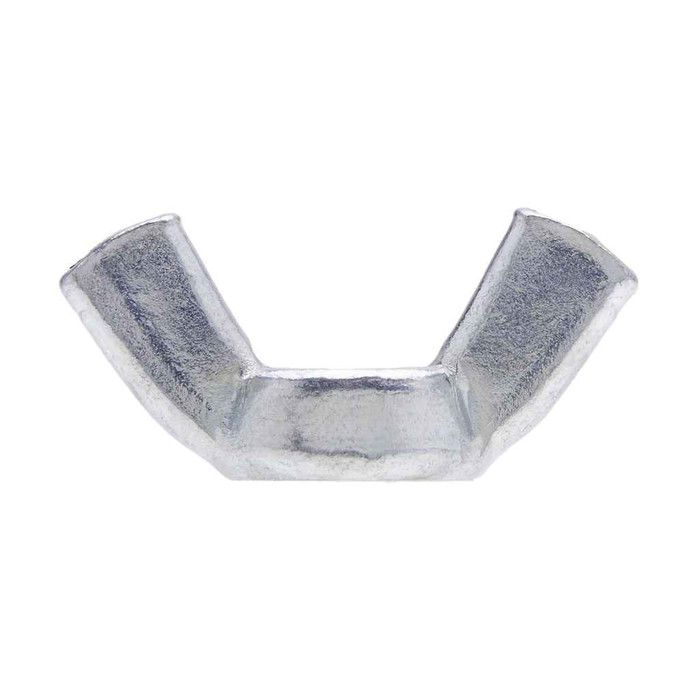

Nuts 1/4-20 Wing Nut Forge-St (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Base Diameter:
- 0.45 - 0.50
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Wing_Nuts_Cold_Forged_Steel.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 2.7 in
- Product Length:
- 3 in
- Product Weight:
- 1.21 lbs
- Product Width:
- 3 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 20
- Thread Standard:
- ANSI/ASME B18.17
- Wing Height:
- 0.43 - 0.57
- Wing Spread:
- 0.97 - 1.10
- Wing Thickness:
- 0.14 - 0.18
- Department:
- Electrical
- Product Subgroup:
- Nuts
- Product Type:
- Wing Nut
- Type2:
- Wing Nut
- Series:
- JWN
- Product Finish:
- Zinc
- Product Details:
- Wing Nut
- Product Material:
- Forged Steel
Metallics JWNCF6 – Frequently Asked Questions
1) How big are the wings on the Metallics JWNCF6, and can I turn it by hand in a tight box?
Wing spread runs 0.97 to 1.10 inches, wing height 0.43 to 0.57 inches, and wing thickness 0.14 to 0.18 inches, over a base diameter of 0.45 to 0.50 inches. That gives you roughly an inch of grip across, enough to finger-tighten without a wrench, but check you have about an inch of clear swing radius inside a crowded enclosure or junction box.
2) Does this Metallics wing nut meet Buy American and ARRA requirements for a government job?
The JWNCF6 is flagged compliant for both Buy American and ARRA, which is what a public-works or federally funded spec usually asks for on fasteners. Country of origin is listed as multiple, so if your contract requires a single named origin on the submittal, ask before you commit the line.
3) Is this wing nut zinc plated steel or stainless?
Cold forged steel with a zinc finish, not stainless. The zinc plating handles normal indoor and dry-location service; for wet, coastal, or corrosive environments you want a stainless wing nut instead.
4) How many wing nuts come in a jar, and is there a minimum order?
JWNCF6 ships as a jar of 100 pieces, and 100 count is the order minimum, so the jar is the buying unit. Metallics offers other sizes and quantities in the JWN series by request.
5) Why pick a cold forged steel wing nut instead of a cast or stamped one?
Forged steel wings resist bending when you crank them down by hand, which is the usual failure on a thin stamped wing nut. At 0.14 to 0.18 inch wing thickness, the JWNCF6 takes repeated hand tightening on covers and panels that get opened again, which is where a wing nut earns its place over a plain hex nut you need a wrench for.
6) What does a jar of 100 of these 1/4-20 wing nuts weigh for shipping or truck stock?
The packed jar is listed at 1.21 lbs, in a container measuring 3 x 3 x 2.7 inches. Small enough to keep a couple of jars in a van bin or a service cart drawer.
