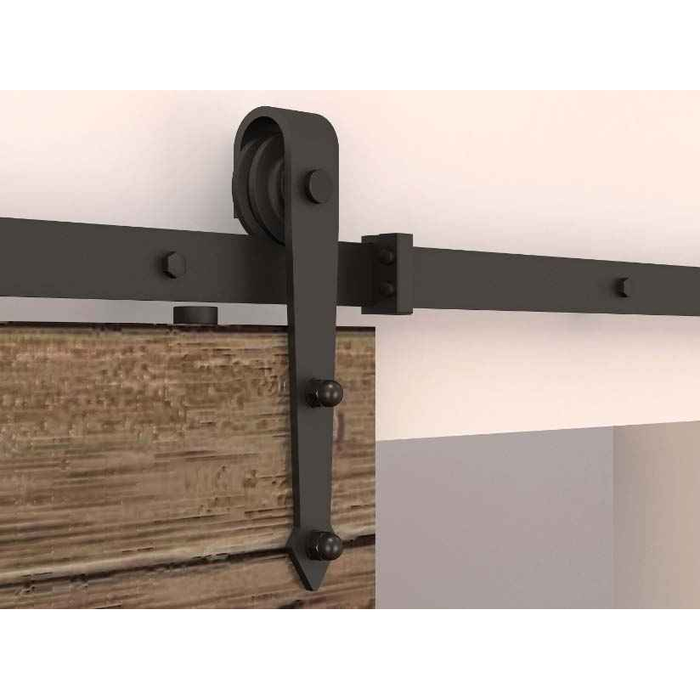

Orca Hardware FTSP Series Flat Track Spoke Wheel Shaped Hanger

Orca Hardware FTSP Series Flat Track Spoke Wheel Shaped Hanger

(No reviews yet) Write a Review

Model: FTSP-HANGER-BL
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$80.00
$48.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

FLAT TRACK FEATURES:

• Polymer Wheels for quiet operation
• 200 lbs per Door
• 6’6” and 8’ Options
• For Interior 1-3/8” or 1-3/4” Thick Doors Only
• All Fasteners Included, including optional connector plate
• Additional Options for: Soft Close & Soft Open, Double Door Applications, & Bypass Applications

TRACK KITS INCLUDE:

  • Track
  • 2 Hangers
  • Spacers
  • End Stops
  • Anti-Jump Blocks (only in Flat Track Kits)
  • Connector Plate (for optional use, only in FT Kits)
  • All Fasteners
  • Door Guides
  • Instructions


DOWNLOADS

Spec Sheet

Manufacturer Resources

Product Specs

Product Type:
Barn Door Flat Track and Hardware
Series:
FTSP Series
Features:
Polymer Wheels
Product Group:
Sliding Door and Barn Door Hardware
Product Subgroup:
Door Track
Subcategory:
Door Track
Commercial/Residential:
Commercial
Product Function:
Door Hanger
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/8" or 1-3/4"
Mounting Method:
Sidewall
Product Category:
Sliding Door and Barn Door Hardware
Product Substrate:
Steel
Department:
Door Hardware

Orca Hardware FTSP-HANGER-BL – Frequently Asked Questions

1) What door thickness do Orca FTSP flat track hangers work with?
The FTSP Series spoke wheel hangers mount to interior doors that are 1-3/8 inch or 1-3/4 inch thick. Those are the only two thicknesses the FTSP hardware is set up for, so a thicker slab or an exterior door is outside what this hanger handles.
2) How much weight can an Orca FTSP barn door hanger carry?
The FTSP flat track system is rated at 200 lbs per door, with a pair of hangers carrying that slab. Weigh your door before you commit, especially on solid core or glass barn doors, because the rating is per door and not per hanger.
3) Is the FTSP hanger sold with track, or do I need the full kit?
The hanger is the roller assembly only. A complete FTSP flat track kit includes the track, 2 hangers, spacers, end stops, anti-jump blocks, a connector plate for optional use, door guides, all fasteners, and instructions. Order the hanger on its own when you are replacing a damaged roller or adding a slab to track you already have.
4) Do I need to order left-hand and right-hand barn door hangers?
No handing to specify. The FTSP spoke wheel hanger is non-handed, so the same part works whether the door stacks to the left or the right of the opening.
5) Why choose polymer wheels instead of steel wheels on a barn door hanger?
The FTSP hanger uses polymer wheels running on the flat track for quieter travel, which matters in hotel corridors, patient rooms, and multi-family units where a metal-on-metal roller is audible through the wall. The hanger body itself is steel, so the load path is still metal.
6) Can Orca FTSP hardware be used for double doors or a bypass barn door?
Yes. Beyond the standard single door setup, the FTSP flat track line has options for double door applications and for bypass applications, plus soft close and soft open. Those are ordered as additional options, so specify the configuration up front rather than assuming a standard kit covers a bypass pair.
7) Does the FTSP kit include the fasteners and the floor guide, or is that a separate buy?
All fasteners are included, along with door guides, spacers, end stops, anti-jump blocks, and the optional connector plate in flat track kits. Nothing extra to source for a basic install other than blocking in the wall if the framing is not already there.
8) What finishes does the Orca FTSP spoke wheel hanger come in?
Two finishes: Black and Oil-Rubbed Bronze. If you are adding doors to a building that already has FTSP track, match the finish you already have on the other openings so the hardware reads the same down the corridor.
9) Is Orca FTSP barn door hardware suitable for commercial buildings?
Yes, the FTSP Series is classed as commercial hardware, with a steel hanger body and a 200 lb per door capacity, for interior openings only. Plan the fastening into the sidewall header accordingly on higher traffic doors.
