Orca Hardware Orca FTST Double Door Kit With Standard Drop Hangers ORC-FTST-DDK

Orca Hardware FTST Double Door Kit With Standard Drop Hangers

(No reviews yet) Write a Review

Model: ORC-FTST-DDK-BL
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$179.50
$130.35
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

FLAT TRACK FEATURES:

• Polymer Wheels for quiet operation
• 200 lbs per Door
• 6’ and 8’ Options
• For Interior 1-3/8” or 1-3/4” Thick Doors
• All Fasteners Included
• Additional Options for: Soft Close & Soft Open & Double Door Applications
• Available only in Black

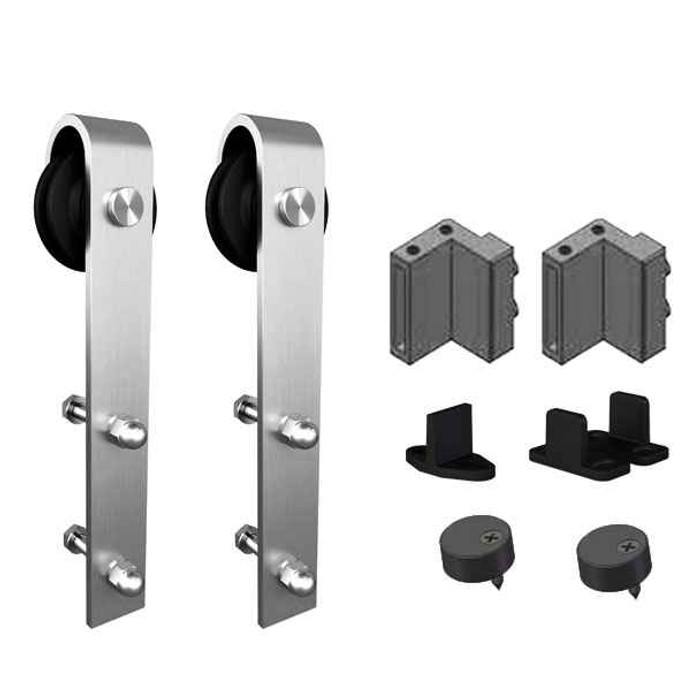

TRACK KITS INCLUDE:

  • Track
  • 2 Hangers
  • Spacers
  • End Stops
  • Anti-Jump Blocks (only in Flat Track Kits)
  • Connector Plate (for optional use, only in FT Kits)
  • All Fasteners
  • Door Guides
  • Instructions


DOWNLOADS

Spec Sheet

Installation Instruction

Template

Manufacturer Resources

Product Specs

Product Type:
Barn Door Flat Track and Hardware
Series:
FTST Series
Product Group:
Sliding Door and Barn Door Hardware
Product Subgroup:
Door Track
Subcategory:
Door Track
Commercial/Residential:
Commercial
Product Function:
Track Kit
Door Hand Direction:
Non-Handed
Door Thickness Range:
1-3/8" or 1-3/4"
Mounting Method:
Sidewall
Product Style:
Barn
Product Category:
Sliding Door and Barn Door Hardware
Product Substrate:
Steel
Department:
Door Hardware

Orca Hardware ORC-FTST-DDK-BL – Frequently Asked Questions

1) Will the Orca FTST double door barn track kit work on 1-3/8 inch doors, or does it need 1-3/4?
Both work. The FTST flat track hardware is built for interior doors at either 1-3/8 or 1-3/4 inches thick, so you can hang a standard hollow-core interior slab or a heavier 1-3/4 inch door on the same hangers without changing parts.
2) How much weight will the Orca FTST flat track carry per door?
200 lbs per door. That is the rating for the FTST flat track system, and on a double door setup it applies to each slab individually, not to the pair combined. The rollers are polymer wheels, which is what keeps the travel quiet on a steel track.
3) What comes in the Orca FTST track kit, and what do I still have to buy?
The kit ships with the track, hangers, spacers, end stops, anti-jump blocks, a connector plate for optional use, door guides, all fasteners, and instructions. So the running gear and mounting hardware are covered. What it does not include is the door slab itself or any pull, flush pull, or latch hardware, and soft close/soft open is a separate add-on option rather than part of the base kit.
4) Can I mount Orca FTST barn door track directly to drywall, or does it need backing?
This is a sidewall-mounted flat track, meaning it fastens to the wall above the opening rather than to the ceiling or the door jamb. Because it is carrying up to 200 lbs per door, the track has to land in solid structure - studs or a continuous wood backer board across the opening. Spacers are supplied in the kit to hold the track off the wall so the door clears the casing.
5) What track lengths does the Orca FTST series come in, and how long a track do I need for a double door?
FTST flat track is offered in 6 foot and 8 foot lengths. For a bypass or bi-part double door setup, the usual rule is that each door needs to travel its own full width clear of the opening, so measure your total opening and slab widths before settling on a length. The kit also includes a connector plate, which lets two track sections be joined for wider openings.
6) Do I have to order a left-hand or right-hand version of this barn door track kit?
No handing to specify. The FTST kit is non-handed, so the same hardware works whether the doors part to the left, the right, or bi-part from the center on a double door opening.
7) Is Orca FTST barn door hardware rated for commercial use or is it a residential product?
It is classed as commercial door hardware, so it is appropriate for hospitality, office, healthcare, and multi-family interior openings as well as residential ones. The track and hardware are steel, and it is specified for interior applications only.
8) What keeps a barn door on an Orca FTST flat track from jumping off or swinging at the bottom?
Two things are handled in the kit. Anti-jump blocks are included with the flat track kits to keep the hangers from lifting off the track, and floor or jamb door guides are supplied to stop the bottom of the slab from swinging away from the wall. End stops are also in the box to limit travel at each end of the track.
9) Can I add soft close to an Orca FTST double door setup later?
Soft close and soft open are listed as additional options for the FTST series, along with the double door application hardware. They are ordered separately from the base track kit, so you can spec them up front or add the dampers to an existing FTST flat track installation.
