Panduit Pan-Lug� 6 AWG Compres...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$52.34
$2.34

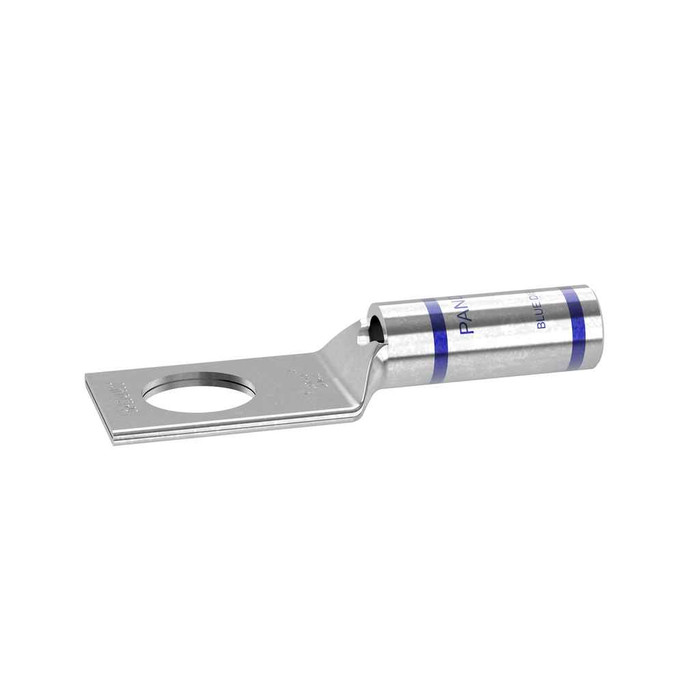

Panduit LCA6-38-L Pan-Lug™ LCA6-38-L Comp. Lug, 6, Tin Plt Copper, Strt, One 3/8" Stud, PK50

Panduit Pan-Lug� 6 AWG Compression Lug with 3/8" Stud - Tin-Plated Copper Straight Terminal

(No reviews yet) Write a Review

Model: LCA6-38-L
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$52.34
$2.34
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit Pan-Lug� 6 AWG Compression Lug with 3/8" Stud - Tin-Plated Copper Straight Terminal

Professional electrical termination solution for 6 AWG conductors

The Panduit Pan-Lug� compression lug delivers reliable electrical connections for 6 AWG copper conductors with professional-grade tin-plated copper construction. This straight terminal features a single 3/8" stud hole and beveled barrel entry for secure installation. UL Listed to 486A-486B standards with 35 kV maximum voltage rating and 90�C temperature capability, this compression lug provides dependable performance in demanding electrical applications.

Professional Features & Benefits

  • 6 AWG Conductor Compatibility: Precisely engineered for 6 AWG copper conductors ensuring optimal electrical connection and current carrying capacity.
  • Tin-Plated Copper Construction: Superior corrosion resistance and enhanced conductivity with durable base copper material and protective tin plating.
  • 35 kV Maximum Voltage Rating: High voltage capability suitable for demanding electrical distribution and power transmission applications.
  • 90�C Temperature Rating: Reliable performance in high-temperature environments with UL and CSA certified thermal capabilities.
  • Beveled Barrel Entry: Facilitates smooth conductor insertion and proper seating for consistent compression connections.
  • UL Listed Certification: Meets UL 486A-486B standards ensuring compliance with electrical safety requirements and professional installation standards.
  • Inspection Window: Visual verification of proper conductor insertion and compression for quality assurance during installation.

Technical Specifications

  • Any Reason Not To Sell: N
  • Arra Compliant: Y
  • Barrel Entry: Beveled
  • Barrel Length In : 0.81
  • Barrel Length Mm : 20.6
  • Barrel Type: Standard
  • Base Material: Copper
  • Burndy Die Index Number: 7
  • California Pro65 Cancer: No
  • Color Code: Blue
  • Copper Code Conductor Size Awg : 6
  • Country Of Origin: Mexico
  • Csa Temperature Rating C : 90
  • Ean: 74983900084
  • Finish Coating: Tin-Plated
  • Gtin Package: 74983900084
  • Hazardous Material Flag: N
  • Inspection Window: Yes
  • Lead Content Indicator: N
  • Maximum Voltage Kv : 35
  • Mercury Content Indicator: N
  • Min Order Qty: 1
  • Min Order Uom: Piece
  • Note: Consult cable manufacturer for voltage stress relief instructions with applications greater than 20
  • Number Of Stud Holes: 1
  • Overall Length In : 1.83
  • Overall Length Mm : 46.5
  • Pallet Quantity: 0
  • Pallet Volume: 0
  • Pallet Weight: 0
  • Panduit Die Index Number: P24
  • Product Segment: IEI
  • Product Type: Compression Lug
  • Reach Status: N
  • Restricted Use Of Hazardous Substances: N
  • Rohs Compliant: Compliant
  • Standard Carton Volume Ft3: 0
  • Standard Carton Weight Pounds: 0
  • Standard Package Volume Ft3: 0.0328
  • Standard Package Weight Pounds: 1.07
  • Std Ctn Qty: 0
  • Std Package Height In: 3.4
  • Std Package Height Mm: 86.36
  • Std Package Length In: 4.65
  • Std Package Length Mm: 118.11
  • Std Package Width In: 3.35
  • Std Package Width Mm: 85.09
  • Std Pkg Qty : 50
  • Std Pkg Uom: Piece
  • Stud Hole Size In : 8-Mar
  • Stud Hole Size Mm : 9.5
  • Stud Hole Spacing Mm : 0
  • Sub Brand: Pan-Lug�
  • T B Die Index Number: 24
  • Tongue Angle: Straight
  • Tongue Thickness In : 0.06
  • Tongue Thickness Mm : 1.5
  • Tongue Type: Standard
  • Tongue Width In : 0.62
  • Tongue Width Mm : 15.7
  • Ul Temperature Rating C : 90
  • Uom Ea Pk: PK
  • Wire Strip Length In : 8-Jul
  • Wire Strip Length Mm : 22.2

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Electrical Panel Connections
  • Motor Control Centers
  • Distribution Equipment
  • Industrial Machinery Wiring
  • Commercial Building Systems
  • Power Distribution Panels
  • Electrical Maintenance and Repair

Why Choose Panduit Quality?

Panduit Pan-Lug� compression lugs deliver proven reliability with UL Listed certification to 486A-486B standards and NEBS Level 3 compliance. The tin-plated copper construction and 90�C temperature rating ensure long-term performance in professional electrical installations, backed by comprehensive quality standards and RoHS compliance for environmental responsibility.
