Panduit Pan-Lug™ SR Series Mechanical Splicer/Reducer, Aluminum

Panduit Pan-Lug™ SR Series Mechanical Splicer/Reducer, Aluminum

(No reviews yet) Write a Review

Model: SR-2-XY

In Stock (leaves warehouse same day if ordered before 3pm ET)

$15.11
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks

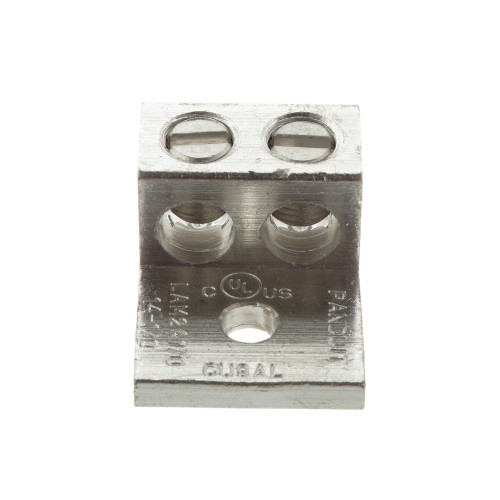

You may also like
"

Panduit Pan-Lug™ SR Series Mechanical Splicer/Reducer, Aluminum

The Panduit Pan-Lug™ SR Series Mechanical Splicer/Reducer is a dual-rated aluminum connector line engineered to splice and reduce conductors across a wire range that spans from #14 AWG up to 4/0 AWG, depending on the selected option — including #14 - #2 AWG STR / #14 - #10 AWG SOL, #14 - 1/0 AWG STR / #14 - #10 AWG SOL, and #6 - 4/0 AWG configurations. Finished in tin-plating for corrosion resistance and rated to a minimum of 600V, every splicer/reducer in this series is UL Listed and CSA Certified to 35 kV, with a temperature rating of 90°C. Built for reliable, code-compliant conductor connections, the Pan-Lug™ SR Series is a workhorse choice across commercial and industrial electrical systems where splicing and conductor reduction are required in the same connector.

Key Features

  • Selectable Dual-Rated Wire Range: Choose from #14 - #2 AWG STR / #14 - #10 AWG SOL, #14 - 1/0 AWG STR / #14 - #10 AWG SOL, or #6 - 4/0 AWG to match your splicing and reduction application.
  • Durable Construction: Aluminum body provides a lightweight yet robust connector for demanding electrical environments.
  • Tin-Plated Finish: Enhances corrosion resistance and supports long-term connection integrity.
  • Non-Insulated Design: Type SR mechanical connector for use where separate insulation is applied per job requirements.
  • Minimum Voltage Rating: 600V rated for standard commercial and industrial wiring systems.
  • Temperature Rated: UL and CSA temperature rating of 90°C for demanding thermal conditions.
  • Standard Package Quantity: Supplied 10 per package for convenient job-site stocking.

Certifications & Compliance

  • UL Listed
  • CSA Certified to 35 kV
  • RoHS Compliant

Technical Specifications

  • CSA Temperature Rating (°C): 90
  • UL Temperature Rating (°C): 90
  • Minimum Voltage (V): 600
  • Std. Pkg. Qty.: 10
  • Mercury Content Indicator: N
  • REACH Status: N
  • ARRA Compliant: Y
  • Country of Origin: Mexico

Typical Applications

  • Electrical Wire Splicing and Conductor Reduction
  • Commercial and Industrial Electrical Installations
  • Panelboard and Distribution Wiring
  • Conductor Termination and Junction Applications

Why Panduit?

Panduit's Pan-Lug™ SR Series connectors combine durable aluminum construction with a tin-plated finish and UL Listed, CSA Certified performance to 35 kV, delivering dependable, code-compliant splicing and reduction across a broad range of wire sizes for professional electrical installations.

"

Manufacturer Resources

Product Specs

Std. Pkg. UOM:
Piece
CSA Temperature Rating (°C):
90
Standard Carton Volume Ft3:
0.0000
Mercury Content Indicator:
N
Sub Brand:
Pan-Lug™
Product Segment:
IEI
Standard Carton Weight Pounds:
0.0000
Min Order Qty:
1.0000
UOM EA PK:
PK
Pallet Volume:
0.000000
Any Reason Not to Sell:
N
Barrel Type:
Standard
REACH Status:
N
Base Material:
Aluminum
Finish/Coating:
Tin-Plated
UL Temperature Rating (°C):
90
Std Ctn Qty:
0
Product Type:
Mechanical Splicer/Reducer
Pallet Quantity:
0
RoHS Compliant:
Compliant
Min. Order UOM:
Piece
ARRA Compliant:
Y
Std. Pkg. Qty.:
10
Hazardous Material Flag:
N
Insulation Material:
Non-Insulated
Pallet Weight:
0.0000
Minimum Voltage (V):
600
Country of Origin:
Mexico
Department:
Electrical
Product Group:
Wire Connectors & Terminals
Product Material:
Aluminum
Product Finish:
Tin-Plated
Voltage Rating:
600V
Listing:
UL Listed
Standards:
CSA Certified to 35 kV
Product Subgroup:
Wire Connectors

Panduit SR-2-XY – Frequently Asked Questions

1) Which Panduit SR splicer/reducer do I need for 4/0 AWG cable?
For 4/0 you want SR-4/0-XY, which covers #6 through 4/0 AWG. The other two Pan-Lug SR bodies stop short of that: SR-0-XY handles #14 to 1/0 AWG stranded, and SR-2-XY handles #14 to #2 AWG stranded. Pick the body by the largest conductor going into it, then confirm the smaller leg also falls inside that range.
2) Can I use the Pan-Lug SR connector on solid wire as well as stranded?
Yes on the two dual-rated bodies. SR-0-XY and SR-2-XY are both rated #14 to #10 AWG solid alongside their stranded ranges, so a solid #12 branch lands legally in either one. The SR-4/0-XY is listed for #6 to 4/0 AWG without a separate solid rating called out, so treat it as the large-conductor body.
3) Does the Panduit SR splicer come insulated, or do I have to tape or boot it?
It ships non-insulated. The SR body is a bare mechanical connector, so you insulate it in the field with tape, heat shrink, or a cover sized to the job. Plan that material into the installation, because nothing on the connector itself provides the dielectric covering.
4) What voltage and temperature rating does the Pan-Lug SR splicer/reducer carry?
Rated to a minimum of 600V, with a 90 degree C temperature rating under both UL and CSA. That 90 C figure is the one that matters if you are terminating THHN or XHHW in a hot panel or in a raceway derated for ambient. It is UL Listed and CSA Certified.
5) Is an aluminum connector like the Pan-Lug SR OK on copper conductors?
The Pan-Lug SR body is aluminum with a tin-plated finish. The tin plating is what makes it suitable for use with either metal and guards the aluminum against corrosion at the contact surface. Match it to the conductor material your drawing calls out and keep the barrel clean before you torque it down.
6) Is the Panduit SR connector acceptable on a federally funded or Buy American job?
It is flagged ARRA compliant, and country of origin is Mexico. It is also RoHS compliant and carries no mercury content. If your specification requires domestic manufacture rather than ARRA compliance, the Mexico origin is the detail to check against the contract language.
7) Should I use a mechanical splicer/reducer or a compression lug for reducing a conductor?
A mechanical splicer/reducer like the Pan-Lug SR is the choice when you want a reusable, tool-free-crimp connection: set screws clamp both conductors, so no hydraulic crimper or die set is needed and the joint can be opened again for troubleshooting. Compression connectors are the alternative when the spec calls for a permanent crimped termination. The SR also lets you land two different sizes in one body, which is the point of the reducer function on panelboard and distribution feeds.
8) Can I buy a single Pan-Lug SR connector, or is it sold only by the bag?
Single pieces are orderable. Minimum order quantity is 1 piece, though the manufacturer's standard package is 10 pieces, so larger quantities tend to come in multiples of ten.
