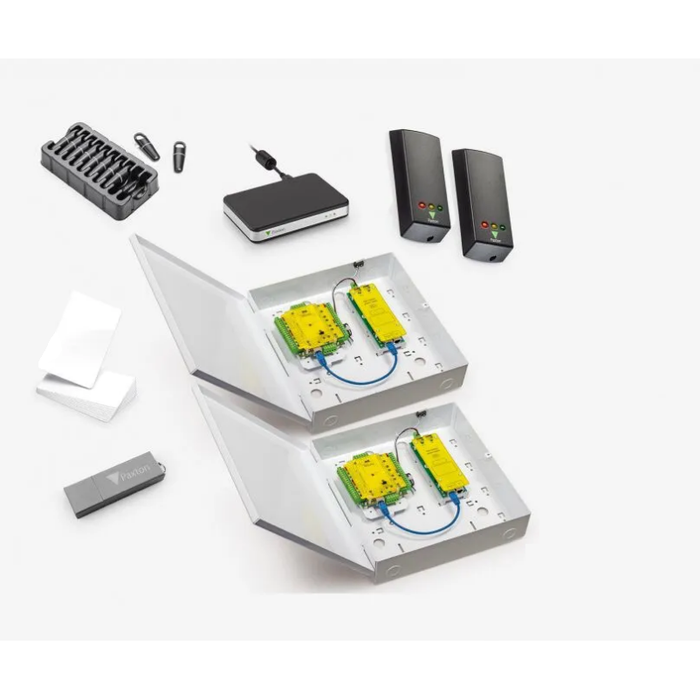

Paxton Net2, 2 Door Kit, Net2 Plus Single Door Controller w/Metal Housing, PoE+ PSU, P50 Mullion Readers, USB Enrollment Reader, Net2 Pro Software, Prox Key Fobs, ISO Cards Less Magstripe

Paxton Net2, 2 Door Kit, Net2 Plus Single Door Controller w/Metal Housing, PoE+ PSU, P50 Mullion Readers, USB Enrollment Reader, Net2 Pro Software, Prox Key Fobs, ISO Cards Less Magstripe

(No reviews yet) Write a Review

Model: 682-920-US
Selected Available Kit is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,056.00
$1,644.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Paxton Net2, 2 Door Kit, Net2 Plus Single Door Controller w/Metal Housing, PoE+ PSU, P50 Mullion Readers, USB Enrollment Reader, Net2 Pro Software, Prox Key Fobs, ISO Cards Less Magstripe

Net2 plus is a networked access control system. A networked system gives the advantages of central control, event reporting and flexible control over users' access. Each control unit is part of a network but can run independently making its own decisions and remembering events. One Net2 plus control unit can be the network interface to the LAN and also run a wired RS485 daisy chain of other Net2 plus or Net2 classic units, removing the need for an independent TCP/IP to RS485 converter. Net2 plus is available with 12/24V power supply AC DC, power over Ethernet (POE), or trigger disconnect power supply for, which is suitable for fire alarm disconnect. PoE is a technology that allows both power and data to be passed along Ethernet cabling. Net2 plus with PoE simply plugs straight into the existing LAN using a standard RJ45 plug (providing it is powered by either a PoE switch or a PoE injector). Control units are sold as a PCB board only or within a plastic housing. The Net2 plus unit now comes with PoE+ power supply in metal/plastic cabinet; no separate mains supply back-up required.

Features:

  • Single door networkable access control unit
  • Plug into a TCP/IP network using a standard RJ45 plug
  • Net2 plus can replace a TCP/IP convertor
  • Net2 plus can also connect using RS485
  • Net2 plus, Net2 classic and Net2 nano control units can be mixed on a site
  • Diagnostic LEDs
  • Flash memory allows easy upgrades
  • Use Paxton Access or 3rd party readers

Includes:

(2) 682-630-US; Net2 Plus in Metal Cabinet with PoE+ Power Supply
(2) 345-220-US; P50 Mullion Readers
(1) 514-326-US; USB Enrollment Reader
(1) 930-010-US; Net2 Pro Software
(1) 692-500-US; Net2 Prox ISO Cards without Magstripe  – Pack of 10
(1) 695-644-US; Net2 Prox Keyfobs – Box of 10

Manufacturer Resources

Product Specs

Product Subgroup:
Prox Readers and Keypads
Subcategory:
Prox Readers & Keypads
Product Group:
Access Control
Product Type:
Starter Kit
Series:
Net2
Product Category:
Access Control
Department:
Door Hardware

Paxton Access Inc 682-920-US – Frequently Asked Questions

1) What exactly comes in the Paxton Net2 2 door kit?
The Net2 2 door kit ships everything needed to control two openings: two 682-630-US Net2 Plus controllers in metal cabinets with PoE+ power supplies, two 345-220-US P50 mullion readers, one 514-326-US USB enrollment reader, one 930-010-US Net2 Pro software license, one pack of 10 Net2 Prox ISO cards without magstripe (692-500-US), and a box of 10 Net2 Prox key fobs (695-644-US). That is one reader per door, so a card-in only setup on two doors. Request-to-exit devices, locks, strikes, and door cabling are separate.
2) Do I need a separate power supply or a mains circuit at each door for a Paxton Net2 Plus PoE+ controller?
No. Each of the two Net2 Plus units in this kit comes in a metal cabinet with a PoE+ power supply, and Paxton states no separate mains supply back-up is required. Power and data both arrive over the Ethernet run, so the controller plugs into the LAN with a standard RJ45 plug, provided that run is fed by a PoE switch or a PoE injector. That is the piece people miss: the kit does not include the PoE source. If the closet switch is not PoE+ capable, budget an injector per controller.
3) Can I add more doors later, or am I stuck at two with the Net2 kit?
You can expand. Each Net2 Plus is a single door networkable control unit, so doors three and four are added by adding controllers. One Net2 Plus can act as the network interface to the LAN and also run a wired RS485 daisy chain of further Net2 Plus or Net2 classic units, which removes the need for a separate TCP/IP to RS485 converter on the added doors. Net2 Plus, Net2 classic, and Net2 nano units can all be mixed on the same site, so an existing Paxton install and this kit live on one system.
4) The Net2 ISO cards are listed as less magstripe. Will they still work with my parking gate or time clock?
No, not if that system reads a magnetic stripe. The cards in this kit are Net2 Prox ISO cards without magstripe, meaning proximity credential only with no stripe on the back to swipe. They read at the P50 readers and enroll at the USB reader. If the building has legacy swipe readers on a gate, elevator, or time clock, those need a separate credential or a card specified with a magstripe.
5) Does the Paxton Net2 Plus with PoE+ support fire alarm power disconnect?
Not in this configuration. Net2 Plus is offered with 12/24V AC DC power, with power over Ethernet, or with a trigger disconnect power supply suited to fire alarm disconnect, and this kit is built around the PoE+ supply. If the authority having jurisdiction requires power to drop to the lock on a fire alarm signal, that is the trigger disconnect variant of the power supply, not the PoE+ one. Worth settling with the fire alarm contractor before the controllers go on the wall.
6) Why are the readers in this Paxton kit mullion style, and will they fit my aluminum storefront doors?
The kit ships P50 mullion readers, which are the narrow-format version made to mount on the vertical mullion or the narrow stile of an aluminum glass front entrance where there is no room for a full size single gang reader. That is the usual storefront situation. On a wide wall or a masonry jamb a mullion reader still mounts fine, it just looks small. If you need keypad entry rather than credential only, the P50 in this kit is a prox reader, so plan on a keypad reader instead.
7) Do I have to use Paxton readers with Net2 Plus, or can I keep the third party readers already on my doors?
Net2 Plus accepts Paxton Access readers or third party readers, so existing readers on the openings can often stay and only the controller and credentials change. The kit still ships two P50 mullion readers, so if you reuse what is on the door you have spares for a future opening. Worth noting the controller keeps working either way: each unit runs independently, making its own access decisions and storing events even if the network link to the server drops.
8) What happens to my doors if the network or the Net2 server goes down?
Access keeps working. Every Net2 Plus control unit is part of the network but runs independently, making its own access decisions and remembering events locally, so a switch reboot or a server that is offline does not lock staff out or leave the door wide open. Those stored events report back to Net2 Pro when the link returns. This matters most on multi-tenant and multi-site property portfolios where the head end is not in the same building as the door.
9) How do I enroll new tenant or employee cards with the Paxton Net2 kit?
The kit includes a 514-326-US USB enrollment reader that plugs into the PC running Net2 Pro, so credentials are presented at the desk and added to a user record rather than being typed in by number or presented at the door. Ten Net2 Prox ISO cards without magstripe and ten Net2 Prox key fobs come in the box to start. The ISO cards are the printable badge format; the fobs suit contractors and maintenance staff who carry keys rather than a badge.
10) Is this Paxton kit a standalone door controller or does it need a PC and software?
Net2 is a networked system, not standalone, and the Net2 Pro software license is in the box. Central control, event reporting, and flexible per-user access rights are the reason to run it this way: one place to add and remove a tenant, a schedule, or a contractor across both doors. If the requirement is a single opening with a handful of codes and no reporting, a standalone keypad lock is the cheaper path and Net2 is over-specified for it.
11) Can I wire a Net2 Plus door back to the panel over RS485 instead of running new Cat cable?
Yes. Net2 Plus connects over TCP/IP with a standard RJ45 plug or over RS485, and one unit on the LAN can carry a daisy chain of additional Net2 Plus or Net2 classic units behind it. That is the retrofit answer in older buildings where pulling a home run of Cat cable to every door is the expensive part of the job. Just remember PoE+ powers the unit through the Ethernet run, so a controller sitting on the RS485 chain needs its power sorted separately.
12) Why the metal cabinet version of the Net2 Plus rather than the plastic one or a bare board?
Paxton sells the control unit as a PCB board only or inside a housing, and this kit is specified with the metal cabinet plus the PoE+ supply. Metal is what most specifiers want when the controller sits in an accessible back-of-house area, an electrical room, or anywhere an inspector expects the enclosure to be more than a plastic lid. The bare board version exists for installers dropping the controller into an existing manufacturer enclosure or a larger equipment can.
13) How do I troubleshoot a Net2 Plus door that is not reading, and can the firmware be updated?
The Net2 Plus board carries diagnostic LEDs, so a first pass at the door tells you whether the unit has power and is seeing the reader and the network before anyone pulls the cabinet apart. Firmware is held in flash memory, which means feature and fix updates are pushed to the unit rather than requiring a board swap. For a two door site maintained by an in-house facilities team, that is the difference between a service call and a ten minute check.
