Paxton Net2 Plus – Single Door...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$946.00
$756.80

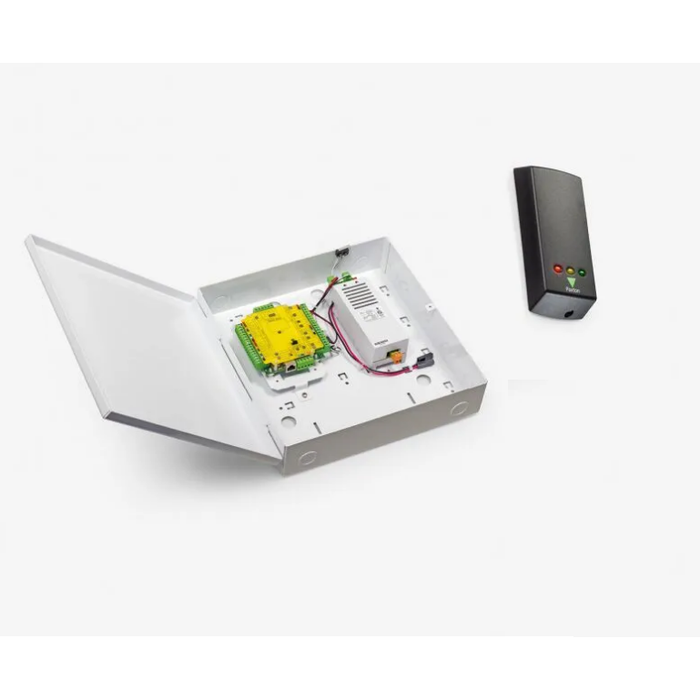

Paxton Net2 Plus – Single Door Expansion Kit, Low voltage PSU

Paxton Net2 Plus – Single Door Expansion Kit, Low voltage PSU

(No reviews yet) Write a Review

Model: 682-960-US
Selected Expansion Kit is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$946.00
$756.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Paxton Net2 Plus – Single Door Expansion Kit, Low voltage PSU

Net2 plus is a networked access control system. A networked system gives the advantages of central control, event reporting and flexible control over users' access. Each control unit is part of a network but can run independently making its own decisions and remembering events. One Net2 plus control unit can be the network interface to the LAN and also run a wired RS485 daisy chain of other Net2 plus or Net2 classic units, removing the need for an independent TCP/IP to RS485 converter. Net2 plus is available with 12/24V power supply AC DC, power over Ethernet (POE), or trigger disconnect power supply for, which is suitable for fire alarm disconnect. PoE is a technology that allows both power and data to be passed along Ethernet cabling. Net2 plus with PoE simply plugs straight into the existing LAN using a standard RJ45 plug (providing it is powered by either a PoE switch or a PoE injector). Control units are sold as a PCB board only or within a plastic housing. The Net2 plus unit now comes with PoE+ power supply in metal/plastic cabinet; no separate mains supply back-up required.

Features:

  • Single door networkable access control unit
  • Plug into a TCP/IP network using a standard RJ45 plug
  • Net2 plus can replace a TCP/IP convertor
  • Net2 plus can also connect using RS485
  • Net2 plus, Net2 classic and Net2 nano control units can be mixed on a site
  • Diagnostic LEDs
  • Flash memory allows easy upgrades
  • Use Paxton Access or 3rd party readers

Includes:

  • 2: Net2 plus controller, metal cabinet
  • 2: P50M readers
  • 1: Enrollment reader USB
  • 10: Keyfobs & 10 cards
  • 1: Pro software

Manufacturer Resources

Product Specs

Product Subgroup:
Access Management
Subcategory:
Access Management
Product Group:
Access Control
Product Type:
Door Expansion Kit
Series:
Net2
Product Voltage:
24VAC
Product Category:
Access Control
Department:
Door Hardware

Paxton Access Inc 682-960-US – Frequently Asked Questions

1) What comes in the Paxton Net2 Plus single door expansion kit?
The kit ships with two Net2 plus controllers in metal cabinets, two P50M readers, one USB enrollment reader, 10 keyfobs and 10 cards, and Net2 Pro software. That's enough to read in and out on a door, plus the desktop enrollment reader you need to register credentials without walking to the door.
2) What voltage does the Paxton Net2 Plus low voltage PSU kit run on?
24VAC. Net2 plus controllers are offered with 12/24V AC or DC supplies, so make sure the transformer or supply feeding the controller matches before you wire it in.
3) Do I need a separate TCP/IP to RS485 converter for Net2 plus?
No. A Net2 plus control unit plugs into the LAN with a standard RJ45 and can act as the network interface for a wired RS485 daisy chain of further Net2 plus or Net2 classic units. That replaces the standalone TCP/IP to RS485 converter you'd otherwise buy for the chain.
4) Can I add these controllers to a site that already has Net2 classic or Net2 nano units?
Yes. Net2 plus, Net2 classic and Net2 nano control units can be mixed on the same site, so this is a normal way to expand an existing Net2 installation one door at a time rather than replacing what's already on the wall.
5) Should I pick the low voltage PSU version or the PoE version of Net2 plus?
Net2 plus comes three ways: 12/24V AC/DC power supply, Power over Ethernet, or a trigger disconnect supply suited to fire alarm disconnect. This kit is the low voltage PSU build at 24VAC, so you're running a separate power feed to the cabinet. Choose PoE instead if you want power and data on one Ethernet run off a PoE switch or injector, and choose the trigger disconnect version if the door has to drop on a fire alarm signal.
6) Will the door still work if the network or the Net2 server goes down?
Each Net2 plus control unit runs independently, making its own access decisions and storing events locally, even though it's part of a network. If the LAN or the PC drops, the door keeps granting access to valid credentials and the events are reported once the connection is back.
7) Do I have to use Paxton readers with the Net2 plus controller, or can I keep my existing ones?
The controller works with Paxton Access readers or third party readers. The kit includes two P50M readers, but if you already have compatible third party readers at the opening you aren't forced to swap them.
8) Is the Net2 plus controller supplied as a bare board or in an enclosure?
Net2 plus control units are sold either as a PCB board only or in a housing. The controllers in this kit are supplied in metal cabinets, so no separate enclosure is needed to mount them.
9) Can I update the Net2 plus controller firmware after it's installed?
Yes, the controller uses flash memory for upgrades, so firmware can be pushed to it from the Net2 software rather than pulling the board. Onboard diagnostic LEDs also let a technician check controller state at the cabinet during commissioning or a callback.
