Paxton Net2 Plus, Single Door ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$824.00
$625.80

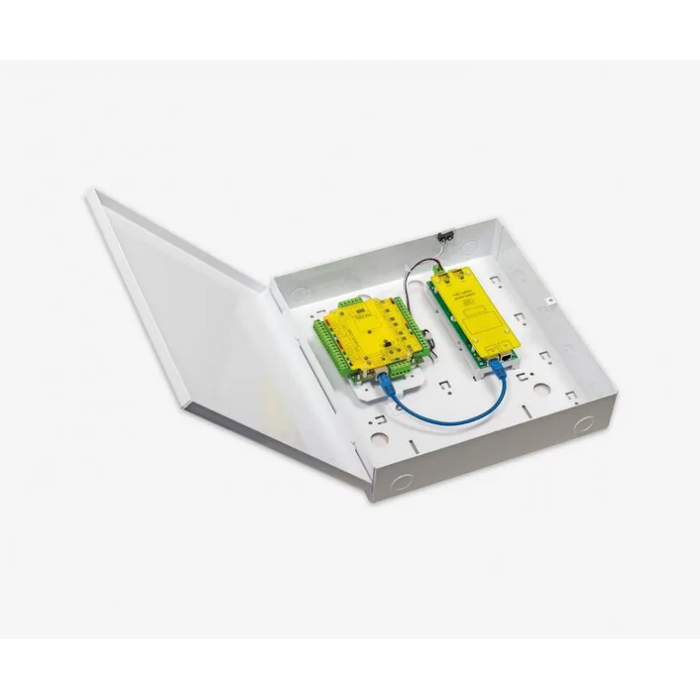

Paxton Net2 Plus, Single Door Controller with Metal Enclosure, PoE+ PSU, Wall Mount, TCP/IP, DHCP, 26 Bit Wiegand, 12-24VDC, UL, FCC

Paxton Net2 Plus, Single Door Controller with Metal Enclosure, PoE+ PSU, Wall Mount, TCP/IP, DHCP, 26 Bit Wiegand, 12-24VDC, UL, FCC

(No reviews yet) Write a Review

Model: 682-630-US
Selected Voltage is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$824.00
$625.80
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Paxton Net2 Plus, Single Door Controller with Metal Enclosure, PoE+ PSU, Wall Mount, TCP/IP, DHCP, 26 Bit Wiegand, 12-24VDC, UL, FCC

Net2 plus is a networked access control system. A networked system gives the advantages of central control, event reporting and flexible control over users' access. Each control unit is part of a network but can run independently making its own decisions and remembering events. One Net2 plus control unit can be the network interface to the LAN and also run a wired RS485 daisy chain of other Net2 plus or Net2 classic units, removing the need for an independent TCP/IP to RS485 converter. Net2 plus is available with 12/24V power supply AC DC, power over Ethernet (POE), or trigger disconnect power supply for, which is suitable for fire alarm disconnect. PoE is a technology that allows both power and data to be passed along Ethernet cabling. Net2 plus with PoE simply plugs straight into the existing LAN using a standard RJ45 plug (providing it is powered by either a PoE switch or a PoE injector). Control units are sold as a PCB board only or within a plastic housing. The Net2 plus unit now comes with PoE+ power supply in metal/plastic cabinet; no separate mains supply back-up required.

Features:

  • Single door networkable access control unit
  • Plug into a TCP/IP network using a standard RJ45 plug
  • Net2 plus can replace a TCP/IP convertor
  • Net2 plus can also connect using RS485
  • Net2 plus, Net2 classic and Net2 nano control units can be mixed on a site
  • Diagnostic LEDs
  • FLASH memory allows easy upgrades
  • Use Paxton Access or 3rd party readers

Manufacturer Resources

Product Specs

Product Subgroup:
Access Management
Subcategory:
Access Management
Number of Codes :
50
PIN/Code Entry:
Yes
Product Group:
Access Control
Product Type:
Door Controller
Series:
Net2
Total Users:
50,000
Product Voltage:
12/24VDC
Product Height:
12.6"
Product Category:
Access Control
Product Width:
12.5"
Department:
Door Hardware
Product Depth:
2.71"

Paxton Access Inc 682-630-US – Frequently Asked Questions

1) Can a Paxton Net2 Plus door controller run on Power over Ethernet without a separate power supply?
The metal-enclosure Net2 Plus single door controller ships with a PoE+ PSU built in, so it plugs straight into an existing LAN with a standard RJ45 plug and takes both power and data over that one Ethernet run. The feed has to come from a PoE switch or a PoE injector. With the PoE+ supply in the cabinet there is no separate mains supply back-up to install. The unit is also specified at 12/24VDC for the door side.
2) Do I need a separate TCP/IP to RS485 converter to add more doors to a Net2 system?
No. One Net2 Plus control unit acts as the network interface to the LAN and simultaneously runs a wired RS485 daisy chain of further Net2 Plus or Net2 classic units, which removes the need for an independent TCP/IP to RS485 converter. That is the usual way to expand past the first door: one unit on the network, the rest chained off it on RS485.
3) Will a Net2 Plus controller work alongside the older Net2 classic and Net2 nano units already on my site?
Yes. Net2 Plus, Net2 classic and Net2 nano control units can be mixed on the same site, so a Net2 Plus is a valid way to add a door or to replace a failed unit on an existing Net2 install without converting the whole system.
4) If the network goes down, does a Net2 Plus controller stop letting people through the door?
No. Each Net2 Plus control unit is part of the network but runs independently, making its own access decisions and remembering events locally. If the LAN or the server drops, the door keeps working to the permissions already loaded and the events are stored for upload when the connection returns.
5) How many users and PIN codes can one Paxton Net2 Plus controller hold?
Capacity is 50,000 total users, and the unit supports PIN/code entry with 50 codes. For a property manager, that means the cardholder database is not the constraint on a mid-size or large building, but if you plan to run keypad codes rather than credentials, plan around the 50 code limit and use user credentials for the bulk of the population.
6) Should I buy the Net2 Plus in a metal enclosure or the PCB-only version?
Paxton sells Net2 Plus control units as a PCB board only or within a housing. The PCB-only board is for dropping into an existing equipment cabinet or a third-party enclosure where power is already provided. The metal enclosure version is the one to specify when the controller is being surface mounted on a wall in a riser, closet or back-of-house area and needs its own housing and its own PoE+ supply in the box. For an institutional or MRO install where the unit sits exposed in a plant room, the metal cabinet is the version you want.
7) How many doors does one Paxton Net2 Plus control unit cover?
One door. The Net2 Plus unit here is a single door networkable access control unit, so a four-door opening schedule needs four control units, networked over TCP/IP or daisy chained on RS485 off one of them. Count controllers by door, not by building.
8) Do I need a fixed IP address for a Paxton Net2 Plus controller, or will it pull one from the network?
The Net2 Plus single door controller supports DHCP as well as TCP/IP addressing, so it can take an address from the network automatically rather than requiring a static assignment before it will talk. On a managed commercial network most integrators still reserve the address at the DHCP server so the controller stays findable.
9) Is there a way to troubleshoot a Paxton Net2 Plus at the panel without a laptop?
The Net2 Plus board carries diagnostic LEDs, so a technician standing at the enclosure can check unit status at the door rather than going back to the head end. Firmware is held in FLASH memory, which is what allows the unit to be upgraded in place instead of being swapped out for a newer board.
