Prodatakey R2 Two Door Controller Red Series, Ethernet, OSDP, Wiegand, Battery Monitoring, Optional Wireless and PoE

Prodatakey R2 Two Door Controller Red Series, Ethernet, OSDP, Wiegand, Battery Monitoring, Optional Wireless and PoE

(No reviews yet) Write a Review

Model: R 2

In Stock (leaves warehouse same day if ordered before 3pm ET)

$944.00
$797.06
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Prodatakey R2 Two Door Controller Red Series, Ethernet, OSDP, Wiegand, Battery Monitoring, Optional Wireless and PoE

Red 2 controller includes built-in Ethernet connectivity and self-discovery, simplifying ip configuration and functionality. Communication plug-and-play connection options are added by purchasing a Red WiMAC wireless or PoE++ Module Kit. The Red 2 is equipped with OSDP functionality, an on-board power supply, and a fully-supervised power circuit that monitors input, output, battery voltage, and overall controller health.

Features:

  • Advanced Security: Red products lead the industry in secure communication protocols. This includes OSDP, mobile, and encrypted credential communication.
  • Power Monitoring: Equipped with an on-board power supply, and a fully-supervised power circuit that monitors input, output, battery voltage, and overall controller health.
  • Plug-n-play Connectivity: All PDK Red devices were designed to be plug n' play. That means they're easy to install right out of the box. It's simple to add any device, no matter how large the job is.
  • Self Discoverable: The Red 2 will be automatically discovered by the Cloud Node when an Ethernet cable is connected; it is not necessary to enter the IP address; the device is self-discoverable.
  • Module Kits: Additional WiMAC and PoE++ plug-and-play connection kits can be added by purchasing the respective wireless or PoE kit. Plug the module into the PDK Red 2 board, and it's ready to go.
  • Systems Capability: Whether you need two doors or a thousand, the PDK red 2 controller gives you the flexibility to add more doors anytime, anywhere, on any device



Specifications:

  • Connections:
    • Removable screw-down terminals
    • Built-in power supply
    • Industrial-grade 2A form-C relays (2)
    • Reader (2)
    • Input A (2)
    • Input B (2)
  • Communication Options:
    • Ethernet
    • WiMAC Wireless (2.4 GHz/ 802.15.4)
    • PoE++
    • Encryption: AES 128bit
    • Wireless Range: 1 Mile LoS, 450ft indoor average
  • Environmental:
    • Temperature: -4° ~ +140° F /-20° ~ +60° C
    • Humidity: 0 - 95% relative humidity non-condensing

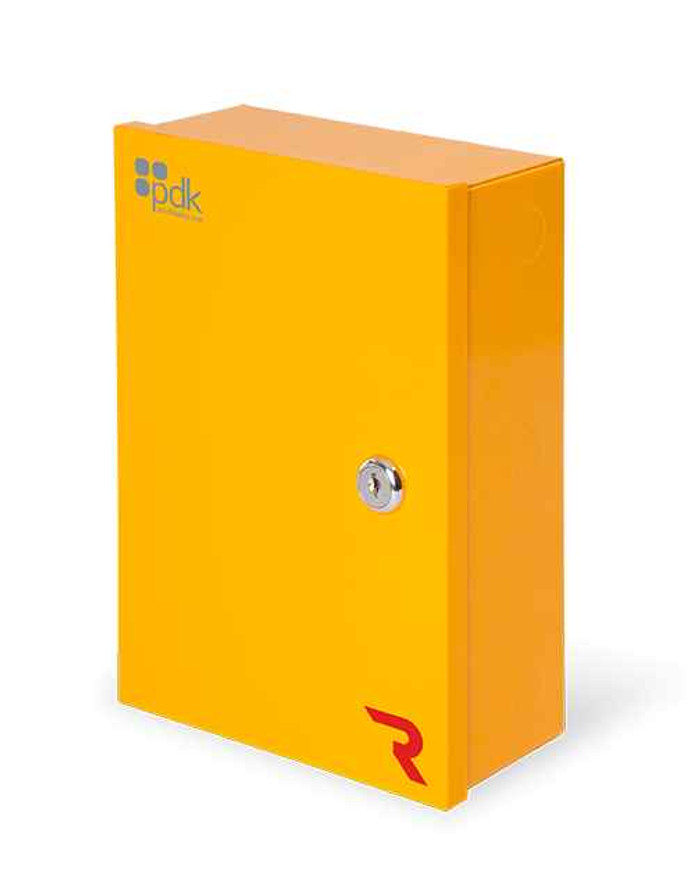

  • Enclosure: Dimensions (W x H x D) 7.625" x 10.4375" x 3". Metal lockable security can (indoor use only)
  • Power:
    • 12V-24V DC Input
    • 14 VDC 2A 28 watt class 2 wall-wart power supply (Input supply to the board)
    • Powers readers and other door hardware directly from the bus
    • Operating Amperage: 35mA (Continuous amperage draw when idle)
    • Power delivery to the peripheral is shared among all ports. Total output to peripherals is 2AMPs at 12V when powered with the included 2.5 AMP wall adapter.
    • Battery not included but a backup battery must be installed to comply with UL 294.
  • Note: For proper operation, use the provided power supply. When not using the provided power supply, PDK recommends using a regulated power supply that outputs no greater than 24 volts as measured with a multimeter.

Manufacturer Resources

Product Specs

Product Subgroup:
Access Management
Product Group:
Door Controller
Subcategory:
Access Controls
Series:
R2 Series
Product Type:
Hardwired
Product Model:
Door Controller
Product Voltage:
12V-24V DC
Product Size:
7.625" x 10.4375" x 3"
Product Category:
Access Controls
Department:
Door Hardware

Prodatakey R 2 – Frequently Asked Questions

1) Does the PDK Red 2 controller need a separate power supply and enclosure, or is everything included?
The Red 2 ships as a board in a metal lockable security can, with a built-in power supply on the board and a 14 VDC 2A 28 watt class 2 wall adapter to feed it. The one thing you still have to buy is the backup battery, which is not included but must be installed to comply with UL 294. The can is rated for indoor use only, so plan on an IDF closet or electrical room rather than an exterior wall.
2) How many doors will one Prodatakey R2 controller run, and can I expand later?
Two doors per Red 2 board. It carries two reader connections, two form-C relays, and two each of Input A and Input B, so a pair of openings with reader, strike or maglock, request-to-exit and door position contact is exactly what it is sized for. Expansion is by adding more controllers to the system rather than adding doors to this board, and PDK states the platform scales from two doors to a thousand.
3) Will the Red 2 power my readers and maglocks off the board, or do I need a separate power supply for the locks?
Peripherals run off the bus, but there is a shared budget you have to respect. Total output to all peripherals is 2 amps at 12V when the board is run on the included 2.5 amp adapter, split across every port. Two readers and two 12V strikes usually live inside that; a pair of maglocks plus readers often will not. Add the draw on your spec sheets before you commit. The board itself idles at 35mA and accepts 12V to 24V DC input.
4) Can I run the Red 2 wireless or on PoE instead of pulling a data drop?
Both are options, but neither is on the board out of the box. The Red 2 is an Ethernet controller by default; wireless and PoE are add-on module kits that plug onto the board. The WiMAC radio runs 2.4 GHz on 802.15.4 with about a mile line of sight and 450 feet indoors on average, which covers most outbuildings and gatehouses where trenching conduit is not worth it. The PoE option is PoE++, so budget a switch port or injector that actually delivers it.
5) Does the PDK Red 2 support OSDP readers or only Wiegand?
Both. The Red 2 is equipped with OSDP and also takes Wiegand readers, so you can retrofit an existing Wiegand head end now and move to OSDP as readers get replaced. Credential and mobile communication is encrypted at AES 128-bit.
6) Do I have to configure an IP address on the PDK Red 2?
No. Plug an Ethernet cable in and the Cloud Node discovers the Red 2 automatically. There is no IP address to type in and no port forwarding step on the controller itself, which is the main reason this board goes in faster than a controller you have to address by hand.
7) What size is the Red 2 enclosure and where can I mount it?
The can measures 7.625 x 10.4375 x 3 inches, so it fits comfortably on a plywood backboard or beside a panel in a comms closet. It is a metal lockable security can rated for indoor use only. If the opening you are controlling is exterior, the controller still lives inside and you run reader and lock wire out to the door.
8) Can the Red 2 go in an unconditioned space like a parking garage or a warehouse mezzanine?
Operating range is -4 to +140 F (-20 to +60 C) at 0 to 95 percent relative humidity, non-condensing. That covers most unheated garages and warehouse spaces. What it does not cover is anywhere the can gets wet or sees condensation, since the enclosure is indoor-rated only.
9) How will I know if the backup battery on my access control has failed?
The Red 2 runs a fully supervised power circuit that watches input voltage, output voltage, battery voltage, and overall controller health. A dying standby battery reports itself instead of being discovered during the next outage, which is the practical reason facilities buyers pick this board over a controller with an unmonitored battery lead.
10) Can I use my own 24V access control power supply instead of the included wall adapter?
You can, within limits. PDK recommends the provided supply for proper operation; if you substitute, use a regulated supply putting out no more than 24 volts measured at the terminals. Going over that, or feeding it unregulated, is on you. Keep in mind the 2 amp peripheral budget quoted for the board is tied to the included 2.5 amp adapter.
11) What is the manufacturer part number for the Prodatakey Red 2 two door controller?
Order it as PDK part AHDS30RVFD. That is the R2 board in the Red Series, two doors, with Ethernet and OSDP on board; the WiMAC wireless and PoE++ kits carry their own part numbers and are ordered separately.
12) Is wiring the Red 2 a terminate-once job or can I swap the board without recutting wire?
Terminals are removable screw-down blocks. You can pull the plug strips off with the field wiring still landed and swap or service the board without re-stripping anything, which matters on a service call where the closet is full and the wire has no slack.
