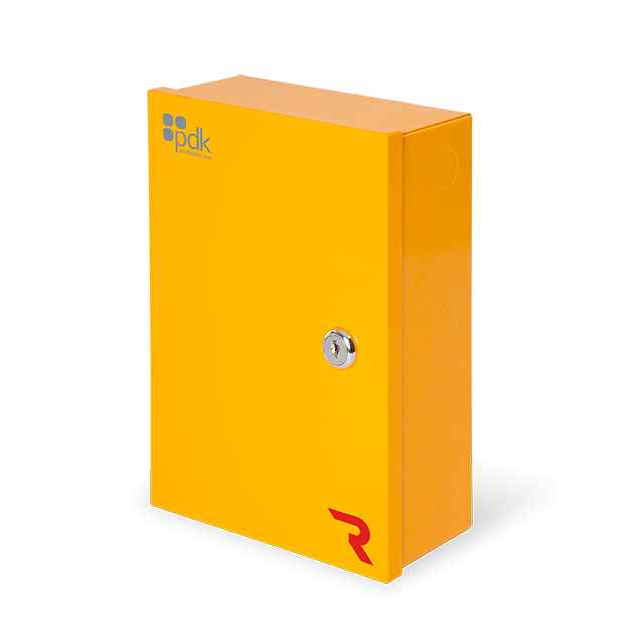

Prodatakey Red CloudNode - Ethernet Only
Red cloud node is the main controller and includes built-in Ethernet connectivity and self-discovery, simplifying IP configuration and functionality. With built-in plug-and-play connectivity options, additional network or WiMAC wireless controllers can be added in seconds. Red CN is equipped with OSDP functionality, an onboard power supply, and a fully supervised power circuit that monitors input, output, battery voltage, and overall controller health.
Features:
- Advanced Security: Red products lead the industry in secure communication protocols. This includes OSDP, mobile, and encrypted credential communication.
- Power Monitoring: Equipped with an on board power supply, and a fully-supervised power circuit that monitors input, output, battery voltage, and overall controller health.
- Plug-n-play Connectivity: All io devices were designed to be plug n’ play. That means they’re super easy to install right out of the box. It’s easy to add in any io device, no matter how large the job is.
- Automatic Updates: Experience future-proof access control that’s always secure, and up-to-date features, and security enhancements become available.
- Multi Door: In addition to connecting to our cloud platform, the cloud node doubles as a single door controller. It’s the only device you need for a single door install. Connect to the network and door hardware for a streamlined installation.
- Cloud Platform: Pdk.io provides the most powerful and streamlined access control platform on the market. Experience full configuration and management from any internet-connected device.
- Systems Capability: Whether you need one door or a thousand, the PDK Red CN gives you the flexibility to add more doors anytime, anywhere, on any device.
Specifications:
- Connections:
- Removable screw-down terminals
- Built-in power supply
- Industrial-grade 2A form-C relay
- Reader
- Input A
- Input B
- Communication Options:
- Ethernet
- WiMAC Wireless (2.4 GHz/ 802.15.4)
- Encryption: AES 128bit
- Wireless Range: 1 Mile LoS, 450ft indoor average
- Environmental:
- Temperature: -4° ~ +140° F /-20° ~ +60° C
- Humidity: 0 - 95% relative humidity non-condensing
- Enclosure: Dimensions (W x H x D) 7.625” x 10.4375” x 3”. Metal lockable security can (indoor use only)
- Compliance: Conforms to UL 294
- Power:
- 12V-24V DC Input
- 14 VDC 2A 28 watt class 2 wall-wart power supply (Input supply to the board)
- Powers readers and other door hardware directly from the bus.
- Operating Amperage: 200mA (Continuous amperage draw when idle)
- Power delivery to the peripheral is shared among all ports. Total output to peripherals is 2AMPs at 12V when powered with the included 2.5 AMP wall adapter.
- Battery not included, but a backup battery must be installed to comply with UL 294.
- Note: For proper operation, use the provided power supply. When not using the provided power supply, PDK recommends using a regulated power supply that outputs no greater than 24 volts as measured with a multimeter.
Manufacturer Resources
Product Specs
- Product Subgroup:
- Access Management
- Product Group:
- Door Controller
- Subcategory:
- Access Controls
- Series:
- R Series
- Product Type:
- Hardwired
- Product Model:
- Door Controller
- Product Voltage:
- 12V-24V DC
- Product Size:
- 7.625” x 10.4375” x 3”
- Product Category:
- Access Controls
- Department:
- Door Hardware
Prodatakey RCNE – Frequently Asked Questions
1) Can the PDK Red CloudNode Ethernet controller run a single door on its own, or do I need a separate door controller board?
One Red CloudNode handles a single door by itself. It's the cloud connection point and a single-door controller in the same box, with a reader port, Input A, Input B, and an industrial-grade 2A form-C relay on removable screw-down terminals, plus an onboard power supply that feeds the reader and door hardware off the bus. For a one-door opening it's the only PDK device you need besides the reader and lock. When the job grows, additional network or WiMAC wireless controllers plug into the same system.
2) Will a Prodatakey Red CloudNode fit in the electrical room enclosure I already have, and can it be mounted outdoors?
The Red CloudNode ships in a metal lockable security can measuring 7.625 x 10.4375 x 3 inches (W x H x D), and that can is rated indoor use only. Plan on an interior IDF closet, electrical room, or above-ceiling protected space. Rated environment is -4 to +140 F (-20 to +60 C) and 0 to 95 percent relative humidity non-condensing, so an unconditioned but dry indoor space is fine; an exposed exterior wall or a wet location is not.
3) Does the PDK Red CloudNode need a battery to meet UL 294?
Yes, and the battery is not in the box. The Red CloudNode conforms to UL 294, but a backup battery has to be installed for the installation to comply. Order the battery separately with the controller. For a healthcare, education, or government facility being inspected against UL 294, skipping it means the panel is out of compliance even though the hardware itself conforms.
4) What power supply does the Prodatakey Red CloudNode need, and how much current is left for readers and locks?
Input is 12V to 24V DC, and it comes with a 14 VDC 2A 28 watt class 2 wall-wart. The board itself draws about 200mA continuous at idle. Total output to all peripherals is 2 amps at 12V when powered by the included 2.5 amp wall adapter, and that budget is shared across every port, so readers, mag locks, and strikes all pull from the same 2 amps. Size a maglock draw against that before you assume it can run off the panel. If you substitute a supply, PDK calls for a regulated supply outputting no more than 24 volts measured with a multimeter.
5) The Red CloudNode is the Ethernet-only model. Can I still add doors where I can't pull cable?
Yes. The Ethernet-only CloudNode is the model that takes its own network connection over a hard-wired IP drop rather than cellular, but it still speaks WiMAC wireless (2.4 GHz, 802.15.4) out to downstream controllers. That's how you pick up an opening across a parking lot or in a building with no conduit path: run the CloudNode on the LAN, and link additional controllers wirelessly. Wireless range is about 1 mile line of sight and 450 feet indoors on average. Traffic is AES 128-bit encrypted.
6) Does the PDK Red CloudNode support OSDP readers or am I stuck on Wiegand?
OSDP is supported on the Red CloudNode. That matters for a security integrator replacing a legacy head end: OSDP gives you supervised, encrypted reader communication back to the panel instead of open Wiegand, and the Red line also carries mobile and encrypted credential communication. If the specification on the job calls for encrypted reader-to-controller transport, this panel meets it.
7) How does the Red CloudNode report a dead battery or a failed power supply?
The onboard power circuit is fully supervised. It monitors input voltage, output voltage, battery voltage, and overall controller health, so a failing backup battery or a dropped input shows up as a condition on the panel rather than being discovered the next time the power goes out. For an MRO or property team running unmanned buildings, that supervision is the difference between finding out from the dashboard and finding out from a door that won't open.
8) Do I need a server or software license to manage a Prodatakey Red system?
No local server. The Red CloudNode connects to pdk.io, PDK's cloud platform, and configuration and management happen from any internet-connected device. The controller also self-discovers on the network, which takes most of the manual IP setup out of commissioning, and it pulls automatic firmware updates as new features and security fixes are released. For a property manager with sites in several cities, that means no head-end PC to maintain at each building.
9) I need to start with two doors now and grow to twenty. Is the Red CloudNode the right starting point?
It is. Start with the CloudNode as the main controller for the first opening, then add network or WiMAC wireless controllers as doors come online, one door or a thousand. Because every io device is plug and play, expansion is a matter of connecting the device rather than rebuilding the system, and the same pdk.io account keeps managing it. Phasing a building this way is the normal path with the R Series rather than a workaround.
10) What is the manufacturer part number for the Prodatakey Red CloudNode Ethernet Only?
The Ethernet-only Red CloudNode is model RCNE, manufacturer part number AHDS30RVFD. That's the hardwired-network version of the R Series main controller, as distinct from the variants that add other communication paths.
