Product Overview

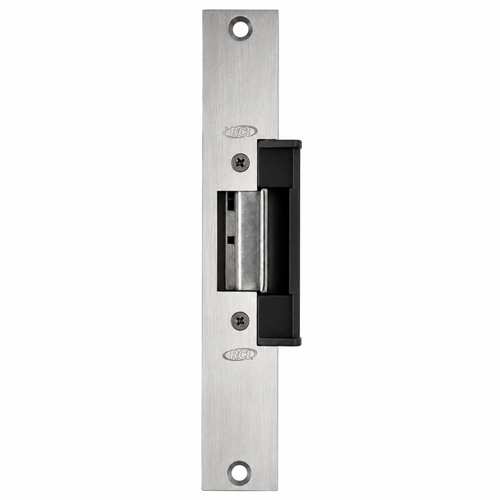

The 2 series are versatile, all-in-one, electric strikes that combine strength and convenience in a sleek design. The RCI F2164 & 2364 strikes feature an adjustable deadbolt keeper and deadlatch ramp allowing them to flexibly work with most locks. The "Saw-tooth Adjustment Locator" makes installation simple. It allows the installer to move the deadbolt keeper, or plug and deadlatch ramp vertically to align with a wide variety of mortise locks with offset latches. It also includes a trim plate to cover up an irregular frame cut-out. Everything you need for the strike is in the box, including a faceplate for centerline latch entry.
Main Features:
- Versatile strike designed to work with most locks
- Accommodates 1/2" (12.7mm) to 3/4" (19mm) latch projection
- Adjustable deadbolt keeper and deadlatch ramp
- Accommodates up to 1" deadbolt (night-latch function only, bolt will not release)
- Plug-in wire connectors
- Runs cool – solenoid design prevents keeper from heating up
- Trim plate included to cover up irregular frame cut-out
- Stainless steel ensures superior strength and creates a sleek aesthetic
- Includes two keeper shims – 1/16" (1.5mm) and 1/8" (3mm) –for horizontal adjustment for misaligned frames (unique sliding design)
- Non-handed
- 375mA Field-Selectable 12/24VDC, 12-24VAC (Max at 12VDC) (12-24VAC not available with 2364 model)
- 1,500lbf Static 70ft-lb Dynamic
- 500,000 Cycles
- Fail-Secure & Fail-Safe
- Optional 3-Hour Model Available (Fire-rated (F) model only, 3-hour for single swing, 90-minutes for standard pair of doors)
- Plug-In Latch Monitor Accessory Available
- 10 Year Limited Warranty
DOWNLOADS & RESOURCES
Manufacturer Resources
Product Specs
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Electric Strikes
- Product Type:
- Electric Strikes for Cylindrical and Mortise Locks
- Series:
- 2 Series
- Features:
- Sleek Design; Plug-in Latch Monitor Accessory; Versatile Strike Designed; Solenoid Design; Non-Handed; Insert Depth: 1-3/4" D; Accommodates Up to 1" Deadbolt
- UL Listing Type:
- UL 294 Listed, UL 1034 Listed, California State Fire Marshal Listed (CSFM: 3776-2275:0502), Certified to ANSI/BHMA standard A156.31, Grade 1
- Subcategory:
- Electric Strikes
- Commercial/Residential:
- Commercial
- Compatibilty:
- Cylindrical Locks, Mortise Exit and Latch Locks
- Fail-Safe/Fail-Secure:
- Fail-Secure
- Lock Type:
- Mortise or Cylindrical
- Product Voltage:
- 12/24 VAC/DC
- Face Plate:
- 4-7/8"
- Fire Rating:
- No
- Product Category:
- Electronic Access Controls
RCI RCI-2364 32D – Frequently Asked Questions
1) What is the RCI 2364 electric strike used for?
The RCI 2364 is a fail-secure electric strike designed for door frames with deadbolt hardware. It electronically releases the deadbolt when power is applied, allowing authorized entry through access control systems.
2) What does the 1-1/4" x 4-7/8" faceplate dimension mean?
These dimensions refer to the strike's faceplate size that mounts flush with the door frame. The 1-1/4" width and 4-7/8" height must match your frame preparation for proper installation.
3) How does fail-secure operation work?
Fail-secure means the strike remains locked when power is lost. The door stays secure during power outages. Power must be applied to unlock the strike for entry.
4) What door types and weights can this strike handle?
This strike works with standard commercial doors equipped with deadbolt locks. Verify your door weight and frame construction meet manufacturer specifications before installation.
5) What voltage does the RCI 2364 require?
Check the manufacturer specifications for exact voltage requirements. Most RCI electric strikes operate on low voltage DC power supplied by access control panels or power supplies.
6) Does this strike work with cylindrical deadbolt locks?
The RCI 2364 is designed for deadbolt applications. Verify compatibility with your specific lock manufacturer and model before ordering to ensure proper fit and function.
7) What frame preparation is needed for installation?
Frame mortising is required to accommodate the strike body and faceplate. Use the manufacturer's template for exact cutout dimensions. Verify frame material thickness before cutting.
8) Can this strike be used with fire-rated door assemblies?
Fire-rated applications require listed hardware. Check if this specific model has fire rating certifications for your application. Consult local codes and AHJ requirements.
9) What access control systems work with this strike?
Most standard access control panels can operate this strike through relay outputs. Verify voltage and current requirements match your system's capabilities before connection.
10) How do you adjust the strike for proper alignment?
Most electric strikes have adjustable keeper positions to align with the deadbolt. Follow manufacturer instructions for field adjustments to ensure smooth operation and proper security.
11) What are common alternatives to the RCI 2364?
Consider other RCI electric strike models or equivalent strikes from manufacturers like Adams Rite or HES. Compare faceplate dimensions and deadbolt compatibility for your application.
