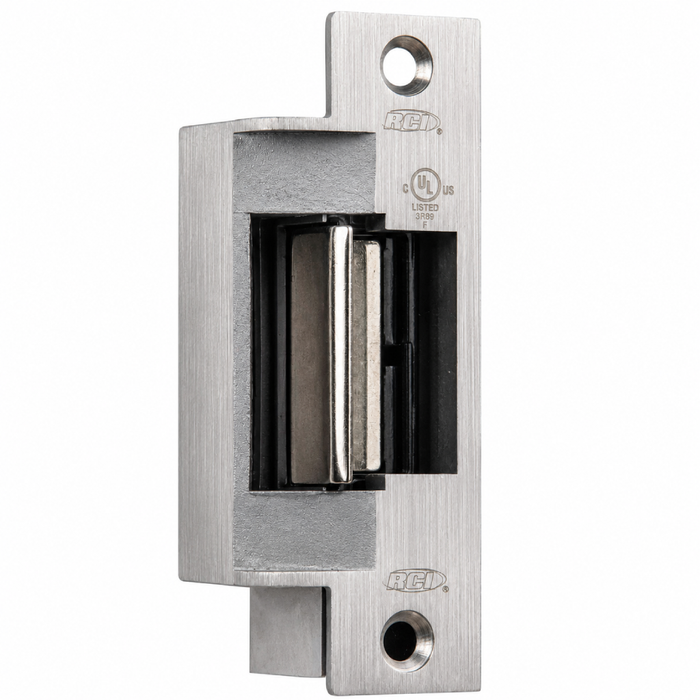

RCI F1114 Electric Strike with 4-7/8" Square Corner Faceplate for Hollow Metal Frames

RCI F1114 Electric Strike with 4-7/8" Square Corner Faceplate for Hollow Metal Frames

Professional Centerline Electric Strike for Commercial Applications

The RCI F1114 electric strike features a stainless steel construction with a 4-7/8" square corner faceplate specifically designed for hollow metal frames. This centerline strike accommodates 1/2", 5/8", or 3/4" latch projections and provides up to 1/4" horizontal adjustment to relieve side-load pressure and ensure proper latch alignment. The saddle-mount housing design delivers enhanced strength with 1,500lbf static and 70ft-lb dynamic load ratings, tested to 500,000 cycles for reliable commercial performance.

Professional Features & Benefits

• Latch Compatibility: Accommodates 1/2" (12.7mm), 5/8" (16mm), or 3/4" (19mm) latch projections for versatile lock compatibility.
• Precision Adjustment: Up to 1/4" (6.4mm) horizontal adjustment relieves side-load pressure and ensures proper latch alignment for optimal performance.
• Heavy-Duty Load Capacity: Rated for 1,500lbf static and 70ft-lb dynamic loads with proven 500,000 cycle durability for high-traffic commercial applications.
• Saddle-Mount Design: Enhanced strength housing design provides superior durability and secure mounting in hollow metal frames.
• Tamper-Resistant Security: Built-in "Pry-Guard" concealed inside the frame provides tamper-resistance against unauthorized access attempts.
• Flexible Power Options: 200mA operation at 11-16VAC, 12VAC/VDC, or 24VAC/VDC (Max at 12VDC) for various system requirements.
• Fail-Secure Operation: Maintains secure locking position during power loss for enhanced security applications.
• Fire Rating Compliance: UL 10C certified with 1-1/2-hour fire rating and CAN/ULC S104 listing for code compliance.
• Manufacturer Warranty: 5 Year Limited Warranty for added confidence and protection.

Technical Specifications

• Accommodates 1/2" (12.7mm), 5/8" (16mm) or 3/4" (19mm) latch projection
• Up to 1/4" (6.4mm) horizontal adjustment, relieves side-load pressure, ensuring proper latch alignment
• Saddle-mount housing design for enhanced strength and durability
• Tamper-resistant pry-guard concealed inside the frame
• Energy efficient coil design
• Mounting tabs, shims and fasteners included
• Non-handed
• 200mA 11-16VAC, 12VAC/VDC Or 24VAC/VDC (Max at 12VDC)
• 1,500lbf Static 70ft-lb Dynamic
• 500,000 Cycles
• Fail-Secure
• CAN/ULC S104 UL 10C 1-1/2-Hour
• 5 Year Limited Warranty

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm voltage (11-16VAC, 12VAC/VDC, or 24VAC/VDC) and 200mA current capacity before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including fail-secure operation per application requirements.
6. Restore power and test all functions including normal operation, latch engagement, and integration with connected access control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Educational Institution Access Control
• Healthcare Facility Entry Management
• Government and Municipal Buildings
• Industrial Facility Security
• Multi-Tenant Residential Properties
• Retail Loss Prevention Systems

Tamper-Resistant Design

The F1114 features a built-in "Pry-Guard" tamper-resistance system concealed inside the frame to prevent unauthorized access attempts. This anti-vibration feature enhances security while maintaining smooth operation under normal use conditions.

Why Choose RCI Quality?

RCI electric strikes deliver professional-grade reliability with stainless steel construction and saddle-mount housing design rated for 500,000 cycles and 1,500lbf static load capacity. The 5 Year Limited Warranty and UL 10C fire rating certification provide added confidence for demanding commercial applications. Engineered with energy-efficient coil design and comprehensive mounting hardware for dependable access control performance.
