Record USA Low Profile Push Au...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$4,208.00
$2,199.17

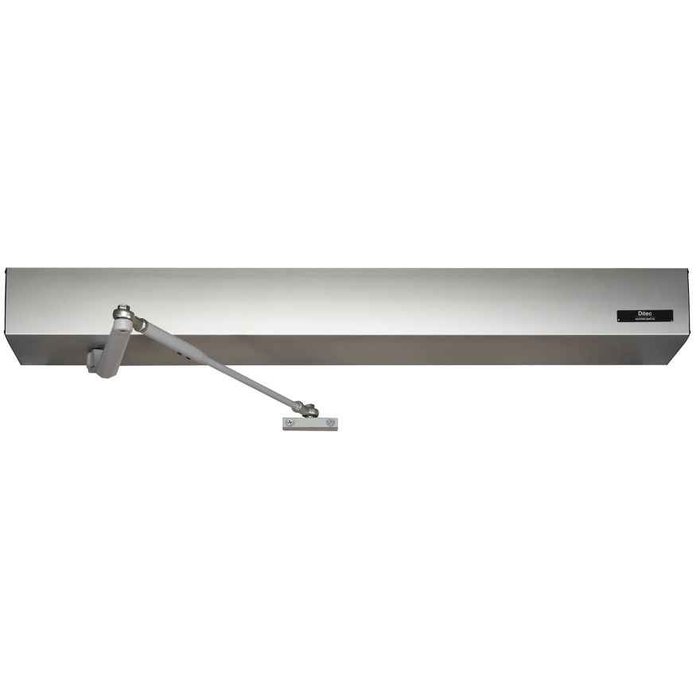

Record USA Low Profile Push Auto Operator Non-Hand, 4-1/8in H x 5-1/8in D x 39in L, Operating Voltage 115VAC

Record USA Low Profile Push Auto Operator Non-Hand, 4-1/8in H x 5-1/8in D x 39in L, Operating Voltage 115VAC

(No reviews yet) Write a Review

Model: HA8LP-PUSH-CL-39
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$4,208.00
$2,199.17
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Record USA Low Profile Push Auto Operator Non-Hand, 4-1/8in H x 5-1/8in D x 39in L, Operating Voltage 115VAC

The Record HA8-LP combines power and reliability with a low-profile header for a more aesthetic appeal. It’s perfect for moderate to high-traffic locations where dependability outweighs extra features. The HA8-LPs high precision gears are made for sustained long-term use. The HA8-LP is compatible with most safety and activation devices, and can be integrated with building access & security systems. Available in push or pull, clear, dark bronze or tuxedo black for single, pair or dual egress configurations. It is also available in the EZ36 Kit, which comes with everything you need to automate a standard 36” door in one easy box.

Features:

  • Quiet operation
  • Permanent lubrication - maintenance free
  • High precision gears made for sustained long-term use
  • Plug-n-Play design for fast trouble free installation
  • On-board programming
  • Built in strike/mag lock relay - fail safe or fail secure
  • Separate inputs for activation and safety devices
  • Built to outlast the competition



Specifications:

  • Header Size: 4-1/8” x 5-1/8”
  • Motor Type: Electro-mechanical
  • Drive Train Gear Box: Aluminum-alloy gearbox
  • Control Box: Single HA8 w/ data, 24 VDC, 3 AMP
  • Operating Voltage (standard): 115VAC
  • Gear Grease: High wear protection
  • Bearings: HD Sealed
  • Arm Connection: 1” Solid spline spindle
  • On/Off/Hold Open Switch: Yes
  • Adjustable Stop: Yes
  • Adjustable Spring Tension: Yes
  • Mechanical Clutch: Standard
  • Electric Strike Power: Yes, 24 VDC
  • Circuit Protection: 3 amp fuse
  • Side Loading: Yes
  • Manual Opening/Closing Force: Adjustable 5 to 30 lbs.
  • Push Reveal: Up to 14”
  • Pull Reveal: Up to 5”

Manufacturer Resources

Product Specs

Traffic Rating:
Moderate Traffic
Product Group:
Door Controls
Product Subgroup:
Automatic Operators
Product Type:
Automatic Operators
Subcategory:
Door Closers
Commercial/Residential:
Commercial
Door Hand Direction:
Non-Handed
Product Category:
Door Controls
Department:
Door Hardware

Record-USA HA8LP-PUSH-CL-39 – Frequently Asked Questions

1) Will the Record HA8-LP low profile operator work on a left or right hand door?
The HA8-LP header is non-handed, so one unit covers either swing. You set direction at install rather than ordering a hand. It can also be configured for single, pair, or dual egress openings.
2) What is the difference between the push and pull version of the HA8-LP, and how do I know which one I need?
It comes down to which side of the door the header sits and how much reveal you have. The push configuration handles reveal up to 14 inches, while the pull configuration is limited to reveal up to 5 inches. The 39 inch push operator described here is the push arm setup, so measure from the face of the door to the header mounting surface before you commit.
3) Can I tie a maglock or electric strike into this auto operator, or do I need a separate power supply and relay?
No separate relay board is needed. The HA8-LP has a built in strike/maglock relay that can be set fail safe or fail secure, and it supplies 24 VDC strike power from the operator. The control box is a single HA8 with data, 24 VDC, 3 AMP, protected by a 3 amp fuse. That is enough to run a typical strike off the header, and it lets the operator sequence unlock before opening.
4) What power does the Record HA8-LP swing door operator need at the header?
Standard operating voltage is 115VAC, so you need a dedicated 120V circuit run to the header. The internal control board steps that down to 24 VDC for accessories and strike power.
5) Can I use my existing push plates and motion sensors with this operator?
The HA8-LP takes most common safety and activation devices, and it has separate inputs for activation and for safety devices, so a wall push plate and an overhead presence sensor can both land on the board without a splitter. It can also be integrated with building access and security systems.
6) Is this operator heavy duty enough for a busy retail entrance?
It is rated for moderate traffic and is a commercial duty unit, which the manufacturer positions for moderate to high traffic entries where reliability matters more than added features. The drive uses an aluminum alloy gearbox, heavy duty sealed bearings, permanently lubricated high precision gears and a standard mechanical clutch to absorb abuse on the arm.
7) What arm spindle does the HA8-LP use, and can I set the open position and closing force in the field?
Arm connection is a 1 inch solid spline spindle. On board adjustments include an adjustable stop for open position, adjustable spring tension, and manual opening and closing force adjustable from 5 to 30 lbs, which is how you dial in push/pull effort for the opening. Programming is done on the board itself, and there is an on/off/hold open switch built in.
8) If I am automating a plain 36 inch door from scratch, should I buy the operator by itself or a kit?
A bare HA8-LP header is the right buy when you already have the arm, activation devices and sensors, or when you are matching an existing bank of doors. For a single standard 36 inch door with nothing else on hand, Record packages the HA8-LP as the EZ36 Kit, which includes everything needed to automate that door in one box.
9) Can the HA8-LP be side loaded into an existing header or tube?
Yes, side loading is supported, which lets the operator drop into the side of a header tube instead of requiring full access from below. Combined with the plug and play wiring, that is what keeps retrofit labor down on an existing storefront.
10) What finishes does the Record HA8-LP header come in?
Two finishes are offered on this 39 inch push operator: 689 clear anodized aluminum and 710 dark bronze. The HA8-LP family is also produced in tuxedo black if you are matching an existing dark storefront.
11) Does this operator need scheduled lubrication or gear service?
No periodic greasing. The gearbox is permanently lubricated and marketed as maintenance free, using a high wear protection gear grease with heavy duty sealed bearings. For an MRO program that means the header is a check and adjust item, not a lube item.
