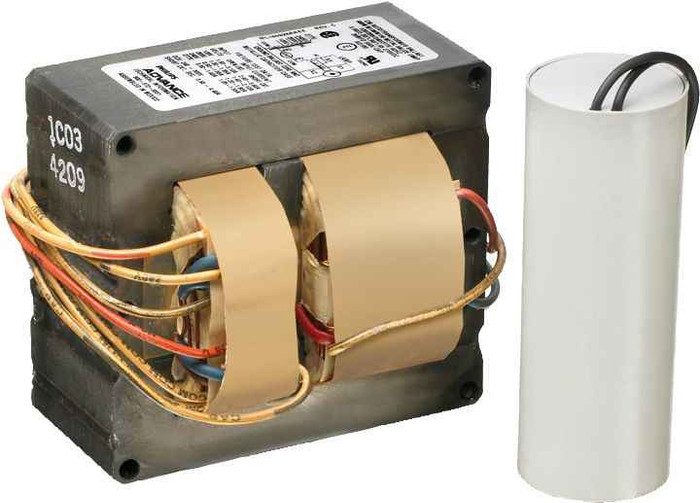

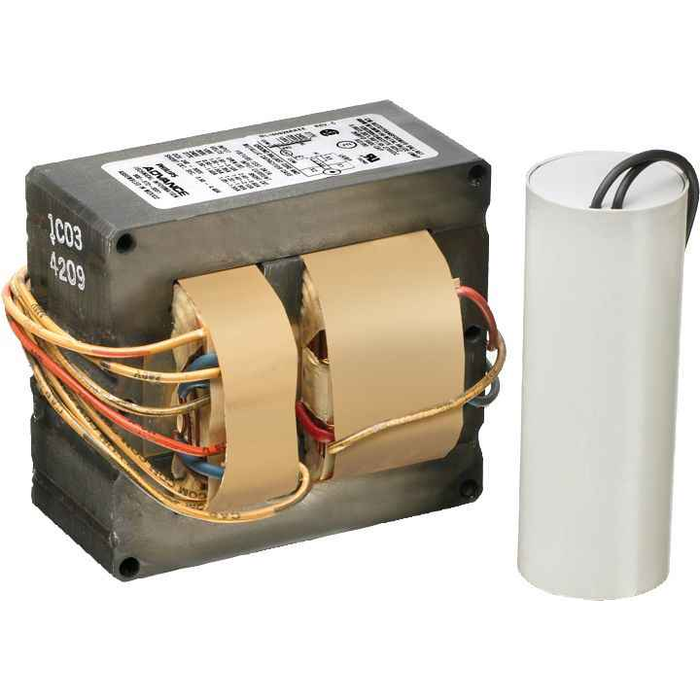

Advance Magnetic HID Ballast 100W HPS S54 120V 60Hz Kit

Advance Magnetic HID Ballast 100W HPS S54 120V 60Hz Kit

Professional HPS lighting ballast for reliable luminaire performance

The Advance Magnetic HID Ballast delivers dependable 100W HPS lamp operation at 120V with pulse start technology and Class P thermal protection. This single-lamp ballast kit features Signify Electronics with 0.9 power factor for efficient performance and compact 2.63" x 2.70" x 2.19" dimensions for versatile luminaire integration. UL listed and CSA certified with RoHS compliance ensures professional installation standards.

Professional Features & Benefits

• 100W Power Rating: Optimized for standard HPS lamp applications with reliable magnetic ballast technology
• S54 ANSI Code: Ensures proper lamp compatibility and consistent performance specifications
• Pulse Start Technology: Provides reliable lamp ignition and extended lamp life for reduced maintenance
• Class P Thermal Protection: Built-in safety protection prevents overheating and ensures safe operation
• 0.9 Power Factor: High efficiency operation reduces energy consumption and improves system performance
• UL/CSA Certified: Professional safety listings ensure code compliance and reliable installation
• Compact Design: 2.63" x 2.70" x 2.19" dimensions allow flexible luminaire integration

Technical Specifications

• Ansi Code: S54
• Ballast Factor: 1
• Country Of Origin: USA
• Dimmable: No
• Frequency Rating: 60 Hz
• Lamp Type: HPS
• Microfarad: 36 MFD
• Number Of Lamps: 1
• Power Factor: 0.9
• Power Rating: 100 WTT
• Product Height: 2.1900 IN
• Product Length: 2.6300 IN
• Product Type: Magnetic HID
• Product Wattage: 100 W
• Product Weight: 3.300 Lbs
• Product Width: 2.7000 IN
• Standard: ULR;CSA certificate;RoHS Compliant
• Start Type: PULSE
• Thermal Protection: CLASS P
• Voltage Rating: 120 V

Installation & Operation

1. Mount the ballast in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Commercial Lighting Systems
• Industrial Facility Lighting
• Warehouse and Storage Areas
• Parking Structure Illumination
• Security and Area Lighting
• Retrofit and Replacement Projects
• Professional Luminaire Manufacturing

Why Choose Advance Quality?

Advance ballasts deliver proven magnetic HID technology with UL and CSA safety certifications for professional installations. Class P thermal protection and RoHS compliance ensure reliable operation and environmental responsibility, while USA manufacturing supports quality construction standards for long-term luminaire performance.
