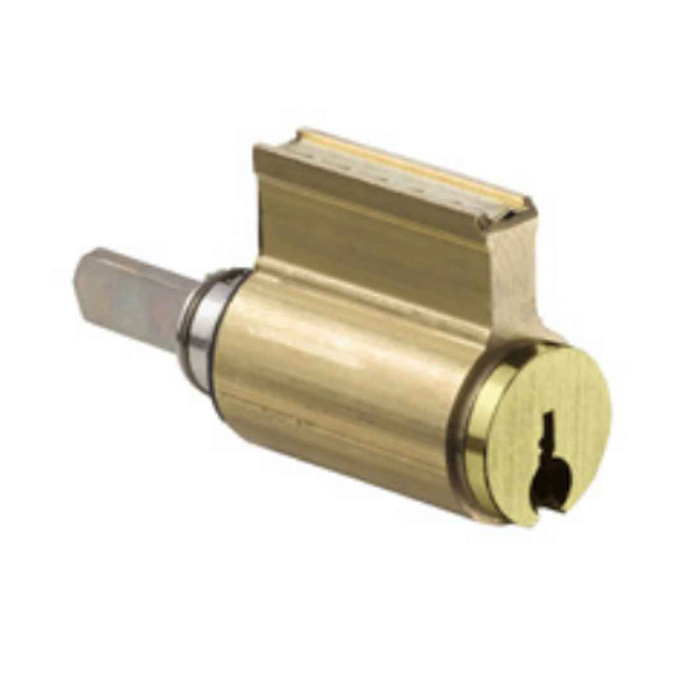

Sargent C10 6-Pin Bored Lock Cylinders for 10, 7, 6500, 7500 Series with ANSI Grade 1 Certification

Sargent C10 6-Pin Bored Lock Cylinders for 10, 7, 6500, 7500 Series with ANSI Grade 1 Certification

(No reviews yet) Write a Review

Model: SGT-C10-1 LA 4
From the Conventional Key System Collection
$118.00
$78.76
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$118.00
$78.76
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent C10 6-Pin Bored Lock Cylinders with ANSI Grade 1 Certification for 10/7/6500/7500 Series

Professional Cylinder Solution for Commercial Lock Systems

Sargent C10 6-pin bored lock cylinders provide secure keying solutions for 10, 7, 6500, and 7500 line series locks with ANSI/BHMA A156.5 Grade 1 certification. These professional-grade cylinders feature 6-pin configuration for enhanced security and are supplied 1-bitted with 2 nickel silver keys. Available in multiple finish options including 4, 15, and BSP with three function variations including standard applications, hotel function (50), and emergency release cointurn cylinder (65) configurations.

Professional Features & Benefits

  • ANSI Grade 1 Certification: ANSI/BHMA A156.5 Grade 1 certified construction ensures professional-grade security and durability standards for commercial applications.
  • 6-Pin Security Configuration: Enhanced security design with 6-pin construction provides superior key control and resistance to unauthorized access.
  • Multiple Function Options: Available in three variations - C10-1 for all functions except hotel, C10-2 for hotel function (50), and C10-3 for emergency release cointurn cylinder (65).
  • Series Compatibility: Designed specifically for Sargent 10, 7, 6500, and 7500 line series bored locks for seamless integration and consistent performance.
  • Flexible Keying Options: Standard 1-bitted supply with KD- option available for cylinders keyed differently/random, plus master key system compatibility for complex access control needs.
  • Professional Finish Options: Available in finishes 4, 15, and BSP to match existing hardware and meet architectural requirements.
  • Complete Installation Package: Each cylinder supplied with 2 nickel silver keys for immediate installation and operation.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent C10 bored lock cylinders deliver professional-grade reliability with ANSI/BHMA A156.5 Grade 1 certification and 6-pin security construction. The comprehensive keying options and multiple function variations provide flexibility for demanding commercial applications where dependable access control is essential. Compatible with established Sargent 10, 7, 6500, and 7500 series locks for consistent system integration and long-term performance.

Product Specs

Series:
10 Line Series
Product Type:
Cylinder
Product Group:
Mechanical Locks
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Collection:
Conventional Key System
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Mechanical Locks
Department:
Door Hardware

Sargent SGT-C10-1 LA 4 – Frequently Asked Questions

1) Which Sargent locks does the C10 cylinder fit?
The C10 bored lock cylinder is built for Sargent 10 Line, 7 Line, 6500 and 7500 Line series bored locks. If the lock on your door is one of those four families, this is the replacement cylinder for it. It is a conventional key system cylinder, not a large-format interchangeable core, so it drops into locks set up for conventional keying.
2) What is the difference between the Sargent C10-1, C10-2 and C10-3 cylinders?
Function decides which one you order. C10-1 covers all functions except hotel. C10-2 is the hotel function (50) cylinder. C10-3 is the emergency release cointurn cylinder for the 65 function. Pick the one that matches the lock function already on the door, because the cylinders are not interchangeable across those functions.
3) Can I get Sargent C10 cylinders keyed alike across a building?
Yes. Keying is a required choice when you order: standard keying, KD for keyed different, or KA for keyed alike. Keyed alike is what you want when one key should open a run of doors, for instance a set of mechanical rooms or a tenant suite. Keyed different is the choice for individual unit doors. Ordered as standard, the cylinder ships 1-bitted with two nickel silver keys, which means it is not usable as a finished key until it is bitted or you specify KD or KA.
4) Which keyway do I order for a Sargent C10 cylinder to work with my existing keys?
Nine Sargent keyways are offered: LA (the standard), LB, LC, LE, LF, LG, LJ, LK and LL. The cylinder has to be ordered in the same keyway family as the keys already in use on the building, or the existing key will not enter it. If you are starting fresh with no legacy system, LA is the standard choice. If you are adding to an existing Sargent system, pull a key and read the keyway stamp before ordering.
5) Are Sargent C10 cylinders Grade 1?
The C10 cylinder is certified to ANSI/BHMA A156.5 Grade 1, the top grade in the auxiliary lock and cylinder standard. That is the level most institutional and government specs call for on commercial openings, so if the drawing says Grade 1 cylinder, this meets it.
6) I am replacing a worn cylinder on a hotel guest room lock. Will the standard C10 work?
No, not the standard one. A hotel function lock (function 50) needs the C10-2 cylinder specifically; C10-1 covers everything except hotel. Order the wrong one and the shutout feature will not operate. Same caution on emergency release openings running the 65 function, which take the C10-3 cointurn cylinder.
7) What finishes do Sargent C10 bored lock cylinders come in?
Three: 04 satin brass with clear coat, 15 satin nickel plated with clear coat, and BSP black suede powder coat. The cylinder face is the visible part on the outside of the lock, so match it to the lever or knob already on the door. On a 626 satin chrome lockset, 15 satin nickel is the closest match of the three.
8) Is the Sargent C10 cylinder for commercial or residential doors?
Commercial. It is a replacement cylinder for Sargent commercial bored locksets, the kind found in offices, schools, healthcare, retail, warehouses, multi-tenant residential and municipal buildings. For a house door with a residential-grade knob, this is not the part.
9) Does the Sargent C10 cylinder come with keys?
Two nickel silver keys ship with each cylinder. Nickel silver is the standard key blank material for commercial systems because it holds a bitting better than brass under daily use. If you are ordering for a fleet of doors and need more keys per opening, that is a separate line item from your keying schedule.
