Sargent 34-RIM Rim Cylinder wi...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$139.43
$79.86
Sargent 34-RIM Rim Cylinder with Horizontal Tailpiece and No. 97 Rosette

Sargent 34-RIM Rim Cylinder with Horizontal Tailpiece and No. 97 Rosette

(No reviews yet) Write a Review

Model: 34-HB-32D
From the Signature Key System Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$139.43
$79.86
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

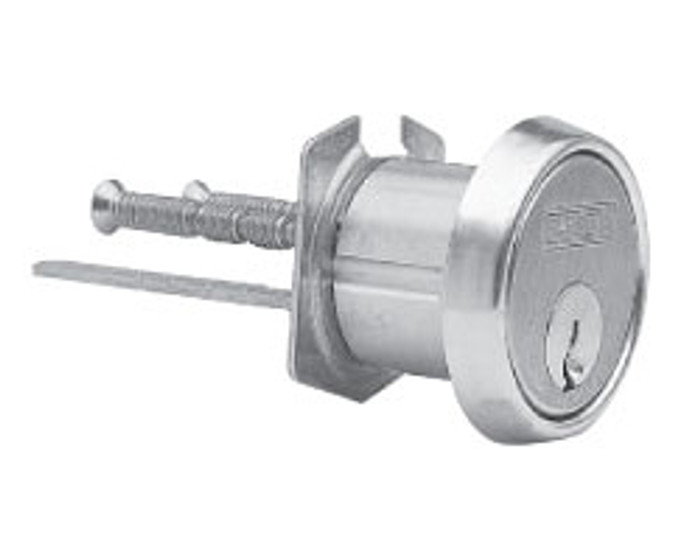

Sargent 34 Series Rim Cylinder with Horizontal Tailpiece and No. 97 Rosette

Professional Rim Cylinder for Exit Device Applications

The Sargent 34 Series Rim Cylinder delivers reliable keyed access control with a horizontal tailpiece design and 27/32" screw pattern configuration. This solid brass cylinder accommodates door thicknesses from 2-3/8" to 3-1/4" and features a 1-11/32" face diameter with 2-3/8" tailpiece length. Compatible with KP8877 Keypad Operated Products, 8877 Profile Series Access Control Products, and 20, 30, 80, and 90 Series Exit Devices, meeting BHMA A156.5 standards for professional applications.

Professional Features & Benefits

  • Door Thickness Compatibility: Accommodates 2-3/8" to 3-1/4" door thickness for versatile installation options across various door types.
  • Precision Dimensions: 1-11/32" cylinder face diameter with 2-3/8" tailpiece length and 1/8" head thickness for exact fit requirements.
  • Solid Brass Construction: Durable solid brass material provides exceptional longevity and corrosion resistance for demanding commercial environments.
  • Multi-Series Compatibility: Works with KP8877 Keypad Operated Products, 8877 Profile Series Access Control Products, and 20, 30, 80, and 90 Series Exit Devices for flexible system integration.
  • 6-Pin Security: Six-pin cylinder design provides enhanced security with keyed different configuration for individual access control.
  • BHMA Certified: Meets BHMA A156.5 standards ensuring compliance with commercial hardware requirements.
  • Standard Rosette Configuration: Furnished with No. 97 Rosette and compression spring for complete installation readiness.
  • Professional Cap Options: Available with brass, bronze, or stainless steel cap finishes to match existing hardware aesthetics.

Technical Specifications

  • Refer to manufacturer documentation for complete technical specifications.

Installation & Operation

  1. Review manufacturer specifications and verify door preparation requirements including door thickness, stile width, and handing as applicable to this product.
  2. Use manufacturer-provided templates to mark mounting hole locations accurately on door and/or frame surfaces.
  3. Prepare door and frame by drilling required holes and routing as specified in manufacturer instructions.
  4. Install all mounting hardware and secure the device to door and frame per manufacturer torque specifications.
  5. Adjust operational components for proper alignment, latching, and smooth operation throughout the full range of motion.
  6. Test device operation to verify proper function and make final adjustments as needed. Refer to manufacturer documentation for complete installation details and troubleshooting.

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Sargent Quality?

Sargent 34 Series rim cylinders deliver professional-grade reliability with solid brass construction and precision manufacturing meeting BHMA A156.5 standards. The 6-pin security design and compatibility with multiple exit device series ensures dependable access control performance. Engineered for demanding commercial applications where consistent operation and long-term durability are essential.

Product Specs

Product Type:
Cylinders
Product Group:
Mechanical Locks
Product Subgroup:
Parts and Accessories
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Collection:
Signature Key System
Series:
34 Series
Parts and Accessories Type:
Replacement Parts
Product Attribute:
Parts and Accessories
Product Category:
Mechanical Locks
Department:
Door Hardware

Sargent 34-HB-32D – Frequently Asked Questions

1) Will a Sargent 34 rim cylinder work on my Sargent 80 Series exit device?
Yes. The 34 Series rim cylinder is built for Sargent 20, 30, 80 and 90 Series exit devices, and it also drives KP8877 keypad products and the 8877 Profile Series access control units. It ships with the horizontal tailpiece and a 27/32 inch screw pattern, which is the pattern those rim devices are prepped for.
2) What door thickness does the Sargent 34 rim cylinder cover?
From 2-3/8 inches up to 3-1/4 inches. That range covers standard 1-3/4 inch commercial doors fitted with a rim exit device, where the device chassis adds to the effective thickness the cylinder has to reach through. The tailpiece is 2-3/8 inches long and the head is 1/8 inch thick.
3) Which Sargent keyway do I order to match the rest of my building's keying?
Eleven keyways are offered on the 34 rim cylinder: HB, HE, RA, RB, RC, RE, RF, RG, RJ, RL and S. Pick the one already in your master key system, since the cylinder is part of the Signature Key System family. Ordering a keyway that does not match your existing bitting means the cylinder cannot be keyed into the system and you will be carrying a second key.
4) Is a rim cylinder the same thing as a mortise cylinder for an exit device?
No, and they are not interchangeable. The 34 rim cylinder uses a flat tailpiece that passes through the door to drive a rim exit device directly, which is why it is dimensioned by tailpiece length (2-3/8 inches) rather than by threaded length. A mortise cylinder threads into a housing and turns a cam instead. If your device is a mortise exit device or a mortise lock body, the 34 rim cylinder will not drive it.
5) What size hole does the Sargent 34 rim cylinder face need?
The cylinder face measures 1-11/32 inches in diameter, so the device or door prep has to accept that. It comes furnished with the No. 97 rosette and a compression spring, so you are not sourcing the trim ring separately.
6) Is the Sargent 34 rim cylinder a 5-pin or 6-pin?
Six pins, supplied keyed different. Six-pin is what you want if your facility runs a master key system with any depth to it, since the extra chamber gives the keying system more room to expand. Keyed different means each cylinder arrives on its own key unless your locksmith rekeys it into the system.
7) Does the Sargent 34 rim cylinder meet BHMA standards for a commercial job spec?
It meets BHMA A156.5, the standard covering auxiliary cylinders and related hardware, and it is a commercial-rated part. That is the line an institutional spec writer usually needs on the submittal for a cylinder.
8) Can I use a Sargent 34 rim cylinder to rekey a keypad exit device rather than replacing the whole unit?
Yes, for Sargent KP8877 keypad operated products and 8877 Profile Series access control products. The 34 is a replacement part, so where the key override cylinder has failed or needs to be brought into a different keyway, you can swap the cylinder and leave the device on the door.
9) What finishes can I get a Sargent 34 rim cylinder in to match my existing exit device trim?
Four: 03 bright brass clear coated, 10 satin bronze clear coated, 10B dark oxidized satin bronze oil rubbed, and 32D satin stainless steel. For a building already standardized on 32D exit devices, the 32D cylinder is the match. Cap finishes are offered in brass, bronze or stainless steel.
10) Will a solid brass rim cylinder hold up on an exterior door?
The 34 cylinder body is solid brass, which resists corrosion, so it takes exterior and high-traffic openings better than a plated pot metal cylinder. On a coastal or wash-down opening, the 32D satin stainless steel finish is the one to pick over the clear-coated brass, since a clear coat is what wears first.
