Sargent & Greenleaf Black Dial...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$35.35
$29.71

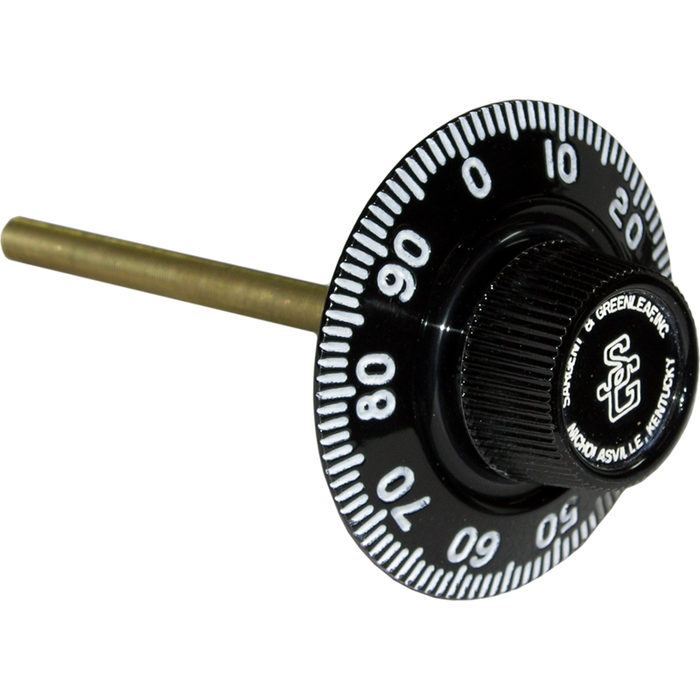

Sargent & Greenleaf Black Dial 3.75in Diameter

Sargent & Greenleaf Black Dial 3.75in Diameter

(No reviews yet) Write a Review

Model: D003-003
Selected Dial is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$35.35
$29.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Sargent & Greenleaf Black Dial 3.75in Diameter

The black & white front reading, small knob dial with logo in center. Use with 6700 series lock and R004-002 ring (not included)

Features:

  • Threading is 5/16x40
  • Will accommodate a door thickness up to 3.406 inches
  • Spindle is brass
  • Length is approx. 4-1/2"
  • Key included

Manufacturer Resources

Product Specs

Catergory:
Safe Locks
Product Group:
Safes
Product Subgroup:
Parts and Accessories
Lock Type:
Mechanical Lock
Safe Parts:
Combination Dial
Subcategory:
Parts and Accessories
Product Type:
Safe Lock
Door Hand Direction:
Non-Handed
Department:
Safety

Sargent & Greenleaf D003-003 – Frequently Asked Questions

1) Does the Sargent & Greenleaf black dial come with the dial ring?
No ring is included. The black and white front reading dial is sold on its own and is meant to be used with the R004-002 ring, which you order separately. A key is included with the dial.
2) How thick a safe door will this S&G dial and spindle handle?
The spindle accommodates a door thickness up to 3.406 inches, with an overall length of roughly 4-1/2 inches. If your safe door is thicker than that, this dial and spindle assembly won't reach.
3) What is the spindle thread on the Sargent & Greenleaf black dial?
Threading is 5/16 x 40, and the spindle itself is brass. That thread has to match the lock body you are mounting to, so confirm the 5/16x40 spec against the 6700 series lock on the safe before you thread it in.
4) Is this dial front reading, and is it the small knob style?
Yes on both counts. It's a front reading dial, meaning you read the combination index at the front rather than the top, with a small knob and the S&G logo in the center. The face is black with white numbering, 3.75 inches in diameter.
5) I'm replacing a worn dial on a safe, do I need the lock body too?
Not necessarily. This is a combination dial assembly, a replacement part for the outside of the door, not the lock case itself. If your 6700 series mechanical lock is still working correctly, the dial plus the R004-002 ring is what you need. Match the 5/16x40 spindle thread and confirm your door is no thicker than 3.406 inches.
6) Does the S&G safe dial have a handing, left or right?
It's non-handed, so the same dial serves a left or right hung safe door. No hand needs to be specified when ordering.
7) What is the manufacturer part number for this Sargent & Greenleaf black and white dial?
The black and white dial is supplied under MPN YBLED60/PCT from Sargent & Greenleaf. It is the only dial variant offered in this configuration.
