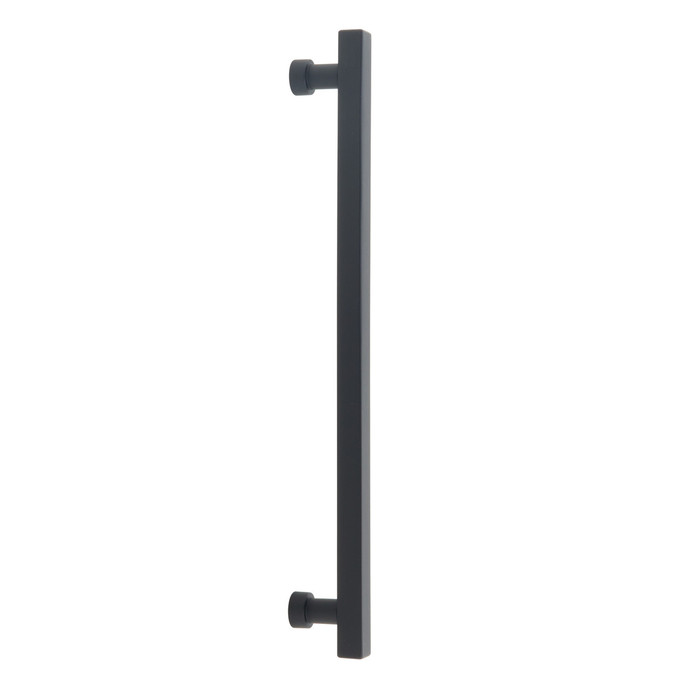

Schaub CS211118 Noho Square Cabinet Appliance Pull with 12" Center to Center and Concealed Surface Mounting

Yes. The Noho CS211118 is drilled 12 inches center to center, and the pull itself measures 12 inches overall, so the posts land right at the ends of the bar. If your panel is already bored at 12 inch spacing it drops straight onto the existing holes.

The Noho CS211118 uses 1/4-20 threaded posts with 1 inch long screws. That is the heavier appliance-pull thread, not the 8-32 machine screw used on standard cabinet pulls, so the drilled hole needs to suit 1/4-20. The 1 inch screw length covers a typical appliance panel or door front; a thicker built-up panel needs longer 1/4-20 screws sourced separately.

The Schaub CS211118 is an appliance pull on 12 inch center-to-center spacing, which is sized for refrigerator and panel-front appliance doors rather than a base cabinet drawer. For the smaller openings in the same run, the Emtek Bar Cabinet Pull in the Schaub Collection is a cabinet pull in a bar profile, and the Emtek Select cabinet pull line covers knob and pull options in the same Schaub Collection. Omnia's 1968/102 is another route, a forged solid brass modern pull on 4 inch center-to-center spacing that suits typical drawer fronts.

They are different parts by size and role. The Schaub CS211118 Noho is a square appliance pull built on 12 inch center-to-center spacing with a 1-5/8 inch projection. The Deltana SBP35 is a modern square bar pull in the SBP Series at 3-1/2 inches, solid brass and heavy duty, which puts it in cabinet door and drawer territory. If you want the square look carried onto smaller fronts alongside a 12 inch appliance pull, the SBP35 fits that role; it will not stand in for the appliance mounting centers.

Projection is 1-5/8 inches. That is enough clearance to get a gloved hand or a full grip behind the bar, which is what you want on a refrigerator or freezer panel that seals tight and needs a hard pull.

Concealed mounting means the fasteners come through from the back of the panel into the pull posts, so nothing shows on the face of the bar. On the Noho CS211118 the 1/4-20 screws thread into the posts from behind the door or drawer front, leaving a clean square bar with no visible hardware.

Five: Matte Black, Polished Nickel, Unlacquered Brass, Satin Brass and Vintage Brass. Worth knowing for a whole-kitchen job that Unlacquered Brass is a living finish and will darken with handling, so it will not stay matched to a lacquered Satin Brass pull over time. If you are standardizing across a fleet of units, pick one of the stable finishes.

If you want the same squared contemporary look in a solid brass pull, the Omnia 1968 series modern cabinet pull is forged solid brass, and the Deltana SBP35 is a heavy-duty solid brass modern square bar pull. Both are shorter cabinet pulls rather than 12 inch appliance bars, so they suit the doors and drawers around the appliance rather than the appliance panel itself. For a true bar across an appliance front, the Orca Hardware CK-12001 T-pull bar is a steel option with a 2 inch bar width.

The Noho CS211118 stands 1-5/8 inches off the face, which gives good knuckle clearance on an appliance panel. If you want the pull to sit tighter to the front, the Omnia 1970 is a forged solid brass modern pull with a 1-1/4 inch projection, and the Omnia 1969 and Omnia 1971 are both forged solid brass modern pulls at 1-3/16 inch projection. All three keep the brass base material and modern styling of the Noho while sitting closer to the door.

The Schaub CS211118 Noho is a solid brass appliance pull offered in Matte Black, Polished Nickel, Unlacquered Brass, Satin Brass and Vintage Brass. Where a brass decorative finish is not required, the Orca Hardware CK-12001 is a steel T-pull bar with a 2 inch bar width in satin nickel from the 12-Bar Pull series. It is a steel part rather than brass, so it will not weather or patina the way unlacquered brass does, and it reads as a plain utility bar rather than a square contemporary profile.

The Noho CS211118 is a square pull in a contemporary style, which can sit at odds with period cabinetry. Within the Schaub Collection offered under Emtek, the Alexander Cabinet Pull and the Art Deco Cabinet Pull are both cabinet pulls with their own series styling and give you a different decorative direction while staying in the same collection family.

Square. The Noho CS211118 is a square-section contemporary bar, so it reads flat and crisp against a slab or flat-panel front rather than the softer look of a round tube pull. Pair it with square knobs if you are mixing shapes across the run.

They serve different openings. The Trimco 553 Series drawer pull is 3 inch center-to-center and the Trimco 562 Series comes in 3-1/2 inch, 4 inch and 96mm center-to-center, all drawer-scale spacings. The Schaub CS211118 Noho is an appliance pull at 12 inch center-to-center with a 1/4-20 x 1 thread and screw size. Using the Trimco pulls on drawers and the Noho on the appliance panels is a workable split, but the Trimco parts are not an appliance pull substitute and the styling is a separate decision.

The CS211118 Noho is a square contemporary appliance pull, so a square knob carries the geometry through. The Orca Hardware CK-17025 in the Blackcomb Collection is a square cabinet knob at 25mm diameter. If you prefer a round knob as a deliberate contrast, the Orca Bachelor Collection CK-15030 is a 1-1/4 inch round cabinet knob and the CK-16030 is a 1-1/4 inch round ring knob. Match the finish to the Noho variant you order.
