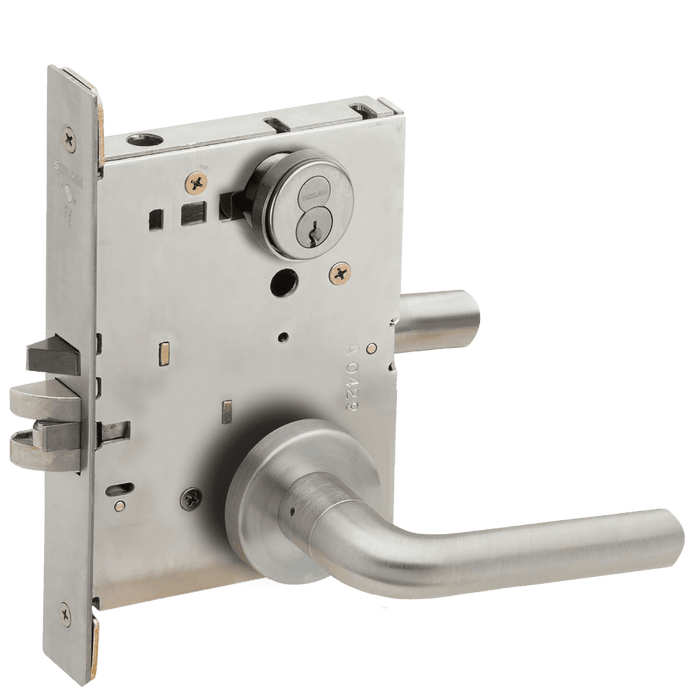

Schlage L9070R02A Classroom Mortise Lock with Large Format IC Core C Keyway

Schlage L9070R02A Classroom Mortise Lock with Large Format IC Core C Keyway

(No reviews yet) Write a Review

Model: L9070R02A626
From the L9000 Series Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,567.00
$1,096.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage L9070R02A Classroom Mortise Lock with Large Format IC Core C Keyway


Style: Same lever, rose and finish for both sides of the door with coordinating latch and strike.
Latch: ANSI/BHMA Certified A156.13-2012, Series 1000, Grade 1 Operational,
Grade 1 Security, UL Listed for 3-hour fire door (except L9076 and L9077).
With FSIC Interchangeable Core Cylinders: Grade 1 Operational, Grade 2 Security.
With SFIC Interchangeable Core Cylinders: Grade 1 Operational, Grade 3 Security.
Case Size: 4-7/16" x 6-1/16" x 1";
Armor Front: 1-1/4" x 8";
Strike: 1-1/4" x 4-7/8" Square corner, 1-3/16" lip, box;
Backset: 2-3/4";
Door Thickness: 1-3/4".



L9071 - CLASSROOM SECURITY NON-DEADBOLD FUNCTION LOCK

  • Latchbolt retracted by knob/lever from either side unless outside is locked by key from either side;
  • When locked, latchbolt retracted by outside key or inside knob/lever;
  • Auxiliary latch deadlocks latchbolt when door is closed;
  • Inside lever always free for immediate egress.



Schlage L SERIES OVERVIEW

The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.

180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.



FEATURES & BENEFITS

Security

  • Exceeds ANSI/BHMA Grade 1 Security and Operational standards
  • Deadbolt functions include anti-saw pin in bolt to prevent cut-through
  • Security blocking hub prevents lock picking by removing levers



Function availability and compatibility

  • 55+ standard functions (custom functions are also available)
  • Universal lock case allows 10 functions to be created from a single lock body
  • Electrified locks auto detect 12V/24V DC, have customer-selectable EL/EU, and offer advanced features like: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility while offering leading energy efficiency



Aesthetics

  • 14 finishes
  • 33 lever, two knob, five rose and three escutcheon designs
  • Locking lever bushing eliminates exposed screws on inside levers
  • All levers suite with Von Duprin exit devices, along with related L Series products LE, LM9200, LM9300 and LT



Options

  • Exclusive 180° visibility indicator
  • Vandlgard® free-wheeling outside trim option is available on most functions, including electrified
  • Expansive options portfolio, including different door thickness, finish/trim combinations, tactile warning, anti-microbial coatings, etc.
  • New Gold Standard ligature resistant trim for behavioral health applications



AVAILABLE L SERIES FUNCTIONS

View the Schlage L Series catalog for descriptions of all available functions.



CERTIFICATIONS & TESTING

View the Schlage L Series catalog to see all specifications and certifications.

Certifications

  • Meets BAA (Buy American Act)
  • L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational
  • UL listed for 3-hour fire door (except L9076 and L9077)
  • With interchangeable core cylinders: Grade 2 security
  • With concealed shell cylinder: A156.13 Grade 1 operational and security
  • ANSI/ASTM F476-76 Grade 40, UL listed
  • L400: tested and certified under ANSI/BHMA A156.36 Grade 1
  • California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply
  • UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing
  • Electrified functions are UL19X listed for single-point locking applications
  • UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder
  • Miami-Dade NOA's and Florida Building Commission Listings
  • Meet ADA requirements



DOWNLOADS & RESOURCES



Technical resources



Manufacturer Resources

Product Specs

Subcategory:
Mortise Locks
Product Group:
Mechanical Locks
Series:
L Series
Function Description:
Latchbolt retracted by knob/lever from either side unless outside is locked by key from either side. Auxiliary latch deadlocks latchbolt when door is closed. Inside knob/lever is always free for immediate egress.
Grade:
Grade 1
Duty Level:
Heavy Duty
Keyed Function:
Double Cylinder
Standard Cylinder:
Conventional 6-pin Cylinder, C Keyway
Handle Type:
Lever
Standard Strike:
10-072 1-1/4" x 4-7/8" Square Corner Strike, Box (1-3/16" Lip Length)
Mortise Case Size:
4-7/16" x 6-1/16" x 1"
Warranty:
3 Year Limited
Keyed:
Yes
ANSI/BHMA:
F32
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Classroom Security
IMAP Policy:
Yes
Product Attribute:
Mortise Locks
Electronic:
No
Product Model:
L9070
Collection:
L9000 Series
Product Function:
Classroom Security
Door Hand Direction:
Field Reversible
Door Thickness Range:
1-3/4"
Product Category:
Mechanical Locks
Product Substrate:
CRS with Zinc Dichromate Plating
Backset (Distance):
2-3/4"
Department:
Door Hardware

Schlage L9070R02A626 – Frequently Asked Questions

1) How does the Schlage L9070 classroom security function work from inside the room during a lockdown?
The L9070 classroom security function lets a teacher lock the outside lever with a key from inside the room, so nobody has to step into the corridor. Latchbolt is retracted by lever from either side unless the outside is locked by key from either side; when locked, the outside key or the inside lever still retracts it. The inside lever is always free for immediate egress, and an auxiliary latch deadlocks the latchbolt when the door is closed.
2) Will the Schlage L9070 mortise lock fit my existing door prep and strike?
It is built for a 2-3/4 inch backset in a 1-3/4 inch door, with a mortise case measuring 4-7/16 x 6-1/16 x 1 inch and a 1-1/4 x 8 inch armor front. It ships with the 10-072 strike, 1-1/4 x 4-7/8 inch square corner with a 1-3/16 inch lip and a box. If your frame already has an ANSI square-corner mortise strike prep at that size, it drops in; a curved-lip or T-strike frame will need the strike prep changed.
3) What cylinder and keyway does the Schlage L9070R02A come with, and can it go on an existing C keyway master system?
It comes with a conventional 6-pin cylinder in the Schlage C keyway, the most common Schlage keyway, so it keys into an existing C keyway system. Both sides are cylinders (double cylinder keyed function), which is what makes the outside lever lockable by key from inside the classroom.
4) Is this Schlage mortise lock approved for a fire rated classroom door?
The L9000 mortise locks are UL listed for 3-hour fire doors (the exceptions are the L9076 and L9077, not the L9070), and UL/cUL listed for A label single doors up to 4 x 10 feet and pairs up to 8 x 10 feet. Look for the letter F and the UL symbol on the latch front. The lock is also certified to ANSI/BHMA A156.13 Grade 1 operational and security, function F32.
5) Does the Schlage L9070 meet ADA and Buy American requirements for a school or government project?
Yes on both counts. The L Series meets ADA requirements and meets the Buy American Act, and all levers with a return to door of 1/2 inch or less comply with the California Referenced Standards Code. This is a lever trim lock, which is what ADA accessible openings call for rather than a knob.
6) What is a cross-brand equivalent to the Schlage L9070 classroom mortise lock?
The Corbin Russwin ML2003 is a Grade 1 mortise classroom lockset in the ML2000 Series rated for 1-3/4 inch doors, the same grade, function and door thickness the Schlage L9070 carries. The Cal-Royal NM8070 is another Grade 1 classroom mortise lockset for 1-3/4 inch doors. All three are mechanical classroom-function mortise locks, so the deciding factors are keyway and cylinder program rather than function; the L9070 comes with a conventional 6-pin C keyway cylinder.
7) We want keypad access on classroom doors instead of keys. What replaces the L9070?
The Schlage L9070 is a mechanical, keyed lock with no electronic components. For code-based access on the same opening, the Alarm Lock DL2700CR Trilogy T2 is a Grade 1 classroom-function electronic mortise lock for doors 1-5/8 to 1-7/8 inches thick, and the DL3500CR is a Grade 1 classroom-function Trilogy mortise lock holding 300 user codes over the same thickness range. Both operate on keypad codes, while the L9070 is keyed with a C keyway cylinder on a 1-3/4 inch door.
8) Does a classroom intruder function exist as an alternative to the L9070, so staff can lock the door from inside?
Yes. The BEST 45HCA heavy duty mortise lockbody is offered with an intruder function, and the TownSteel FME-4000 is a Grade 1 heavy duty electronic intruder classroom mortise lockset with RFID technology for 1-3/4 inch doors. The Schlage L9070 is a classroom security function, meaning the outside lever is locked by key from either side of the door rather than by a separate inside-only control.
9) Do I need to specify handing for a Schlage L9070 classroom mortise lock?
No. The L9070 lock case is field reversible, so one lock covers left and right hand openings and you can standardize a building on a single part number.
10) Will a Schlage L9070 lock work on a 1-3/8 inch door or a thicker 2 inch door?
Not as supplied. This one is built for a 1-3/4 inch door, the standard commercial thickness. Different door thicknesses are available in the L Series options portfolio, so a thicker door needs the thickness option specified rather than this configuration. For openings in the 1-5/8 to 1-7/8 inch range an Alarm Lock Trilogy DL3500CR classroom electronic mortise lock covers that spread.
11) Does the Schlage L9070 lever match the trim on our Von Duprin exit devices?
Yes. All L Series levers suite with Von Duprin exit devices and with the related L Series products LE, LM9200, LM9300 and LT, so a corridor of mortise locks and exit devices can carry the same lever and finish. This configuration is 626 satin chrome.
12) What are the alternatives to a Schlage L9070 mechanical classroom mortise lock?
The L9070 is purely mechanical, no electronics. If you want the same classroom function in another mechanical Grade 1 mortise lock, the Corbin Russwin ML2003 and the Cal-Royal NM8070 are both Grade 1 classroom mortise locksets for 1-3/4 inch doors. If you want credentials instead of keys, the TownSteel FME-2000 is a Grade 1 classroom mortise lockset with RFID, and the FME-4000 adds an intruder classroom function. For visible lock status, the Marks USA LA318GJ is a classroom security indicator mortise lockset.
13) How does an interchangeable core change the security grade on a Schlage L9000 mortise lock?
The lock body and latch are ANSI/BHMA A156.13-2012 Series 1000 Grade 1 operational and Grade 1 security. Put an FSIC interchangeable core in it and it rates Grade 1 operational, Grade 2 security; with an SFIC core it is Grade 1 operational, Grade 3 security. With a concealed shell cylinder you keep Grade 1 on both. Worth knowing if a spec calls out Grade 1 security explicitly.
14) Is a Sargent 4874 mortise deadbolt a substitute for the L9070 classroom lock?
No. The Sargent 4874 is a double cylinder mortise deadbolt with a 2-3/4 inch backset in the 4870 Series - it provides a bolt only, with no lever and no latchbolt. The Schlage L9070 is a lever-handled classroom security lock whose latchbolt is retracted by the lever and whose auxiliary latch deadlocks the latchbolt when the door closes. A 4874 would be used alongside a latch, not in place of a complete lockset.
15) What is the difference between a classroom mortise lock like the L9070 and a storeroom function lock?
On the Schlage L9070 the latchbolt is retracted by lever from either side unless the outside is locked by key from either side, and the inside lever is always free for egress. A storeroom lock keeps the outside lever fixed at all times and is opened only by key. If the opening needs that behavior instead, the Accentra 8805FL is a Grade 1 storeroom mortise lock in the 8800 Series with an Arcadia lever, and the Cal-Royal NM8080 is a Grade 1 storeroom mortise lockset for 1-3/4 inch doors with an interchangeable core option.
16) What card-reader classroom mortise lock would standardize with the Schlage L9070 openings on a campus?
For credential-based classroom openings, the TownSteel FME-2000 is a Grade 1 heavy duty classroom mortise lockset with RFID technology for 1-3/4 inch doors, matching the L9070 on grade, duty level and door thickness while adding card access. The Schlage Electronics LEMD-GRW is a Grade 1 ENGAGE Series wireless mortise lock with a 125kHz proximity reader and a 3 hour fire rating. The L9070 remains the mechanical, key-operated option for doors that do not need a reader.
17) The room only needs privacy, not classroom keying. What mortise lock is simpler than the L9070?
For a bed/bath or privacy opening, the Hager 3840S is a Grade 1 privacy mortise lock with a 2-3/4 inch backset for doors 1-3/4 to 2 inches, matching the L9070 on backset, and the Cal-Royal NM8440 is a Grade 1 privacy mortise lockset with deadbolt for 1-3/4 inch doors. The Schlage L9070 is a keyed double-cylinder classroom security lock, more lock than a privacy opening requires.
18) Which mortise lock fits a behavioral health room where the L9070 lever would be a ligature risk?
The TownSteel MRX-L-01 is a Grade 1 heavy duty anti-ligature lever mortise lockset in stainless steel with a passage function for 1-3/4 inch doors, and the MRX-A-01 is the ligature resistant arch trim version, also passage function on 1-3/4 inch doors. Both share the L9070's Grade 1 heavy duty rating and 1-3/4 inch door thickness but are passage rather than keyed classroom security.
19) We need an electrified mortise lock for an access control tie-in on doors otherwise using the L9070. What are the options?
The BEST 45HW is a heavy duty wired electromechanical mortise lock operating on 12V or 24V, and the Command Access ML190 is a heavy-duty motorized storeroom mortise lock with field selectable EL/EU operation on 24VDC. The Schlage L9070 itself is a non-electronic mechanical classroom security lock, so an electrified opening needs one of those in place of it rather than an add-on.
20) Is the Cal-Royal NM8050 office function close enough to the L9070 for a classroom door?
They behave differently. The Cal-Royal NM8050 is a Grade 1 office/entrance mortise lockset with auxiliary deadlatch for 1-3/4 inch doors, where the outside lever is typically locked by an inside control. The Schlage L9070 is classroom security: the outside is locked by key from either side and the inside lever is always free for egress. If you want the Cal-Royal line in a true classroom function, the NM8070 is the Grade 1 classroom version for the same 1-3/4 inch door.
21) For a dormitory corridor door, should I order the L9070 or something else?
The Sargent 7925 is a Grade 1 heavy duty corridor/dormitory exit function mortise lock in the 7900 Series with rose trim and a single cylinder deadbolt, which suits a dorm corridor opening that needs a deadbolt thrown from inside. The Schlage L9070 is a classroom security function with no deadbolt - the latchbolt is retracted by outside key or inside lever when locked, and the inside lever stays free for egress.
22) What is the Schlage L9070 lock case made of, and is it heavy enough for a school corridor?
The case is cold rolled steel with zinc dichromate plating and the lock is rated heavy duty for commercial use. A security blocking hub stops picking by pulling the levers off, and the case is part of the universal L9000 body that supports 10 different functions.
