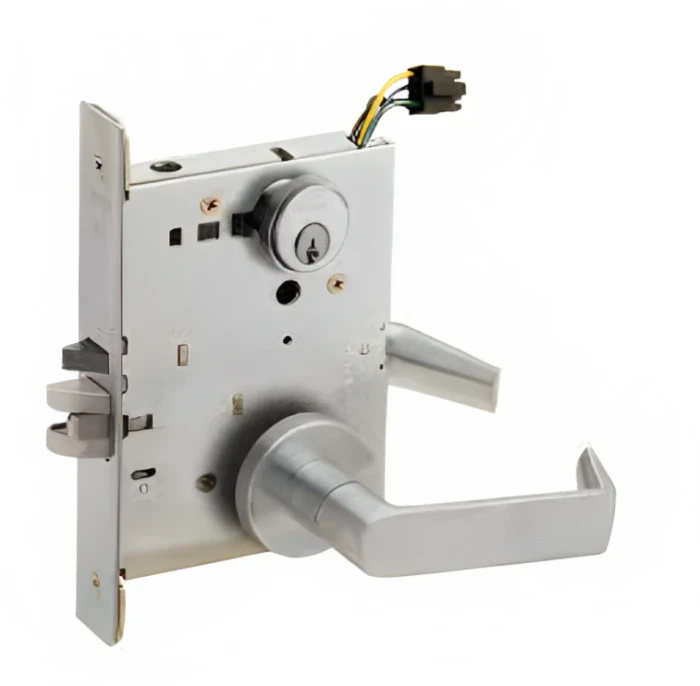

L9092EU - ELECTRICALLY LOCKING/UNLOCKING BOTH LEVERS, OUTSIDE CYLINDER OVERRIDE
- Outside lever continuously locked (EL) or unlocked (EU) by 12V or 24V DC;
- Latchbolt retracted by lever/knob inside or key outside;
- Auxiliary latch deadlocks latchbolt when door is closed;
- Inside lever always free for immediate egress;
- EL: Switch or power failure allows outside lever to retract latchbolt;
- EU: Switch or power failure locks (EU) outside lever.
Schlage L SERIES OVERVIEW
The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.
180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.
FEATURES & BENEFITS
Chassis
- Case: Cold Rolled Steel (CRS) with corrosion resistant zinc dichromate plating
- Case size: 4-7/16" x 6 1/16" x 1" (113 mm x 154 mm x 25 mm)
- Spacing: knob or lever to cylinder 3-7/8" (98 mm); knob or lever to thumbturn hub 2-11/16" (68 mm)
- Door thickness: 1-3/4" (44 mm) standard; 1-3/8" (35 mm) minimum; specify door thickness if over 1-3/4" and position in door (EE, EI, EO, ED)
- Field reversible handing
Trim Options
- 33 lever designs made of forged brass or cast stainless steel
- Two knob designs made of heavy-duty wrought brass or stainless steel
- Knurled tactile warning available on 02, 03, M51, M52, and M81 lever designs; milled tactile warning available on 01, 05, 06, 07, 12, 17, 18, ME1, ME2, and ME3 lever designs
- L escutcheons: 7 15⁄16” x 1 3⁄4” x 7⁄16” (202 mm x 44 mm x 11 mm); cold-forged brass and stainless steel
- N escutcheons: 7 7⁄8” x 2 1⁄2” x 7⁄16” (200 mm x 64 mm x 11 mm); heavy wrought reinforced brass and stainless steel
- Roses: A 2-1/8" (54 mm) ,B 2-9/16" (65 mm) ,C 2-5/8" (67 mm) - wrought brass and stainless steel; AVA 2-5/8" (67 mm) and MER 2-5/8" (67 mm) - forged brass
- Combinations: available with knob or lever on both sides or in combination; roses cannot be combined with escutcheons
- Available 1/8" thick lock case lead lining option for use in x-ray or other rooms with radiation concern
- Three thumbturn styles available: standard ADA, large ADA (not available on L9463), and basic
Latches
- Backset: 2-3/4" (70 mm) only
- Armor: Standard - 1-1⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm); Optional - 1-1⁄16" x 8" x 7⁄32" (27 mm x 203 mm x 6 mm)
- Deadbolt: 1" (25 mm) throw stainless steel
- Latch: 3⁄4" (19 mm) throw stainless steel with anti-friction tongue
- Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) standard; dust box included
- Strike lip length: 1-3⁄16" (30 mm); optional strike lip lengths - 7⁄8", 1", 1-1⁄2", 1-3⁄4", and 2"
Electric
- Input voltage: auto detects 12-24V DC
- Operating mode: Fail Safe or Fail Secure via switch on chassis
- Current draw: 12V operating voltage: Max input current requirement is 1A. 24V operating voltage: Max input current requirement is 0.4A
- Holding current: 0.1A
- Request to exit: modular - 3A @ 125VAC /2A @ 30VDC
AVAILABLE L SERIES FUNCTIONS
View the Schlage L Series catalog for descriptions of all available functions.
CERTIFICATIONS & TESTING
View the Schlage L Series catalog to see all specifications and certifications.
Certifications
- Meets BAA (Buy American Act)
- L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational
- UL listed for 3-hour fire door (except L9076 and L9077)
- With interchangeable core cylinders: Grade 2 security
- With concealed shell cylinder: A156.13 Grade 1 operational and security
- ANSI/ASTM F476-76 Grade 40, UL listed
- L400: tested and certified under ANSI/BHMA A156.36 Grade 1
- California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply
- UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing
- Electrified functions are UL19X listed for single-point locking applications
- UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder
- Miami-Dade NOA's and Florida Building Commission Listings
- Meet ADA requirements
DOWNLOADS & RESOURCES
- Schlage L Series Catalog
- Schlage L Series Electrified Data Sheet
- NEW! Schlage HSLR High Risk Ligature Resistant Trim Data Sheet
- Schlage SL1/SK1 Ligature Resistant Trim Data Sheet
- Schlage L Series 180 Indicator Data Sheet
- Schlage M Collection Levers Data Sheet
- Decorative Levers Brochure
- Securing Your School - Door Hardware Solutions for Education
- Allegion Connect Data Sheet
- Classroom Upgrade Kits
Technical resources
Manufacturer Resources
Product Specs
- Minimum Purchase:
- 1 unit
- Maximum Purchase:
- 999 units
- Category:
- Mechanical Locks
- Subcategory:
- Mortise Locks
- Product Group:
- Mechanical Locks
- Series:
- L Series
- Function Description:
- Outside knob/lever continuously locked (EL) or unlocked (EU) by 12 or 24V DC. Latchbolt retracted by key outside or knob/lever inside.
- Grade:
- Grade 1
- Duty Level:
- Heavy Duty
- Keyed Function:
- Single Cylinder
- Standard Cylinder:
- Conventional 6-pin Cylinder, S123 Keyway
- Handle Type:
- Lever
- Standard Latch:
- 3/4" Stainless Steel Latch with Anti-Friction Tongue
- Standard Strike:
- 10-072 1-1/4" x 4-7/8" Square Corner Strike, Box (1-3/16" Lip Length)
- Mortise Case Size:
- 4-7/16" x 6-1/16" x 1"
- Warranty:
- 3 Year Limited
- Door Thickness:
- 1-3/4"
- Keyed:
- Yes
- Voltage:
- 12/24VDC
- Handing:
- Field Reversible
- Product Subgroup:
- Mortise Locks and Trim
- Product Type:
- Electrified Mortise Locks
- Model:
- L9092EU
- Substrate:
- CRS with Zinc Dichromate Plating
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Lock Type:
- Mortise
- Power:
- 400mA
- IMAP Policy:
- Yes
- Product Attribute:
- Mortise Locks
