Schlage L9092EU - 07 Lever Des...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$2,022.00
$1,123.82

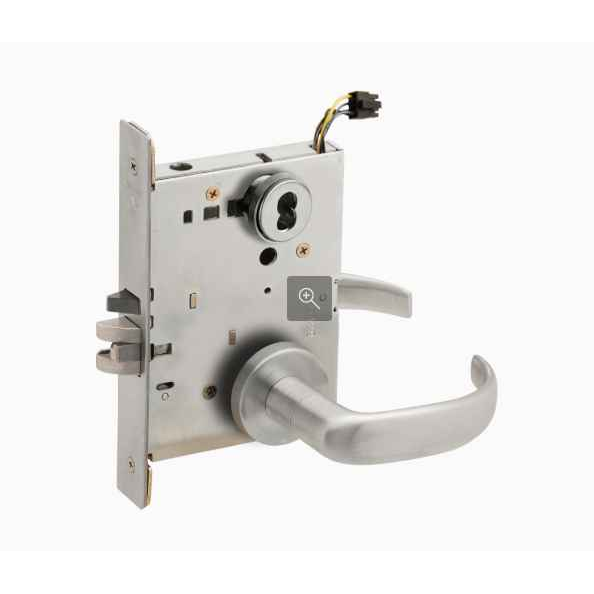

Schlage L9092EU - 07 Lever Design, Electrified Mortise Lock - Grade 1, Fail Secure, Outside Levers EU, Outside Cylinder Override

Schlage L9092EU - 07 Lever Design, Electrified Mortise Lock - Grade 1, Fail Secure, Outside Levers EU, Outside Cylinder Override

(No reviews yet) Write a Review

Model: L9092EUJ 07A 626
From the L9000 Series Collection
$2,022.00
$1,123.82
Selected Finish is
Selected ROSE/ESCUTCHEON DESIGN is
Selected Cylinder Type is
Selected Keying is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2,022.00
$1,123.82
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

L9092EU - ELECTRICALLY LOCKING/UNLOCKING BOTH LEVERS, OUTSIDE CYLINDER OVERRIDE

  • Outside lever continuously locked (EL) or unlocked (EU) by 12V or 24V DC;
  • Latchbolt retracted by lever/knob inside or key outside;
  • Auxiliary latch deadlocks latchbolt when door is closed;
  • Inside lever always free for immediate egress;
  • EL: Switch or power failure allows outside lever to retract latchbolt;
  • EU: Switch or power failure locks (EU) outside lever.



Schlage L SERIES OVERVIEW

The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.

180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.



FEATURES & BENEFITS

Security

  • Exceeds ANSI/BHMA Grade 1 Security and Operational standards
  • Deadbolt functions include anti-saw pin in bolt to prevent cut-through
  • Security blocking hub prevents lock picking by removing levers



Function availability and compatibility

  • 55+ standard functions (custom functions are also available)
  • Universal lock case allows 10 functions to be created from a single lock body
  • Electrified locks auto detect 12V/24V DC, have customer-selectable EL/EU, and offer advanced features like: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility while offering leading energy efficiency



Aesthetics

  • 14 finishes
  • 33 lever, two knob, five rose and three escutcheon designs
  • Locking lever bushing eliminates exposed screws on inside levers
  • All levers suite with Von Duprin exit devices, along with related L Series products LE, LM9200, LM9300 and LT



Options

  • Exclusive 180° visibility indicator
  • Vandlgard® free-wheeling outside trim option is available on most functions, including electrified
  • Expansive options portfolio, including different door thickness, finish/trim combinations, tactile warning, anti-microbial coatings, etc.
  • New Gold Standard ligature resistant trim for behavioral health applications



AVAILABLE L SERIES FUNCTIONS

View the Schlage L Series catalog for descriptions of all available functions.



CERTIFICATIONS & TESTING

View the Schlage L Series catalog to see all specifications and certifications.

Certifications

  • Meets BAA (Buy American Act)
  • L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational
  • UL listed for 3-hour fire door (except L9076 and L9077)
  • With interchangeable core cylinders: Grade 2 security
  • With concealed shell cylinder: A156.13 Grade 1 operational and security
  • ANSI/ASTM F476-76 Grade 40, UL listed
  • L400: tested and certified under ANSI/BHMA A156.36 Grade 1
  • California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply
  • UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing
  • Electrified functions are UL19X listed for single-point locking applications
  • UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder
  • Miami-Dade NOA's and Florida Building Commission Listings
  • Meet ADA requirements



DOWNLOADS & RESOURCES



Technical resources



Manufacturer Resources

Product Specs

Maximum Purchase:
999 units
Subcategory:
Mortise Locks
Product Group:
Mechanical Locks
Series:
L Series
Function Description:
Outside knob/lever continuously locked (EL) or unlocked (EU) by 12 or 24V DC. Latchbolt retracted by key outside or knob/lever inside.
Grade:
Grade 1
Duty Level:
Heavy Duty
Keyed Function:
Single Cylinder
Standard Cylinder:
Conventional 6-pin Cylinder, S123 Keyway
Handle Type:
Lever
Standard Latch:
3/4" Stainless Steel Latch with Anti-Friction Tongue
Standard Strike:
10-072 1-1/4" x 4-7/8" Square Corner Strike, Box (1-3/16" Lip Length)
Mortise Case Size:
4-7/16" x 6-1/16" x 1"
Warranty:
3 Year Limited
Keyed:
Yes
Product Subgroup:
Mortise Locks and Trim
Product Type:
Electrified Mortise Locks
Commercial/Residential:
Commercial
Electronic:
Yes
Lock Type:
Mortise
Power:
400mA
IMAP Policy:
Yes
Product Attribute:
Mortise Locks
Product Model:
L9092EU
Collection:
L9000 Series
Product Voltage:
12/24VDC
Door Hand Direction:
Field Reversible
Door Thickness Range:
1-3/4"
Lever Design Name:
07 Lever
Product Substrate:
CRS with Zinc Dichromate Plating
Product Category:
Mechanical Locks
Department:
Door Hardware

Schlage L9092EUJ 07A 626 – Frequently Asked Questions

1) What happens to the Schlage L9092EU when the power fails or the access control system drops?
The outside levers lock. EU is the fail secure setting: on a switch or power failure, the outside lever locks and entry is by key only through the outside cylinder override. The inside lever stays free at all times for immediate egress, so egress is never dependent on power. If you need the opposite behavior, free entry from outside when power drops, that is the EL (fail safe) setting of the same lock, and the electrified L9000 locks are customer-selectable EL/EU in the field.
2) What voltage and current does the L9092EU electrified mortise lock need?
12 or 24VDC, and the lock auto-detects which one it is getting, so you do not have to order a voltage-specific version. Budget 400mA per lock when you size the supply and the transfer wiring. That draw is what decides how many locks you can hang off one power supply on a multi-door job.
3) What size mortise pocket does the Schlage L9000 lock case need, and what strike comes with it?
The lock case measures 4-7/16 x 6-1/16 x 1 inches, so the door needs an L Series mortise prep cut to those dimensions. Shipped with it is the 10-072 square corner box strike, 1-1/4 x 4-7/8 inches with a 1-3/16 inch lip. If your existing frame prep is a radius (round) corner cutout, the square corner strike will not drop in without filing or a different strike, so check the frame before you demo the old lock.
4) Is the L9092EU handed, or can it be reversed on site?
Field reversible. You do not specify hand when you order the L9092EU, and the same lock works on a left or right hand opening, which matters when you are stocking spares for a building rather than ordering per door.
5) Can I put the Schlage L9092EU on my existing master key system?
It ships standard with a conventional 6-pin cylinder in the S123 keyway, and you can also order it with a C keyway conventional 6-pin cylinder, with full size interchangeable core prep less core (J), or less conventional cylinder (L) so you supply your own cylinder from your existing system. Keying is ordered keyed different or keyed alike across multiple locks. One trade-off to know: with interchangeable core cylinders the assembly carries Grade 2 security, while a concealed shell cylinder holds A156.13 Grade 1 operational and security. A UL437 listed cylinder is available by specifying the Primus 20-500 Series.
6) Will the Schlage L9092EU latch into a strike already in my frame?
The latch is a 3/4 inch throw stainless steel latchbolt with an anti-friction tongue, and an auxiliary latch deadlocks it once the door is closed. A 3/4 inch throw is the standard mortise latch projection, so an existing ANSI mortise strike with adequate depth will normally accept it, provided the strike cutout is square corner to match the supplied 10-072 and the lip length works for your frame reveal. The anti-friction tongue is what lets it latch against a closer on a door under positive pressure.
7) Can the L9092EU go on a fire rated door, and does it meet ADA?
Yes on both. The L9000 mortise locks are UL listed for 3-hour fire doors, with UL/cUL listing for A label single doors up to 4 by 10 feet and pairs up to 8 by 10 feet, indicated by the letter F and the UL symbol on the latch front. The electrified functions are UL19X listed for single-point locking applications. The line meets ADA requirements, is tested and certified under ANSI/BHMA A156.13 Grade 1 security and operational, and meets the Buy American Act, which matters on federal and institutional work. For California, all levers with a return to door of 1/2 inch or less comply with the California Referenced Standards Code.
8) What is the closest equivalent to the Schlage L9092EU if the opening needs a motorized mortise lock that unlocks the outside lever on command?
The Command Access LPM190-M-EU-CH is the nearest peer. It is a 24V motorized mortise lock with electric unlock and optional REX, and it is built as a storeroom function. The Schlage L9092EU is an electrified mortise lock whose outside lever is continuously locked (EL) or unlocked (EU) by 12 or 24V DC, with the latchbolt retracted by key outside or lever inside, and it auto-detects 12/24VDC rather than being fixed at a single voltage. Both are heavy duty. The difference that decides the order is the voltage window and the outside cylinder override: the L9092EU carries a conventional 6-pin cylinder in the S123 keyway for key entry from outside, while the Command Access unit is specified as a motorized storeroom chassis.
9) Is the SDC 7600 mortise lockset an acceptable Grade 1 alternative to the Schlage L9092EU on a 1-3/4 inch door?
Both carry a Grade 1 rating and both are specified for 1-3/4 inch door thickness, so the opening itself is not the deciding factor. The functional difference is what the electricity does. The SDC 7600 is a motorized latch retraction mortise lockset with 24VDC control, so energizing it pulls the latchbolt back and the door pushes open. The Schlage L9092EU leaves the latchbolt in place and instead locks or unlocks the outside lever electrically at 12 or 24V DC, drawing 400mA, with a key override from outside through its conventional 6-pin S123 keyway cylinder. Choose latch retraction when the opening is tied to an automatic operator or a remote push-open release; choose the L9092EU when the outside lever must control access and the latch stays deadlocked by the auxiliary latch.
10) Does the Command Access LPM110ECH do the same job as the Schlage L9092EU?
No, and it is the most common mix-up in this group. The LPM110ECH is an electrified latch retraction mortise lock chassis running on 24VDC operation, heavy duty. Latch retraction pulls the latchbolt out of the strike so the door free-swings or pairs with an operator. The Schlage L9092EU does not retract the latch electrically at all; the current controls whether the outside lever is locked or unlocked, and the latchbolt is retracted by the key outside or the lever inside. It also auto-detects 12/24VDC rather than being a fixed 24V chassis. Specifying one where the drawing calls for the other leaves the opening behaving nothing like the design intent.
11) For a stair or exit door that needs free egress plus request-to-exit signaling, is the Command Access LPM190-M-EU-CH or the Schlage L9092EU the right choice?
Both suit the opening, and the signaling is what separates them. The Command Access LPM190-M-EU-CH is a 24V motorized mortise lock with electric unlock and optional REX. The Schlage L9092EU keeps the inside lever always free for immediate egress, and the electrified L Series functions offer RX, DPS, latchbolt monitor and deadbolt monitor; LX latchbolt monitor and DPS door position sensor can be added to the order. The L9092EU is also Grade 1 and UL19X listed for single-point locking applications, which matters where the stair door is part of a rated assembly.
12) Do I need to add door position or latch monitoring to the L9092EU, or is it built in?
Monitoring is an option you specify on the order, not standard. You can add LX latchbolt monitor or DPS door position sensor to the L9092EU. Pick LX when the access control system needs to know the latch actually threw, and DPS when it needs to know the door is closed, for example to drive a door-held-open or forced-entry alarm. The L9000 electrified platform also supports RX request-to-exit and deadbolt monitoring on the appropriate functions. Cylinder, keying, finish, and rose or escutcheon design are all separate order decisions from the monitoring choice.
13) Will the 07 lever on this Schlage mortise lock match the exit devices and other locks in my building?
Yes, that is the point of the L Series trim. All L Series levers suite with Von Duprin exit devices and with the related L Series products LE, LM9200, LM9300 and LT, so the 07 lever on an electrified mortise opening can match the lever on a tubular lock or an exit device trim down the corridor. Nine finishes are offered, from 605 bright brass and 606 satin brass through 613 oil rubbed bronze, 622 matte black, 625 bright chrome, 626 satin chrome and 630 satin stainless steel, with 609 antique brass and 612 satin bronze as well. Trim is ordered as A or B wrought rose, N escutcheon, or L full face escutcheon.
14) Should I use an electrified mortise lock like the L9092EU or a mag lock / electric strike for an access controlled door?
An electrified mortise lock puts the access control in the door itself, so you get a lever set, a keyed override, and code compliant free egress from the inside in one assembly, with no separate strike or armature to align. The L9092EU is the fail secure version: the outside lever stays locked without power, which suits a door that must never free up if the panel goes down, such as a server room or a storeroom. Electrified functions here are UL19X listed for single-point locking, meaning one locking point on the opening, not multi-point. What it is not is a latch retraction device: it unlocks the outside lever, it does not pull the latch back electrically. If you need remote latch retraction, a motorized latch retraction mortise lockset such as the SDC 7600 Series is the different tool for that job.
15) What else could I use instead of the Schlage L9092EU electrified mortise lock?
A few real alternatives, and they are not the same thing. The Command Access LPM190-M-EU-CH is a 24V motorized mortise lock with electric unlock, storeroom function, with optional REX, and is closest in behavior to an electric unlock lock. The SDC 7600 Series is a Grade 1 motorized latch retraction mortise lockset on 24VDC control, rated for 1-3/4 inch doors like the Schlage, but it retracts the latch rather than just unlocking the lever. The SDC Selectric 7800 PRO is solenoid controlled with a vandal resistant clutch, also 1-3/4 inch doors. For an institutional opening, the Command Access ML04EU is an asylum/institution/utility function chassis. Note that several of the Command Access items are lock chassis, LPM110ECH and ML1080LB among them, which is a different purchase than a complete lock with lever trim and cylinder.
16) Which electrified mortise lock holds up better on a high-abuse door, the Schlage L9092EU or the SDC 7800 PRO?
Both are specified for 1-3/4 inch doors. The SDC Selectric 7800 PRO is a solenoid controlled mortise lock with a vandal resistant clutch, so force applied to a locked outside lever is absorbed by the clutch. The Schlage L9092EU takes a different approach: it is Grade 1, heavy duty, with a security blocking hub that prevents lock picking by removing levers, and the Vandlgard free-wheeling outside trim option is available on most functions including electrified. The lock body is CRS with zinc dichromate plating and the latch is a 3/4 inch stainless steel latch with anti-friction tongue. Both address lever abuse; the 7800 PRO does it with a clutch as standard, the L9092EU with the Vandlgard free-wheeling trim option.
17) What should be used instead of the Schlage L9092EU on a behavioral health or detention opening?
The Command Access ML04EU is the peer built for that opening; it is an electrified mortise lock chassis with an asylum/institution/utility function, heavy duty. The Schlage L9092EU is a Grade 1 electrified mortise lock with a keyed single-cylinder function and an outside cylinder override, and its 07 lever trim is a standard lever. For a patient room or a secure ward where trim must not present a ligature point, the institutional-function chassis is the right starting point; the L Series route to the same application is the Gold Standard ligature resistant trim rather than the standard lever.
18) If an opening does not need any electrified control, what mortise lock takes the place of the Schlage L9092EU?
The Command Access ML1080LB is a heavy-duty storeroom function mortise lock chassis with no electrical control, and the DynaLock EML-1 covers the storeroom function in the EML electrified series if control is still wanted. The Schlage L9092EU is an electronic lock at 12/24VDC drawing 400mA, so it requires a power supply and a control input at the frame. A mechanical storeroom chassis needs neither, and it locks the outside lever permanently with key entry only, which is the same day-to-day behavior an L9092EU shows when power is removed in the EU configuration.
19) For a facility standardizing on one keyway across many electrified mortise openings, how does the Schlage L9092EU compare to the chassis-only alternatives?
The Schlage L9092EU ships as a complete keyed lock: single cylinder function, conventional 6-pin cylinder in the S123 keyway, a 3/4 inch stainless steel latch with anti-friction tongue, and a 10-072 1-1/4 inch by 4-7/8 inch square corner box strike with a 1-3/16 inch lip. It can also be ordered with FSIC prep less core or less conventional cylinder if the facility supplies its own cores. The Command Access ML1080LB and LPM110ECH are mortise lock chassis, and the ML04EU is likewise a chassis, so trim and cylinder are specified separately. If the goal is one keyway and one strike prep repeated across a building, the complete lock reduces the number of line items that have to match.
20) Will the Schlage L9092EU fit a frame already prepped for a DynaLock EML-1 or an SDC 7600?
Treat the prep as something to verify rather than assume. The Schlage L9092EU uses a mortise case measuring 4-7/16 inches by 6-1/16 inches by 1 inch and ships with the 10-072 1-1/4 inch by 4-7/8 inch square corner box strike with a 1-3/16 inch lip length, and it is field reversible for handing. The DynaLock EML-1 is an electrified mortise lock in the EML series with a storeroom function, and the SDC 7600 is a Grade 1 mortise lockset for 1-3/4 inch doors; case dimensions and strike prep are set by each manufacturer's own template. Compare the existing pocket depth and strike cutout against the 4-7/16 by 6-1/16 by 1 inch case and the 4-7/8 inch strike before committing to the swap.
21) Can staff tell at a glance whether a Schlage L Series door is locked?
Yes, if you specify it. The L Series offers an exclusive 180 degree visibility indicator as an option, readable from a wide angle down a corridor rather than only head-on, which is why it gets specified on classrooms and behavioral health openings. For those higher risk applications Schlage also offers Gold Standard ligature resistant trim. The indicator is an ordering option on the L Series, so it has to be called out rather than assumed.
