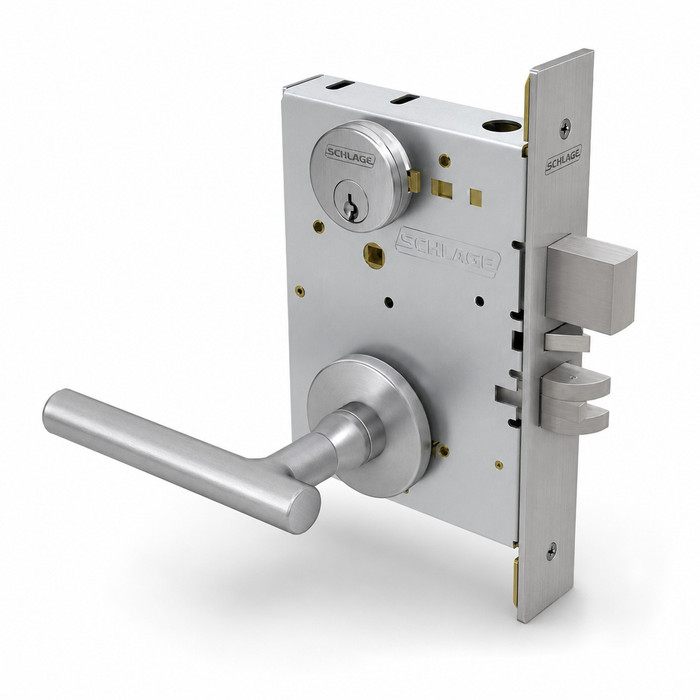

Schlage L9440 - Privacy With Deadbolt, M52 Lever - Grade 1 Mortise Non-Keyed Lever Lock

Schlage L9440 - Privacy With Deadbolt, M52 Lever - Grade 1 Mortise Non-Keyed Lever Lock

(No reviews yet) Write a Review

Model: L9440 M52A 626
From the L9000 Series Collection
Selected Finish is
Selected Rose/Escutcheon Design is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,574.00
$912.46
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Default Attributes
Style: Same lever, rose and finish for both sides of the door with coordinating latch and strike.
Latch: ANSI/BHMA Certified A156.13-2012, Series 1000, Grade 1 Operational,
Grade 1 Security, UL Listed for 3-hour fire door (except L9076 and L9077).
With FSIC Interchangeable Core Cylinders: Grade 1 Operational, Grade 2 Security.
With SFIC Interchangeable Core Cylinders: Grade 1 Operational, Grade 3 Security.
Case Size: 4-7/16" x 6-1/16" x 1";
Armor Front: 1-1/4" x 8";
Deadbolt: 1" Throw stainless steel;
Latchbolt: 3/4" Throw stainless steel with anti-friction tongue;
Strike: 1-1/4" x 4-7/8" Square corner, 1-3/16" lip, box;
Backset: 2-3/4";
Door Thickness: 1-3/4".



L9440 - PRIVACY WITH DEADDOLT

  • Latchbolt retracted by lever/knob from either side;
  • Deadbolt actuated by inside thumbturn;
  • Throwing deadbolt locks outside knob/lever;
  • Inside lever retracts both deadbolt and latchbolt and unlocks outside lever;
  • To unlock from outside remove emergency button, insert emergency thumbturn in access hole and rotate;
  • Inside lever always free for immediate egress.



Schlage L SERIES OVERVIEW

The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.

180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.



FEATURES & BENEFITS

Security

  • Exceeds ANSI/BHMA Grade 1 Security and Operational standards
  • Deadbolt functions include anti-saw pin in bolt to prevent cut-through
  • Security blocking hub prevents lock picking by removing levers



Function availability and compatibility

  • 55+ standard functions (custom functions are also available)
  • Universal lock case allows 10 functions to be created from a single lock body
  • Electrified locks auto detect 12V/24V DC, have customer-selectable EL/EU, and offer advanced features like: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility while offering leading energy efficiency



Aesthetics

  • 14 finishes
  • 33 lever, two knob, five rose and three escutcheon designs
  • Locking lever bushing eliminates exposed screws on inside levers
  • All levers suite with Von Duprin exit devices, along with related L Series products LE, LM9200, LM9300 and LT



Options

  • Exclusive 180° visibility indicator
  • Vandlgard® free-wheeling outside trim option is available on most functions, including electrified
  • Expansive options portfolio, including different door thickness, finish/trim combinations, tactile warning, anti-microbial coatings, etc.
  • New Gold Standard ligature resistant trim for behavioral health applications



AVAILABLE ND SERIES FUNCTIONS

View the Schlage L Series catalog for descriptions of all available functions.



CERTIFICATIONS & TESTING

View the Schlage L Series catalog to see all specifications and certifications.

Certifications

  • Meets BAA (Buy American Act)
  • L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational
  • UL listed for 3-hour fire door (except L9076 and L9077)
  • With interchangeable core cylinders: Grade 2 security
  • With concealed shell cylinder: A156.13 Grade 1 operational and security
  • ANSI/ASTM F476-76 Grade 40, UL listed
  • L400: tested and certified under ANSI/BHMA A156.36 Grade 1
  • California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply
  • UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing
  • Electrified functions are UL19X listed for single-point locking applications
  • UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder
  • Miami-Dade NOA's and Florida Building Commission Listings
  • Meet ADA requirements



DOWNLOADS & RESOURCES



Technical resources



Manufacturer Resources

Product Specs

Subcategory:
Mortise Locks
Product Group:
Mechanical Locks
Series:
L Series
Function Description:
Latchbolt retracted by knob/lever from either side. Deadbolt thrown or retracted by inside thumbturn.
Grade:
Grade 1
Duty Level:
Heavy Duty
Keyed Function:
Non-Keyed
Handle Type:
Lever
Standard Latch:
3/4" Stainless Steel Latch with Anti-Friction Tongue
Standard Strike:
10-072 1-1/4" x 4-7/8" Square Corner Strike, Box (1-3/16" Lip Length)
Mortise Case Size:
4-7/16" x 3-5/8" x 1"
Warranty:
3 Year Limited
Keyed:
No
ANSI/BHMA:
F19
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Privacy/Bed/Bath
IMAP Policy:
Yes
Product Attribute:
Mortise Locks
Electronic:
No
Product Model:
L9440
Collection:
L9000 Series
Product Function:
Passage/Hall/Closet
Door Hand Direction:
Field Reversible
Door Thickness Range:
1-3/4" standard (optional preps available for other thicknesses)
Product Category:
Mechanical Locks
Product Substrate:
CRS with Zinc Dichromate Plating
Backset (Distance):
2-3/4"
Department:
Door Hardware

Schlage L9440 M52A 626 – Frequently Asked Questions

1) Will the Schlage L9440 privacy mortise lock fit a standard 1-3/4 inch commercial door?
Yes. The L9440 is built for 1-3/4 inch doors as standard, with optional preps available for other thicknesses. The lock case measures 4-7/16 x 3-5/8 x 1 inches and the backset is 2-3/4 inches, so the door needs a mortise pocket cut to the standard L Series template. If your doors are thicker than 1-3/4 inches, that has to be specified as an option at order time, not adjusted in the field.
2) How does the L9440 privacy function actually work, and how do you get in if someone locks themselves in a restroom?
The lever retracts the latchbolt from either side, and the inside thumbturn throws the deadbolt. Throwing the deadbolt locks the outside lever. From inside, turning the lever pulls both the deadbolt and the latchbolt back and unlocks the outside lever at the same time, so egress is never blocked. For emergency access from the corridor side, you pop off the emergency button on the outside trim, insert the emergency thumbturn into the access hole, and rotate it. That makes it a normal choice for restrooms, patient rooms, and bedrooms where staff need a way in.
3) Do I need to specify handing when I order a Schlage L9440?
No handing to call out. The L9440 lock case is field reversible, so the same lock covers left and right hand openings and you can flip it on site. That matters if you are buying a batch for a building where the doors swing both ways, since one part number covers all of them.
4) Will the L9440 latch into the strike that is already in my frame?
It ships with the 10-072 strike, a 1-1/4 x 4-7/8 inch square corner box strike with a 1-3/16 inch lip. The latchbolt has a 3/4 inch throw and the deadbolt throws a full 1 inch, so the frame needs a box prep deep enough for the deadbolt, not just a latch cutout. If your existing frame carries a square corner ANSI strike of that size you are lining up on the same prep; a curved lip or a radius corner strike prep will need to be changed out for the supplied strike.
5) Is the Schlage L9440 rated for a fire door?
The L9000 mortise locks are UL listed for 3-hour fire doors, and the L9440 is not one of the two excluded functions (only the L9076 and L9077 are). The listing covers A label single doors up to 4 by 10 feet and pairs up to 8 by 10 feet, with the letter F and the UL symbol stamped on the latch front to show it. Keep in mind a privacy function with a deadbolt is not usually permitted on a rated corridor door, so check the opening it is going on.
6) What is the closest equivalent to a Schlage L9440 privacy mortise lock from another manufacturer?
The Cal-Royal NM8440 is the closest direct match. Both are Grade 1 mortise locksets with a privacy function and a deadbolt, and both are built for a 1-3/4 inch door. The Schlage L9440 carries the F19 ANSI function designation and retracts the latchbolt by lever from either side with the deadbolt thrown by an inside thumbturn. If the opening is a bed or bath door on a 1-3/4 inch leaf and the requirement is a Grade 1 privacy mortise with a deadbolt, the NM8440 covers the same function.
7) Is there a Grade 1 privacy mortise lock that fits a door thicker than 1-3/4 inches?
The Hager 3840S is a Grade 1 privacy mortise lock with a 2-3/4 inch backset rated for doors from 1-3/4 to 2 inches. The Schlage L9440 is built around a 1-3/4 inch door as standard with optional preps for other thicknesses, and it also uses a 2-3/4 inch backset, so the two share the same door prep centerline. For a bathroom or bedroom door on a 2 inch leaf where a standard prep is wanted out of the box, the 3840S covers that range directly.
8) Is a Baldwin 6301 mortise lock body interchangeable with a Schlage L9440?
No. The Baldwin 6301 is an entry/apartment mortise lock body on a 2-1/2 inch backset, offered knob by knob or as the 6301LS lever by lever, for doors 1-3/4 inches and over. The Schlage L9440 uses a 2-3/4 inch backset, so the lever centerline sits a quarter inch farther from the door edge and the existing mortise pocket and cross-bore will not line up between the two. Handing also differs in approach: the L9440 is field reversible. A door already prepped for a Baldwin 2-1/2 inch backset case needs a 2-1/2 inch backset replacement or a re-prep.
9) What ANSI grade and function code is the Schlage L9440 privacy mortise lock?
F19 is the ANSI function code, and the lock is certified under ANSI/BHMA A156.13-2012, Series 1000, Grade 1 for both operational and security. It is heavy duty commercial hardware, and the levers meet ADA requirements. For a spec writer, F19 is the line to put on the schedule for privacy with deadbolt.
10) Can I get a Schlage L9440 privacy lock keyed like the rest of my building?
No, and that is by design. The L9440 is a non-keyed function, so there is no cylinder in it to key into a masterkey system. Access from the outside is by emergency thumbturn only. If you need a keyed override on a bathroom or bedroom door, you want a different L Series function, not this one. Where the L9440 does coordinate with the rest of a building is aesthetically: all L Series levers suite with Von Duprin exit devices and with the LE, LM9200, LM9300 and LT products.
11) I need a privacy mortise lock with an electronic keypad instead of a thumbturn. What should I look at?
The L9440 is a purely mechanical lock, no electronics in it. If you need credentialed privacy, the Schlage CO-100 standalone electronic mortise lock is a Grade 1 heavy duty privacy function with a keypad reader for 1-3/4 inch doors. Alarm Lock's DL4500 Series is a Grade 1 electronic mortise deadbolt with a privacy keypad and 2,000 user codes, sized for 1-5/8 to 1-7/8 inch doors. Both are stocked alternatives when a mechanical thumbturn will not meet the access control requirement.
12) Is a privacy lock with a deadbolt the right choice for a restroom, or should I use a plain passage lock?
It depends on whether the room needs to be secured while occupied. The L9440 gives you a thumbturn deadbolt that locks the outside lever, which is what a single-occupancy restroom, a patient room or a bedroom needs. If the door only needs to latch and never lock, a passage function is the cheaper and simpler part, and there are Grade 1 heavy duty mortise passage locks that are field reversible like the Falcon MA101. For behavioral health openings where a thumbturn is a ligature point, the TownSteel MRX-L-01 is a Grade 1 anti-ligature lever mortise passage lockset for 1-3/4 inch doors.
13) What is the difference between an L9440 privacy lock and a dormitory function mortise lock?
The Sargent 7925 is a Grade 1 heavy duty dormitory exit function mortise lock in the 7900 Series with rose trim and a single cylinder deadbolt. Dormitory exit function pairs a keyed cylinder with the deadbolt so the room can be secured and re-entered by key. The Schlage L9440 is non-keyed: its 1 inch throw stainless deadbolt is thrown only by the inside thumbturn, and outside access in an emergency is by removing the emergency button and rotating an emergency thumbturn through the access hole. For a dorm room where residents carry keys, the 7925 is the keyed alternative; for a bath or single-occupant room, the L9440 avoids adding a key to the system.
14) What should I use instead of an L9440 if the door does not need a deadbolt at all?
A passage mortise lock is the simpler part when the door only needs to latch. The Falcon MA101 is a Grade 1 heavy-duty mortise passage lock with field reversible operation and a fire rating, and the Hager 3810S is a Grade 1 passage mortise lock with rose trim on a 2-3/4 inch backset, matching the Schlage L9440 backset. The L9440 differs in that it adds a deadbolt thrown by an inside thumbturn; a passage lock has no locking element, so a hall, closet, or corridor door that never needs to secure is served by the MA101 or 3810S.
15) Can I use a Sargent 4874 mortise deadbolt in place of a Schlage L9440?
No, those are different parts. The Sargent 4874 is a double cylinder mortise deadbolt on a 2-3/4 inch backset, so it is a bolt only, keyed on both sides, with no latch and no lever. The Schlage L9440 is a non-keyed privacy lever lockset that combines a latchbolt retracted by the lever from either side with a deadbolt thrown by an inside thumbturn. A 4874 in a bathroom opening leaves the door with no latching function and requires a key on the inside face; the L9440 is the part for a lever-operated privacy opening.
16) Is there an electronic privacy mortise lock that does the same job as an L9440?
The Schlage CO-100 mortise lock with keypad reader is a Grade 1 heavy duty standalone electronic mortise lock with a privacy function for a 1-3/4 inch door, the same door thickness the L9440 is built around. The L9440 is a mechanical, non-keyed lockset with a thumbturn-actuated deadbolt and no electronics. Where the opening needs credential control and an audit of who entered, the CO-100 covers the privacy function electronically; where it needs a lever and a thumbturn with nothing to power or program, the L9440 does.
17) What is the difference between an L9440 privacy mortise lock and a storeroom mortise lock like the Accentra 8805FL?
They lock in opposite directions. The Accentra 8805FL is a Grade 1 storeroom mortise lock in the 8800 Series, and Cal-Royal offers the NM8080 as a Grade 1 storeroom mortise lockset with an interchangeable core option on a 1-3/4 inch door. Storeroom function keeps the outside lever locked at all times and is released by key, which makes it a keyed opening. The Schlage L9440 is non-keyed and privacy function: it locks from the inside by thumbturn for a bed, bath, or similar room and is meant to be secured by the occupant, not by facility keying.
18) What mortise lock should I specify for a behavioral health room instead of a standard privacy lever?
The TownSteel MRX-L-01 is a Grade 1 heavy duty anti-ligature lever mortise lockset in stainless steel with a passage function for a 1-3/4 inch door, and the MRX-A-01 is the same passage function with ligature resistant arch trim in satin stainless. Marks USA offers the 5PDN, a Grade 1 hospital passage mortise push/pull paddleset that is ligature resistant and ADA compliant in satin stainless steel. The Schlage L9440 uses a standard M52 lever and adds a deadbolt actuated by an inside thumbturn; the MRX and 5PDN parts are passage function with trim shaped to resist ligature attachment, so they suit patient rooms where the trim profile governs the selection.
19) Which mortise lock replaces an L9440 on an office door that needs to be locked from inside but opened with a key?
The Cal-Royal NM8050 is a Grade 1 heavy duty office/entrance mortise lockset with an auxiliary deadlatch for a 1-3/4 inch door, the same door thickness the L9440 is built around, and the Hager 3850E is a Grade 1 office mortise lock with lever and escutcheon on a 2-3/4 inch backset, matching the L9440 backset, for doors 1-3/4 to 2-1/2 inches. Office function allows the outside lever to be locked and released while retaining key access. The L9440 is non-keyed and secures with a deadbolt thrown by an inside thumbturn, so an office that needs staff key entry is better served by the NM8050 or 3850E.
20) What finishes does the Schlage L9440 with M52 lever come in?
Eleven finishes: 605 bright brass, 606 satin brass, 609 antique brass, 612 satin bronze, 613 oil rubbed bronze, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome, 630 satin stainless steel, and 643E aged bronze. All are supplied with the A wrought rose. For most commercial work 626 satin chrome and 630 satin stainless are the two that match existing building stock; 630 is the usual pick where the rest of the openings are stainless.
21) How secure is the deadbolt on the Schlage L9440 against forced entry?
The deadbolt is stainless steel with a 1 inch throw and carries an anti-saw pin to stop cut-through attacks. The lock also uses a security blocking hub, which prevents picking the lock by pulling the levers off. The case is cold rolled steel with zinc dichromate plating. The L9000 platform is also listed to ANSI/ASTM F476-76 Grade 40 and carries Miami-Dade NOAs and Florida Building Commission listings.
22) Does the Schlage L9440 meet Buy American requirements for a government job?
Yes, the L9000 mortise locks meet the Buy American Act. Combined with Grade 1 A156.13 certification and the 3-hour UL fire listing, that covers the usual boxes on a federal or state specification. The levers also comply with the California Referenced Standards Code where the return to door is 1/2 inch (64 mm) or less.
23) What does the armor front on the L9440 look like, and will it cover an old mortise cutout?
The armor front is 1-1/4 by 8 inches. That is the standard L Series face dimension, so if you are pulling out another L9000 the face plate covers the same footprint. Coming off a different manufacturer's mortise lock, measure the existing front before ordering, since a shorter or narrower old face will leave the edge of the door exposed and a wider one leaves the new front sitting inside an oversized mortise.
24) Does a Sargent 130KB thumbturn work as a replacement for the thumbturn on an L9440?
They are not the same class of part. The Sargent 130KB is a standard duty mortise thumbturn in the 8200 Series and the 130W is a standard duty mortise thumbturn with a round backplate in the 7800 Series; both are trim pieces for a Sargent mortise case. The Schlage L9440 is a complete heavy duty mortise lockset in the L9000 Series with its own case, latch, strike, lever, and integral thumbturn. A Sargent thumbturn is ordered when the Sargent case is already in the door, not to service an L Series lock.
