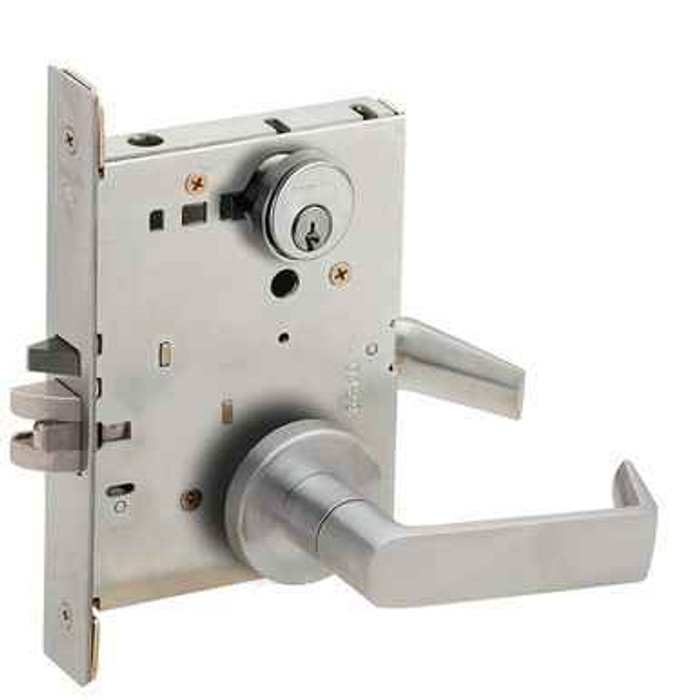

L9495EL - ELECTRICALLY LOCKING/UNLOCKING BOTH LEVERS, DOUBLE CYLINDER OVERRIDE WITH DEADBOLT
- Both levers continuously locked (EL) or unlocked (EU) 12V or 24V DC;
- Deadbolt actuation by either key;
- When unlocked both levers retract deadbolt and opens door;
- For EU outside lever retracts deadbolt and latchbolt;
- Auxiliary latch deadlocks latchbolt when door is closed.
Schlage L SERIES OVERVIEW
The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.
180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.
FEATURES & BENEFITS
Security
- Exceeds ANSI/BHMA Grade 1 Security and Operational standards
- Deadbolt functions include anti-saw pin in bolt to prevent cut-through
- Security blocking hub prevents lock picking by removing levers
Function availability and compatibility
- 55+ standard functions (custom functions are also available)
- Universal lock case allows 10 functions to be created from a single lock body
- Electrified locks auto detect 12V/24V DC, have customer-selectable EL/EU, and offer advanced features like: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility while offering leading energy efficiency
Aesthetics
- 14 finishes
- 33 lever, two knob, five rose and three escutcheon designs
- Locking lever bushing eliminates exposed screws on inside levers
- All levers suite with Von Duprin exit devices, along with related L Series products LE, LM9200, LM9300 and LT
Options
- Exclusive 180° visibility indicator
- Vandlgard® free-wheeling outside trim option is available on most functions, including electrified
- Expansive options portfolio, including different door thickness, finish/trim combinations, tactile warning, anti-microbial coatings, etc.
- New Gold Standard ligature resistant trim for behavioral health applications
AVAILABLE L SERIES FUNCTIONS
View the Schlage L Series catalog for descriptions of all available functions.
CERTIFICATIONS & TESTING
View the Schlage L Series catalog to see all specifications and certifications.
Certifications
- Meets BAA (Buy American Act)
- L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational
- UL listed for 3-hour fire door (except L9076 and L9077)
- With interchangeable core cylinders: Grade 2 security
- With concealed shell cylinder: A156.13 Grade 1 operational and security
- ANSI/ASTM F476-76 Grade 40, UL listed
- L400: tested and certified under ANSI/BHMA A156.36 Grade 1
- California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply
- UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing
- Electrified functions are UL19X listed for single-point locking applications
- UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder
- Miami-Dade NOA's and Florida Building Commission Listings
- Meet ADA requirements
DOWNLOADS & RESOURCES
- Schlage L Series Catalog
- Schlage L Series Electrified Data Sheet
- NEW! Schlage HSLR High Risk Ligature Resistant Trim Data Sheet
- Schlage SL1/SK1 Ligature Resistant Trim Data Sheet
- Schlage L Series 180 Indicator Data Sheet
- Schlage M Collection Levers Data Sheet
- Decorative Levers Brochure
- Securing Your School - Door Hardware Solutions for Education
- Allegion Connect Data Sheet
- Classroom Upgrade Kits
Technical resources
Manufacturer Resources
Product Specs
- Category:
- Mechanical Locks
- Subcategory:
- Mortise Locks
- Product Group:
- Mechanical Locks
- Series:
- L Series
- Function Description:
- Inside and outside knob/lever continuously locked (EL) or unlocked (EU) by 12 or 24V DC. Deadbolt thrown or retracted by key outside or inside. When unlocked, rotating inside or outside lever retracts deadbolt and opens door.
- Grade:
- Grade 1
- Duty Level:
- Heavy Duty
- Keyed Function:
- Double Cylinder
- Standard Cylinder:
- Double Cylinder, Conventional Cylinder, 6-pin, S123 Keyway
- Handle Type:
- Lever
- Standard Latch:
- 3/4" Stainless Steel Latch with Anti-Friction Tongue
- Standard Strike:
- 10-072 1-1/4" x 4-7/8" Square Corner Strike, Box (1-3/16" Lip Length)
- Mortise Case Size:
- 4-7/16" x 6-1/16" x 1"
- Warranty:
- 3 Year Limited
- Door Thickness:
- 1-3/4"
- Keyed:
- Yes
- Voltage:
- 12/24VDC
- Handing:
- Field Reversible
- Product Subgroup:
- Mortise Locks and Trim
- Product Type:
- Electrified Mortise Locks
- Model:
- L9495EL
- Substrate:
- CRS with Zinc Dichromate Plating
- Function:
- Double Cylinder
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Lock Type:
- Mortise
- Power:
- 400mA
- Lock Function:
- Double Cylinder
- IMAP Policy:
- Yes
