Schlage LV9050 - Vandlgard Ent...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$1,612.00
$1,128.40
Schlage Schlage LV9050 - Vandlgard Entrance/Office Mortise Lock - Grade 1 Non-Deadbolt Function Single Cylinder Keyed Lever Lock SCH-LV9050-KEYED

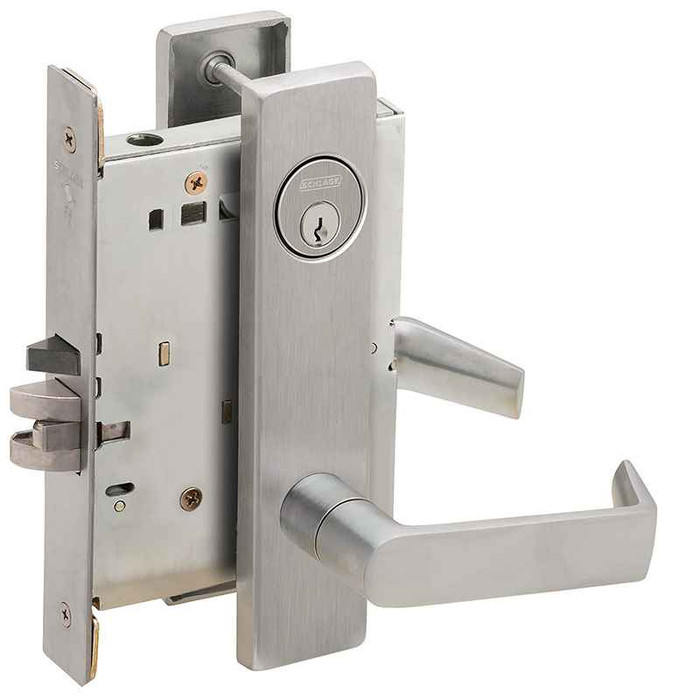

Schlage LV9050 - Vandlgard Entrance/Office Mortise Lock - Grade 1 Non-Deadbolt Function Single Cylinder Keyed Lever Lock

(No reviews yet) Write a Review

Model: LV9050P 06B 626
From the L9000 Series Collection
$1,612.00
$1,128.40
Selected Finish is
Selected Lever Style is
Selected ROSE/ESCUTCHEON DESIGN is
Selected Cylinder is
Selected Keying is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$1,612.00
$1,128.40
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Default Attributes
Style: Same lever, rose and finish for both sides of the door with coordinating latch and strike.
Latch: ANSI/BHMA Certified A156.13-2012, Series 1000, Grade 1 Operational,
Grade 1 Security, UL Listed for 3-hour fire door (except L9076 and L9077).
With FSIC Interchangeable Core Cylinders: Grade 1 Operational, Grade 2 Security.
With SFIC Interchangeable Core Cylinders: Grade 1 Operational, Grade 3 Security.
Case Size: 4-7/16" x 6-1/16" x 1";
Armor Front: 1-1/4" x 8";
Strike: 1-1/4" x 4-7/8" Square corner, 1-3/16" lip, box;
Backset: 2-3/4";
Door Thickness: 1-3/4".


LV9050 - VANDLGARD ENTRANCE/OFFICE NON-DEADBOLD FUNCTION LOCK

  • Latchbolt retracted by lever/knob from either side unless outside lever is locked by key or thumbturn;
  • With outside locked, latchbolt retracted by key or inside lever;
  • Outside lever locked until unlocked by thumbturn or key;
  • Auxiliary latch deadlocks latchbolt when door is closed;
  • Inside lever always free for immediate egress.


Schlage L SERIES OVERVIEW

The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.

180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.


FEATURES & BENEFITS

Security

  • Exceeds ANSI/BHMA Grade 1 Security and Operational standards
  • Deadbolt functions include anti-saw pin in bolt to prevent cut-through
  • Security blocking hub prevents lock picking by removing levers

Function availability and compatibility

  • 55+ standard functions (custom functions are also available)
  • Universal lock case allows 10 functions to be created from a single lock body
  • Electrified locks auto detect 12V/24V DC, have customer-selectable EL/EU, and offer advanced features like: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility while offering leading energy efficiency

Aesthetics

  • 14 finishes
  • 33 lever, two knob, five rose and three escutcheon designs
  • Locking lever bushing eliminates exposed screws on inside levers
  • All levers suite with Von Duprin exit devices, along with related L Series products LE, LM9200, LM9300 and LT

Options

  • Exclusive 180° visibility indicator
  • Vandlgard® free-wheeling outside trim option is available on most functions, including electrified
  • Expansive options portfolio, including different door thickness, finish/trim combinations, tactile warning, anti-microbial coatings, etc.
  • New Gold Standard ligature resistant trim for behavioral health applications


AVAILABLE L SERIES FUNCTIONS

View the Schlage L Series catalog for descriptions of all available functions.


CERTIFICATIONS & TESTING

View the Schlage L Series catalog to see all specifications and certifications.

Certifications

  • Meets BAA (Buy American Act)
  • L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational
  • UL listed for 3-hour fire door (except L9076 and L9077)
  • With interchangeable core cylinders: Grade 2 security
  • With concealed shell cylinder: A156.13 Grade 1 operational and security
  • ANSI/ASTM F476-76 Grade 40, UL listed
  • L400: tested and certified under ANSI/BHMA A156.36 Grade 1
  • California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply
  • UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing
  • Electrified functions are UL19X listed for single-point locking applications
  • UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder
  • Miami-Dade NOA's and Florida Building Commission Listings
  • Meet ADA requirements

DOWNLOADS & RESOURCES



Technical resources


Manufacturer Resources

Product Specs

Subcategory:
Mortise Locks
Product Group:
Mechanical Locks
Series:
L Series
Function Description:
Latchbolt retracted by knob/lever from either side unless outside is made inoperative by key outside or by turning inside thumbturn. When outside is locked, latchbolt is retracted by key outside or by knob/lever inside.
Grade:
Grade 1
Duty Level:
Heavy Duty
Keyed Function:
Single Cylinder
Standard Cylinder:
Conventional 6-pin Cylinder, C Keyway
Handle Type:
Lever
Standard Strike:
10-072 1-1/4" x 4-7/8" Square Corner Strike, Box (1-3/16" Lip Length)
Mortise Case Size:
4-7/16" x 6-1/16" x 1"
Warranty:
3 Year Limited
Keyed:
Yes
ANSI/BHMA:
F04
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Entrance/Office
IMAP Policy:
Yes
Product Attribute:
Mortise Locks
Electronic:
No
Product Model:
LV9050
Collection:
L9000 Series
Product Function:
Entrance/Office
Door Hand Direction:
Field Reversible
Door Thickness Range:
1-3/4"
Product Category:
Mechanical Locks
Product Substrate:
CRS with Zinc Dichromate Plating
Backset (Distance):
2-3/4"
Department:
Door Hardware

Schlage LV9050P 06B 626 – Frequently Asked Questions

1) Will the Schlage LV9050 mortise lock fit a 1-3/4 inch door?
That is exactly the thickness the LV9050 is built for. Door thickness is 1-3/4 inches, which is the standard commercial door, and the backset is 2-3/4 inches. If your openings are thicker or thinner, the trim choice matters too: the L cast/forged escutcheon covers 1-3/8 to 2-1/2 inch doors and the N wrought escutcheon covers 1-3/4 to 2-1/4 inch doors.
2) How does the Entrance/Office function work on a Schlage LV9050 - can staff lock the door from inside?
Yes, and that is the point of the F04 Entrance/Office function. Either lever retracts the latchbolt normally. Turning the inside thumbturn, or using the key from outside, makes the outside lever inoperative. With the outside locked, the door opens by key from outside or by the inside lever, which is always free for immediate egress. An auxiliary latch deadlocks the latchbolt once the door is closed so it cannot be shimmed. There is no deadbolt in this function, so office staff lock up by flipping the thumbturn on their way out.
3) Is the Schlage LV9050 approved for a fire rated door?
The L9000 mortise locks are UL listed for 3-hour fire doors, and UL/cUL listed for A label single doors up to 4 feet by 10 feet and pairs up to 8 feet by 10 feet. The letter F and the UL symbol stamped on the latch front are how you confirm it in the field. The series is also ANSI/BHMA A156.13-2012 Series 1000, Grade 1 Operational and Grade 1 Security, and meets ADA requirements.
4) What mortise pocket and strike prep does a Schlage LV9050 need in the door and frame?
The lock case measures 4-7/16 x 6-1/16 x 1 inches and the armor front is 1-1/4 x 8 inches, so the door needs a standard Schlage L Series mortise pocket at a 2-3/4 inch backset. The frame gets the 10-072 strike, 1-1/4 x 4-7/8 inches, square corner, with a 1-3/16 inch lip and a box behind it. If your existing frame already has an ANSI square corner strike prep from another L9000, the LV9050 drops straight in.
5) Do I have to specify handing when I order a Schlage LV9050?
Only if you want the 12 lever. The lock itself is field reversible, so the handing gets set on the job rather than at the order desk. The 12 lever is the exception, and right hand or left hand has to be called out for it. The other eight lever designs (01, 02, 03, 05, 06, 07, 17, 18) do not need a hand specified.
6) Can I get Schlage LV9050 locks keyed alike across a building, or keyed to my existing Schlage C keyway?
Both are handled at order time. Keying options are keyed different, which is standard, or keyed alike when you want one key to run multiple doors. The standard cylinder is a conventional 6-pin in the C keyway, so if your facility is already on Schlage C, these fall into the existing system. There is also a less-cylinder option, which is what you want when your locksmith is supplying interchangeable cores or you are keying into a restricted system yourself.
7) If I order the Schlage LV9050 less cylinder and use interchangeable cores, does it still hold Grade 1?
Operationally yes, security drops. With FSIC interchangeable core cylinders the rating is Grade 1 Operational and Grade 2 Security. With SFIC it is Grade 1 Operational and Grade 3 Security. The full Grade 1 Security rating applies with the conventional cylinder. If a spec on your job calls out A156.13 Grade 1 Security outright, order it with the conventional 6-pin C keyway cylinder rather than less cylinder.
8) What is the closest cross-brand equivalent to the Schlage LV9050 entrance/office mortise lock?
The Cal-Royal NM8050 is the nearest match. It is a heavy duty Grade 1 mortise lockset with the same Entrance/Office function and a 1-3/4 inch door thickness, which is the same door thickness the LV9050 is built for. The LV9050 carries a 2-3/4 inch backset, a 4-7/16 inch x 6-1/16 inch x 1 inch case, and ships with a conventional 6-pin C keyway cylinder, so confirm the NM8050 cylinder and keyway suit the existing key system before crossing them on a facility.
9) The opening needs to stay locked from outside at all times with free egress inside - what mortise lock should be used instead of the LV9050?
Use a storeroom function instead. The Accentra 8805FL is a Grade 1 storeroom mortise lock in the 8800 Series, and the Cal-Royal NM8080 is a heavy duty Grade 1 storeroom mortise lockset for 1-3/4 inch doors with an interchangeable core option. On the LV9050 the outside lever is locked and unlocked by key or by an inside thumbturn, so it can be left unlocked; a storeroom function keeps the outside trim locked with no thumbturn to release it.
10) The door is a classroom that has to be locked from the corridor side by key - is the LV9050 the right lock?
No. The LV9050 is an entrance/office function whose outside lever can be locked by an inside thumbturn. For a classroom opening, the Cal-Royal NM8070 is a heavy duty Grade 1 classroom mortise lockset for 1-3/4 inch doors, and the Corbin Russwin ML2003 is a Grade 1 mortise classroom lockset in the ML2000 Series for 1-3/4 inch doors. Both cover the same 1-3/4 inch door thickness the LV9050 is specified for.
11) What is the difference between the Schlage LV9050 and the Sargent 7925 for a dormitory or corridor door?
The Sargent 7925 is a Grade 1 heavy duty dormitory exit function mortise lock in the 7900 Series with rose trim and a single cylinder deadbolt. The LV9050 is a non-deadbolt entrance/office lock - the auxiliary latch deadlocks the latchbolt when the door closes, but there is no deadbolt in the case. If the corridor door needs a throwable deadbolt, the 7925 covers that; if the opening only needs a keyed latch, the LV9050 does.
12) Will a Baldwin 6301 or 6310 mortise lock body cross with the Schlage LV9050?
No, the prep differs. The Baldwin 6301 entry/apartment and 6310 entry/storeroom mortise lock bodies are 2-1/2 inch backset, while the LV9050 is 2-3/4 inch backset with a 4-7/16 inch x 6-1/16 inch x 1 inch case and a 1-1/4 inch x 8 inch armor front. A door mortised for one will not accept the other without rework, so match the backset and case dimensions to the existing pocket.
13) Should I use an Entrance/Office mortise lock or a Storeroom function for a tenant suite door?
Depends on whether you want the door to be able to sit unlocked. Entrance/Office, which is what the LV9050 is, lets the occupant leave the outside lever free during business hours and lock it with the thumbturn when they go. Storeroom is always locked from outside, key every time, with no way to leave it open. For a tenant suite or an office that opens at 8 and closes at 6, Entrance/Office is the one. For a mechanical room or a supply closet, go storeroom: the Accentra 8805FL and the Cal-Royal NM8080 are both Grade 1 mortise storeroom locks. Classroom function is a third choice, keyed outside only with no inside thumbturn, as on the Cal-Royal NM8070.
14) What is a cheaper Grade 1 alternative to the Schlage LV9050 for an office door?
The Cal-Royal NM8050 is the closest straight equivalent: Grade 1 heavy duty Office/Entrance mortise lockset with an auxiliary deadlatch, rated for 1-3/4 inch doors, same as the Schlage. What you give up is the Vandlgard free-wheeling outside trim and the L Series ecosystem, meaning the 14 finishes, the lever and escutcheon range, and levers that suite with Von Duprin exit devices. On a single interior office door where the trim never gets abused, the NM8050 does the same job. On a corridor or a school, the Vandlgard trim is the reason to pay for the Schlage.
15) Will Schlage L Series levers match the exit devices and other locks already in my building?
They are meant to. All L Series levers suite with Von Duprin exit devices and with the related L Series products LE, LM9200, LM9300 and LT, so a corridor with a panic device at one end and mortise locks along it can carry one lever design throughout. Across the family there are 33 lever designs, two knobs, five roses and three escutcheons, in 14 finishes. On the LV9050 specifically the choices are nine lever styles, four rose or escutcheon designs (A and B wrought roses, L cast/forged escutcheon, N wrought escutcheon) and eight finishes running from 605 bright brass through 613 oil rubbed bronze to 630 satin stainless.
16) Is the Schlage LV9050 an electronic or access control lock?
No, the LV9050 is mechanical, key and thumbturn only. If you need credentials or audit trail on the same style of opening, ZenSupply carries electronic mortise locks in the same family and from other brands: the Schlage Electronics LEMD-GRW is a Grade 1 ENGAGE wireless mortise lock with a 125kHz proximity reader, the Schlage CO-100 is a standalone keypad mortise lock, and the TownSteel FME-2000 is a Grade 1 RFID mortise lockset for 1-3/4 inch doors. Note the LEBMB-ADD mobile-enabled lock is Grade 2, not Grade 1.
17) Does the Schlage LV9050 have a deadbolt?
No deadbolt. This is the non-deadbolt Entrance/Office function: a latchbolt with an auxiliary deadlatch that locks the latch against shimming once the door closes. Security comes from the latch and the auxiliary, not from a separate bolt. If the opening needs a thrown deadbolt, look at a deadbolt-function mortise lock such as the Sargent 4874 double cylinder mortise deadbolt with a 2-3/4 inch backset, or a mortise lock with an integral deadbolt like the Cal-Royal NM8440 privacy function.
18) Can I use the Schlage LV9050 on a federal or government job with Buy American requirements?
It meets BAA, the Buy American Act, and the L Series also carries Miami-Dade NOAs and Florida Building Commission listings, which matters if you are specifying in a high velocity hurricane zone. For California work, all levers with a return to door of 1/2 inch or less comply with the California Referenced Standards Code. The series is also ANSI/ASTM F476-76 Grade 40 and UL listed.
19) Is there a simpler non-keyed mortise lock for an office door that does not need a cylinder?
Yes. The Hager 3850E is a Grade 1 office mortise lock with lever and escutcheon, non-keyed, on a 2-3/4 inch backset for 1-3/4 inch to 2-1/2 inch doors - the same 2-3/4 inch backset the LV9050 uses. For a door that only needs latching with no locking at all, the Falcon MA101 is a Grade 1 heavy-duty mortise passage lock, field reversible and fire rated, in the MA Series. The LV9050 is keyed with a single cylinder, so those two drop the cylinder and the key system entirely.
20) Can an electronic keypad or credential mortise lock replace the LV9050 on the same opening?
On a 1-3/4 inch door, the TownSteel FME-2000 is a Grade 1 heavy duty classroom mortise lockset with RFID, and the Schlage Electronics LEMD-GRW is a Grade 1 ENGAGE Series wireless mortise lock with a 125kHz proximity reader, mobile enabled deadbolt with LED and Greenwich trim, right hand, rated for 3-hour fire doors. The LV9050 is a non-electronic lock, so switching to either of those adds credentials, power and a handing or trim decision that the mechanical LV9050 does not require - it is field reversible as supplied.
21) Is a Sargent 4874 mortise deadbolt a substitute for the LV9050?
No, they do different jobs. The Sargent 4874 is a double cylinder mortise deadbolt on a 2-3/4 inch backset in the 4870 Series - a bolt only, with no lever and no latch. The LV9050 is a keyed lever lock whose latchbolt is retracted by the lever from either side unless the outside lever is locked. The two share the 2-3/4 inch backset but the 4874 would be an addition to an opening, not a replacement for the latching hardware.
22) What mortise lock should be used on a behavioral health door instead of a standard lever lock?
Use ligature resistant trim. The TownSteel MRX-L-01 is a Grade 1 heavy duty anti-ligature lever mortise lockset in passage function for 1-3/4 inch doors, the MRX-A-01 is the same passage function with satin stainless ligature resistant arch trim, and the Marks USA 5PDN is a Grade 1 hospital passage mortise push/pull paddleset that is ligature resistant and ADA compliant in satin stainless steel. All three are passage function, so they latch without locking, where the LV9050 is a keyed entrance/office lock.
23) For a bathroom or bedroom door, what mortise lock replaces an entrance/office lock like the LV9050?
A privacy function. The Cal-Royal NM8440 is a heavy duty Grade 1 privacy mortise lockset with deadbolt for 1-3/4 inch doors, and the Hager 3840S is a Grade 1 privacy mortise lock on a 2-3/4 inch backset for 1-3/4 inch to 2 inch doors, matching the LV9050 backset. Privacy function locks from inside without a key, where the LV9050 is keyed with a single cylinder and a C keyway.
24) How does the BEST 45H public entrance mortise lock body compare to the Schlage LV9050?
The BEST 45HCAC is a heavy duty mortise lock body in the 45H Series with public entrance function and field reversible operation. The LV9050 is also heavy duty and field reversible, but its function is entrance/office - the outside lever can be locked by key or inside thumbturn and unlocked again, which is what separates it from a public entrance lock. Note the 45HCAC is a lock body; the LV9050 ships complete with lever, rose or escutcheon, latch and a 10-072 box strike.
25) Do the Emtek Brisbane, Memphis, Hamilton and Manhattan mortise entrance sets work as a keyed alternative?
They do not lock. The Emtek 3019 Brisbane, 3102 Memphis, 3104 Hamilton and 3106 Manhattan mortise entrance locksets are dummy function - trim only, with no working latch or cylinder. The LV9050 is a keyed single cylinder lock with a functioning latchbolt and an auxiliary deadlocking latch. Use the Emtek sets on an inactive leaf and the LV9050 on the operating leaf.
26) Will an Alarm Lock Trilogy DL2700CR or DL3500CR fit the same door as the Schlage LV9050?
Check the door thickness first. Both the Alarm Lock DL2700CR and DL3500CR are Grade 1 classroom function electronic mortise locks specified for 1-5/8 inch to 1-7/8 inch doors, while the LV9050 is specified for 1-3/4 inch doors, which falls inside that range. The functions differ though - those two are classroom, the LV9050 is entrance/office with a thumbturn on the inside.
27) Are the Marks USA 21AC and 22AC ornamental iron mortise locks an alternative for a commercial entrance?
Not on a standard commercial door. The Marks USA 21AC and 22AC are entrance double cylinder ornamental iron mortise locks with a round knob, built for 1 inch doors. The LV9050 is a commercial lever lock for 1-3/4 inch doors with a single cylinder. The 1 inch door thickness on the Marks units suits narrow ornamental iron stiles, not a 1-3/4 inch wood or hollow metal door.
28) What mortise lock should be specified when the entrance/office door needs to be released by an access control system?
The Command Access ML190 is a heavy-duty motorized mortise lock in the ML190 Series with field selectable EL/EU operation on 24VDC in storeroom function, and the BEST 45HW is a heavy duty wired electromechanical mortise lock running 12V or 24V in the 45HW Wired Mortise Series. The LV9050 is a mechanical lock with no electrification, so an electrified body is required if the opening has to unlock from a card reader or a remote release.
29) Can I upgrade the cylinder on a Schlage LV9050 to a high security key system?
Yes. A UL437 listed locking cylinder is an option on the L Series, specified as a Primus 20-500 Series cylinder. Order the lock less cylinder if you are supplying your own cores. The standard build ships with a conventional 6-pin cylinder in the C keyway. Worth knowing for the locksmith: the security blocking hub prevents picking by pulling the levers off.
30) What is the Schlage LV9050 lock case made of, and will it hold up in a high traffic corridor?
The case is cold rolled steel with zinc dichromate plating, rated heavy duty for commercial use, and the series exceeds ANSI/BHMA Grade 1 Security and Operational standards. Add the Vandlgard free-wheeling outside trim and you have a lock built for the openings that get the most abuse: school corridors, apartment common doors, public restrooms.
