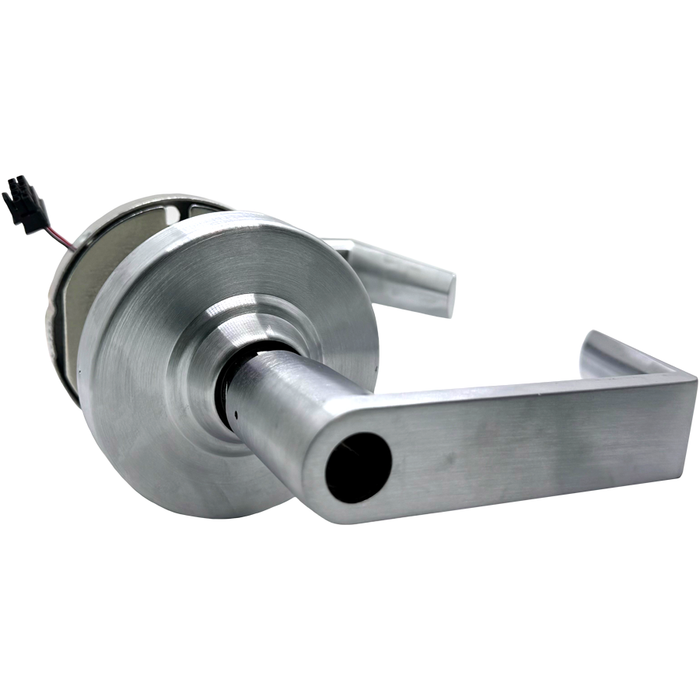

Schlage ND96EU Grade 1 Electric Lock/Unlock (EL/EU) Storeroom Vandlgard, Cylindrical Lock, Rhodes Lever, Key in Lever, Less Cylinder, 2-3/4" Backset

Schlage ND96EU Grade 1 Electric Lock/Unlock (EL/EU) Storeroom Vandlgard, Cylindrical Lock, Rhodes Lever, Key in Lever, Less Cylinder, 2-3/4" Backset

Schlage Lock Company ND Series

Beyond grade 1 performance is the hallmark of the mechanical and electrified ND series locks. These locks are put through extreme levels of testing and are proven to withstand 3,100 in-lb. of abusive lever torque-more than 2-1/2 times the grade 1 standard requirement. Offset lever pull testing up to 1,600lbs. assures you of the lock’s superb resistance against pry bar attacks. More than strong, ND series is built to last and shows nearly zero droop or wobble after 16 million cycles. All ND series locks including electronic functions, ligature-resistant trims, and ground-breaking, high-visibility status indication trims use the common cylindrical ANSI 161L door preparation making them easily interchangeable. They are ideal for all new construction and retrofit applications where grade 1 strength and security are desired.

Features:

• No access with minimum 3,100 in-lbs of lever torque (2.6x BHMA, for general abuse)
• No access with minimum 1,600 lbs of offset lever pull (8x BHMA, for pry-bar attacks)
• No access with minimum 100 vertical impacts (20x BHMA, for sledgehammer attacks)
• Near-zero droop and wobble beyond 16 million cycles (after 16x BHMA) – without the use of set screws or O-rings
• Latch retraction with up to 200 pound preload (4x BHMA) for confident operation in warped and preloaded doors
• Cast steel spindle construction exceeding 16 million cycles
• Withstood aggressive Schlage development testing including lever-snap and abusive cycling
• 31 mechanical functions
• 6 wired functions with:
• Autodetecting 12-24V DC input
• Switch-selectable EL/EU operation
• Modular request to exit (RX)
• 0.230A max/0.010A holding current
• Available in 10 finishes, 5 lever designs, and 2 rose designs
• Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
• Support for 10 non-Schlage cylinders including Best, Corbin Russwin, Medeco, Sargent and Yale
• Certifications: Exceeds BHMA A156.2 requirements for grade 1 cylindrical locks. Exceeds BHMA A156.25 requirements for indoor electrified locks.

Specifications:

• Material: Modular design of zinc and steel components plated for corrosion protection
• Door thickness: Standard: 1-5⁄8" (41 mm) to 2-1⁄8" (54 mm) Optional: 1-3⁄8“ (35 mm) - 6" (152 mm) EE, EO, EI, ED configurations
• Handing: Non-handed
• Backset: Standard: 2-3⁄4" (70 mm). Optional: 2-3⁄8", 3-3⁄4”, 5” (60, 92, 127 mm)
• Latch bolt: Standard: 1⁄2" (12 mm) throw spring latch or deadlatch (stainless steel). Optional: 3⁄4" (19 mm) throw anti-friction deadlatch available for pairs of doors
• Strike: Standard: ANSI curved lip: 1-1⁄4" x 4-7⁄8" x 1-3⁄16" (32 mm x 124 mm x 30 mm). Optional: T Strike, ANSI strikes with alternative lip lengths, dust box options.
• Keying Formats:
• Standard: 6-pin Conventional cylinder with two patented keys
• Optional: FSIC, SFIC, and 7-pin SL cylinder formats plus less cylinder options made to fit non-Schlage cylinders from Best, Corbin Russwin, Medeco, Sargent and Yale.
• Access security:
• Standard: 6-pin, patented Everest 29 S123 keyway
• Optional: Open, restricted, Primus, master keying, and construction keying
• Input voltage: Autodetecting 12-24V DC, +/- 10%
• Operating mode: Fail safe or fail secure via switch on chassis
• Current draw: 0.23 amps maximum; 0.01 amps holding
• Request to Exit: Modular - 3A @ 125VAC / 2A @ 30VDC
• Wired electrified:
• Warranty: 10years mechanical, 1 year wired electrified.

Lever Styles:

• ATH: Athens Width: 4.56". Projection: 3.31"
• BRK: Boardwalk Width: 4.94". Projection: 3.06"
• BRW: Broadway Width: 4.50". Projection: 3.06"
• LAT: Latitude Width: 4.50". Projection: 3.13"
• LON: Longitude Width: 4.94". Projection: 3.13"
• OME: Omega Width: 5.06". Projection: 3.31"
• RHO: Rhodes Width: 4.56". Projection: 2.94"
• SPA: Sparta Width: 4.94". Projection: 3.50"
• TLR: Tubular Width: 4.94". Projection: 3.00"
• Rose Standard: Diameter: 3.44"
• Return to door meets 1⁄2" requirement for Boardwalk (BRK), Longitude (LON), Omega (OME), Rhodes (RHO), Sparta (SPA) and Tubular (TLR) levers.

Wired Electrified Functions:

• ND12EL: Exit lock, electrically locked outside lever (fail safe)
• Lever both sides; deadlatch
• Powered state: outside lever continuously locked (when in EL mode)
• When power is removed (via switch or power failure), in EL mode either lever will retract latch
• Inside lever always free for immediate egress
• Note: Auto detects 12 or 24V DC. Chassis mounted switch allows field selectable EL/EU setting.
• Ordering: Unless EL or EU is specified, order will default to an EU setting. Optional RX function can be ordered configured by specifying RX under special options or add later using kit part N123-062.
• ND12EU: Exit lock, electrically unlocked outside lever (fail secure)
• Lever both sides; deadlatch
• Powered state: outside lever continuously unlocked (when in EU mode)
• When power is removed (via switch or power failure), in EU mode outside lever is locked
• Inside lever always free for immediate egress
• Note: Auto detects 12 or 24V DC. Chassis mounted switch allows field selectable EL/EU setting.
• ND80EL: Storeroom lock, electrically locked outside lever (fail safe)
• Lever with key cylinder outside; lever inside; deadlatch
• Powered state: outside lever continuously locked (when in EL mode)
• When power is removed (via switch or power failure), in EL mode either lever will retract latch
• Key outside retracts latch but cannot change the normal locked or unlocked state of the outside lever
• Inside lever always free for immediate egress
• Note: Auto detects 12 or 24V DC. Chassis mounted switch allows field selectable EL/EU setting.
• Ordering: unless EL or EU is specified, order will default to an EU setting. Optional RX function can be ordered configured by specifying RX under special options or add later using kit part N123-062.
• ND80EU: Storeroom lock, electrically unlocked outside lever (fail secure)
• Lever with key cylinder outside; lever inside; deadlatch
• Powered state: outside lever continuously unlocked (when in EU mode)
• When power is removed (via switch or power failure), in EU mode outside lever is locked
• Key outside retracts latch but cannot change the normal locked or unlocked state of the outside lever
• Inside lever always free for immediate egress
• Note: Auto detects 12 or 24V DC. Chassis mounted switch allows field selectable EL/EU setting.
• ND96EL: Vandlgard storeroom lock, electrically locked outside lever (fail safe)
• Lever with key cylinder outside; lever inside; deadlatch
• Powered state: outside lever continuously locked (when in EL mode)
• Vandlgard feature allows outside lever, when locked, to rotate without engaging latch
• When power is removed (via switch or power failure), in EL mode either lever will retract latch
• Key outside retracts latch but cannot change the normal locked or unlocked state of the outside lever
• Inside lever always free for immediate egress
• Note: Auto detects 12 or 24V DC. Chassis mounted switch allows field selectable EL/EU setting.
• Ordering: unless EL or EU is specified, order will default to an EU setting. Optional RX function can be ordered configured by specifying RX under special options or add later using kit part N123-062.
• ND96EU: Vandlgard storeroom lock, electrically unlocked outside lever (fail secure)
• Lever with key cylinder outside; lever inside; deadlatch
• Powered state: outside lever continuously unlocked (when in EU mode)
• When power is removed (via switch or power failure), in EU mode outside lever is locked
• Vandlgard feature allows outside lever, when locked, to rotate without engaging latch
• Key outside retracts latch but cannot change the normal locked or unlocked state of the outside lever
• Inside lever always free for immediate egress
• Note: Auto detects 12 or 24V DC. Chassis mounted switch allows field selectable EL/EU setting.

Finishes:

• 605/US3 - Bright brass
• 606/US4 - Satin brass
• 612/US10 - Satin bronze
• 613/US10B - Oil rubbed bronze
• 619/US15 - Satin nickel
• 622/US19 - Matte black
• 625/US26 - Bright chrome
• 626/US26D - Satin chrome
• 626AM - Satin chrome, antimicrobial
• 643e/716 - Aged bronze
