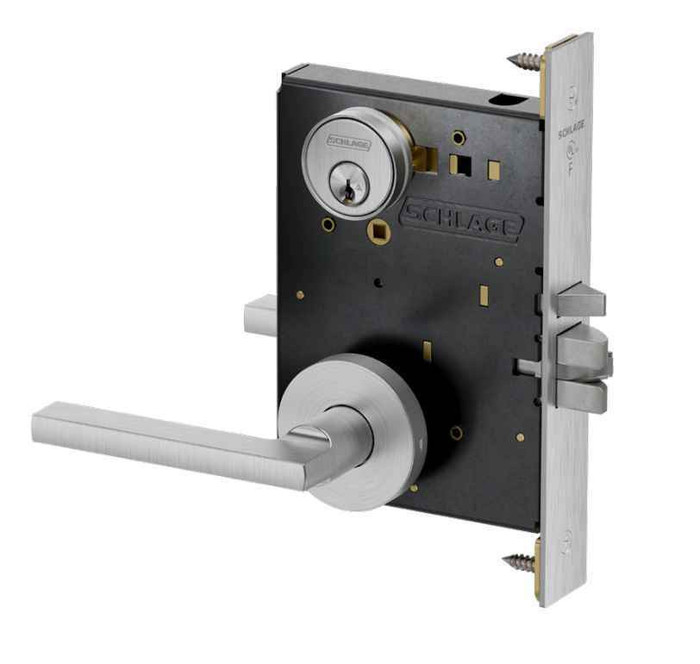

Schlage PM050 Grade 1 Entrance/Office Mortise Lock, Standard Cylinder - Latitude Lever

Schlage PM050 Grade 1 Entrance/Office Mortise Lock, Standard Cylinder - Latitude Lever

(No reviews yet) Write a Review

Model: PM050P LATA 626
$854.00
$534.70
Selected Finish is
Selected Lever Style is
Selected Cylinder is
Selected Rose/Escutcheon Design is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$854.00
$534.70
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schlage PM050 Grade 1 Entrance/Office Mortise Lock, Standard Cylinder - Latitude Lever

Overview

Grade 1, Mortise Locks Purpose-built to serve the commercial real estate, retail, multifamily and hospitality industries, Schlage Performance Series™ locks feature exceptional quality and style at a highly competitive price point. The PM Series offers 26 functions, including three electrified, and four mortise deadbolt functions, all made to meet Schlage’s rigorous quality standards. With popular levers and finish options, Schlage's full key system security line up, and its durable design, you can meet needs for both security and style. They are made to suite with other Allegion products to present a quality, complete door hardware solution and provide a consistent user experience throughout your building or complex. Better yet, you can suite the PM Series mortise locks with the PT Series tubular locks, as they share lever and rose styles.



PM050 - Entrance/Office Lock

  • Key cylinder outside; thumbturn inside; latchbolt and deadlocking auxiliary latch
  • Latchbolt retracted by lever from either side
  • Outside lever is made inoperative by key outside or by turning inside thumbturn
  • Key outside unlocks outside lever and retracts latchbolt
  • Rotating inside thumbturn unlocks outside lever; turning inside lever retracts latchbolt but does not unlock
  • Inside lever always free for immediate egress



Chassis

  • Case: Cold Rolled Steel (CRS) with corrosion resistant zinc dichromate plating
  • Case size: 4-7/16" x 6-1/16" x 1" (113 mm x 154 mm x 25 mm) Note: PM and L Series case and cover holes differ.
  • Spacing: lever to cylinder 3-7/8" (98 mm);  lever to thumbturn hub 2-11/16" (68 mm)
  • Door thickness: 1-3/4" (44 mm) standard; 1-3/8" (35 mm) minimum; fits doors up to 2-1/2" thick - specify door thickness if  over 1-3/4" and position in door (Available EE only)
  • Field reversible handing



Trim Options

  • 10 lever designs made of zinc
  • N escutcheons: 7-7⁄8” x 2-1⁄2” x 7⁄16” (200 mm x 64 mm x 11 mm); wrought brass
  • Roses: A 2-1/8" (54 mm), B 2-9/16" (65 mm), C 2-5/8" (67 mm) - brass
  • Thumbturn style is ADA qualified



Latches, Armors, Strikes

  • Backset: 2-3/4" (70 mm) only
  • Armor: Standard - 1-1⁄4" x 8" x 7⁄32" (32 mm x 203 mm x 6 mm); Optional - 1-1⁄16" x 8" x 7⁄32"  (27 mm x 203 mm x 6 mm)
  • Deadbolt: 1" (25 mm) throw stainless steel
  • Latch: 3⁄4" (19 mm) throw stainless steel with anti-friction tongue
  • Strike: ANSI curved lip strike 1-1⁄4" x 4-7⁄8" (32 mm x 124 mm) standard; dust box included
  • Strike lip length: 1-3⁄16" (30 mm); optional strike lip lengths - 7⁄8", 1", 1-1⁄2", 1-3⁄4", and 2"



DOWNLOADS & RESOURCES

Product Information



Related Product Information



Technical Resources



Manufacturer Resources

Product Specs

Subcategory:
Mortise Locks
Product Group:
Mechanical Locks
Series:
PM Series
Function Description:
Levers only-both sides; latchbolt only; Latchbolt retracted by lever from either side at all times
Grade:
Grade 1
Keyed Function:
Non-Keyed
Handle Type:
Lever
Standard Strike:
10-072 1-1/4" x 4-7/8" Square Corner Strike, Box (1-3/16" Lip Length)
Warranty:
3 Year Limited
Keyed:
No
ANSI/BHMA:
F01
Product Subgroup:
Mortise Locks and Trim
Product Type:
Mortise Locks
Commercial/Residential:
Commercial
Lock Type:
Mortise
Lock Function:
Passage
IMAP Policy:
Yes
Product Attribute:
Mortise Locks
Electronic:
No
Product Model:
PM050
Product Function:
Passage/Hall/Closet
Door Hand Direction:
Field Reversible
Door Thickness Range:
1-3/4"
Product Category:
Mechanical Locks
Backset (Distance):
2-3/4"
Department:
Door Hardware

Schlage PM050P LATA 626 – Frequently Asked Questions

1) Will the Schlage PM050 mortise lock fit a 1-3/8 inch door, or a door thicker than 1-3/4?
Standard is 1-3/4 inches (44 mm), with 1-3/8 inches (35 mm) the minimum it will go down to. The PM Series case fits doors up to 2-1/2 inches thick, but over 1-3/4 you have to specify the door thickness and the lock position in the door when ordering (available EE only).
2) Do I have to order the Schlage PM050 left hand or right hand?
No handing to specify. The PM050 is field reversible, so one part number covers both hands and your installer sets it at the door. That matters if you are stocking spares for a building with mixed swings, one lock covers everything.
3) What cylinder do I have to specify when ordering a Schlage PM050, and can I use my own SFIC cores?
Five cylinder choices, and the ones starting with 'less' ship prepped but empty so you can install your own cores: B (less SFIC), J (less FSIC), and L (less conventional 6-pin cylinder). If you want it complete from the box, P is a conventional 6-pin cylinder keyed 5. T supplies an FSIC construction core, which is what you want when the job site needs temporary keying during construction and a permanent core dropped in at turnover.
4) My mortise pocket is cut for a 2-1/2 inch backset - will a PM050 fit?
No. The PM050 is built for a 2-3/4 inch backset only. For an existing 2-1/2 inch backset pocket, Baldwin supplies mortise lock bodies at that backset: the 6301LS is an entry/apartment lever by lever body for doors 1-3/4 inch and over, and the 6310 is an entry/storeroom body for doors 1-3/8 inch and over. Measure from the door edge to the center of the cylinder hole to confirm which backset the existing prep actually uses before ordering either.
5) For a behavioral health or anti-ligature opening, what replaces a PM050 passage mortise lock?
The PM050 uses a conventional lever trim and is not an anti-ligature design. TownSteel offers two Grade 1 heavy duty passage mortise locksets built for that condition on 1-3/4 inch doors: the MRX-L-01 with a stainless steel anti-ligature lever, and the MRX-A-01 with satin stainless steel ligature resistant arch trim. Both carry the same passage/hall/closet function as the PM050, so the door behaves the same way - free egress and no locking - with trim suited to the environment. For a hospital push/pull opening, the Marks USA 5PDN is a Grade 1 hospital passage mortise paddleset in satin stainless steel, ligature resistant and ADA compliant.
6) What is the closest cross-brand equivalent to a Schlage PM050 mortise lock?
For a Grade 1 mortise lock in the passage/hall/closet function with a lever, the Falcon MA101 is the nearest match from another line - it is a Grade 1 heavy duty mortise passage lock in the MA Series with field reversible operation, the same handing arrangement the PM050 carries. Both are Grade 1 and both are non-keyed passage function, so a door already prepped for one accepts the other's function. Confirm the case dimensions and backset against your existing mortise pocket before swapping, since the PM050 uses a 2-3/4 inch backset.
7) Is the Hager 3810S a substitute for a Schlage PM050 mortise passage lock?
The Hager 3810S is a 3800 Series Grade 1 passage mortise lock with rose trim and a 2-3/4 inch backset, which matches the PM050 on backset and on passage function. The difference to check is door thickness: the 3810S is listed for 1-3/4 inch through 2-1/2 inch doors, while the PM050 is specified at 1-3/4 inch. If the trim you want is an escutcheon rather than a rose, the Hager 3810E is the same 3800 Series passage lock supplied with an escutcheon.
8) I need a keyed mortise lock, not a passage one - what should I order instead of the PM050?
The PM050 as specified is non-keyed passage function, with levers on both sides retracting the latchbolt at all times and no locking. For a keyed opening, the Accentra 8805FL is a Grade 1 storeroom mortise lock from the 8800 Series, and the Cal-Royal NM8080 is a Grade 1 storeroom mortise lockset with an interchangeable core option for 1-3/4 inch doors. If the door needs office/entrance behavior rather than storeroom, the Cal-Royal NM8050 is a Grade 1 entrance/office mortise lockset with an auxiliary deadlatch.
9) What mortise lock should I use for a classroom door instead of the PM050?
The PM050 is passage function, so it does not lock and is not a classroom lock. For a classroom opening, the Corbin Russwin ML2003 is a Grade 1 mortise classroom lockset in the ML2000 Series for 1-3/4 inch doors, and the Cal-Royal NM8070 is a Grade 1 classroom mortise lockset with auxiliary deadlatch, also for 1-3/4 inch doors. Where the specification calls for a classroom security indicator, the Marks USA LA318GJ is a Grade 1 classroom security indicator mortise lockset supplied with an ANSI strike and a steel escutcheon measuring 8-1/2 inches by 2-3/4 inches by 7/16 inch.
10) Can I match the Schlage PM050 across a whole building, including on doors that do not take a mortise lock?
Yes, and that is the point of the PM Series. The Latitude lever comes in six finishes: 613 oil rubbed bronze, 619 satin nickel, 622 matte black, 625 bright chrome, 626 satin chrome, and 643E aged bronze. The PM Series mortise locks share lever and rose styles with the PT Series tubular locks, so a corridor door on a mortise lock and an interior office on a tubular lock read the same from the hallway. The series is also made to suite with other Allegion products.
11) Is the Schlage PM050 heavy duty enough for a commercial corridor?
It is a Grade 1 mortise lock built for commercial use, with the case in cold rolled steel finished in corrosion resistant zinc dichromate plating, a stainless steel latch, and zinc levers. The PM Series was put together for commercial real estate, retail, multifamily and hospitality traffic. Mechanical only, there is no electronics in this one.
12) What is the difference between a mortise lock like the Schlage PM050 and an electronic mortise lock?
The PM050 is a purely mechanical mortise lock, no batteries, no wiring, no credentials to manage. It goes in a mortise pocket and stays working through a power outage. Where you need audit trail, card or phone credentials, or codes you can change without rekeying, the same door prep takes an electronic mortise lock instead: Schlage Electronics CO-100 is a standalone keypad Grade 1 mortise lock, and the ENGAGE Series LEMD-GRW is a Grade 1 wireless mortise lock with a 125kHz proximity reader. Those add cost and a maintenance cycle the PM050 does not have.
13) What else could I use instead of the Schlage PM050 mortise lock on a 1-3/4 inch commercial door?
Two close mechanical alternatives sit in the same Grade 1 mortise class. The Cal-Royal NM8050 is a heavy duty Grade 1 office/entrance mortise lockset with an auxiliary deadlatch, listed for 1-3/4 inch doors. The Hager 3850E is a Grade 1 office mortise lock with lever and escutcheon, non-keyed, on a 2-3/4 inch backset, and it covers a wider door range at 1-3/4 to 2-1/2 inches. Hager also does the same body as the 3810S passage with rose trim if you want no locking at all on the door.
14) How much room do I need between the lever and the cylinder on a Schlage PM Series mortise lock for door prep?
Spacing is 3-7/8 inches (98 mm) lever to cylinder and 2-11/16 inches (68 mm) lever to thumbturn hub. Those are the numbers to check against an existing door face prep before you commit, since a mismatch means new holes in the door skin rather than a straight swap.
15) Can an electronic mortise lock go in the same door prep as a Schlage PM050?
An electronic mortise lock is a different product decision, not a drop-in trim swap. Within Schlage Electronics, the CO-100-MS is a Grade 1 heavy duty standalone electronic mortise lock with a keypad reader in privacy function for 1-3/4 inch doors, and the LEMD-GRW is a Grade 1 ENGAGE Series wireless mortise lock with a 125kHz proximity reader and a 3 hour fire rating. Both bring credential control the PM050 does not have, since the PM050 is a non-electronic, non-keyed passage lock. Verify the electronic model's own case and door prep requirements before committing, as they differ from the mechanical body.
16) What looks like a substitute for a PM050 mortise lock but is not one?
Two things get ordered by mistake here. Mortise deadbolts are one: the Sargent 4874 is a double cylinder mortise deadbolt with a 2-3/4 inch backset, so the backset matches, but it is a deadbolt only with no latchbolt and no lever, where the PM050 retracts a latchbolt by lever from either side. Dummy trim is the other: the Emtek 3102 Memphis and 3104 Hamilton are mortise entrance locksets in dummy function, which means fixed trim with no operating latch at all. Neither one will operate a door the way a passage lockset does.
17) Which mortise lock bodies are available if I already have the trim and only need the lock case?
The PM050 is supplied as a complete mortise lockset with lever and rose or escutcheon trim. If the trim is staying and only the case is being replaced, BEST sells the body on its own: the 45H Series heavy duty mortise lock body in public entrance function with field reversible operation, and the 45HCA Series heavy duty mortise lockbody in intruder function. Match the new case to the existing trim's hub and spindle arrangement, since the PM050 case and cover hole pattern is specific to that series.
18) What is the difference between the PM050 and the Cal-Royal NM8050 for an office door?
The Cal-Royal NM8050 is a heavy duty Grade 1 office/entrance mortise lockset with an auxiliary deadlatch, listed for 1-3/4 inch doors. The PM050 is also Grade 1 for 1-3/4 inch doors with a 2-3/4 inch backset and field reversible handing, and is offered in six finishes from oil rubbed bronze through matte black and satin chrome along with A, C and D rose or N escutcheon trim. Choose on function first: the NM8050 is the office/entrance behavior, while the PM050 as configured is the passage/hall/closet function with the latchbolt retracted by lever from either side at all times.
19) For a privacy bathroom door, what mortise lock goes in place of a PM050?
The PM050 is a passage lock with no locking, so it is wrong for a bathroom. The Cal-Royal NM8440 is a heavy duty Grade 1 privacy mortise lockset with deadbolt for 1-3/4 inch doors, and the Hager 3840S is a 3800 Series Grade 1 privacy mortise lock with a 2-3/4 inch backset listed for 1-3/4 inch to 2 inch doors. The 3840S shares the PM050's 2-3/4 inch backset, so an existing PM prep is the right starting point when checking fit.
20) The PM050 is specified for 1-3/4 inch doors - what mortise locks cover thicker or thinner doors?
The PM050 is listed at 1-3/4 inch. For doors above that, the Hager 3810S and 3810E passage mortise locks are listed from 1-3/4 inch to 2-1/2 inch, and the Baldwin 6310 entry/storeroom mortise body covers 1-3/8 inch and over at a 2-1/2 inch backset. For thin ornamental iron doors, the Marks USA 21AC and 22AC entrance double cylinder mortise locks are listed for 1 inch doors. Function differs across all of these, so pick the door thickness band first and then confirm the function matches the opening.
