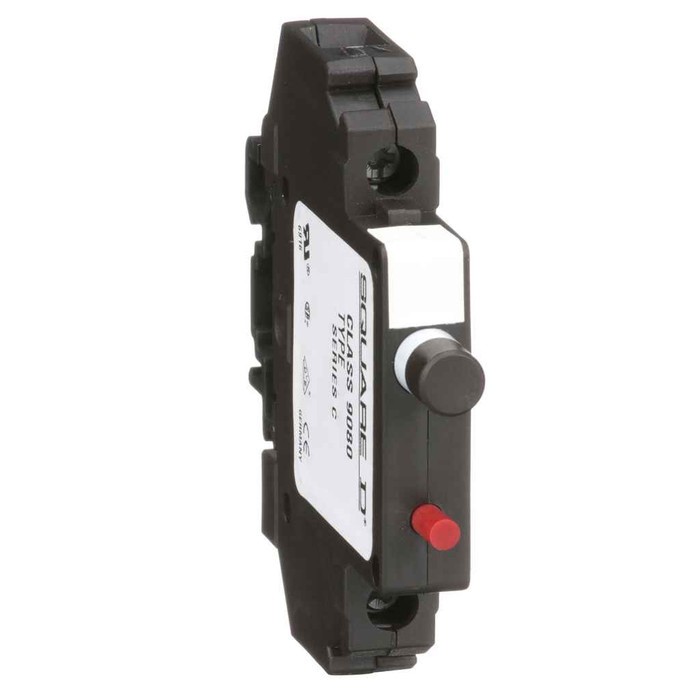

Schneider 9080GCB Series Terminal Block Jumpers — Multi-Pole Copper Connectors (1–150 Poles)

Schneider Electric 9080GCB Series Circuit Protector - 1P 250V 2A Thermal-Magnetic Overcurrent Protection

(No reviews yet) Write a Review

Model: 9080GCB50

In Stock (leaves warehouse same day if ordered before 3pm ET)

$107.30
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Schneider Electric 9080GCB Series Circuit Protector

Professional Thermal-Magnetic Overcurrent Protection for Industrial Applications

The Schneider Electric 9080GCB Series Circuit Protector delivers reliable overcurrent protection with thermal-magnetic trip unit technology. This single-pole unit provides 250V 2A protection with trip-free contact operation and box lug electrical connections. Designed for industrial applications with an operating temperature range of -22 to 140°F and a 15-year average life duration, this circuit protector ensures dependable performance in demanding environments.

Professional Features & Benefits

  • Thermal-Magnetic Technology: Provides precise overcurrent protection with reliable trip-free operation for consistent performance and safety.
  • 250V 2A Rating: Delivers appropriate protection capacity for low-voltage circuit applications with professional-grade specifications.
  • Single-Pole Configuration: Offers streamlined protection for single-phase circuits with compact 3.15" x 3.45" x 0.5" dimensions.
  • Wide Operating Range: Functions reliably in ambient temperatures from -22 to 140°F for versatile installation environments.
  • Box Lug Connections: Features professional electrical connections with 0.5" wire stripping length for secure installations.
  • 15-Year Service Life: Engineered for long-term reliability with extended average life duration reducing maintenance requirements.
  • Industrial Grade Design: Built specifically for industrial applications with robust construction and professional specifications.

Technical Specifications

  • Ambient Air Temperature For Operation: -22-140 °F
  • Average Life Duration: 15 year(s)
  • China Rohs In Scope: No
  • Contact Operation: trip-free
  • Device Application: Industrial Application
  • Device Type: LV equipment - Low voltage circuit breaker
  • Electrical Connection: box lugs
  • Eu Rohs Directive: Compliant with Exemptions
  • Field Service Division: PPIBS
  • Function Option: Standard
  • Function Option Id: STANDARD
  • Html Descr: CIRCUIT PROTECTOR 250V 2A TYPE NEMA
  • Legacy Weee Scope: In
  • Manufacturer: Schneider Electric
  • Mercury Free: Yes
  • Packaging Made With Recycled Cardboard: No
  • Packaging Without Single Use Plastic: Yes
  • Poles Description: 1P
  • Product Availability: Stock - Normally stocked in distribution facility
  • Product Contributes To Saved And Avoided Emissions: No
  • Product Depth: 0.5 in
  • Product Height: 3.45 in
  • Product Or Component Type: Circuit Protector
  • Product Width: 3.15 in
  • Protection Type: overcurrent
  • Range Of Product: 9080GCB
  • Reach Compliance Directive: Free of Substances of Very High Concern above the threshold
  • Reach Free Of Svhc: Yes
  • Reach Free Shvc: Yes
  • Reach Full Compliance Status: Free of Substances of Very High Concern above the threshold
  • Reach Full Compliance Status Id: NOT_CONTAINING_SVHC
  • Reach Regulation: Free of Substances of Very High Concern above the threshold
  • Recycled Metal Content At Cr Level: 0%
  • Relationshiptype: Compatible relationship
  • Return Indicator: Y
  • Returnability: Yes
  • Rohs Eur Conformity Date: 1909
  • Rohs Eur Full Compliance Status: Compliant with Exemptions
  • Rohs Eur Full Compliance Status Id: COMPLIANT_WITH_EXEMPTIONS
  • Rohs Eur In Scope: Yes
  • Rohs Eur Status: Compliant with Exemptions
  • Rohs Exemption Information: Yes
  • Serviceability: No
  • Sustainable Packaging: No
  • Take Back: No
  • Temperature For Tripping: 70 °F
  • Tier: 2
  • Tier Id: 2
  • Traceability: No
  • Trip Unit Technology: thermal-magnetic
  • Wd Status: A - SELECTED - PCE ONLY (Migration)
  • Wire Stripping Length: 0.5 in
  • Wiring Device Additional Information: factory wiring only
  • With Recycled Cardboard: No
  • Without Single Use Plastic: Yes
  • Department: Electrical

Professional Applications

  • Industrial Control Panels
  • Manufacturing Equipment Protection
  • Process Control Systems
  • Motor Control Centers
  • Automation Equipment
  • Low-Voltage Distribution
  • Equipment Overcurrent Protection

Why Choose Schneider Electric Quality?

Schneider Electric circuit protectors deliver proven reliability with 15-year average life duration and comprehensive compliance including RoHS and REACH directives. The mercury-free design and sustainable packaging approach reflect professional environmental responsibility while maintaining industrial-grade performance standards.

Manufacturer Resources

Product Specs

Ambient Air Temperature For Operation:
-22-140 °F
Average Life Duration:
15 year(s)
China Rohs In Scope:
No
Contact Operation:
trip-free
Device Application:
Industrial Application
Device Type:
LV equipment - Low voltage circuit breaker
Electrical Connection:
box lugs
Eu Rohs Directive:
Compliant with Exemptions
Field Service Division:
PPIBS
Function Option:
Standard
Html Descr:
CIRCUIT PROTECTOR 250V 2A TYPE NEMA
Legacy Weee Scope:
In
Mercury Free:
Yes
Packaging Made With Recycled Cardboard:
No
Packaging Without Single Use Plastic:
Yes
Poles Description:
1P
Product Availability:
Stock - Normally stocked in distribution facility
Product Contributes To Saved And Avoided Emissions:
No
Product Depth:
0.5 in
Product Height:
3.45 in
Product Or Component Type:
Circuit Protector
Product Width:
3.15 in
Protection Type:
overcurrent
Range Of Product:
9080GCB
Reach Free Of Svhc:
Yes
Reach Full Compliance Status:
Free of Substances of Very High Concern above the threshold
Recycled Metal Content At Cr Level:
0%
Relationshiptype:
Compatible relationship
Rohs Eur Conformity Date:
1909
Rohs Exemption Information:
Yes
Serviceability:
No
Sustainable Packaging:
No
Take Back:
No
Temperature For Tripping:
70 °F
Traceability:
No
Trip Unit Technology:
thermal-magnetic
Wd Status:
A - SELECTED - PCE ONLY (Migration)
Wire Stripping Length:
0.5 in
Wiring Device Additional Information:
factory wiring only
With Recycled Cardboard:
No
Without Single Use Plastic:
Yes
Department:
Electrical
Product Type:
Circuit Protector
Product Group:
Circuit Breakers

Schneider 9080GCB50 – Frequently Asked Questions

1) What amp ratings does the Schneider 9080GCB circuit protector come in?
Two current ratings are offered in the 9080GCB range: 2A as part number 9080GCB20 and 5A as 9080GCB50. Both are single-pole, 250V, thermal-magnetic overcurrent devices. Pick the rating from the load you are protecting, not the panel feed, since these are used to protect control circuits and individual pieces of equipment.
2) Will a 9080GCB circuit protector fit in my control panel enclosure?
Plan on 3.15 x 3.45 x 0.5 inches for the 9080GCB body. It is a slim single-pole device, so it takes very little width on a panel sub-plate, but confirm you have the 3.45 inch clearance in the direction of the height dimension plus room to route conductors into the box lug terminals.
3) Can I use a 9080GCB circuit protector in an unheated warehouse or outdoor-rated enclosure?
The operating ambient range is -22 to 140 degrees F, which covers most unheated industrial spaces and hot machine rooms. One thing to account for: the trip curve is referenced to a 70 degree F trip temperature, so a device running in a hot enclosure will trip earlier at a given current than one in a cool room. Size accordingly on high ambient panels.
4) Is a circuit protector like the 9080GCB the same thing as a branch circuit breaker?
No, and this is the most common mix-up. The 9080GCB is a supplementary circuit protector for overcurrent protection of a device or control circuit downstream of the branch protection. It is not a replacement for the branch circuit breaker feeding your panel. Use it to protect a transformer secondary, a control circuit, or an individual piece of equipment in an industrial application, with the branch breaker still ahead of it.
5) Do I need a two-pole device instead of the 9080GCB for a 240V load?
The 9080GCB is a 1P device rated 250V. It protects one ungrounded conductor. If your application requires both ungrounded legs of a 240V circuit to be opened together, a single-pole protector is the wrong choice and you need a multi-pole device. For a 120V control circuit or a single-line load within the 250V rating, the single pole is correct.
6) How much insulation do I strip for the terminals on a 9080GCB?
Strip 0.5 inch of insulation. The 9080GCB lands conductors in box lug terminals, so the bared copper seats fully under the pressure plate at that length. Note the device is specified for factory wiring only, which is how it is intended to be applied in OEM control panel builds.
7) What does trip-free contact operation mean on the 9080GCB?
Trip-free means the contacts will open on an overcurrent even if somebody is holding the handle in the ON position. You cannot defeat the trip mechanically. On a control panel where an operator may try to force a nuisance-tripping circuit closed, that behavior is what keeps the fault from being held in.
8) Does the Schneider 9080GCB meet RoHS and REACH requirements for our procurement spec?
For EU RoHS it is in scope and listed as compliant with exemptions, with exemption information on file. On REACH it is recorded as free of Substances of Very High Concern above the threshold. The device is also mercury free. China RoHS is out of scope for it.
9) Can the 9080GCB be repaired or rebuilt if it fails?
No. The 9080GCB is a non-serviceable sealed device, so a failed unit gets replaced rather than rebuilt. Average life duration is stated at 15 years, so for MRO stocking most facilities carry a spare of each amp rating rather than parts.
