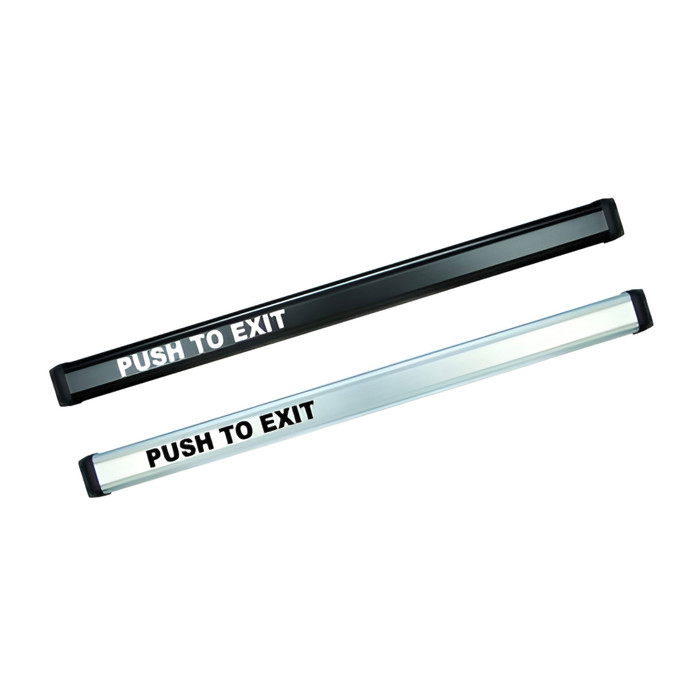

Securitron EMB Electromechanical Exit Bar

Securitron EMB Electromechanical Exit Bar

(No reviews yet) Write a Review

Model: EMB-CL 48
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$271.00
$230.77
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

SECURITRON EMB ELECTROMECHANICAL EXIT BAR

The Electromechanical Exit Bar (EMB) is designed for use on magnetically locked, non-fire-rated doors - or as an initiate device for a delayed egress timer. Pushing the bar activates internal switches which release the lock. Optional waterproof switches are available which allows the EMB to function in outdoor applications. Meets "no special tools or knowledge" code requirements.



FEATURES AND BENEFITS

Product Features

  • Low profile design requires only 1/4" movement for activation
  • Three standard lengths: 36", 42" or 48"
  • Can be field cut to accommodate non-standard openings up to 48"
  • Uses same mounting pattern as the TSB-3 and DSB
  • Retrofits to most competitors mounting patterns
  • Activates a DPDT 5 Amp rated output when pushed which will allow free egress or initiate the delay on an exit delay timer
  • Four individual switches ensure reliable, redundant operation
  • All metal construction
  • 16 ft. [4.8m] 22AWG 6 conductor cable and armored door cord included
  • UL Listing
  • MagnaCare® lifetime replacement, no fault warranty



SPECIFICATIONS

Specification Data

  • Operating Temperature: -4 to +185F [-20 to +85C]
  • Shipping Weight: 7 to 9 lbs. depending on length



Models

Part # Description
EMB-BK EMB - 36", Black Anodized
EMB-BK-42 EMB - 42", Black Anodized
EMB-BK-48 EMB - 48", Black Anodized
EMB-CL EMB - 36", Clear Anodized
EMB-CL-42 EMB - 42", Clear Anodized
EMB-CL-48 EMB - 48", Clear Anodized
WEMB-BK EMB - 36", Black Anodized, Weather-resistant
WEMB-BK-42 EMB - 42", Black Anodized, Weather-resistant
WEMB-BK-48 EMB - 48", Black Anodized, Weather-resistant
WEMB-CL EMB - 36", Clear Anodized, Weather-resistant
WEMB-CL-42 EMB - 42", Clear Anodized, Weather-resistant
WEMB-CL-48 EMB - 48", Clear Anodized, Weather-resistant
TCP-BK Touch Bar Cover Plates - Set of 2, Black Anodized
TCP-CL Touch Bar Cover Plates - Set of 2, Clear Anodized

























Order any Electromechanical Bar listed with waterproof switches by adding the letter "W" to the front of the part number Example: WEMB-CL-42. Order any EMB listed as a dummy bar only (no electronics, no releasing function) by adding the letter "D" to the front of the part number Example: DEMB-CL-42.

TCP covers unwanted mounting holes from previously installed exit bars, strengthens the mounting area and provides a clean look.

EMB-TDM allows through-bolting of EMB on doors greater than 1-3/4" thick.



CERTIFICATE & LISTING

  • ANSI/UL 294 Listed
  • CAN/ULC-S533



DOWNLOAD AND RESOURCES

Manufacturer Resources

Product Specs

Series:
EMB Series
Warranty:
Lifetime Replacement
Mounting Hole Pattern:
TSB and DSB
Product Group:
Exit Devices and Trim
Product Subgroup:
Exit Devices - Rim
Product Type:
Exit Devices - Rim
Subcategory:
Egress Bars and Handles
Commercial/Residential:
Commercial
Electronic:
Yes
Product Model:
SEC-EMB
Product Voltage:
12/24VDC
Door Thickness Range:
2-1/4"
Product Height:
3"
Product Category:
Exit Devices and Trim
Product Width:
2-3/4"
Department:
Door Hardware

Securitron EMB-CL 48 – Frequently Asked Questions

1) Does the Securitron EMB exit bar latch the door, or do I still need a lock?
It is a switch bar, not a panic latch. No latchbolt, no strike, no dogging. The door is held shut by a magnetic lock; pushing the bar throws internal switches that release the lock so the door swings. Only 1/4 inch of movement activates it, and four individual switches share the job for redundant operation. The mag lock and its power supply are separate purchases, since what ships with the bar is the cable and armored door cord. If you want the door mechanically latched rather than magnetically held, that is a rim exit device: the Corbin Russwin ED5200 is a Grade 1 wide stile version, and the Adams Rite 8800 Series is the narrow stile equivalent.
2) Should I use an electromechanical exit bar or an electrified rim exit device on an access controlled door?
It comes down to what holds the door shut. If a magnetic lock does the holding, you want a switch bar like the Securitron EMB: it has no latch, it simply signals the mag to drop when someone pushes, through a DPDT 5 amp output. If the opening needs a mechanical latch in the frame, then an electrified rim exit device is the right family. The SDC S6136 Spectra S6000 Series is an electrified architectural rim device with a 4 inch wide stile and a 1-3/4 to 2 inch door thickness range, and the Dormakaba E2103 with 4908A trim is an electrified 36 inch rim device with classroom function. Neither the EMB nor those two is fire rated.
3) Will the Securitron EMB bar mount on the holes left by a TSB-3 or DSB bar?
Yes. The EMB uses the same mounting pattern as the TSB-3 and the DSB, and the hole pattern carried on its specs is listed as TSB and DSB, so a straight swap on those does not mean re-drilling. It also retrofits most competitors' mounting patterns. Where an older bar leaves holes that do not line up, order the TCP touch bar cover plates, a set of two in black anodized (TCP-BK) or clear anodized (TCP-CL); they cover unwanted holes from the previous bar, strengthen the mounting area, and tidy the face of the door.
4) What door widths does the Securitron EMB exit bar cover, and can it be cut to fit?
Three stock lengths, 36, 42 and 48 inches, each in black anodized or clear anodized. Any of them can be field cut for non-standard openings up to 48 inches, so an odd door width is handled by cutting the next size up rather than waiting on a special. Forty-eight inches is the ceiling; there is no longer EMB, so a wider leaf than that needs a different approach.
5) How does the Securitron EMB wire in, and what wiring comes with it?
Output is a DPDT contact rated 5 amps, which either drops the mag lock for free egress or starts the delay on an exit delay timer, depending how you land it. Operating voltage on the bar is listed as 12/24VDC. Sixteen feet of 22 AWG six conductor cable and an armored door cord ship with it, so the run from the bar across the hinge edge to the frame is already covered and does not need to be sourced separately. What you still supply is the lock itself and the power supply feeding it.
6) Can the Securitron EMB exit bar be used on an exterior door exposed to weather?
Only the W version. Adding the letter W to the front of the part number gets waterproof switches, which is what allows the bar to function in outdoor applications, for example WEMB-CL-42 for a 42 inch clear anodized weather-resistant bar. It is offered that way in all three lengths and both finishes. Operating temperature is -4 to +185F (-20 to +85C). Order the standard EMB for an exposed opening and you have the wrong switches in it, so spec the W part number up front.
7) What else besides the Securitron EMB works as a push bar release for a magnetic lock?
Two close peers. The SDC MSB550 Series in 36 inch is a mechanical switch bar with electromagnetic lock release, listed for narrow or wide stile doors, so it works the same way the EMB does. The SDC SureExit PSB560 Series in 36 inch takes a different route, a pressure sense bar with tri-failsafe technology rather than mechanical switches, also narrow or wide stile. Neither is fire rated and neither is the EMB. Where the EMB has an edge is length coverage: 36, 42 and 48 inches stocked, and field cuttable up to 48, against 36 inch on both SDC bars.
8) The opening is fire rated - what rim exit device takes the place of an electromechanical exit bar?
The Securitron EMB is built for magnetically locked, non fire rated doors, so a fire rated opening calls for a latching panic device instead. Comparable fire rated rim devices include the Dexter ED1000-R-F-EO, a Grade 1 fire rated rim exit device; the Orca Hardware OED85 Series in 36 inch, exit only; the Marks USA M9900F in 36 inch and 48 inch, exit only with a panic protector end cap; and the Arrow FS1250, a 32 inch fire rated rim device for 1-3/4 inch doors. On a narrow stile aluminum or wood door, the Adams Rite 3700 Series 30 inch is fire rated, Grade 1, narrow stile, with starwheel interlocking and listed as wood door compatible. All of these latch into a strike on their own, so the opening does not need the magnetic lock and switching that the EMB provides.
9) What is the closest cross-brand equivalent to the Securitron EMB electromechanical exit bar?
The SDC MSB550 Series is the nearest match in the category: a 36 inch mechanical switch bar with electromagnetic lock release, non fire rated, and listed for narrow or wide stile doors. Both parts work the same way - pushing the bar throws a switch that drops a magnetic lock rather than retracting a latch, so the door itself carries no latching hardware. The Securitron EMB is offered in 36, 42 and 48 inch lengths and can be field cut for non-standard openings up to 48 inches, it runs on 12/24VDC, and it uses the TSB and DSB mounting pattern, so a swap onto an opening that already carries a Securitron switch bar reuses the existing holes.
10) Is there a maglock release bar with no mechanical stroke for a high traffic egress door?
The SDC SureExit PSB560 Series is a 36 inch pressure sense bar with tri-failsafe technology - it reads pressure applied to the bar instead of depending on a bar that travels, and it is listed for narrow or wide stile doors and non fire rated. The Securitron EMB takes the mechanical route in a low profile housing: it needs only 1/4 inch of movement to activate, four individual switches give redundant operation, the body is all metal, and pushing it drives a DPDT 5 amp rated output that releases the lock or starts the countdown on a delayed egress timer. SDC's own MSB550 Series is a mechanical switch bar in the same 36 inch size if you want the switched style from that brand.
11) I want an electrified exit device that latches instead of a maglock and a switch bar - what compares?
Two electrified latching devices sit alongside the Securitron EMB. The SDC S6136 Spectra S6000 Series is a 36 inch electrified architectural rim exit device with a 4 inch wide stile, non fire rated, for doors 1-3/4 inch to 2 inch thick. The Dormakaba E2103 with 4908A trim is a 36 inch electrified rim exit device with an 08 classroom function, so the outside lever is controlled while the device latches the door. The difference in approach is the lock itself: those two retract a latch and hold the door mechanically, while the EMB carries no latch and instead switches a DPDT 5 amp rated output at 12/24VDC to release a magnetic lock or start a delayed egress timer.
12) My doors are thicker than 1-3/4 inches. Can the EMB electromechanical bar still be mounted?
Use the EMB-TDM. That accessory allows through-bolting of the EMB on doors greater than 1-3/4 inches thick, which is what a heavier or built-up leaf needs to hold the bar solidly. The door thickness figure carried on the EMB specs is 2-1/4 inches. On a normal 1-3/4 inch commercial door the bar mounts without the TDM.
13) Will the Securitron EMB work as the initiate device for a delayed egress system?
That is one of its two intended jobs. Push the bar and the DPDT 5 amp output either releases the magnetic lock for free egress or initiates the delay on an exit delay timer, depending on how it is wired. Because it takes only 1/4 inch of movement to activate, a shoulder or a hip against the bar registers as an attempt to exit, and four individual switches back each other up so the initiate signal is not riding on one contact. It meets the no special tools or knowledge code requirement for egress hardware.
14) Is the Securitron EMB exit bar UL listed, and does it satisfy egress code?
It carries ANSI/UL 294 listing and CAN/ULC-S533, and it meets the no special tools or knowledge requirement, since one push in the direction of travel releases the door. Be clear about the scope of that: the EMB is a release bar for a magnetically locked, non-fire-rated opening, not a panic device for a rated door. Facility specs that call for a fire-rated latching exit device are not satisfied by a switch bar.
15) I need a matching dummy bar on the inactive leaf of a pair. Does Securitron make one for the EMB?
Add the letter D to the front of the part number and you get the same bar with no electronics and no releasing function, for instance DEMB-CL-42. It follows the same numbering, so the three lengths and both anodized finishes carry across and the two leaves read as a matched pair. Since it releases nothing, the leaf it goes on cannot be the one carrying the egress function.
16) The drawing calls out an ANSI Grade 1 rim panic device on a non fire rated door - which comparable devices carry that?
Several rim devices in the set are listed Grade 1 and non fire rated: the Corbin Russwin ED5200 in 36 inch, wide stile, exit only and accepts trim, for 1-3/4 inch doors; the Detex 10 Advantex Series 36 inch wide stile, extra heavy duty; the TownSteel ED1100 36 inch wide stile, heavy duty; the Dexter ED1000-R-EO in 3FT and 4FT; and the Hager 4701 Series 36 inch rim device with Grade 1 BHMA certification. These are mechanical latching panic devices. The Securitron EMB is a different animal on the same door - a low profile switch bar that releases a magnetic lock, ANSI/UL 294 listed and CAN/ULC-S533, and it meets the no special tools or knowledge code requirement for egress.
17) Narrow stile aluminum storefront and no magnetic lock in the plan - what rim device fits instead of a switch bar?
For a narrow stile leaf that has to latch on its own, the Adams Rite 8800 Series 30 inch is Grade 1 narrow stile for doors 1-3/4 inch to 2-1/4 inch; the Corbin Russwin ED4200 is a Grade 1 36 inch narrow stile device, exit only and accepts trim, for 1-3/4 inch doors; the TownSteel ED3700 36 inch is Grade 1 narrow stile heavy duty; and the Falcon 19-R 36 inch is Grade 1 narrow stile, exit only. The Adams Rite EX88 is another narrow stile interlocking rim device. The Securitron EMB itself measures 2-3/4 inches wide and 3 inches high, so bar footprint is not what pushes you to one of these - the deciding factor is whether the opening is held by a magnetic lock or by a latch and strike.
18) Which of these exit bars go on a door thicker than 1-3/4 inches?
The Securitron EMB is listed to a 2-1/4 inch door thickness, and the EMB-TDM accessory allows through-bolting on doors greater than 1-3/4 inch. Among the comparable devices, the Adams Rite 8800 Series 30 inch covers 1-3/4 inch to 2-1/4 inch and the DORMA 9300 Series 48 inch wide stile Grade 1 heavy duty covers the same 1-3/4 inch to 2-1/4 inch band, while the SDC S6136 covers 1-3/4 inch to 2 inch. Several others are listed at 1-3/4 inch only, including the Corbin Russwin ED3200, the Arrow ED910 36 inch, the CRL Jackson 1295 Series push pad device, and the Falcon 1790EO. On a thick door or a door with an unusual core, confirm the thickness first - it eliminates more candidates than stile width does.
19) The door is wood - which comparable rim exit devices are listed for a wood door?
Two in the comparable set are: the Adams Rite 3700 Series 30 inch, a fire rated Grade 1 narrow stile rim device with starwheel interlocking, and the Adams Rite 8700 Series 30 inch, the non fire rated Grade 1 narrow stile version of the same idea, both listed wood door compatible. Most of the other rim devices in the set - the Corbin Russwin ED5200, the Detex 10 Advantex, the TownSteel ED1100 and the SDC MSB550 among them - are listed not compatible with wood doors. Pin down the door material before the bar, because it narrows the field ahead of length and finish.
20) I need a matching bar on the inactive leaf that does nothing - is a dummy exit device the same part?
It looks the same on the door and behaves differently. The Detex Advantex 00 Series is a super heavy duty wide stile dummy exit device, Grade 1 - a push bar with no releasing function, meant to match the active leaf visually. On the Securitron side the same idea is ordered by adding a D to the front of the part number, for example DEMB-CL-42, which is the bar with no electronics and no releasing function. What separates a dummy from the working part is the switching: only the standard EMB drives the DPDT 5 amp rated output that releases the lock or starts a delayed egress timer, so a dummy on a leaf that has to release is the wrong part even though it mounts the same way.
21) The door is 48 inches wide - which bars are made in that length?
The Securitron EMB is built in a 48 inch length in both finishes, as EMB-BK-48 and EMB-CL-48, and it can be field cut for non-standard openings up to 48 inches. Comparable devices offered at 48 inches include the Cal-Royal 5500 wide rim exit device with push bar, Grade 2 heavy duty; the CRL Jackson 1095 Series 48 inch crossbar rim panic device, wide stile and exit only; the Corbin Russwin ED3200 48 inch crossbar, Grade 1 wide stile for 1-3/4 inch doors; the DORMA 9300 Series 48 inch wide stile, Grade 1 heavy duty; the Dexter ED1000-R-EO in 4FT; and the fire rated Marks USA M9900F 48 inch. The Sargent 2828 and 3828 are reversible Grade 1 rim devices sized for a 48 inch minimum door width.
22) What finishes does the Securitron EMB come in, and can I match bars across a building?
Black anodized and clear anodized, and both are offered in every length, 36, 42 and 48 inches, so a property with mixed door widths still ends up with one look. The TCP cover plates come in the same two finishes, TCP-BK and TCP-CL, and the weather-resistant WEMB versions are listed in both as well. That is the full finish range, so standardizing a building on one of the two is straightforward.
23) How much room does the Securitron EMB bar take up on the face of the door?
The bar is listed at 3 inches by 2-3/4 inches on its section, and it is a low profile design that needs only 1/4 inch of movement to activate, so it does not stand far off the face. Construction is all metal, which is what holds up in a high traffic entrance where the bar is hit hundreds of times a day. Fixing is to the TSB and DSB hole pattern, and it retrofits most competitors' patterns, so on a replacement job the existing prep usually carries it.
