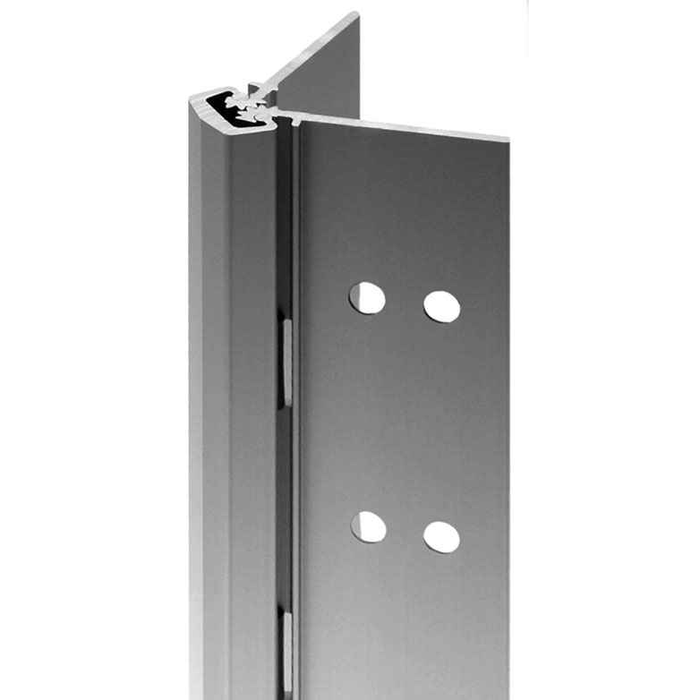

MATERIAL: Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings.
LENGTHS: 83", 85", 95" and 120" lengths standard for nominal door heights. Custom lengths are available.
LOAD/FREQUENCY RATINGS: For 1-3/4" doors. 48" max. door width in 16 gauge hollow metal (min.) or 1/8" aluminum (min.).
Standard Duty — Tested per BHMA standards for medium-frequency doors up to 200 lb. without frame or door reinforcement.
Heavy Duty — Tested per BHMA standards. Up to 200 lb. doors (high-frequency) and up to 400 lb. doors (medium-frequency) without frame or door reinforcement; up to 600 lb. doors (low-frequency) with the use of Rivnuts in the frame and door.
Heavy Duty (LL) — Our HD hinge with additional fastener holes for low-frequency doors up to 1,000 lb., including most lead-lined doors. Rivnuts are recommended in the frame and door on extremely tall, extremely heavy or wide doors
Manufacturer Resources
Product Specs
- Product Group:
- Door Hinges and Pivots
- Product Subgroup:
- Continuous Hinges
- Application:
- Geared Continuous Hinges are Build to Handle Abuse From High Traffic Applications
- Fire Rating:
- Fire Rated for 90 Minutes, 3-Hr Fire Rating is Optional At Extra Cost
- Fastener Size:
- 12-24 X 3/4" Self Drilling, Thread Forming 410SS Phillips Undercut Flathead Screws
- Bearing Type:
- Thrust Bearings
- Standards:
- ANSI/BHMA A156.26-2006 Grade 1
- Series:
- SL11 Series
- For Use With:
- 1-3/8" to 1-3/4" Doors
- Duty Level:
- Standard Duty
- Features:
- Load Or Frequency Ratings Up To 200 lb Doors (High-Frequency) And Up To 400 lb Doors (Medium-Frequency) Without Frame Or Door Reinforcement Up To 600 lb Doors (Low-Frequency) With The Use Of Rivnuts In The Frame And Door
- Hinge Clearance:
- Door Closed: 11/32" Bevel Edge Clearance, 5/16" Square Edge Clearance; Door Open 90 Degree: 7/16" Clearance Required for Cap Rotation
