SharkBite 24623LF Push-to-Connect Garden Valve, 3/4-in MHT

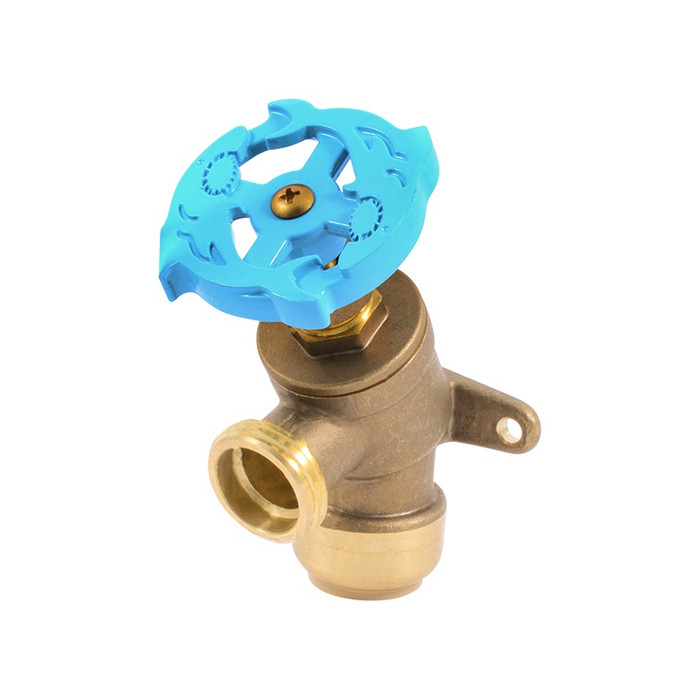

The SharkBite 24623LF is a 3/4-in push-to-connect x 3/4-in male garden hose thread (MHT) garden valve built for rough-in and retrofit hose-bib applications. The push-to-connect inlet is compatible with copper, PEX, CPVC, or PE-RT pipe, so it drops onto existing rough-in without solder, glue, unions, or specialty tools. A durable forged body gives the valve strength for outdoor and utility installations, and an integrated mounting flange lets a plumber or contractor secure it directly to the mounting surface.

Key Features

  • Trade Size: 3/4-in push-to-connect inlet x 3/4-in male garden hose thread (MHT) outlet.
  • Push-to-Connect Installation: No solder, glue, unions, or tools required for the inlet connection.
  • Pipe Compatibility: Push-to-connect inlet works with PEX, copper, CPVC, or PE-RT pipe for flexible rough-in options.
  • Durable Forged Body: Forged construction adds strength for outdoor and demanding installation points.
  • Rotatable Fitting: Fitting can be rotated on the pipe after installation, making it easier to align in tight working spaces.
  • Multi-Turn Valve: Multi-turn handle allows regulated on/off flow control rather than a simple quarter-turn shutoff.
  • Integrated Mounting Flange: Built-in flange secures the valve to the desired mounting surface for a stable hose-bib installation.
  • Demount Clip Compatible: Accepts a demount clip (sold separately) to release the pipe from the fitting if the connection needs to be undone.

Technical Specifications

  • Inlet Connection: 3/4-in Push-to-Connect
  • Outlet Connection: 3/4-in Male Garden Hose Thread (MHT)
  • Body Construction: Forged
  • Valve Type: Multi-Turn
  • Compatible Pipe Materials: PEX, Copper, CPVC, PE-RT
  • Packaging: 6 ea

Typical Applications

  • Exterior Hose Bib and Garden Valve Installations
  • Rough-In Plumbing on Copper, PEX, CPVC, or PE-RT Systems
  • Renovation and Retrofit Projects Without Access to Solder or Tools
  • Utility and Outdoor Water Supply Connections
  • Tight-Space Installations Requiring Post-Install Rotation

Why SharkBite?

SharkBite's push-to-connect design lets plumbers and contractors make a secure connection to copper, PEX, CPVC, or PE-RT pipe without solder, glue, unions, or specialty tools, saving time on rough-in and retrofit work. The forged body and integrated mounting flange are built for a durable, stable outdoor installation, and the multi-turn valve gives reliable on/off flow control at the hose bib.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
SHK-20260923
Product Type:
Garden Valve
Connection Type:
Push-to-Connect
Configuration:
Multi-Turn
Department:
Plumbing
Product Subgroup:
Fittings and Valves
Product Material:
Brass
Product Size:
3/4"
Product Group:
Fitting

SharkBite 24623LF – Frequently Asked Questions

1) Will the SharkBite 24623LF garden valve connect to my existing copper stub-out without soldering?
Yes. The 24623LF has a 3/4 inch push-to-connect inlet that goes onto copper, PEX, CPVC or PE-RT pipe with no solder, glue, unions or special tools. Cut the pipe clean and square, deburr it, mark your insertion depth and push. That is what makes it workable on a retrofit hose bib where you cannot get a torch near siding or framing.
2) Does a standard garden hose thread onto the SharkBite 24623LF outlet?
The outlet is 3/4 inch male garden hose thread (MHT), which is the standard thread a residential garden hose, splitter, timer or backflow preventer screws onto. No adapter needed for normal hose fittings.
3) Will the SharkBite 24623LF work on 3/4 inch PEX as well as copper?
Yes. The push-to-connect inlet is sized 3/4 inch and accepts PEX, copper, CPVC or PE-RT at that size, so one valve covers whatever the rough-in happens to be. Use the SharkBite insert stiffener with PEX and PE-RT as the system requires.
4) Is the SharkBite 24623LF a quarter-turn ball valve or a multi-turn hose bib?
It is a multi-turn valve, so the handle takes several rotations from closed to full open and you can throttle flow partway. If you want a snap-shut quarter-turn lever at the hose bib, this is not that valve.
5) Can I rotate a SharkBite push-to-connect garden valve after it is pushed on to line up the handle?
Yes. The fitting rotates on the pipe once it is seated, so you can swing the valve to the right orientation in a tight stud bay or against a rim joist without pulling the connection apart. The seal holds while it turns.
6) How do you mount the SharkBite 24623LF to the wall?
There is an integrated mounting flange on the valve body, so it screws straight to the siding, sheathing or blocking at the penetration. That is what takes the load when someone cranks a hose on or leans on the handle, rather than putting that strain into the push-to-connect joint.
7) Can a SharkBite push-to-connect garden valve be taken back off the pipe if I need to redo the connection?
Yes, the 24623LF accepts a demount clip to release the pipe from the fitting. The clip is sold separately, so add one to the order if you expect to reposition the valve or reuse it.
8) What is the SharkBite 24623LF valve body made of?
Brass, forged rather than cast. Forging is what gives it strength at an exterior wall penetration where the valve takes hose loads and weather.
9) How many SharkBite 24623LF garden valves come in a pack?
The 24623LF is packaged 6 each, which suits a multi-family or production builder stocking several exterior bibs at once rather than a single-unit repair.
