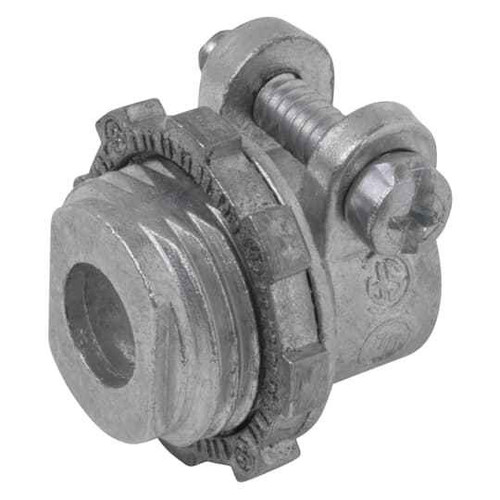

1-1/2INCH CONN SQZ AC/FLEX DC INSUL
Manufacturer Resources
Product Specs
- Product Group:
- Conduit & Fittings
- Selling Unit Of Measure:
- each
- Product Material:
- Zinc Die Cast
- Department:
- Electrical
- Product Type:
- Electrical fittings
Steel City XC 870 – Frequently Asked Questions
1) What trade sizes does the Steel City XC 87 insulated squeeze connector come in?
The Steel City XC 87 series insulated squeeze connectors run 1/2 inch (XC 870), 3/4 inch (XC 872), 1 inch (XC 873), 1-1/4 inch (XC874), 1-1/2 inch (XC875), 2-1/2 inch (XC877), 3 inch (XC878), 3-1/2 inch (XC879) and 4 inch (XC8710). Match the trade size to the armored cable or flex you are terminating.
2) Can I use this squeeze connector on both AC armored cable and flexible metal conduit?
Yes. The Steel City XC 87 squeeze connector is built for AC/flex and for DC (BX) cable, so one fitting covers armored cable and flexible metal conduit terminations into a box or enclosure.
3) Is the throat on this Steel City squeeze connector insulated, or do I still need a plastic anti-short bushing?
The fitting itself is the insulated version, so the throat is insulated where the conductors pass through. That protects the wire jacket at the point of entry. It does not change the separate practice of using an anti-short bushing inside the armor on AC cable where the cable type calls for it.
4) What material are the Steel City XC 87 connectors made of, and are they OK in a damp indoor mechanical room?
Zinc die cast body. That is the standard indoor-dry-location squeeze connector material and it holds up in a typical mechanical room or ceiling space. For wet locations or direct outdoor exposure you want a fitting specifically rated for wet locations instead.
5) Do I need a locknut with the Steel City XC 87 squeeze connector?
A squeeze connector of this style mounts through the knockout and is secured with a locknut on the inside of the box, then the clamp screws tighten onto the cable. Confirm the locknut is included with your order or add one for each connector, plus the correct knockout size to match the trade size you pick.
6) What is the difference between a squeeze connector and a screw-in (duplex) AC connector?
A squeeze connector clamps the armor with a saddle and screws, which grips a range of cable within the trade size and works for both flex conduit and armored cable. A screw-in connector threads into the spiral of AC cable and is quicker but is specific to that cable. The XC 87 squeeze style is the one to use when you are terminating flexible metal conduit as well as BX.
7) Are these squeeze connectors sold individually or only by the box?
Selling unit is each, so you can buy a single XC 87 connector rather than a full carton. Useful when you only need one or two to finish a panel or a light fixture whip.
