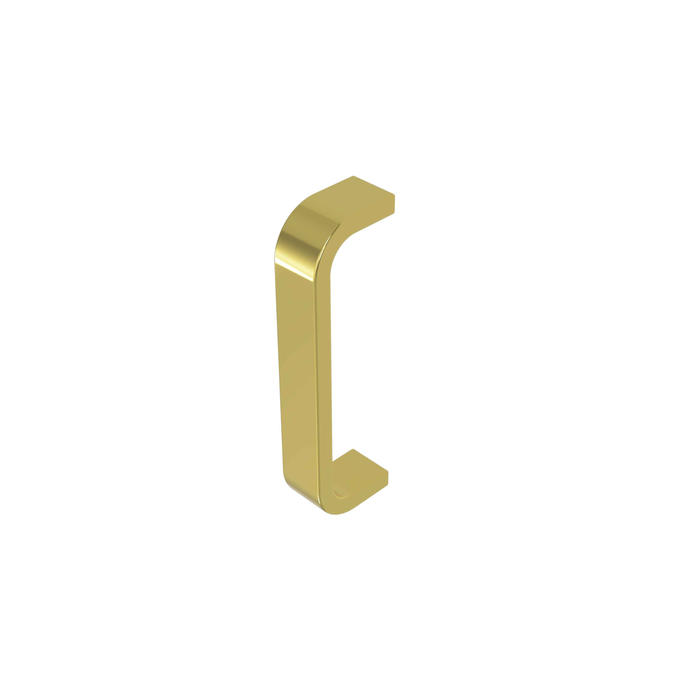

Name: Trimco 1139 1"x3/8" Pull Bar - 6"-8" CTC
Brand: Trimco
SKU: TRI-1139-1E.605
Price: 89.88 USD
Availability: InStock

Product Overview
FAQs

TRIMCO 1139 1"X3/8" PULL BAR - 6"-8" CTC OVERVIEW

1139 1"x3/8" Pull Bar - 6"-8" CTC Grip. Pull - 6"-8" CTC.

Trimco’s Style Grips are a great way to dress up a door to compliment any building design. Manufactured from stainless steel, bronze or brass for durability and long life, these pulls are available in various designs from elegant and detailed to modern, simple and clean. ADA compliant and multiple mounting methods are also available.

Buy the TRIMCO 1139 1"x3/8" Pull Bar today to add a stylish hardware for your home!

1139 1"X3/8" PULL BAR - 6"-8" CTC PRODUCT FEATURES

Manufactured from stainless steel, bronze or brass for durability and long life.
Multiple elegant and simple styles available to compliment any building design.
ADA compliant and various mounting methods including back-to-back available.
Available in most architectural finishes.

TRIMCO 1139-1 SERIES COLOR VARIATIONS

Trimco 1139 1"x3/8" Pull Bar - 6"-8" CTC Bright Brass (605)
Trimco 1139 1"x3/8" Pull Bar - 6"-8" CTC Satin Brass (606)
Trimco 1139 1"x3/8" Pull Bar - 6"-8" CTC Oil Rubbed Bronze (613)
Trimco 1139 1"x3/8" Pull Bar - 6"-8" CTC Dark Oxidized Satin Bronze (613E)
Trimco 1139 1"x3/8" Pull Bar - 6"-8" CTC Matte Black (622)
Trimco 1139 1"x3/8" Pull Bar - 6"-8" CTC Satin Chrome (626)
Trimco 1139 1"x3/8" Pull Bar - 6"-8" CTC Satin Aluminum (628)
Trimco 1139 1"x3/8" Pull Bar - 6"-8" CTC Bright Stainless Steel (629)
Trimco 1139 1"x3/8" Pull Bar - 6"-8" CTC Satin Stainless Steel (630)
Trimco 1139 1"x3/8" Pull Bar - 6"-8" CTC Healthy Hardware Steralloy Silver (710CU)

APPLICATIONS

Commercial & Industrial Buildings
Government & Military Facilities
Hospitality
Multifamily & Mixed-Use
Public Buildings & Facilities

TRIMCO 1139 SERIES COLLECTION

Trimco 1139-1 Pull - 6" CTC Thru-Bolt Mounting
Trimco 1139-2 Pull - 8" CTC Thru-Bolt Mounting

RESOURCES & DOWNLOADS

Manufacturer Resources

Product Specs

Commercial/Residential:: Commercial
Product Group:: Door Trim and Accessories
Product Subgroup:: Door Pulls, Push and Pull Plates
Product Type:: Door Pulls
Subcategory:: Door Pulls, Push and Pull Plates
(CTC) Center-to-Center:: 6"
Product Category:: Door Trim and Accessories
Department:: Door Hardware

Trimco TRI-1139-1E.605 – Frequently Asked Questions

1) What center-to-center spacing does the Trimco 1139 pull bar come in?

Two spacings, 6 inch and 8 inch center to center, and the CTC is what you match to the existing holes in the door. If you are replacing a pull and want to reuse the prep, measure hole center to hole center and order that size. The bar itself is a 1 inch by 3/8 inch section in both sizes.

2) What is a straight commercial equivalent to the Trimco 1139 pull bar in a 1 inch round bar?

The Ives 8103HD is the closest straight-bar alternative in the same bar size: it is a heavy duty straight door pull with a 1 inch round bar and through bolt mounting, matching the Trimco 1139's 1 inch bar section and thru-bolt approach. The Trimco 1139 uses a 1 inch by 3/8 inch bar profile rather than a full round, so the grip feel differs, but both are through-bolted straight pulls sized for commercial openings. The ABH AB3300 is another straight flat end pull handle at 1.00 inch diameter if you want a flat-end termination.

3) I need an offset pull instead of a straight bar so knuckles clear the door face. What should I order?

The Trimco 1139 is a straight 1 inch by 3/8 inch bar, so for an offset grip look at the Ives 8169, a C style offset solid door pull with a 1 inch diameter and heavy duty mounting, or the Ives 8145EZHD, a 45 degree offset pull with heavy duty mounting hardware that is ADA compliant. The ABH AB3310 is an offset flat end pull handle in a commercial grade surface mount version, and the ABH AB3330 series offers an offset round end pull with custom length options if your center-to-center does not land on a stock size.

4) What finishes does the Trimco 1139 pull bar come in and can I match the rest of my door hardware?

Ten finishes, all standard architectural numbers so they cross-reference to whatever is already on the openings: 605 bright brass, 606 satin brass, 613 oil rubbed bronze, 613E dark oxidized satin bronze, 622 matte black, 626 satin chrome, 628 satin aluminum, 629 bright stainless, 630 satin stainless, and 710CU Healthy Hardware Steralloy Silver. If your building is standardized on 630, that is the usual commercial default and it is stocked here in both sizes and both mounts. 710CU is the antimicrobial copper alloy option for healthcare and food service touchpoints.

5) Is the Trimco 1139 the same as the 1139-2?

Same pull, different spacing. Trimco catalogs the 1139-1 as the 6 inch CTC thru-bolt pull and the 1139-2 as the 8 inch CTC thru-bolt pull, and both are ordered here off the same 1139 bar. Distributors quoting against a spec should call out the dash number, since the CTC is the only thing separating them.

6) Is the Cal-Royal PUL-175 a substitute for a Trimco 1139 pull bar?

No. The Cal-Royal PUL-175 is a night latch cylinder pull in stainless steel construction at a 3-1/2 inch height, which is a small pull that mounts over a rim cylinder so the door can be pulled shut at a night latch. The Trimco 1139 is a 1 inch by 3/8 inch pull bar with a 6 inch center-to-center grip meant to be gripped as the primary door pull. They serve different purposes on the door and are not interchangeable, even though both are listed as pulls.

7) For a high-traffic entrance, what heavier alternatives are there to the Trimco 1139 pull?

The Trimco 1139 is a Commercial pull manufactured from stainless steel, bronze or brass for durability and long life. If the specification calls out a heavy duty pull by name, Ives lists the 8102HD heavy duty straight pull with a 3/4 inch round bar and 1-1/2 inch clearance, the 8103HD heavy duty straight pull with a 1 inch round bar and through bolt mounting, the 8145EZHD 45 degree offset pull with heavy duty mounting hardware, and the 8169 C style offset pull, all carrying a Heavy Duty duty level.

8) What should I use if I need pulls on both faces of the door rather than a single-side pull?

The Trimco 1139 Style Grips are offered with multiple mounting methods including back-to-back. If you would rather order a pull that ships as a back-to-back set outright, the Deltana OHP620 is an off-set handle pull supplied as a back-to-back set for doors 1-1/8 inch to 1-3/8 inch thick, and the Deltana SSPOBB24 and SSPORBB24 are 24 inch back-to-back pulls in modern offset and round offset profiles. Check your door thickness against the set you pick, since back-to-back hardware is thickness dependent.

9) The Trimco 1139 comes in E-Mount and G-Mount. What if my door will not take a thru-bolt?

The Trimco 1139 is offered in E-Mount and G-Mount versions across its 6 inch and 8 inch sizes, both thru-bolt style mountings covered by Trimco's mounting templates. If the door will not accept a thru-bolt, the ABH AB3310 offset flat end pull handle is a commercial grade surface mount pull, which fixes from one face only. Confirm the door construction will hold a surface fastener before you commit, since a surface mount pull relies entirely on the door skin and core.

10) Which alternatives to the Trimco 1139 are called out as ADA compliant?

The Trimco Style Grips including the 1139 are ADA compliant and available in multiple mounting methods. Among the alternatives, the Ives 8145EZHD is a 45 degree offset door pull in the EZ series listed as ADA compliant with heavy duty mounting hardware. For an accessible opening where you also want an offset grip, the 8145EZHD is the direct cross-brand pick.

11) Can I mount a Trimco 1139 pull back to back with another pull?

Back-to-back mounting is one of the methods Trimco offers on its Style Grips, so a pull on each face of the same door is doable. Order both leaves in the same CTC, 6 inch or 8 inch, so the through holes line up.

12) I need a solid stainless steel pull rather than brass or bronze. What compares to the Trimco 1139?

The Trimco 1139 is manufactured from stainless steel, bronze or brass and is offered in 629 Bright Stainless Steel and 630 Satin Stainless Steel among its finishes. If you want a pull specified as solid stainless throughout, the ABH AB7200 is a solid stainless steel flat end pull handle at 7/8 inch diameter with through-bolt mounting, and the Cal-Royal PUL-175 is stainless steel construction though it is a night latch cylinder pull rather than a grip bar.
