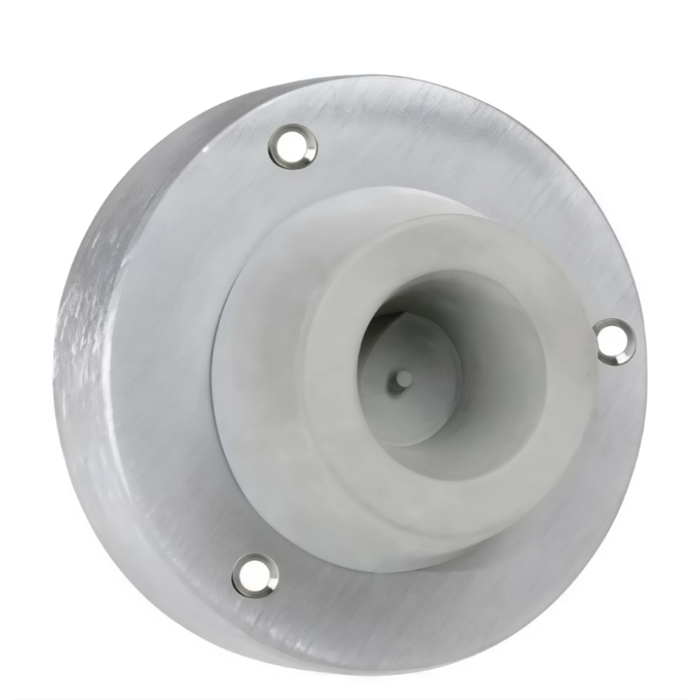

Trimco 1270CVSV Wall Bumper, Cast, Concave, School Version

Trimco 1270CVSV Wall Bumper, Cast, Concave, School Version

(No reviews yet) Write a Review

Model: TRI-1270CVSV.626
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$33.60
$14.49
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

1260 SERIES STOPS OVERVIEW

The Trimco 1270 Series is an attractive, metal-encased, rubber wall stop for use with all styles of locksets and handles. A highly engineered product designed for maximum versatility and durability. The 1270 Series utilizes a steel washer embedded into the rubber bumper to prevent vandalism and unauthorized removal. Available options include convex or concave industrial rubber bumpers, strong wrought or cast construction, tamper resistant school and prison models, as well as large, small and modern styles. Complete with a combo pack of fasteners for all wall types, the 1270 Series will tackle most any application.



FEATURES & BENEFITS

  • Wrought or cast construction with special high-abuse and tamper resistant options for schools and prisons.
  • Heavy steel washer cast into the rubber to resist tampering or unauthorized removal.
  • Available in either cast or wrought, and in most architectural finishes.
  • Provided with a combination fasteners pack for a variety of installation conditions.
  • 1270CVPV and 1270CXPV prison version includes anti-rotation pin to prevent removal from wall.
  • 1270CVSV and 1270CXSV is surface mounted for school applications.
  • Large, small and designer fOCAL options available.



APPLICATIONS

  • Schools
  • Government & Military Facilities
  • Retail & Strip Malls
  • Hospitality
  • Multifamily & Mixed-Use
  • Prisons & Detention Facilities
  • Office Buildings



DOWNLOADS & RESOURCES

Manufacturer Resources

Product Specs

Series:
1270 Series
Warranty:
Lifetime
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Stops, Holders, Silencers & Bumpers
Product Type:
Baseboard And Wall Stops
Subcategory:
Door Stops, Holders, Silencers & Bumpers
ANSI/BHMA:
BHMA L02101/L0225
Commercial/Residential:
Commercial
Healthy Hardware:
Yes
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Trimco TRI-1270CVSV.626 – Frequently Asked Questions

1) What makes the Trimco 1270CVSV the school version instead of the standard wall bumper?
The CVSV is surface mounted, which is the configuration Trimco builds for school applications. It also carries the same heavy steel washer cast into the rubber bumper that resists tampering and keeps students from pulling the bumper off the stop. If you need the higher security level, the prison versions (1270CVPV and 1270CXPV) add an anti-rotation pin that prevents removal from the wall.
2) Concave or convex wall bumper - which one do I need for my lever handle?
The 1270CVSV is the concave bumper, meaning the rubber face is dished. A concave face is what you want when the lever or knob strikes into the center of the bumper and you want it captured rather than sliding off. Trimco builds the same school version with a convex face as the 1270CXSV if your hardware profile suits a domed bumper better. Both carry the tamper-resistant steel washer.
3) Do I have to buy separate anchors for drywall versus block for the Trimco 1270 wall stop?
No. The 1270 Series ships with a combination fastener pack covering a variety of wall conditions, so the same box works whether you are landing it on drywall, masonry, or a stud. That matters on a school or multifamily rollout where you are hitting different wall types across the building and do not want a second line item on the order.
4) Is the Trimco 1270CVSV cast or wrought construction?
Cast. The 1270 Series comes in either wrought or cast, and the CVSV is the cast build, which is the heavier of the two and the one specified where the stop takes abuse. If you are matching stops already installed in a building, check whether the existing units are cast or wrought before you standardize, since the profiles differ.
5) What BHMA number does the Trimco 1270 wall bumper carry for my hardware schedule?
It is listed under BHMA L02101/L0225. That is the number to drop into the door hardware schedule or submittal when a spec calls for a wall stop type on a government, healthcare, or education project. The 1270 Series is a commercial-grade product, not a residential stop.
6) What finishes does the Trimco 1270CVSV wall stop come in?
Seven finishes: 605 bright brass, 606 satin brass, 613 oil rubbed bronze, 613E dark oxidized satin bronze, 622 matte black, 625 bright chrome, and 626 satin chrome. For an institutional building where the lever trim is usually 626, the satin chrome stop is the match; 613 and 613E are the two bronze options if you are following a darker architectural package.
7) Will the 1270CVSV work with any lockset, or is it made for a specific handle?
The 1270 Series is built for use with all styles of locksets and handles, so you are not matching the stop to a particular lever or knob line. What you are matching is the height on the wall: set it so the bumper face lands on the trim, not on the door face or the glass. Trimco publishes a mounting template covering the CVSV and its siblings.
8) Is a wall stop like the Trimco 1270CVSV enough, or do I need a floor stop?
A wall bumper only works if there is wall directly behind the door swing at handle height. If the door swings into open space, into a corner it cannot reach, or against a partition too thin to anchor into, a wall stop is the wrong call and you want a floor stop or a door-mounted overhead instead. Where wall is available, the cast 1270CVSV is the higher-abuse choice for corridors in schools, prisons, and government buildings.
9) Is the Trimco 1270CVSV suitable for apartment corridors and hotels, or is it only a school product?
Despite the school version designation, the 1270 Series is specified across hospitality, multifamily and mixed use, retail and strip malls, office buildings, and government and military facilities. The SV variant simply describes the surface mounted, tamper-resistant build. For a property manager standardizing corridor stops across a portfolio, the cast concave body in 626 satin chrome is the common pick.
10) Does the Trimco 1270CVSV qualify as Healthy Hardware?
Yes, the 1270CVSV is flagged as Healthy Hardware, which matters if you are buying to a sustainable or materials-disclosure requirement on a healthcare or education project and need the product to survive a submittal review.
