Trimco Trimco 3820x3810 UL Semi-Automatic Flushbolt Metal Doors TRI-3820x3810

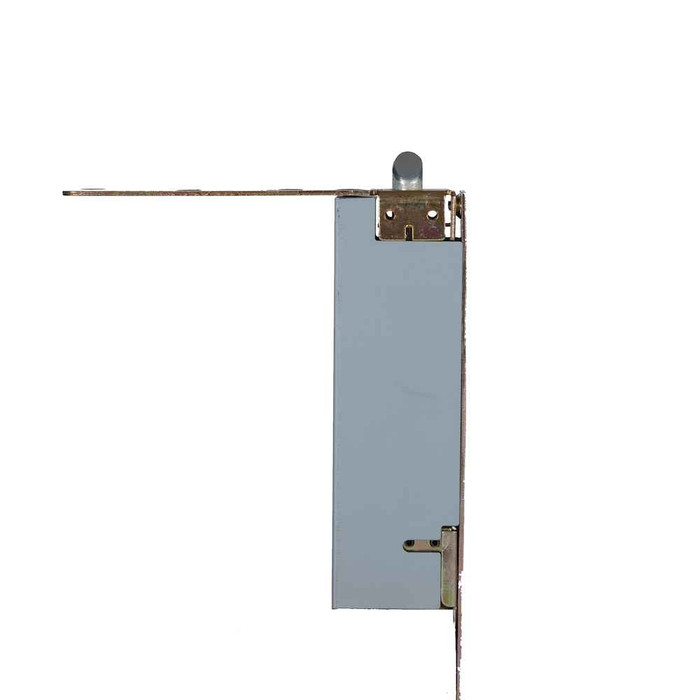

Trimco 3820x3810 UL Semi-Automatic Flushbolt Metal Doors

(No reviews yet) Write a Review

Model: 3820X3810.630
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$266.63
$193.98
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

TRIMCO 3820X3810 UL SEMI-AUTOMATIC FLUSHBOLT FOR METAL DOORS OVERVIEW

3820x3810 UL Semi-Automatic Flushbolt Metal Doors. UL Semi-Automatic Flushbolt Metal Doors.

Trimco’s 3800 Series Automatic and Semi-Automatic Flush Bolts are engineered to be extremely quiet and ultra efficient requiring very low closing force to secure the door. The patented design contains one third fewer parts with key components constructed of stainless steel creating a flush bolt with higher reliability than the competition. Available for metal or wood doors, the 3800 Series Automatic and Semi-Automatic Flush Bolts are flexible for most any application.

Buy the TRIMCO 3820x3810 Series today to add a stylish hardware for your home!

TRIMCO 3820X3810 SEMI-AUTOMATIC FLUSHBOLT PRODUCT FEATURES

  • Ultra efficient requiring very low closing force
  • to secure the door.
  • Steel construction for high reliability and long life.
  • Low noise level for peace and quiet.
  • Architectural finishes to match any décor.
  • Interchangeable trim kits.

TRIMCO 3820X3810 SERIES COLOR VARIATIONS

Trimco 3820x3810 UL Semi-Automatic Flushbolt Metal Doors Bright Brass (605)
Trimco 3820x3810 UL Semi-Automatic Flushbolt Metal Doors Satin Brass (606)
Trimco 3820x3810 UL Semi-Automatic Flushbolt Metal Doors Oil Rubbed Bronze (613)
Trimco 3820x3810 UL Semi-Automatic Flushbolt Metal Doors Dark Oxidized Satin Bronze (613E)
Trimco 3820x3810 UL Semi-Automatic Flushbolt Metal Doors Matte Black (622)
Trimco 3820x3810 UL Semi-Automatic Flushbolt Metal Doors Bright Chrome (625)
Trimco 3820x3810 UL Semi-Automatic Flushbolt Metal Doors Satin Chrome (626)
Trimco 3820x3810 UL Semi-Automatic Flushbolt Metal Doors Bright Stainless Steel (629)
Trimco 3820x3810 UL Semi-Automatic Flushbolt Metal Doors Satin Stainless Steel (630)

APPLICATIONS

  • Commercial & Industrial Buildings
  • Hospitality
  • Multifamily & Mixed-Use
  • Office Buildings

TRIMCO 3800 SERIES COLLECTION

Trimco 3810x3810 UL Automatic Flushbolt Metal Doors
Trimco 3810x3850 UL Automatic Flushbolt with Fire Bolt Metal Doors
Trimco 3820x3810 UL Semi-Automatic Flushbolt Metal Doors
Trimco 3820x3850 UL Semi-Automatic Flushbolt with Fire Bolt Metal Doors
Trimco 3815Lx3815L UL Automatic Flushbolt Wood Doors
Trimco 3815Lx3850 UL Automatic Flushbolt with Fire Bolt Wood Doors
Trimco 3825Lx3815L UL Semi-Automatic Flushbolt Wood Doors
Trimco 3825Lx3850 UL Semi-Automatic Flushbolt with Fire Bolt Wood Doors
Trimco 3830WL Long Finish Kit Only Semi-Automatic Flushbolt - Wood Door

RESOURCES & DOWNLOADS

Manufacturer Resources

Product Specs

Commercial/Residential:
Commercial
Product Group:
Door Trim and Accessories
Product Subgroup:
Filler Plates, Lock Adapters and Wrap Arounds
Product Type:
Flush Bolts & Strikes
Subcategory:
Filler Plates, Lock Adapters and Wrap Arounds
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Trimco 3820X3810.630 – Frequently Asked Questions

1) Does the Trimco 3820x3810 flush bolt work on a fire rated pair of doors?
The 3820x3810 is a UL semi-automatic flush bolt set for metal doors. If the fire rated pair also requires a fire bolt at the top of the inactive leaf, the set to order is the 3820x3850, which is the same semi-automatic flush bolt paired with the 3850 fire bolt rather than a second standard bolt.
2) What is the difference between a semi-automatic and an automatic flush bolt on a pair of doors?
With the semi-automatic 3820x3810, the inactive leaf bolts are projected by hand and then release automatically when the active leaf opens, so the inactive door is not tied to the active leaf for throwing the bolts. The automatic version in the same family, the 3810x3810, projects and retracts off the movement of the active leaf. Both are in Trimco's 3800 Series and both are offered for metal doors, so the choice comes down to whether you want staff to deliberately set the inactive leaf or have it happen on its own.
3) What does the 3820x3810 part number actually cover, top and bottom?
The designation pairs two bolts for one inactive leaf: the 3820 semi-automatic bolt and the 3810 bolt, sold together as the set for a metal door. That is why the Trimco 3800 Series numbers read as a pair, such as 3810x3810 for the full automatic set or 3820x3850 when the top position is a fire bolt.
4) What finishes does the Trimco 3820 semi-automatic flush bolt come in?
Ten finish choices: bright brass 605, satin brass 606, oil rubbed bronze 613, dark oxidized satin bronze 613E, matte black 622, bright chrome 625, satin chrome 626, bright stainless 629, satin stainless 630, and a 626/630 satin chrome with satin stainless combination. For a building already standardized on 626 or 630 lever trim, the matching flush bolt faceplate is available in the same BHMA number.
5) Will elderly or low-strength users be able to close an inactive leaf with these flush bolts?
The 3800 Series bolts are built to need very low closing force to secure the door, and Trimco's patented design uses about a third fewer parts than a conventional flush bolt, with the key components in stainless steel. Trimco also calls out a low noise level, which matters in hospitality and multifamily corridors where a pair of doors gets cycled at night.
6) Can I change the flush bolt trim later without replacing the whole bolt?
Yes. The 3800 Series uses interchangeable trim kits, so the face trim can be swapped if a finish gets changed out during a renovation without pulling and replacing the bolt mechanism itself in the door edge.
7) Are Trimco 3820 flush bolts suitable for commercial traffic or are they a residential item?
This is commercial hardware. Trimco lists the 3800 Series flush bolts for commercial and industrial buildings, hospitality, multifamily and mixed-use, and office buildings, and the product is classed commercial rather than residential.
