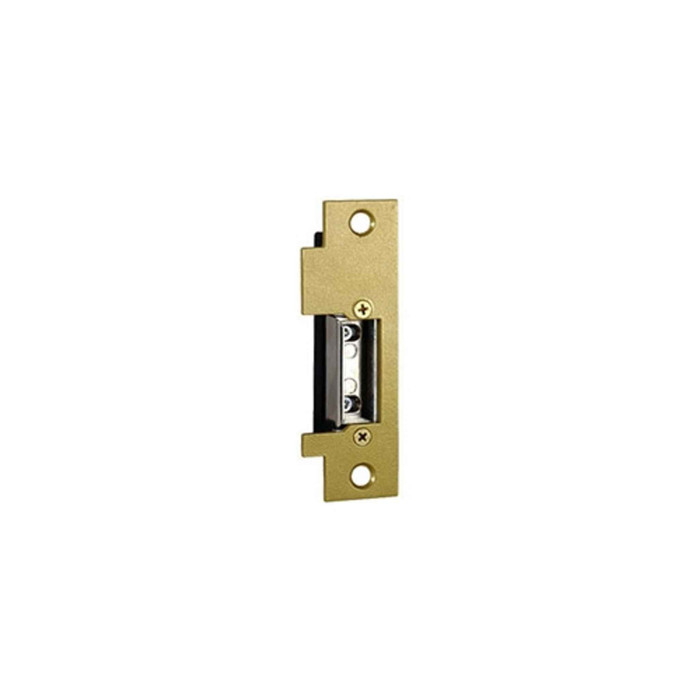

Trine Trine 2009 Series - Fail-Secure, Adjustable Light Commercial Electric Strike 4-7/8" x 1-1/4" Narrow Style Steel Face Plate TRN-2009

Trine 2009 Series - Fail-Secure, Adjustable Light Commercial Electric Strike 4-7/8" x 1-1/4" Narrow Style Steel Face Plate

(No reviews yet) Write a Review

Model: 2009-16-24AC/DC
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$145.00
$123.08
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Trines Adjustable 2000 Series Electric Strikes

Trine 2009

For use in new or replacement installations in metal jambs. Centerline of the latch is 3/8” below ANSI centerline for offset applications. Fits a standard 4-7/8” ANSI prep with little jamb modification. Use with locksets having up to 5/8” throw, based on 1/8” door gap.

Steel Face Plate 4-7/8” x 1-1/4” -- Narrow Style Face Plate -- Mortise Backset 1-9/16” -- Cavity Depth 9/16” -- Cavity Width 5/8” -- Cavity Height 1-11/16”

Available Finishes: 2009 (Brass Powder Coated) -- 2009C (Satin Chrome or - BHMA652
Options: RS (Fail Safe) -- on DC only -- add “RS” to model #

2000 Series Features:

  • Allows adjustment for wider latch bolts & poorly aligned doors & locksets.
  • 1/8” Horizontal Latch Adjustment.
  • Releases Under Slight Door Pre-Load.
  • 500,000 Life Cycles -- Holding Force - 900 lbs.
  • Solid Cast Latch - Chrome Plated.
  • Non Handed Operation.
  • Screw Terminals - Quick Connection.

2000 Series Electrical Characteristics:

Voltage Current/Amps Ohms (Ω) Sound Duty
6-14VAC 0.44 - 1.10 8.5 Buzz Intermittent
6-14VDC 0.70 - 1.60 8.5 Silent Continuous
16-24VAC 0.22 - 0.33 50.0 Buzz Intermittent
16-24VDC 0.32 - 0.47 50.0 Silent Continuous
12VDC 0.20 - 0.33 60.0 Silent Continuous
24VDC 0.11 - 0.47 120.0 Silent Continuous

Downloadable content:

2009 Dimensions (PDF)

Manufacturer Resources

Product Specs

Series:
2009
Product Group:
Electronic Access Controls
Product Subgroup:
Electric Strikes
Product Type:
Electric Strikes
Subcategory:
Electric Strikes
Commercial/Residential:
Commercial
Electronic:
Yes
Outdoor Rated:
No
Lock Type:
Mortise or Cylindrical
Fail-safe / Fail-secure:
Fail-Secure
Face Plate:
4-7/8"
Fire Rating:
No
Product Category:
Electronic Access Controls
Department:
Door Hardware

Trine 2009-16-24AC/DC – Frequently Asked Questions

1) Will the Trine 2009 electric strike fit a standard 4-7/8 inch ANSI jamb prep?
Yes. The 2009 drops into a standard 4-7/8 inch ANSI prep with little jamb modification, using a narrow style steel face plate measuring 4-7/8 x 1-1/4 inches. It is built for metal jambs, new construction or replacement. Note the latch centerline sits 3/8 inch below the ANSI centerline, which is deliberate: it is the offset version, so if your existing lockset latch lines up dead on ANSI centerline you want the on-center model instead.
2) Can I use a Trine 2009 electric strike on a fire rated door?
No. The 2009 is not fire rated, and it is fail-secure light commercial hardware for non-rated metal jamb openings. For a rated opening, look at a listed strike such as the Von Duprin 6400 (3-Hour UL 10C, fail-secure, Grade 1), the Hager 2930, or the Camden CX-ED1410/CX-ED1420 universal Grade 1 fire-rated strikes.
3) Does the door stay locked or unlock if power fails on the Trine 2009?
It stays locked. The 2009 is fail-secure, so on a power loss the keeper holds and the door remains latched from the outside; the lockset's own lever or key still gets you out and in mechanically. If your egress or life-safety scheme needs the strike to release on power failure, Trine offers an RS fail-safe option on DC only, ordered by adding RS to the model number. Field-reversible alternatives include the Hager 2925 and Hager 2928.
4) What voltage should I order the Trine 2009 electric strike in?
Four voltage builds: 6-14VAC/DC, 12VDC, 16-24VAC/DC, and 24VDC. Match it to your power supply and to whether you want noise. On AC the strike buzzes and is rated intermittent duty, which suits a doorbell-style momentary release. On DC it runs silent and continuous duty, which is what you want on an access control system that may hold the strike energized. Current draw runs 0.20-0.33A at 12VDC (60 ohms) and 0.11-0.47A at 24VDC (120 ohms), so size the supply accordingly.
5) Will the Trine 2009 work if my existing door and lockset are slightly out of alignment?
That is what this one is for. The 2000 Series keeper has 1/8 inch of horizontal latch adjustment, so it takes up wider latch bolts and doors or locksets that no longer sit true, a common condition on an older metal jamb opening you are retrofitting rather than replacing. It also releases under slight door pre-load, so a door pushed against the strike by a closer or a stack pressure still lets go when energized.
6) Does the Trine 2009 electric strike work with a mortise lock or only a cylindrical lock?
Both. The 2009 accepts mortise or cylindrical locksets, provided the latch throw is 5/8 inch or less and you are working in a metal jamb. What it will not handle is a rim exit device latch or a vertical rod, those need a different strike body entirely, such as the SDC 30-4 rim mount Pullman strike or the HES Folger Adam 310-4-2 pac for surface vertical rods.
7) I have an aluminum storefront jamb, will a Trine 2009 fit?
No. The 2009 is specified for metal jambs with a full 4-7/8 x 1-1/4 inch ANSI prep and a 1-9/16 inch mortise backset, which an aluminum storefront stile will not give you. For narrow aluminum jambs, the Adams Rite 7100 and 7160 strikes are made for that application with the same 1-1/4 x 4-7/8 inch faceplate footprint; the Adams Rite 7170 is the version for hollow metal and wood jambs.
8) What electric strike replaces a Trine 2009 when the opening needs a fire label?
The Trine 2009 is not fire rated, so a labeled opening needs a different strike. The Von Duprin 6400 32D is a Grade 1 modular electric strike for mortise or cylindrical locks with a 3-hour UL 10C rating in fail-secure, and the Hager 2930 is a fire rated Grade 1 strike for cylindrical and mortise locks with 12/24VDC dual voltage. Both cover the same mortise-or-cylindrical lock range the 2009 does.
9) Is there a Grade 1 heavy duty alternative to the Trine 2009?
The Trine 2009 is a light commercial adjustable strike. Where the specification calls for Grade 1, the Alarm Controls AES-100 is a Grade 1 heavy duty electric strike, and the Von Duprin 4211 32D is a Grade 1 heavy duty strike for cylindrical locks with 12/24 VDC field-selectable operation. The Securitron MUNL Mortise UnLatch is a Grade 1 strike on the mortise side.
10) I need a fail-safe electric strike, not fail-secure. What are the options besides the Trine 2009?
The Trine 2009 is fail-secure, with a fail-safe RS option on DC only. If the job wants the mode decided in the field, the Hager 2925 has field reversible fail safe or fail secure operation with a 5/8 inch latch, the Hager 2928 offers the same field reversible function, and the Hager 2945 is a rim exit strike with field selectable fail safe or fail secure plus a latchbolt monitor.
11) Will a Trine 2009 work on a door with surface vertical rods or a rim exit device?
The Trine 2009 is for mortise or cylindrical locks. Exit device hardware takes a different strike: the HES Folger Adam 310-4-2 is a complete electric strike pac for surface vertical rods, the SDC 30-4 Series is a rim mount strike for a 3/4 inch Pullman latchbolt in stainless steel, and the Hager 2945 is a fire rated rim exit strike with a latchbolt monitor.
12) Do I need to specify handing on the Trine 2009 electric strike?
No. Operation is non-handed, so the same unit works on a left or right hand opening and you do not have to hand it on the order. All you specify is finish and voltage. Wiring lands on screw terminals rather than flying leads, which makes the jamb connection quick for an installer working in a tight raceway.
13) Is the Trine 2009 strong enough for a busy commercial entry?
It is rated 900 lbs holding force and 500,000 life cycles, with a solid cast chrome plated latch, and Trine classes it as light commercial. That covers a tenant entry, an office suite door or an interior controlled opening. For a high-abuse main entrance or a Grade 1 spec on the drawing, step up to a heavy duty strike such as the Von Duprin 4211, the Alarm Controls AES-100, or the Locknetics MDS100.
14) Can I install a Trine 2009 electric strike on an exterior gate or an outdoor opening?
No. The 2009 is not outdoor rated, it is for interior metal jamb openings. For a gate or a weather-exposed application, the Camden CX-ED1959 series is the outdoor rated gate strike to look at instead.
15) Is there a Trine 2009 alternative that reports whether the door actually latched?
The 2009 has no monitoring output, it is a plain fail-secure release on screw terminals. If your access control needs door position or latch status back at the panel, the Dortronics 3300 Series has a latch bolt sensing switch and takes the same 4-7/8 x 1-1/4 inch ANSI strike prep, so the jamb cut carries over. For monitored and fire rated together, the Camden CX-ED1799L-8 is a dual monitor Grade 1 strike.
16) How do I order the Trine 2009 in fail-safe instead of fail-secure?
Add RS to the model number, and order it on a DC voltage. The RS fail-safe option is DC only, so it is not available on the AC-only side of the 6-14VAC or 16-24VAC ranges; specify 12VDC, 24VDC, or a DC build of the dual-rated options. In fail-safe the strike releases when power drops, which is the opposite behavior from the standard 2009.
17) Which strike works with the same 5/8 inch latchbolt throw as the Trine 2009?
The Trine 2009 is used with locksets having up to 5/8 inch throw, based on a 1/8 inch door gap. The SDC 15 Series is a 5/8 inch latchbolt strike with 12/24 VDC operation, the SDC 45F is a fire-rated 5/8 inch latchbolt strike with a radius corner faceplate, and the Adams Rite 7240 is a fire-rated strike for cylindrical locksets with 5/8 inch latchbolt projection. The HES Folger Adam 310-1(X) strike body takes 1/2, 5/8 or 3/4 inch throw latchbolts.
18) What is the difference between the Trine 2009 and the RCI 15BS for an offset latch opening?
Both address offset latch conditions and neither is fire rated. On the Trine 2009 the latch centerline sits 3/8 inch below the ANSI centerline for offset applications, with 1/8 inch horizontal latch adjustment for wider latch bolts and poorly aligned doors. The RCI 15BS is an economy strike built for special offset latch entry with fail-secure operation.
19) What can I standardize on across a facility if the Trine 2009 faceplate does not match every jamb?
The Trine 2009 comes in one narrow 4-7/8 inch by 1-1/4 inch steel faceplate. Where a single part has to cover mixed preps, the Camden CX-ED1689L-4 is a fire rated universal low profile strike supplied with 4 faceplates, and the Camden CX-ED1799L-8 is a fire rated dual monitor Grade 1 strike supplied with 8 faceplates. The Camden CX-ED1410 and CX-ED1420 are universal Grade 1 ANSI fire-rated strikes.
20) Is there an alternative to the Trine 2009 that avoids cutting the jamb?
The Trine 2009 fits a standard 4-7/8 inch ANSI prep with little jamb modification and is intended for metal jambs. If the jamb has no ANSI prep at all, the Locknetics NC450 is a no cut electric strike. For heavier openings in the same brand, the Locknetics MDS100 US32D and MS100 US32D are heavy duty strikes.
21) The Trine 2009 handles 12VDC and 24VDC. Which alternatives take dual voltage on one part number?
The Trine 2009 is ordered per voltage, in 12VDC, 24VDC, 6-14VAC/DC and 16-24VAC/DC. If one stocked part number has to cover both common voltages, the SDC 15 Series runs 12/24 VDC, the Hager 2930 is a fire rated Grade 1 strike with 12/24VDC dual voltage, the Von Duprin 4211 32D is 12/24 VDC field-selectable, and the Dortronics 3300 Series is 12/24VDC.
22) Are the HES 1500 and 1600 items direct substitutes for a Trine 2009?
No. The HES 1500 and HES 1600 items are electric strike accessories for those Grade 1 fire rated series, not complete strikes, and the HES Folger Adam 310-1(X) is a strike body rather than a full assembly. The Trine 2009 is a complete fail-secure strike with a 4-7/8 inch steel faceplate. A full-assembly substitute would be something like the Von Duprin 6210 for mortise locks at 24 VDC, which is UL 10C fire rated.
23) What strike should I use on a pair of doors instead of the Trine 2009?
The Trine 2009 is a single narrow-style strike for a 4-7/8 inch ANSI prep in a metal jamb. For a double door condition, the Rockwood electric strike for double doors uses a 3/4 keeper and is a Grade 1 fire rated 310-1 Series unit.
24) What finishes does the Trine 2009 strike come in, and will it match my other doors?
Three: brass powder coated, satin chrome (BHMA 652), and dark bronze powder coated. Each is available across all four voltage builds. Satin chrome is the one that blends with the 630/652 stainless and satin trim on most commercial openings, dark bronze matches bronze-anodized aluminum storefront, and the brass powder coat suits older brass-finish hardware. The face plate is steel in all three.
25) The Trine 2009 comes in brass powder coated, satin chrome and dark bronze. What if I need satin stainless to match the rest of the door hardware?
The Trine 2009 faceplate finishes are brass powder coated, satin chrome and dark bronze powder coated. For a satin stainless face, the Von Duprin 6400 32D is a Grade 1 modular fail-secure strike in satin stainless steel, and the Locknetics CS450-32D, MDS100 US32D and MS100 US32D carry the 32D designation as well.
