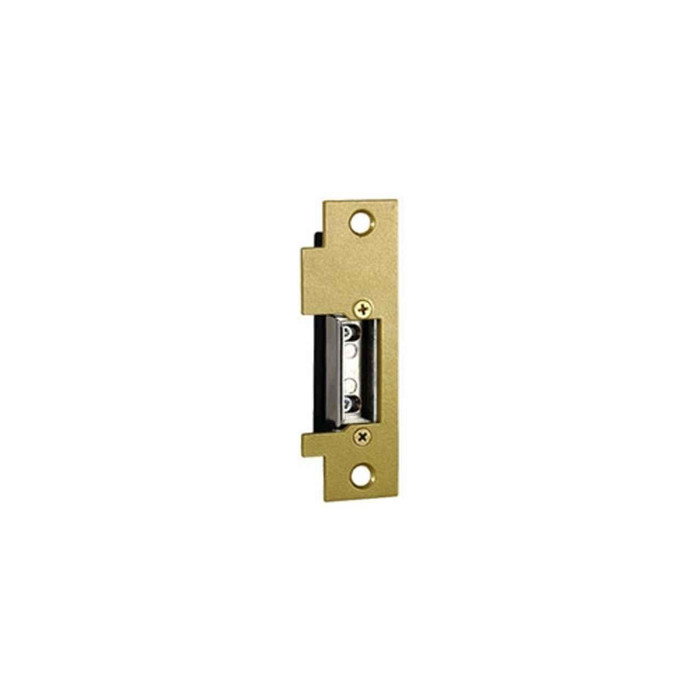

Trine Trine 2009RS Series - Fail-Safe, Adjustable Light Commercial Electric Strike 4-7/8" x 1-1/4" Narrow Style Steel Face Plate TRN-2009RS

Trine 2009RS Series - Fail-Safe, Adjustable Light Commercial Electric Strike 4-7/8" x 1-1/4" Narrow Style Steel Face Plate

(No reviews yet) Write a Review

Model: 2009CRS-24DC
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$171.00
$141.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Trines Adjustable 2000 Series Electric Strikes

Trine 2009

For use in new or replacement installations in metal jambs. Centerline of the latch is 3/8” below ANSI centerline for offset applications. Fits a standard 4-7/8” ANSI prep with little jamb modification. Use with locksets having up to 5/8” throw, based on 1/8” door gap.

Steel Face Plate 4-7/8” x 1-1/4” -- Narrow Style Face Plate -- Mortise Backset 1-9/16” -- Cavity Depth 9/16” -- Cavity Width 5/8” -- Cavity Height 1-11/16”

Available Finishes: 2009 (Brass Powder Coated) -- 2009C (Satin Chrome or - BHMA652
Options: RS (Fail Safe) -- on DC only -- add “RS” to model #

2000 Series Features:

  • Allows adjustment for wider latch bolts & poorly aligned doors & locksets.
  • 1/8” Horizontal Latch Adjustment.
  • Releases Under Slight Door Pre-Load.
  • 500,000 Life Cycles -- Holding Force - 900 lbs.
  • Solid Cast Latch - Chrome Plated.
  • Non Handed Operation.
  • Screw Terminals - Quick Connection.

2000 Series Electrical Characteristics:

Voltage Current/Amps Ohms (Ω) Sound Duty
6-14VAC 0.44 - 1.10 8.5 Buzz Intermittent
6-14VDC 0.70 - 1.60 8.5 Silent Continuous
16-24VAC 0.22 - 0.33 50.0 Buzz Intermittent
16-24VDC 0.32 - 0.47 50.0 Silent Continuous
12VDC 0.20 - 0.33 60.0 Silent Continuous
24VDC 0.11 - 0.47 120.0 Silent Continuous

Downloadable content:

2009 Dimensions (PDF)

Manufacturer Resources

Product Specs

Series:
2009
Product Group:
Electronic Access Controls
Product Subgroup:
Electric Strikes
Product Type:
Electric Strikes
Subcategory:
Electric Strikes
Commercial/Residential:
Commercial
Electronic:
Yes
Outdoor Rated:
No
Lock Type:
Mortise or Cylindrical
Fail-safe / Fail-secure:
Fail-Safe
Face Plate:
4-7/8"
Fire Rating:
No
Product Category:
Electronic Access Controls
Department:
Door Hardware

Trine 2009CRS-24DC – Frequently Asked Questions

1) Will the Trine 2009RS drop into a standard 4-7/8 inch ANSI jamb prep?
Yes, the 2009RS mounts into a standard 4-7/8 inch ANSI prep with little jamb modification. The narrow style steel face plate measures 4-7/8 by 1-1/4 inches, and the mortise backset is 1-9/16 inches with a cavity 9/16 inch deep, 5/8 inch wide and 1-11/16 inches high. It is built for metal jambs, new construction or replacement work. One thing to check on the drawing first: the latch centerline sits 3/8 inch below the ANSI centerline, which is deliberate for offset applications.
2) What latchbolt throw does the Trine 2009 electric strike accept?
Locksets with up to a 5/8 inch throw, based on a 1/8 inch door gap. That covers most standard cylindrical latches and mortise latchbolts, and the strike works with either lock type. If your existing lockset throws 3/4 inch, this is the wrong strike body; the HES Folger Adam 310-1(X) strike body handles 1/2, 5/8 or 3/4 inch throw latchbolts.
3) Does the RS suffix on the Trine 2009 mean fail-safe or fail-secure?
RS is the fail-safe option: the strike unlocks when power is removed. That is what you want on an egress-critical opening or where a fire alarm interface has to release the door. Note the constraint, though. Fail-safe is DC only on the 2000 Series, so the strike has to be run on 12 or 24 VDC, not AC. If you need fail-secure (locked on power loss), you order the 2009 without the RS suffix.
4) My existing door is out of alignment and the latch misses the strike. Will the Trine 2000 Series help?
That is what the adjustable keeper is for. The 2000 Series gives you 1/8 inch of horizontal latch adjustment, so it takes up wider latch bolts and poorly aligned doors and locksets without re-prepping the jamb. It also releases under slight door pre-load, which is the usual complaint on a door that binds against the stop. The offset centerline (3/8 inch below ANSI) is the other half of that, aimed at openings where the latch does not land where the prep says it should.
5) Can I install a Trine 2009RS strike in an aluminum storefront jamb or on an exterior gate?
No on both counts. The 2009 is specified for metal jambs and is not outdoor rated. For an aluminum jamb, the Adams Rite 7100 and 7160 Series strikes are made for aluminum jambs and use the same 1-1/4 by 4-7/8 inch faceplate footprint. For a gate or other exposed location, the Camden CX-ED1959 Series is outdoor rated.
6) What is the closest equivalent to a Trine 2009RS if I need fail-safe operation on a metal jamb?
The Trine 2009RS is a fail-safe electric strike for mortise or cylindrical locks, so power applied keeps it locked and loss of power releases it. Among other brands, the Hager 2925 electric strike takes a 5/8 inch latch and is field reversible between fail safe and fail secure, and the Hager 2930 is a Grade 1 fire rated strike for cylindrical and mortise locks with 12/24VDC dual voltage and the same field reversible fail safe/secure function. Either Hager can be set to the fail-safe mode the 2009RS provides, with the added flexibility of being switched to fail secure in the field if the opening later needs it.
7) I need to know whether the door actually latched. Does the Trine 2009RS do monitoring, or should I pick something else?
The Trine 2009RS is an adjustable strike with screw terminals for quick connection and no monitoring contacts in its feature set. When the access control system needs latch or door position feedback, the Dortronics 3300 Series carries a latch bolt sensing switch on a 12/24VDC strike with a 4-7/8 in x 1-1/4 in ANSI strike plate, the Hager 2945 is a fire rated rim exit strike with a latchbolt monitor and field selectable fail safe/fail secure, and the Camden CX-ED1799L-8 is a fire rated dual monitor Grade 1 strike supplied with 8 faceplates.
8) I am standardizing electric strikes across a facility and need a Grade 1 body for mortise locks. What compares to the Trine 2009RS?
The Trine 2009RS serves mortise or cylindrical locks in metal jambs as a light commercial adjustable strike. For a Grade 1 standard across a facility, the Securitron MUNL Mortise UnLatch is a Grade 1 fire rated mortise strike, the Von Duprin 6210 is a Grade 1 heavy duty strike for mortise locks at 24 VDC fail-secure with a UL 10C fire rating, and the Von Duprin 6400 32D is a Grade 1 modular body that handles mortise or cylindrical locks. Note the 6210 and 6400 are fail-secure, so openings that need the fail-safe behavior of the 2009RS would use the Hager 2930, which is Grade 1 fire rated and field reversible.
9) I have an aluminum storefront jamb, not hollow metal. Is the Trine 2009RS the right strike?
The Trine 2009RS is made for new or replacement installations in metal jambs and fits a standard 4-7/8 inch ANSI prep. For aluminum storefront, the Adams Rite 7100 Series is an electric strike for aluminum jambs with a flat faceplate in the same 1-1/4 inch by 4-7/8 inch size, and the Adams Rite 7160 is also for aluminum jambs with a 1-1/4 inch by 4-7/8 inch faceplate. If the jamb is hollow metal or wood instead, the Adams Rite 7170 covers those with the same faceplate dimensions.
10) Which electric strikes share the 4-7/8 inch by 1-1/4 inch ANSI faceplate footprint of the Trine 2009RS?
The Trine 2009RS uses a 4-7/8 inch by 1-1/4 inch narrow style steel face plate and drops into a standard 4-7/8 inch ANSI prep with little jamb modification. Strikes in the same faceplate footprint include the Dortronics 3300 Series, which adds a latch bolt sensing switch and runs on 12/24VDC with a strike plate for ANSI prep at 4-7/8 in x 1-1/4 in, along with the Adams Rite 7100, 7160 and 7170, all built on a 1-1/4 inch by 4-7/8 inch faceplate. If the existing prep is already ANSI, those are the bodies that reuse it.
11) My lockset has a 1/2 inch or 3/4 inch throw latch. Will the Trine 2009RS work?
The Trine 2009RS is specified for locksets having up to 5/8 inch throw based on a 1/8 inch door gap, so a longer bolt is outside its range. For a 1/2 inch latchbolt the SDC 25 Series is built to that compatibility, and for a 3/4 inch Pullman latchbolt on a rim mount the SDC 30-4 Series is a stainless steel body. The HES Folger Adam 310-1(X) strike body covers 1/2 inch, 5/8 inch or 3/4 inch throw latchbolts in one Grade 1 fire rated body if you want a single part number across mixed throws.
12) Can I use a Trine 2009RS on an exterior gate?
The Trine 2009RS is not outdoor rated and is intended for metal jamb openings in commercial buildings. For a gate or other exposed location, the Camden CX-ED1959 Series is an outdoor rated electric gate strike. Keep the 2009RS on interior metal jamb doors and specify the outdoor rated body where weather is a factor.
13) Which of these electric strikes are not substitutes for a Trine 2009RS on a cylindrical or mortise latch door?
The Trine 2009RS is a strike for mortise or cylindrical locksets in a metal jamb. Several nearby products solve a different opening: the SDC 30-4 Series is a rim mount strike for a 3/4 inch Pullman latchbolt, the Hager 2945 is a rim exit device strike, the HES Folger Adam 310-4-2 is a complete strike pac for surface vertical rods, and the Rockwood electric strike is a double door unit with a 3/4 keeper. The HES 1500 and HES 1600 items are strike accessories rather than complete strike bodies. None of those drop into a standard cylindrical or mortise latch prep the way the 2009RS does.
14) Do I need to specify handing when ordering a Trine 2009 electric strike?
No handing to specify. The 2000 Series is non-handed, so the same strike works on a left or right hand opening. What you do specify is voltage (12 VDC or 24 VDC) and finish, in 626 satin chrome, dark bronze powder coated, or brass powder coated.
15) How much current does a 12V or 24V Trine 2009 electric strike draw, and will it buzz?
On 12VDC the strike draws 0.20 to 0.33 amps across a 60 ohm coil, and on 24VDC it draws 0.11 to 0.47 amps across 120 ohms. Both are silent and rated for continuous duty, so you can hold the strike energized indefinitely, which is what a fail-safe install does all day. AC operation buzzes and is intermittent duty only, and since the RS fail-safe option is DC only, you size a DC supply for these numbers.
16) Is the Trine 2009 strike tough enough for a busy commercial entry?
It is rated light commercial: 500,000 life cycles with 900 lbs holding force and a solid cast, chrome plated latch. That suits an office suite door, a tenant entry, or an interior access controlled opening. For a high-abuse exterior or institutional entrance where a Grade 1 heavy duty strike is on the spec, step up to something like the Alarm Controls AES-100 Grade 1 heavy duty strike or the Von Duprin 4211, a Grade 1 heavy duty 12/24 VDC field-selectable strike for cylindrical locks.
17) What if I am not sure yet whether the opening needs fail-safe or fail-secure?
On the Trine 2000 Series that is decided at order time: the RS suffix is fail-safe and DC only, and there is no field switch. If the function may change or you are standardizing across a building with mixed openings, a field reversible strike saves you stocking two parts. The Hager 2925 (5/8 inch latch) and the Hager 2928 are both field reversible between fail safe and fail secure.
18) Trine 2009RS versus a Grade 1 heavy duty electric strike - when do I need the heavier one?
The Trine 2009RS is a light commercial strike, adjustable for wider latch bolts and poorly aligned doors, rated 500,000 life cycles with 900 lbs holding force and non-handed operation. On a high traffic or higher security opening, the heavy duty peers are the ones to look at: the Alarm Controls AES-100 is a Grade 1 heavy duty strike, the Von Duprin 4211 32D and 6210 are Grade 1 heavy duty, and Locknetics offers the MDS100 and MS100 in heavy duty. Those are graded and duty-classified products where the 2009RS is positioned for light commercial service.
19) Is there a simpler or lower-cost electric strike than the Trine 2009RS for a basic 5/8 inch latch opening?
The Trine 2009RS accepts locksets with up to 5/8 inch throw based on a 1/8 inch door gap and adds 1/8 inch horizontal latch adjustment for poorly aligned doors. If the opening is well aligned and does not need that adjustment, the SDC 15 Series is a value strike for a 5/8 inch latchbolt with 12/24 VDC operation, and the RCI 15BS is an economy strike for a special offset latch entry with fail-secure operation. Note the RCI 15BS is fail-secure only, so it will not replicate the fail-safe release the 2009RS provides.
20) I do not want to cut the jamb. Is there an alternative to the Trine 2009RS?
The Trine 2009RS fits a standard 4-7/8 inch ANSI prep with little jamb modification, which still assumes an ANSI cutout is present. Where none exists and cutting is not an option, the Locknetics NC450 is a no cut electric strike. The Camden CX-ED1689L-4 is a fire rated universal low profile strike shipped with 4 faceplates, and the Camden CX-ED1799L-8 comes with 8, so one body can be dressed to several existing preps.
21) The Trine 2009RS comes in 12 VDC and 24 VDC. What if I need one strike that covers both voltages on a mixed job?
The Trine 2009RS is ordered per opening as either 12 VDC or 24 VDC, in satin chrome 626, dark bronze powder coated, or brass powder coated. If you would rather stock a single dual or field-selectable voltage body across a mixed job, the Von Duprin 4211 32D is 12/24 VDC field-selectable, the Hager 2930 is 12/24VDC dual voltage, and the SDC 15 Series and Dortronics 3300 Series both run 12/24VDC.
22) How is an electric strike wired in, and does it need a special connector?
The 2000 Series uses screw terminals for a quick connection, so you land the two conductors from your power supply or access control relay directly on the strike, no crimping a pigtail or splicing in the jamb raceway. Match the supply to the coil you ordered, 12 VDC or 24 VDC, and remember that fail-safe operation means the strike is energized to stay locked.
23) Which finish of the Trine 2009 matches the rest of my door hardware?
Three finishes, and all three are available in either 12 VDC or 24 VDC. 626 satin chrome is the BHMA 652 satin chrome that matches standard 626/US26D commercial trim on most buildings. Dark bronze powder coated suits bronze or dark anodized storefront trim, and brass powder coated is the base finish. The keeper itself is solid cast and chrome plated regardless of the face plate finish.
