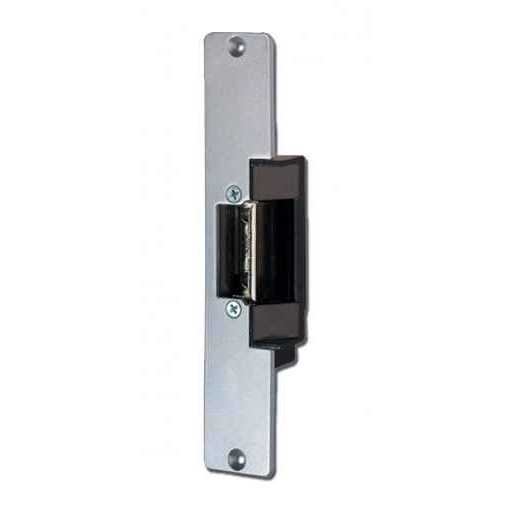

Trine 2678RS Series - Fail-Safe, Adjustable Light Commercial Electric Strike 6-7/8" x 1-1/4" Faceplate

Trine 2678RS Series - Fail-Safe, Adjustable Light Commercial Electric Strike 6-7/8" x 1-1/4" Faceplate

(No reviews yet) Write a Review

Model: 2678RS-12DC-US28
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$201.31
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Trines Adjustable 2000 Series Electric Strikes

Trine 2678
For use in new or replacement, aluminum or hollow metal, jamb installations. Auxiliary lever ramps for use with locksets containing dead-locking levers. Useful when converting an MS Lock to a dead latch. Up to 5/8” throw, based on 1/8” door gap.

Face Plate 6-7/8” x 1-1/4” -- Auxiliary Ramp 3-3/8” -- Mortise Backset 1-9/16” -- Cavity Depth 9/16” -- Cavity Width 5/8” -- Cavity Height 1-11/16”

Available Finishes: 2678 (Satin Aluminum or - BHMA 628) -- 2678-US10 (Satin Bronze -- BHMA 639)
Options: RS (Fail Safe) -- on DC only -- add “RS” to model #

2000 Series Features:

  • Allows adjustment for wider latch bolts & poorly aligned doors & locksets.
  • 1/8” Horizontal Latch Adjustment.
  • Releases Under Slight Door Pre-Load.
  • 500,000 Life Cycles -- Holding Force - 900 lbs.
  • Solid Cast Latch - Chrome Plated.
  • Non Handed Operation.
  • Screw Terminals - Quick Connection.

2000 Series Electrical Characteristics:

Voltage Current/Amps Ohms (Ω) Sound Duty
6-14VAC 0.44 - 1.10 8.5 Buzz Intermittent
6-14VDC 0.70 - 1.60 8.5 Silent Continuous
16-24VAC 0.22 - 0.33 50.0 Buzz Intermittent
16-24VDC 0.32 - 0.47 50.0 Silent Continuous
12VDC 0.20 - 0.33 60.0 Silent Continuous
24VDC 0.11 - 0.47 120.0 Silent Continuous

Downloadable content:

2678 Dimensions (PDF)

Manufacturer Resources

Product Specs

Series:
2678
Product Group:
Electronic Access Controls
Product Subgroup:
Electric Strikes
Product Type:
Electric Strikes
Subcategory:
Electric Strikes
Commercial/Residential:
Commercial
Electronic:
Yes
Outdoor Rated:
No
Lock Type:
Mortise or Cylindrical
Fail-safe / Fail-secure:
Fail-Safe
Face Plate:
6-7/8"
Fire Rating:
No
Product Category:
Electronic Access Controls
Department:
Door Hardware

Trine 2678RS-12DC-US28 – Frequently Asked Questions

1) What does the RS suffix mean on the Trine 2678, and does it work on AC power?
RS is the fail-safe option, meaning the strike unlocks when power is removed. Trine offers RS on DC only. The 2000 Series does run on AC (6-14VAC and 16-24VAC), but AC operation buzzes and is intermittent duty, while DC is silent and continuous duty, which is what a fail-safe opening held energized all day needs.
2) What latchbolt throw will the Trine 2678 accept?
Up to 5/8 inch throw, based on a 1/8 inch door gap. It takes mortise or cylindrical locksets, and the auxiliary lever ramp (3-3/8 inches) handles locksets with dead-locking levers, which is what makes it useful when converting an MS lock over to a deadlatch.
3) My storefront door is out of alignment and the latch binds. Will this strike still release?
That is the case the 2000 Series is built for. It has 1/8 inch horizontal latch adjustment so you can shim the keeper to a wider bolt or a door that has dropped, and it releases under slight door pre-load rather than jamming when the door is pushed against the frame.
4) I want the strike to stay locked if power fails. Is the 2678RS the right one?
No. The RS version is fail-safe, so it releases the door when power drops, which suits free-egress and emergency-unlock designs but not an opening you need secure during an outage. For a fail-secure strike, look at the SDC 15 Series with 5/8 inch latchbolt and 12/24VDC, or the Von Duprin 6210 for mortise locks. If you want to pick in the field, the Hager 2925 and 2928 are field reversible between fail safe and fail secure.
5) The Trine 2678RS is not fire rated - what electric strike can I use on a fire rated opening instead?
The Trine 2678RS electric strike carries no fire rating, so on a labeled opening choose a fire rated strike instead. The Von Duprin 6400 32D is a Grade 1 modular strike for mortise or cylindrical locks with a 3-hour UL 10C fire rating in fail-secure, the Hager 2930 is a fire rated Grade 1 strike for cylindrical and mortise locks with 12/24VDC dual voltage, and the Camden CX-ED1410/CX-ED1420 is a fire rated Grade 1 ANSI universal strike. Note that fire rated strikes are generally applied fail-secure, which is the opposite release behavior from the 2678RS fail-safe configuration.
6) Can I use the Trine 2678RS on an exterior gate?
The Trine 2678RS is not outdoor rated, so it is intended for interior jamb installations in aluminum or hollow metal frames. For a gate or an exposed exterior application, the Camden CX-ED1959 Series is an outdoor rated electric gate strike. Choosing by exposure first avoids a callback when weather reaches the solenoid.
7) My aluminum jamb is prepped for a 4-7/8 inch faceplate, not the Trine 2678RS 6-7/8 inch - what fits?
The Trine 2678RS uses a 6-7/8 inch by 1-1/4 inch faceplate, so it will not drop into a 4-7/8 inch cutout without extending the prep. For that existing prep, the Adams Rite 7100 Series is an electric strike for aluminum jambs with a flat 1-1/4 inch by 4-7/8 inch faceplate, and the Adams Rite 7160 uses the same 1-1/4 inch by 4-7/8 inch faceplate. For hollow metal or wood jambs at that size, the Adams Rite 7170 carries a 1-1/4 inch by 4-7/8 inch faceplate.
8) I need a fail-safe strike but also want the option to switch it to fail-secure in the field - what else should I look at besides the Trine 2678RS?
The Trine 2678RS is factory configured fail-safe and the RS option is offered on DC only. If you want the release mode selectable on site, the Hager 2925 with a 5/8 inch latch and the Hager 2928 both offer field reversible fail safe/fail secure operation, and the Hager 2945 is a rim exit strike with field selectable fail safe/fail secure plus a latchbolt monitor. Reversible units let one part number cover both a stair door and an entry door on the same job.
9) Is the Trine 2678RS heavy duty enough for a high traffic entrance, or should I specify something else?
The Trine 2678RS is a light commercial strike rated for 500,000 life cycles with 900 lbs holding force. For openings where a heavy duty classification is specified, the Alarm Controls AES-100 is a Grade 1 heavy duty electric strike, the Von Duprin 4211 32D is a Grade 1 heavy duty strike for cylindrical locks with field-selectable 12/24 VDC, and the Locknetics MDS100 and MS100 are both catalogued as heavy duty. Those are the units to price when the spec calls out a duty level the light commercial 2678RS does not carry.
10) The door has a rim exit device, not a lockset - will the Trine 2678RS work?
No. The Trine 2678RS is built for mortise or cylindrical lock latches in a jamb mortise with a 1-9/16 inch backset and an auxiliary lever ramp for dead-locking levers. For exit hardware, the SDC 30-4 Series is a rim mount strike for a 3/4 inch Pullman latchbolt in stainless steel, the Hager 2945 is a rim exit strike, and for surface vertical rod devices the HES Folger Adam 310-4-2 is a complete Grade 1 electric strike pac.
11) The spec sheet calls for an ANSI Grade 1 electric strike - does the Trine 2678RS qualify?
The Trine 2678RS is a light commercial strike offering 500,000 life cycles and 900 lbs holding force. When a submittal names ANSI Grade 1 outright, specify a unit carried as Grade 1: the Securitron MUNL mortise UnLatch strike is Grade 1 and fire rated, the Von Duprin 6210 is a Grade 1 heavy duty mortise lock strike at 24 VDC fail-secure with UL 10C fire rating, and the Alarm Controls AES-100 is a Grade 1 heavy duty strike.
12) Do I need to order the Trine 2678 handed for a left or right hand door?
No handing to specify. The 2678 is non-handed, so one part covers either swing. What you do choose is finish and voltage: 613 oil rubbed bronze or 628 clear anodized, in 12 or 24 volt.
13) How much current does the Trine 2000 Series strike draw so I can size my power supply?
It depends on the coil. At 12VDC it pulls 0.20 to 0.33 amps across 60 ohms; at 24VDC, 0.11 to 0.47 amps across 120 ohms. The lower voltage coils draw far more: 6-14VDC runs 0.70 to 1.60 amps at 8.5 ohms. All DC ratings are continuous duty and silent. Wiring lands on screw terminals.
14) Is the Trine 2678 strong enough for a busy commercial entrance?
It is rated light commercial: 900 lbs holding force and 500,000 life cycles, with a solid cast chrome plated latch. For a high abuse or high traffic opening, a heavy duty Grade 1 strike is the better call, such as the Von Duprin 4211, the Alarm Controls AES-100, or the Locknetics MDS100.
15) I need the access control panel to know when the door is latched - does the Trine 2678RS do that, and what does if not?
The Trine 2678RS is a straight release strike with screw terminals for the power connection and no monitoring output. When the head end needs latch or strike status, the Dortronics 3300 Series includes a latch bolt sensing switch and runs 12/24VDC with a strike plate for ANSI prep at 4-7/8 inch by 1-1/4 inch, the Hager 2945 adds a latchbolt monitor, and the Camden CX-ED1799L-8 is a fire rated dual monitor Grade 1 strike supplied with eight faceplates.
16) What is a simpler, lower cost alternative to the Trine 2678RS for a basic interior door?
If you do not need the 2678RS fail-safe release or its 1/8 inch horizontal latch adjustment, the SDC 15 Series is a value strike for a 5/8 inch latchbolt with 12/24 VDC operation, the SDC 25 Series is a value strike for a 1/2 inch latchbolt, and the RCI 15BS is an economy strike for special offset latch entry with fail-secure operation. All three release on power applied rather than on power loss, so confirm the door does not require unlocking during a power failure before substituting.
17) I do not want to cut the frame - is there an alternative to the Trine 2678RS that avoids a new mortise?
The Trine 2678RS requires a jamb mortise 9/16 inch deep, 5/8 inch wide and 1-11/16 inch high behind a 6-7/8 inch by 1-1/4 inch faceplate. Where cutting the frame is not an option, the Locknetics NC450 is a no cut electric strike. If some prep is acceptable but you want flexibility on the plate, the Camden CX-ED1689L-4 is a fire rated universal low profile strike supplied with four faceplates.
18) I am replacing a Folger Adam 310 strike - is the Trine 2678RS a drop-in?
Not a drop-in. The HES Folger Adam 310-1(X) is a Grade 1 fire rated strike body built for 1/2 inch, 5/8 inch or 3/4 inch throw latchbolts, while the Trine 2678RS is a light commercial non-handed unit with up to 5/8 inch throw based on a 1/8 inch door gap and a 6-7/8 inch by 1-1/4 inch faceplate. If you are staying in the 310 platform, the HES 310-1(X) body is the like-for-like, and for a pair of doors the Rockwood ESK-DBL is a Grade 1 fire rated double door strike with a 3/4 keeper in the 310-1 series.
19) Can I run the Trine 2678RS on the same 12/24 VDC supply I use for other strikes on the job?
The Trine 2678RS is offered in 12 VAC and 24 VAC configurations, and the fail-safe RS option is a DC-only arrangement, with the 2000 Series characteristics listing 12VDC and 24VDC as continuous duty and silent. If you want one part number that takes either DC voltage without ordering by coil, the SDC 15 Series runs 12/24 VDC, the Dortronics 3300 Series is 12/24VDC, the Hager 2930 is dual voltage 12/24VDC, and the Von Duprin 4211 32D is field-selectable 12/24 VDC.
20) What looks like a substitute for the Trine 2678RS but is not?
Two traps. The HES 1500 and HES 1600 items are electric strike accessories for those Grade 1 fire rated series rather than complete strike bodies, so neither replaces a working 2678RS. And the Adams Rite 7240 is a fire-rated strike for cylindrical locksets with 5/8 inch latchbolt projection - the latch projection matches the up to 5/8 inch throw of the 2678RS, but it will not serve a mortise lockset the way the 2678RS does with its 1-9/16 inch mortise backset and auxiliary ramp.
21) Which finish of the Trine 2678 matches aluminum storefront hardware?
628 clear anodized is the match for mill finish aluminum storefront; 613 oil rubbed bronze is the darker option for dark bronze anodized frames. Both are offered in 12 and 24 volt.
