THE 323478F-LC KIT
The fire rated cylindrical and deadlatch electric strike solution.
We made our small, versatile, fit anywhere 323478 kit FIRE RATED. Making it the smallest fire rated electric strike solution that goes where other electric strikes cannot. We've also added the Patented horizontal adjustment feature -- Guaranteed not to move -- to both the small and tall faceplates. This is the "do more" and "cut less" electric strike you've been looking for.
This electric strike contains the standard 478 faceplate with a 1-7/8" ramp - for the kit with the Extended 478X with a 2-1/4" ramp go to: 323478FX-LC Electric strike
323478F-LC Electric Strike Features:
- 3 Hour Fire Rated
- GRADE 1
- 1/8" Horizontal adjustment on both the 478 faceplates as well as the 234 faceplates.
- 12-24 AC and DC - Surge and Kickback protection included.
- All solid stainless construction.
- Includes:

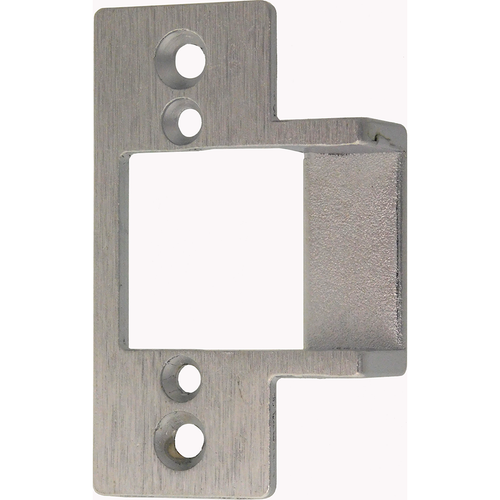

- One (1) 234-234X Adjustable Faceplate
- One (1) 478-32D Faceplate
- One (1) 30LC Fire Rated Mechanism
- One (1) 478-CCFP (Competitor Filler Plate)
323478LC Electrical Characteristics:
| Voltage | Current/Amps | Ohms (Ω) | Duty | Sound | Wire Color |
|---|---|---|---|---|---|
| 12DC | 0.743/0.298 | 13.0 | Intm./Cont. | Silent | Red |
| 12AC | 0.715/0.277 | 13.0 | Intm./Cont. | Silent | Red |
| 24DC | 0.397/0.170 | 13.0 | Intm./Cont. | Silent | Red |
| 24AC | 0.378/0.173 | 13.0 | Intm./Cont. | Silent | Red |
Downloadable content:
323478F-LC Instruction Sheet 234 Dimensions (pdf) 234 Metal Frame Prep (pdf)323478F Sell Sheet (pdf) 478 Dimensions (pdf) 3000 Unit Dimensions (pdf)478 Wood Frame Prep (pdf) 478 Metal Frame Prep (pdf) 234 Wood Frame Prep (pdf)
Manufacturer Resources
Product Specs
- Series:
- 323478LC
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Electric Strikes
- Product Type:
- Electric Strikes
- Subcategory:
- Electric Strikes
- Commercial/Residential:
- Commercial
- Electronic:
- Yes
- Outdoor Rated:
- No
- Lock Type:
- Cylindrical
- Fail-safe / Fail-secure:
- Fail-Secure
- Product Voltage:
- 12/24 VAC/DC
- Fire Rating:
- Yes
- Product Category:
- Electronic Access Controls
- Department:
- Door Hardware
Trine 323478F-LC-32D – Frequently Asked Questions
1) What lock does the Trine 323478F-LC strike work with?
Cylindrical locksets and deadlatches. It is not a mortise strike, so if the door has a mortise lock with an auxiliary deadlatch and a long throw latchbolt, this is the wrong body. For mortise, the Von Duprin 6210 or the Securitron MUNL mortise unlatch strike are the ones to look at.
2) Can I power the Trine 323478F-LC from a 12V or 24V access control panel, AC or DC?
All four. The strike runs 12 or 24 volts, AC or DC, with no board swap or jumper. Draw is 0.743 amps at 12DC and 0.397 at 24DC, 13.0 ohms across the coil, and surge and kickback protection is built in so you are not adding a diode at the panel. Silent operation, red leads.
3) What faceplates come in the Trine 323478F-LC kit, and do I have to buy the frame plate separately?
Four pieces ship in the kit: the 234-234X adjustable faceplate, the 478-32D faceplate, the 30LC fire rated mechanism, and the 478-CCFP competitor filler plate. That covers both the small 234 prep and the taller 478 plate, so you decide at the frame rather than at the order form. The 478 plate in this kit carries the 1-7/8 inch ramp.
4) Trine 323478F-LC or 323478FX-LC, which ramp do I need?
The difference is ramp depth on the 478 plate. The 323478F-LC carries the standard 478 with a 1-7/8 inch ramp; the 323478FX-LC carries the extended 478X with a 2-1/4 inch ramp. If the door has a gap that pushes the latch further off the jamb, or the existing prep was cut for a deeper plate, order the FX. Otherwise the standard 1-7/8 inch ramp is the one.
5) I am replacing another brand's electric strike and the old cutout is bigger than the new plate. Does Trine cover that?
That is what the 478-CCFP competitor filler plate in the kit is for. It covers an oversized existing cutout left by another manufacturer's strike so you are not patching or replacing the jamb. Combined with the 1/8 inch horizontal adjustment built into both the 478 and 234 faceplates, most retrofits go in without recutting the frame.
6) I need the strike to unlock on a fire alarm. Will the Trine 323478F-LC do that?
No. It is fail-secure only, so cutting power leaves the door locked from the outside. If the design calls for a strike that releases on power loss, or you want the choice in the field, look at the Hager 2925, 2928 or 2930, all field reversible between fail safe and fail secure. Bear in mind fail safe on a fire door is usually not what the code official wants, which is why the fire rated Trine is built the way it is.
7) The lock on my opening is a mortise lock, not a cylindrical lockset - what fire rated electric strike should I use instead of the Trine 323478F-LC?
The Trine 323478F-LC is built around a cylindrical lock type, so for a mortise lock look at the Von Duprin 6210, a Grade 1 heavy duty electric strike for mortise locks with 24 VDC fail-secure operation and a UL 10C fire rating, or the Securitron MUNL Mortise UnLatch series, which is Grade 1 and fire rated. The Hager 2930 is another fire rated Grade 1 route, covering cylindrical and mortise locks with 12/24 VDC dual voltage.
8) The Trine 323478F-LC is not outdoor rated - what electric strike works on an exterior gate?
The Trine 323478F-LC is a commercial interior unit and is not outdoor rated. For a gate or other exposed opening, the Camden CX-ED1959 Series is an outdoor rated electric gate strike. It is not fire rated, so it belongs on a gate or exterior opening rather than on a labeled fire door.
9) What is the closest fire rated cylindrical lock electric strike to the Trine 323478F-LC from another brand?
The Von Duprin 4211 32D is the nearest peer: it is a Grade 1, fire rated, heavy duty electric strike for cylindrical locks with 12/24 VDC field-selectable operation. The Trine 323478F-LC is also Grade 1 and fire rated, runs on 12/24 VAC/DC, and is set up for cylindrical lock type. The main split is voltage flexibility - the Trine unit accepts AC as well as DC at both 12 and 24 volts, while the 4211 is specified for 12/24 VDC.
10) I need a fail safe electric strike - can the Trine 323478F-LC be switched, or do I need a different unit?
The Trine 323478F-LC is a fail-secure electric strike. If the opening calls for fail safe, or for the option to change it in the field, the Hager 2930 is a fire rated Grade 1 strike for cylindrical and mortise locks with field reversible fail safe/fail secure operation, and the Hager 2925 offers the same field reversible function with a 5/8 inch latch. For a rim exit device opening, the Hager 2945 is a fire rated rim exit strike with field selectable fail safe/fail secure and a latchbolt monitor.
11) The jamb is aluminum on a storefront - is the Trine 323478F-LC the right electric strike?
The Trine 323478F-LC kit ships with the 234-234X adjustable faceplate and the 478-32D faceplate and is a fire rated cylindrical and deadlatch solution. For an aluminum jamb specifically, the Adams Rite 7100 Series is an electric strike for aluminum jambs with a flat 1-1/4 inch by 4-7/8 inch faceplate, and the Adams Rite 7160 covers aluminum jambs with the same 1-1/4 inch by 4-7/8 inch faceplate size. Note that the 7100 and 7160 are not fire rated, while the Trine 323478F-LC is.
12) Which electric strikes look like substitutes for the Trine 323478F-LC but will not pass on a fire rated opening?
Several strikes in the same size and function class are not fire rated and cannot stand in where the 3-hour fire rating of the Trine 323478F-LC is the reason it was specified. The Adams Rite 7170 for hollow metal and wood jambs, the Adams Rite 7100 and 7160 for aluminum jambs, and the RCI 15BS economy strike for special offset latch entry with fail-secure operation are all listed as not fire rated. The HES Folger Adam 310-4-2 complete strike pac for surface vertical rods is Grade 1 but also not fire rated. If the door is a labeled fire door, stay with a fire rated unit such as the Adams Rite 7240 for cylindrical locksets with 5/8 inch latchbolt projection.
13) The frame prep is already cut for a competitor strike - does the Trine 323478F-LC cover it, or is there a no-cut option?
The Trine 323478F-LC kit ships with a 478-CCFP competitor filler plate and offers 1/8 inch horizontal adjustment on both the 478 and 234 faceplates, which is aimed at exactly that retrofit. If the existing cutout still does not work out, the Locknetics NC450 US32D is a no cut electric strike, and the Camden CX-ED1410 and CX-ED1420 Series are universal Grade 1 ANSI fire-rated strikes.
14) What should I use instead of the Trine 323478F-LC on a pair of doors or a vertical rod opening?
The Trine 323478F-LC is a cylindrical and deadlatch solution for a single latch. For a pair of doors, the Rockwood double door electric strike with a 3/4 keeper is Grade 1 and fire rated on the 310-1 Series. For surface vertical rods, the HES Folger Adam 310-4-2 is a complete electric strike pac, and the SDC 30-4 Series is a 3/4 inch Pullman latchbolt rim mount strike with stainless steel construction. The HES Folger Adam 310-1(X) strike body covers 1/2 inch, 5/8 inch or 3/4 inch throw latchbolts and is Grade 1 and fire rated.
15) My panel only supplies 24 VAC - which fire rated electric strikes will run on it?
The Trine 323478F-LC runs on 12/24 VAC and DC with surge and kickback protection included, so a 24 VAC supply is within its range. Among the fire rated peers, the Von Duprin 6210 is specified at 24 VDC fail-secure with a UL 10C rating, the Von Duprin 4211 32D is 12/24 VDC field-selectable, and the Hager 2930 is 12/24VDC dual voltage - all three are DC. If the power supply is AC, that difference decides the selection.
16) The latch is not lining up with the keeper after install. Can the Trine 323478 strike be adjusted in the frame?
Yes, 1/8 inch of horizontal adjustment is built into both the 478 and the 234 faceplates, and Trine's patented adjustment locks so it will not drift back out of alignment under use. That is the difference between shimming a strike and setting it once.
17) What are the alternatives to the Trine 323478F-LC for a fire rated cylindrical lock opening?
Several, and they differ in what they cover. The Von Duprin 4211 is a Grade 1 heavy duty fire rated strike for cylindrical locks with 12/24 VDC field selectable power. The Hager 2930 is Grade 1 fire rated for both cylindrical and mortise locks with 12/24 VDC and field reversible fail safe or fail secure, which the Trine does not offer since it is fail secure only. The Adams Rite 7240 is the fire rated option built around a 5/8 inch latchbolt projection. Where the Trine earns its place is the faceplate kit: two plate styles plus a competitor filler plate in one box, for jambs where a fixed plate will not fit.
18) Can the Trine 323478 strike be energized continuously, or only on a momentary release?
Both. Duty is rated intermittent or continuous at every one of its voltages, 12AC, 12DC, 24AC and 24DC, so you can hold it energized for a scheduled unlock period without cooking the coil. It runs silent at all four, so there is no buzz on an AC hookup.
19) Does the Trine 323478F-LC fit a wood frame, or only hollow metal?
Both. Trine publishes separate frame prep drawings for the 234 and 478 faceplates in wood and in metal jambs, so the kit is prepped for either. Pull the prep for the plate you are actually using, since the 234 and the 478 cut differently.
20) Is the Trine 323478F-LC strike heavy enough for a high traffic commercial entry?
It is Grade 1, all solid stainless construction, and specified commercial rather than residential, which is the level you want on a school, healthcare or multi-family entry that cycles all day. Comparable Grade 1 heavy duty bodies in the same class include the Alarm Controls AES-100 and the Von Duprin 6400.
21) Will the Trine 323478F-LC work on a pair of doors with surface vertical rod exit devices?
No. This is a cylindrical and deadlatch strike, so it catches a latchbolt in the jamb, not a top rod. For surface vertical rods you want a strike built for that, such as the HES Folger Adam 310-4-2 complete pac for surface vertical rods.
22) What fire rated alternative to the Trine 323478F-LC comes with more faceplates for an unknown frame prep?
The Trine 323478F-LC kit includes the 234-234X adjustable faceplate, the 478-32D faceplate and a 478-CCFP competitor filler plate, with 1/8 inch horizontal adjustment on both the 478 and 234 faceplates. If you want a wider faceplate assortment in the box, the Camden CX-ED1689L-4 is a fire rated universal low profile strike supplied with 4 faceplates, and the Camden CX-ED1799L-8 is a fire rated dual monitor Grade 1 strike supplied with 8 faceplates. The Von Duprin 6400 32D is a Grade 1 modular strike for mortise or cylindrical locks with a 3-hour UL 10C fire rating in fail-secure.
23) I need latchbolt monitoring, which the Trine 323478F-LC does not provide - what strike should I specify?
For an opening where the access control system needs to see latch position, the Dortronics 3300 Series is an electric strike with a latch bolt sensing switch, 12/24VDC, and a strike plate for ANSI prep at 4-7/8 inches by 1-1/4 inches. The Camden CX-ED1799L-8 is a fire rated dual monitor Grade 1 strike, and the Hager 2945 is a fire rated rim exit strike with a latchbolt monitor. The Trine 323478F-LC itself runs 12/24 VAC/DC and is fail-secure.
24) Is there a simpler electric strike than the Trine 323478F-LC kit for a basic 5/8 inch latchbolt opening?
The Trine 323478F-LC arrives as a kit with two faceplates, the 30LC fire rated mechanism and a competitor filler plate. If the opening does not need the fire rating or the multi-faceplate coverage, the SDC 15 Series is a value 5/8 inch latchbolt electric strike with 12/24 VDC operation, and the SDC 25 Series is a value strike for 1/2 inch latchbolt compatibility. Where the fire rating still matters, the SDC 45F Series is a fire-rated strike with 5/8 inch latchbolt compatibility and a radius corner faceplate.
25) What Grade 1 heavy duty electric strikes compare with the Trine 323478F-LC for a high traffic entrance?
The Trine 323478F-LC is Grade 1 with all solid stainless construction. On the heavy duty side, the Alarm Controls AES-100 is a Grade 1 heavy duty electric strike, the Von Duprin 4211 32D is Grade 1 heavy duty for cylindrical locks and fire rated, and the Locknetics MDS100 US32D and MS100 US32D are both heavy duty strikes. For standardizing across a facility, the Von Duprin 6400 32D is a Grade 1 modular strike that covers mortise or cylindrical locks from one body.
26) I ordered an HES 1500 or 1600 part number - is that the same thing as a Trine 323478F-LC kit?
No. The HES 1500 and HES 1600 part numbers listed are electric strike accessories for those Grade 1 fire rated series, meaning components rather than a complete working strike. The Trine 323478F-LC is a full kit containing the 30LC fire rated mechanism, the 234-234X adjustable faceplate, the 478-32D faceplate and the 478-CCFP filler plate, so it arrives ready to install. Check whether you are buying an accessory for an existing HES body or a complete assembly before you order.
27) What finishes does the Trine 323478F-LC kit come in?
Two: 630 satin stainless steel, which matches standard 32D commercial hardware on the rest of the openings, and DKBZ dark bronze powder coat for bronze or anodized frames. The kit's 478 plate is a 478-32D, so the satin stainless option lines up with typical building standard trim.
28) Does the Trine 323478F-LC come in a dark finish, or do I need another brand to match bronze hardware?
The Trine 323478F-LC is offered in 630 satin stainless steel and in DKBZ dark bronze powder coated, so a bronze opening can be matched without changing brands. By comparison, the Von Duprin 6400 32D is a Grade 1 modular strike in satin stainless steel, and the Locknetics CS450-32D, MDS100 US32D, MS100 US32D and NC450 US32D are all satin stainless part numbers.
How fast can I get the Trine 323478F-LC-32D delivered?
Most orders ship the same day from our distribution partners, with quick delivery throughout the
continental
U.S.
Need it urgently? Contact Us for expedited shipping options.
Can I return it if it doesn’t work for me?
Yes—ZenSupply offers a hassle-free return policy. If the product isn’t the right fit,
reach out to our support team for a return authorization or setup a return by following our return instructions.
Does the Trine 323478F-LC-32D come with a warranty?
Absolutely. The Trine 323478F-LC-32D is backed by a manufacturer’s warranty.
For full warranty terms, check the product documentation or Contact Us.
