Trine Trine 4850-ITL - Installation Tool for 4850 Series Electric Strikes TRN-4850-ITL

Trine 4850-ITL - Installation Tool for 4850 Series Electric Strikes

(No reviews yet) Write a Review

Model: 4850-ITL-AL
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$461.25
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

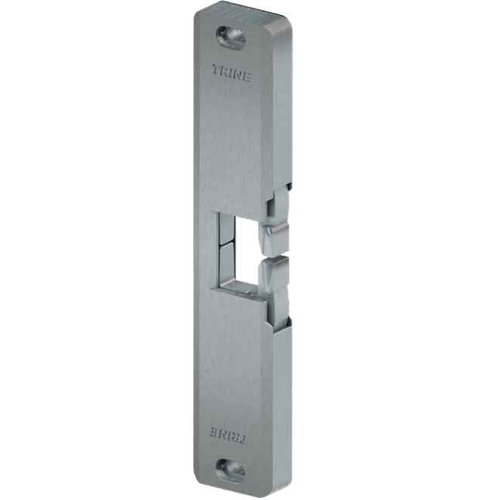

Trine 4850-ITL - Installation Tool for 4850 Series Electric Strikes

Installation Tool for the 4850

For accurate installations mounting the 4850, 4850-PoE, 4850-LCD, and 4850-LB models.

4850-ITL Features:

  • Tool Attaches magnetically to Metal Frames.
  • Not "just a template", the 4850ITL uses the body of a 4850 electric strike with working latches to provide the most accurate tool for the job.
  • The Installation Tool lets you "feel the door" on the frame.
  • Adjust the Strike BEFORE you drill.
  • Comes with a Custom Center Punch tool to accurately mark Anchoring Pin, Bolt, Wire, and LB wire locations.
  • 1/4" Spacer is used with the Installation Tool when a 3/4" strike is needed.
  • US Patent No. 9,376,835

Downloadable content:

Manufacturer Resources

Product Specs

Series:
4850-ITL
Product Group:
Electronic Access Controls
Product Subgroup:
Electric Strikes Parts and Accessories
Product Type:
Electric Strike Parts and Accessories
Subcategory:
Accessories
Commercial/Residential:
Commercial
Electronic:
Yes
Outdoor Rated:
No
Parts and Accessories Type:
Installation Accessories
Product Attribute:
Parts and Accessories
Product Category:
Electronic Access Controls
Department:
Door Hardware

Trine 4850-ITL-AL – Frequently Asked Questions

1) Which Trine 4850 electric strikes does the 4850-ITL installation tool work with?
The 4850-ITL is made for mounting the Trine 4850, 4850-PoE, 4850-LCD and 4850-LB models. It is an install aid for that family, not a strike itself, so you still order the strike separately.
2) Is the 4850-ITL just a paper template?
No. The tool uses an actual 4850 strike body with working latches, so you can seat it in the frame, feel how the door closes against it, and adjust the position before any hole gets drilled. A flat template cannot tell you whether the latch will catch.
3) What comes with the 4850-ITL besides the tool body?
A custom center punch is included for marking the anchoring pin, bolt, wire and LB wire locations, plus a 1/4 inch spacer used with the tool when you are setting a 3/4 inch strike.
4) Can the Trine 4850-ITL installation tool be used to lay out an Adams Rite 7400A electric strike?
No. The 4850-ITL is built around the body of a Trine 4850 electric strike with working latches, so its footprint matches the 4850, 4850-PoE, 4850-LCD, and 4850-LB models only. The Adams Rite 7400A is a separate Ultraline electric strike body kit with field selectable fail safe/fail secure operation and its own cutout, so prep it from the hardware supplied with that kit rather than from the 4850 tool.
5) How does the Trine 4850-ITL hold itself in the frame while you mark the cutout?
It attaches magnetically to metal frames, so it stays put hands-free while you check the door swing and mark your points. That also means it is intended for hollow metal frame work rather than wood frames.
6) I am installing a 3/4 inch deep 4850 strike. Do I need anything extra with the install tool?
Use the 1/4 inch spacer that ships with the 4850-ITL. It sets the tool at the right depth when a 3/4 inch strike is what is going in, so the marks you punch land where the deeper body needs them.
7) I am installing a strike in a metal frame and want the prep right the first time - what do I get with the Trine 4850-ITL that a strike body kit like the Adams Rite 7400A does not give me?
The 4850-ITL is a prep tool, not a strike. It attaches magnetically to metal frames, lets you feel the door against the frame and adjust the strike position before drilling, and includes a custom center punch for marking anchoring pin, bolt, wire, and LB wire locations, plus a 1/4 inch spacer for when a 3/4 inch strike is needed. The Adams Rite 7400A is the installed hardware itself - an Ultraline electric strike body kit with field selectable fail safe/fail secure operation - so it is what goes into the frame, not what lays out the cut.
8) Can a security integrator use the 4850-ITL outdoors on an exterior opening?
The 4850-ITL is not outdoor rated, so treat it as an interior shop and jobsite tool. The strike itself is a separate question; the tool is simply not built to sit out in the weather.
9) Is the Trine 4850-ITL a one-time-use item or can a locksmith reuse it across jobs?
It is a reusable install accessory, not a consumable part of the strike. One tool covers repeat 4850 installations across a building or a fleet of openings, which is why it is carried as a commercial installation accessory rather than a strike component.
10) Is the Trine 4850-ITL suitable for an exterior opening?
The 4850-ITL is a commercial installation accessory that is not outdoor rated, so treat it as a shop and jobsite layout tool rather than something left at an exposed opening. It also relies on magnetic attachment to metal frames, so it is aimed at hollow metal frame prep. For the strike hardware itself on a given opening, the Adams Rite 7400A Ultraline body kit is a separate electric strike option with field selectable fail safe/fail secure operation.
11) What finish does the 4850-ITL installation tool come in?
One configuration only, aluminum painted. There is no finish decision to make when ordering, since the tool never stays in the opening.
