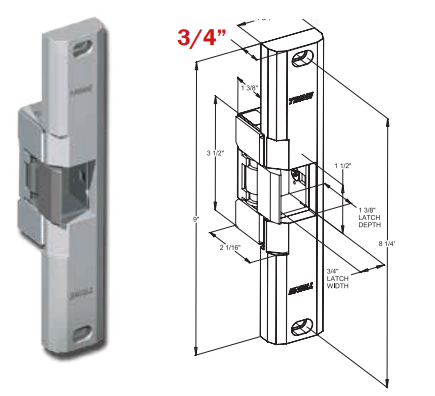

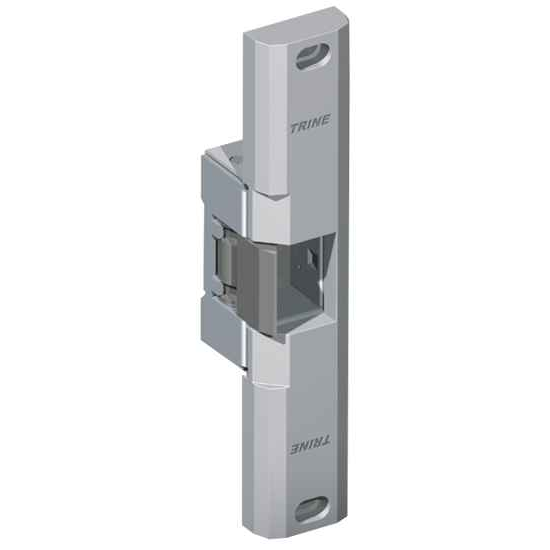

Trine EN800 Series - 9" x 1-3/4" Outdoor Rim Panic Solution Electric Strike up to 1” Throw 3/4” Thick Faceplate

Trine EN800 Series - 9" x 1-3/4" Outdoor Rim Panic Solution Electric Strike up to 1” Throw 3/4” Thick Faceplate

(No reviews yet) Write a Review

Model: EN800RS-24DC-32D-RH
$673.01
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$673.01
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

EN800 Premium Electric Strike

Great for outdoor gates.

For new or replacement installations in wood or metal jambs. Use with with most rim panic exit devices. 3/4” Thick Faceplate.

(Not UL 10C Listed) Works with Rim Panic Exit Devices

EN800 Features:

  • Superior Strength -- 2,000+ lbs UL® tested.
  • Superior Life -- Durability of 1,000,000+ life cycles
  • Superior Application - Outdoor UL® rating allows the strike to be used anywhere - especially good for gates.
  • For a version that can be used with a Gatebox and mounted anywhere, check out the EN400RP
  • Fail secure/Fail safe field reversible on DC units.
  • Grade 1 Strike -- Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
  • Left and Right handing is field reversible.
  • Your go anywhere strike!

EN800 Specifications:

  • UL® Listed 1034 - Indoor/Outdoor Burglary Resistant
  • UL294 (6th Edition) listed
  • BHMA 156.31 2001, Grade 1
  • NYC MEA 79-01-E
  • Not Fire Rated

EN Series Electrical Characteristicss:   PoE Freindly

Volts Current Ohms (Ω) Duty Sound Wire
12AC 0.700 4.5 Intm. Buzz 1-Blue,
1-Orange/White
24AC 0.370 18.0 Intm. Buzz 1-Blue,
1-Black/White
12DC 0.280 43.0 Intm./Cont. Silent 2-Orange/White
24DC 0.150 164.0 Intm./Cont. Silent 2-Black/White

Downloadable content:

Manufacturer Resources

Product Specs

Series:
EN800
Product Group:
Electronic Access Controls
Product Subgroup:
Electric Strikes
Product Type:
Electric Strikes
Subcategory:
Electric Strikes
Commercial/Residential:
Commercial
Electronic:
Yes
Outdoor Rated:
Yes
Lock Type:
Exit Device
Face Plate:
9"
Fire Rating:
Yes
Product Category:
Electronic Access Controls
Department:
Door Hardware

Trine EN800RS-24DC-32D-RH – Frequently Asked Questions

1) Will the Trine EN800 electric strike work with a rim panic exit device?
That's what the EN800 is built around. It takes the Pullman latch of most rim panic exit devices, with a 9 inch faceplate that covers the strike area on the jamb. It goes into wood or metal jambs for new work or as a replacement. If your opening uses a cylindrical or mortise lock instead of a rim device, this is the wrong strike for it.
2) Can an electric strike be used outdoors on a gate?
The Trine EN800 is one of the few that can. It carries a UL 1034 Indoor/Outdoor Burglary Resistant listing, which is what makes it usable on exterior gates rather than just interior openings. If you need to mount it in a gate box arrangement instead of a jamb, Trine's EN400RP is the version built for that.
3) Can the Trine EN800 be switched between fail safe and fail secure after it is installed?
On DC units, yes. Fail safe and fail secure are field reversible on the 12VDC and 24VDC EN800, so if the AHJ or the egress plan changes after install you re-set the strike instead of replacing it. The AC units are ordered as one or the other. It's still specified as Fail-Safe or Fail-Secure on the order.
4) What voltage should I order for a Trine EN800, and will it buzz?
Four choices: 12VAC, 24VAC, 12VDC and 24VDC. The AC units buzz and are rated intermittent duty only, which suits a doorbell style release button. The DC units run silent and are rated intermittent or continuous duty, so those are what you want on an access control head end where the strike may be held released. Current draw is 0.700A at 12VAC, 0.370A at 24VAC, 0.280A at 12VDC and 0.150A at 24VDC, so size the power supply off the one you pick.
5) Can I replace an existing rim exit strike with the Trine EN800 without recutting the jamb?
Plan on checking the prep. The EN800 uses a 9 inch faceplate and a 3/4 inch thick faceplate body, which is a deeper and longer cutout than a short ANSI style prep. Trine publishes an EN800 frame prep and a dimension drawing, and those are what to lay against the existing cutout before you commit. If the existing prep is a 4-7/8 by 1-1/4 ANSI pocket, that is a different strike family entirely and the EN800 will not drop into it.
6) What is a fire rated alternative to the Trine EN800 for a rim exit device on a labeled opening?
The EN800 is not fire rated, so on a labeled opening with a rim exit device the Hager 2945 is the direct swap: it is a fire rated rim exit strike with field selectable fail safe/fail secure operation and a latchbolt monitor. The EN800 also offers fail-safe and fail-secure, so the electrical intent of the design carries over.
7) Does the Trine EN800 work with a mortise lock, or do I need a different strike?
The EN800 is built to work with most rim panic exit devices. A mortise lock calls for a strike made for it: the Securitron MUNL Mortise UnLatch is a Grade 1 fire rated mortise strike, and the Von Duprin 6210 is a heavy duty Grade 1 strike for mortise locks at 24 VDC fail-secure with a UL 10C fire rating. The EN800 offers 12VAC, 12VDC, 24VAC and 24VDC.
8) What electric strike besides the Trine EN800 takes a 3/4 inch pullman latchbolt from a rim device?
The SDC 30-4 Series is a 3/4 inch pullman latchbolt rim mount electric strike in stainless steel construction, which puts it in the same rim-device family as the EN800. The EN800 handles up to a 1 inch throw with a 3/4 inch thick faceplate and is outdoor rated.
9) What should I use instead of a Trine EN800 on a door with surface vertical rods?
The EN800 is for rim panic exit devices. For surface vertical rod hardware, the HES Folger Adam 310-4-2 is a complete electric strike pac for surface vertical rods, Grade 1. It is not fire rated, and neither is the EN800.
10) What is a no-cut alternative to the Trine EN800 for a retrofit where I cannot mill the frame?
The EN800 is for new or replacement installations in wood or metal jambs and uses a 9 inch faceplate, so it needs the frame prepped for that plate. The Locknetics NC450 is a no cut electric strike, and the Camden CX-ED1689L-4 is a low profile universal strike that ships with 4 faceplates, both of which reduce what has to be cut into an existing frame.
11) I need a strike for a cylindrical lockset with a 5/8 inch latchbolt - is the Trine EN800 right?
No. The EN800 is sized for rim panic exit devices with up to a 1 inch throw. For a cylindrical lockset with 5/8 inch latchbolt projection, the Adams Rite 7240 is fire-rated and made for that combination, and the SDC 45F Series is a fire-rated strike for a 5/8 inch latchbolt with a radius corner faceplate. The Hager 2930 is a fire rated Grade 1 strike for cylindrical and mortise locks with 12/24VDC dual voltage.
12) Do I have to order the Trine EN800 handed, or can I flip it in the field?
Handing is field reversible on the EN800, left to right, so a strike on the truck fits either opening. It is still ordered as Left Hand or Right Hand, so pick the one matching the door you are doing and reverse it later if the job changes.
13) Is the Trine EN800 strong enough for a high traffic or exposed door?
It's tested past 2,000 lbs of static strength and rated for over 1,000,000 cycles, and it holds BHMA A156.31 2001 Grade 1. The locking mechanism is one piece driven by a single solenoid, so there's less inside it to fail on a door that cycles all day. It also carries NYC MEA 79-01-E if you're working under that approval.
14) Is the Trine EN800 UL 294 listed for access control?
Yes, it's listed to UL 294 6th Edition, which is the access control system units standard your integrator will be asked about on a spec job. It also holds UL 1034 for burglary resistance. It does not carry a fire rating.
15) What is the difference between the Trine EN800 and a standard cylindrical lock electric strike?
The EN800 accepts the Pullman latch of a rim panic device and uses a 9 inch faceplate, so it is prepped into the jamb differently than a strike built for a lock latchbolt. For cylindrical locks, the Von Duprin 4211 and the Adams Rite 7240 are strikes made for that application, and the Von Duprin 6210 is a mortise lock strike. Ordering an EN800 for a lever lock opening means the keeper does not match the latch.
16) What other outdoor rated electric strike could I use on a gate besides the Trine EN800?
Camden's CX-ED1959 Series is an outdoor rated gate strike and is the closest peer for exterior work. Neither it nor the EN800 is fire rated, which is fine on a gate. The EN800 differentiates on its UL 1034 burglary resistant listing and the field reversible fail safe/fail secure on DC units.
17) What is another Grade 1 heavy duty electric strike besides the Trine EN800?
The EN800 is a BHMA 156.31 2001 Grade 1 strike. Other Grade 1 options include the Alarm Controls AES-100, a Grade 1 heavy duty strike, and the Von Duprin 4211 32D, a Grade 1 heavy duty strike for cylindrical locks with 12/24 VDC field-selectable voltage and a fire rating. The EN800 differs in that it is built for rim panic exit devices and is not fire rated.
18) What is a simpler electric strike than the Trine EN800 for an interior door on a standard ANSI prep?
The EN800 is a 9 inch faceplate outdoor rated strike for rim panic devices. For an interior door cut to standard ANSI prep, the Dortronics 3300 Series runs 12/24VDC with a strike plate for ANSI prep at 4-7/8 inch x 1-1/4 inch and includes a latch bolt sensing switch. The SDC 15 Series is a value 5/8 inch latchbolt strike with 12/24 VDC operation, and the SDC 25 Series covers a 1/2 inch latchbolt.
19) Which electric strike should I standardize on across a facility if some openings are fire rated and the Trine EN800 covers the exterior ones?
The EN800 covers exterior and gate openings with rim panic devices and is not fire rated. For the labeled interior openings, the Camden CX-ED1410 and CX-ED1420 are universal Grade 1 ANSI fire-rated strikes, and the Camden CX-ED1799L-8 is a fire rated dual monitor Grade 1 strike shipping with 8 faceplates, which helps one part number cover several frame preps. Both the EN800 and those Camden units are Grade 1.
20) Is the Hager 2925 a substitute for the Trine EN800?
They share the field reversible fail safe/fail secure behavior - the EN800 is field reversible on DC units, and the Hager 2925 is a field reversible fail safe/secure strike. The difference is the latch: the 2925 is built around a 5/8 inch latch, while the EN800 accepts up to a 1 inch throw from a rim panic exit device. Match the strike to the latch the door already carries.
21) What electric strike replaces a Trine EN800 on a pair of doors?
The Rockwood ESK-DBL is a double door electric strike with a 3/4 keeper, Grade 1 and fire rated, from the 310-1 Series. The EN800 is handed left or right and field reversible for handing, and covers rim panic exit devices on wood or metal jambs.
22) What Grade 1 electric strike handles a 3/4 inch throw latchbolt like the Trine EN800 does?
The HES Folger Adam 310-1(X) is a Grade 1 electric strike body for 1/2 inch, 5/8 inch or 3/4 inch throw latchbolts and is fire rated. The EN800 is Grade 1 as well and takes up to a 1 inch throw with a 3/4 inch thick faceplate, and it is outdoor rated.
23) Is an economy electric strike like the RCI 15BS interchangeable with the Trine EN800?
They are not the same application. The RCI 15BS is an economy strike for a special offset latch entry with fail-secure operation only, and it is not fire rated. The EN800 is a Grade 1 strike for rim panic exit devices that can be set fail-safe or fail-secure and is field reversible on DC units, rated for indoor and outdoor use.
24) What finishes does the Trine EN800 electric strike come in to match the rest of my hardware?
Six finishes: US3 bright brass, US4 satin brass, US10 satin bronze, US10B dark bronze, US32 polished stainless and US32D satin stainless. US32D is the usual match for commercial lever and exit device hardware, and US10B is the common pick on exterior gates and bronze storefront.
25) If I already have Trine EN800 strikes on the exterior doors, what do I put on hollow metal and wood jambs inside?
The EN800 itself installs in wood or metal jambs for rim panic exit devices. Where the interior opening uses a lockset rather than a rim device, the Adams Rite 7170 is built for hollow metal and wood jambs with a 1-1/4 inch x 4-7/8 inch faceplate; it is not fire rated, so labeled openings need a fire rated strike instead.
26) What heavy duty electric strikes compare to the Trine EN800 in stainless finish?
The EN800 comes in US32D satin stainless steel and US32 polished stainless steel, along with US3, US4, US10 and US10B. Heavy duty peers offered in US32D include the Locknetics MDS100, the Locknetics MS100, and the Locknetics CS450-32D from the CS Series. The EN800 differs in being outdoor rated and made for rim panic exit devices.
27) Is the Hager 2928 an equivalent to the Trine EN800?
Both give you field reversible fail safe/fail secure operation - the Hager 2928 is specified that way, and the EN800 is field reversible on DC units with fail-safe and fail-secure ordered as an option. The EN800 carries an outdoor rating and a 9 inch faceplate for rim panic exit devices, so the deciding factor is the exit hardware and whether the opening is exposed to weather.
