WAC Lighting Hardscape LED 12V Strip Light WAC-7062

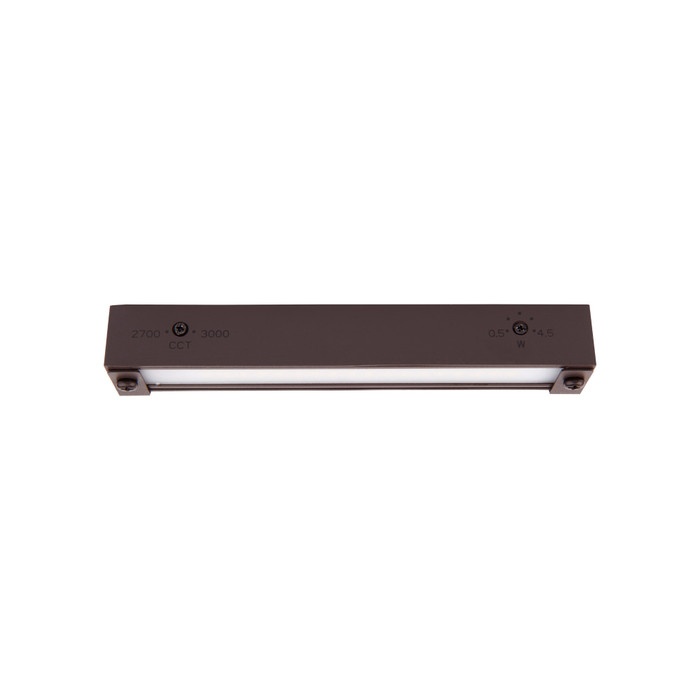

WAC Lighting 6" Hardscape LED 12V Strip Light 7062

(No reviews yet) Write a Review

Model: WAC-7062
From the Hardscape Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$130.00
$109.95
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

WAC Lighting 6" Hardscape LED 12V Strip Light 7062

LED Hardscape strip lights are the ideal low profile lighting solution to graze walls, decks and patios, handrails, bench seats, fences or stone work in any landscape. Hardscape strips are available in 3in, 6in, 12in, and 18in sizes and can conveniently adapt into an existing 12V landscape lighting system. Includes a translucent diffuser that eliminates hotspots for even light projection. Mounting options include a capstone bracket, as well as aiming clips. Models with 27/30 in the part number include an integral switch to toggle between 2700K and 3000K dual CCT and have a quick release feature for ease of maintenance over time. Factory sealed and water tight with an IP66 rating for protection against high-pressure water jets and outdoor elements. Casted using a special k-alloy aluminum that is engineered to withstand the most challenging environments over time. Includes 3ft of low voltage wire. Magnetic or Electronic Power supply is required.
  • Hardscape strips are available in 3in, 6in, 12in, and 18in sizes and can be installed on a 12V landscape lighting system. Mounting options included: Stainless steel capstone brackets, clips and hardware. Simple two screw mounting option into handrails, bench seats, decks, steps and fences.
  • Translucent diffuser eliminates worrisome hotspots for even light projection. Models with 27/30 in the part number include an integral switch to toggle between 2700K and 3000K dual CCT with a quick release feature that allows ease of replacement over time.
  • Factory sealed and water tight with an IP66 rating for protection against high-pressure water jets and outdoor elements. Casted using a special k-alloy aluminum that is engineered to withstand the most challenging environments over time.
  • Magnetic or Electronic 12V power supply is required. Recommended power supply WAC Landscape Lighting Stainless Steel outdoor transformer: (75W) 9075-TRN-SS, (150W) 9150-TRN-SS, (300W) 9300-TRN-SS, (600W) 9600-TRN-SS.
  • High Powered LED, Input: 9-15V AC, Power: 3.1W (up to 5.1VA), Brightness: 90Lm, CRI: 90, Rated Hours: 70,000. Smooth and continuous dimming to 10% with a Magnetic Low Voltage Dimmer.
  • Standards: UL & cUL 1838 and IP66 Rated for Wet Locations (See Specification Sheet for complete details).

Product Specs

ADA Compliant:
Yes
Bulb Base:
Integrated LED
Bulbs Included:
Yes
Collection:
Hardscape
Dimmable:
MLV
Lumens:
130
Number of Bulbs:
1
Product Type:
Hardscape Light
Shade/Glass Description:
Frosted Glass Lens
Warranty:
10 Years Functional, Lifetime Warranty on Finish
Product Group:
Outdoor Lighting
Product Subgroup:
Hardscape Lights
Hardwired or Portable:
Hardwired
Avg Rated Hours:
50000
Base Material:
Brass
Location Rating:
Wet
Brand Family:
WAC Landscape
Backplate Height:
0.58"
Energy Star:
No
Included Components:
Complete Fixture, Replaceable LED, 36in Wire, Hardware Pack, Capstone Bracket, 2 X Ideal Direct Burial Nuts
Wire Length:
36"
Subcategory:
Hardscape Lighting
Certification:
UL, cUL, IP66
Glass Finish:
Frosted Glass Lens
Location Indoor/ Outdoor:
Outdoor
Reversible Mounting:
Yes
Shade Material:
Glass
Title 24 Compliant:
Yes
Bulb Type:
LED
Segment:
Lighting
Product Voltage:
12V
Product Length:
6"
Light Temperature:
2700K-3000K
Product Style:
Contemporary
Product Height:
1"
Product Category:
Landscape Lighting
Product Width:
3.13"
Product Wattage:
4.5W

WAC Lighting WAC-7062 – Frequently Asked Questions

1) Can the WAC 7062 hardscape strip light run off my existing 12V landscape lighting system?
Yes. The 6 inch Hardscape strip is a 12V fixture with an input range of 9-15V AC, so it taps into an existing low voltage landscape run. It is hardwired, not plug-in, and a magnetic or electronic 12V power supply is required. WAC's stainless steel outdoor transformers are the recommended match: 9075-TRN-SS (75W), 9150-TRN-SS (150W), 9300-TRN-SS (300W) and 9600-TRN-SS (600W). Two Ideal direct burial wire nuts come in the box for the splice.
2) What mounting hardware is included with the WAC 6 inch hardscape light, and can I mount it under a capstone?
A stainless steel capstone bracket, aiming clips and a hardware pack come with the fixture, so under-cap mounting on a seat wall or pillar is covered out of the box. For handrails, bench seats, deck fascia, steps and fences it mounts with two screws. Mounting is reversible, so the light can be aimed either direction off the same bracket.
3) How much space do I need under a capstone for the WAC 7062 hardscape strip?
The fixture body measures 6 inches long, 3.13 inches wide and 1 inch high, with a 0.58 inch backplate height. That 1 inch profile is what has to clear the mortar joint or the gap between the cap and the wall course, so check the reveal before you set stone. Companion sizes in the same Hardscape line run 3, 12 and 18 inches if the 6 inch run length does not suit the layout.
4) Is the WAC 7062 hardscape light rated to sit in the weather year round?
It is an outdoor, wet location fixture, factory sealed and water tight with an IP66 rating, which covers high pressure water jets as well as rain and sprinkler spray. Certifications listed are UL, cUL and IP66, to the UL and cUL 1838 low voltage landscape standard. The housing is a k-alloy aluminum casting with a frosted glass lens.
5) Can I switch the WAC 7062 between 2700K and 3000K after it is installed?
Yes. Every 7062 ordered carries 27/30 in the part number, which means an integral switch toggles the fixture between 2700K and 3000K dual CCT. Those models also have a quick release feature so the LED module can be pulled and replaced without tearing out the stonework. Useful when you are matching a 6 inch strip to warmer or cooler fixtures already on the property.
6) How much wire comes on the WAC 7062 strip light, and will it reach my transformer run?
Each 6 inch Hardscape strip ships with 36 inches of low voltage lead wire. That is enough to get from the fixture to a nearby splice point under a capstone or behind a riser, but not enough to reach a transformer on its own. Plan the home run in your main landscape cable and splice at the fixture using the two direct burial nuts included.
7) What dimmer works with the WAC Hardscape 12V strip lights?
Use a magnetic low voltage (MLV) dimmer on the transformer's line side. With an MLV dimmer the strip dims smoothly and continuously down to 10 percent. An ELV or standard incandescent dimmer is not the specified control here.
8) Does the WAC Hardscape strip light meet Title 24 for a California job?
Yes, the Hardscape 12V strip is listed as Title 24 compliant and ADA compliant, which matters on stair and ramp lighting where a projecting fixture would be a problem. It is not Energy Star rated.
9) What finishes does the WAC 6 inch Hardscape strip light come in?
Five finishes: Bronzed Brass, Black, Bronze, Graphite and Sand, ordered as 7062-27/30BBR, -BK, -BZ, -GH and -SD. For a fleet of walls or stair risers on one property, specify a single finish code across the order so the visible capstone edge matches.
10) Do I ever have to replace bulbs in the WAC 7062 hardscape light?
No lamping to stock. It is an integrated LED, one light source, supplied with the fixture. The LED module itself is replaceable and the 27/30 models include a quick release so a maintenance tech can swap the module in place rather than demolishing the cap detail, which is the reason facilities crews specify this one on seat walls.
11) Will the WAC Hardscape strip create hot spots when it grazes a stone wall?
A translucent frosted glass diffuser sits over the LED specifically to even out the projection, so you get a wash rather than visible dots on the wall face. With a CRI of 90 the stone color reads accurately, which is why these get used to graze masonry, deck fascia and bench seats rather than as a point source.
