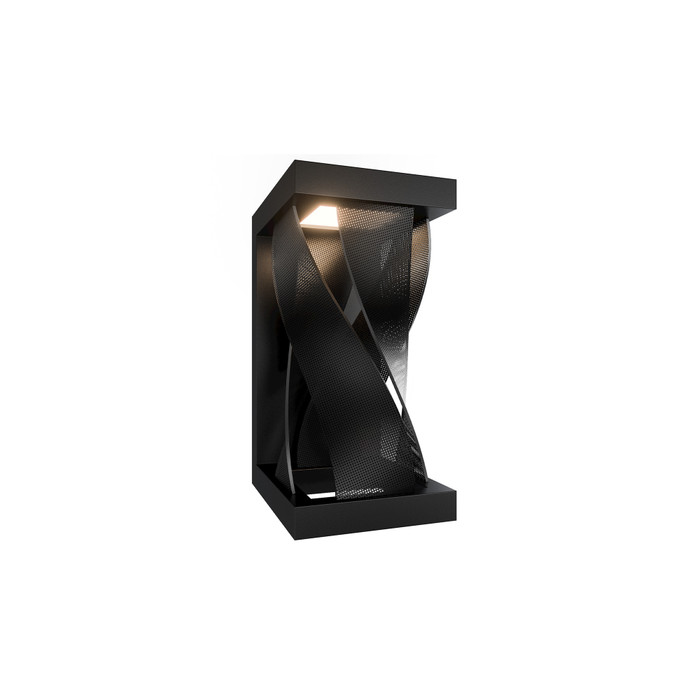

WAC Lighting WSW1196 Brocade LED Outdoor Wall Light
The WAC Lighting WSW1196 Brocade LED Outdoor Wall Light turns illumination into texture, using a perforated Stainless Steel body and glass diffuser to cast delicate patterns across walls and architecture. This AC LED fixture delivers a high-powered, replaceable LED engine with CRI 90, 3000K color temperature, and 50,000 rated hours, and is ETL & cETL listed for wet locations. Brocade is offered in 10", 18", and 26" sizes and is CEC and Title 24 compliant.
Key Features
- Available Sizing: Brocade is offered in 10", 18", and 26" sizes to fit a range of exterior wall applications.
- Durable Construction: Stainless Steel body paired with a glass diffuser for a handcrafted, perforated-metal design.
- AC LED Technology: No driver or transformer required — fits easily on a pancake junction box for simplified installation.
- Smooth Dimming: Continuous, flicker-free dimming with electronic low voltage (ELV) or TRIAC dimmers.
- High-Powered LED: Replaceable LED source rated for 50,000 hours with CRI 90 and a warm 3000K color temperature.
- Wet Location Rating: ETL and cETL listed for wet locations, suited to fully exposed exterior mounting.
- Voltage: Operates on standard 120V line power for straightforward wiring.
- Mounting & Beam: Wall-mounted, down-light configuration with a flood beam spread.
Certifications & Compliance
- ETL Listed
- cETL Listed
- Suitable for Wet Locations
- CEC Compliant
- Title 24 Compliant
Technical Specifications
- ADA Compliant: No
- Bulb Base: LED Module - ACLED
- Bulb Shape: LED Module
- Bulbs Included: Yes
- Dimmable: ELV;TRIAC
- Energy Star: No
- Hardwired or Portable: Hardwired
- Product Type: Outdoor Wall Lighting
- Safety Rating: ETL;cETL
- Warranty: 5 Years Functional, 10 Years Finish
- Subcategory: Outdoor Wall Light
- CRI: 90
- Beam Spread: Flood
- Voltage: 120
- Country of Origin: Vietnam
- Location Rating: Wet
- Style: Modern;Transitional
- Mounting: Wall;Down
Typical Applications
- Exterior Entryways and Facades
- Patios and Outdoor Living Spaces
- Wet-Location Exterior Installations
- Commercial and Residential Architectural Lighting
- New Construction and Renovation Projects
Why WAC Lighting?
WAC Lighting builds the Brocade Outdoor Wall Light with Stainless Steel construction, a glass diffuser, and a high-powered replaceable LED engine, backed by ETL & cETL wet-location listing and CEC/Title 24 compliance. With a 5-year functional and 10-year finish warranty, Brocade delivers reliable, code-compliant performance for exterior electrical installations.
Manufacturer Resources
Installation Guide
Product Specs
- ADA Compliant:
- No
- Bulb Base:
- LED Module - ACLED
- Bulb Shape:
- LED Module
- Bulbs Included:
- Yes
- Collection:
- Brocade
- Dimmable:
- ELV;TRIAC
- Energy Star:
- No
- Hardwired or Portable:
- Hardwired
- Product Type:
- Outdoor Wall Lighting
- Safety Rating:
- ETL;cETL
- Shade/Glass Description:
- Glass Diffuser
- Subcategory:
- Outdoor Wall Light
- Avg Rated Hours:
- 50000
- CRI:
- 90
- Beam Spread Angle:
- Flood
- Product Voltage:
- 120
- Product Material:
- Stainless Steel
- Location Rating:
- Wet
- Light Temperature:
- 3000
- Product Style:
- Modern;Transitional
- Mounting Method:
- Wall;Down
- Department:
- Electrical
WAC Lighting WSW119610-BK – Frequently Asked Questions
1) Can the WAC Lighting Brocade WSW1196 outdoor wall light be mounted on a fully exposed wall with no overhang?
Yes. The Brocade WSW1196 is ETL and cETL listed and rated for wet locations, so it can go on a facade, patio wall, or entry with no soffit or overhang protecting it. The body is stainless steel with a glass diffuser, which is what makes that exposure practical on coastal or weather-beaten elevations.
2) Does the Brocade WSW1196 need a remote LED driver or transformer?
No. It uses an AC LED module that runs directly on 120V line voltage, so there is no driver or transformer to locate and no low-voltage run to pull. It wires like a standard hardwired fixture and sits on a pancake junction box, which is why it suits retrofits where there is no room behind the wall.
3) What dimmer works with the WAC Brocade WSW1196 LED wall light?
Use an electronic low voltage (ELV) or TRIAC dimmer. Those are the two control types this AC LED fixture is rated for, and on them the dimming is continuous and flicker free. A standard incandescent-only or 0-10V control is the wrong choice here.
4) Which size Brocade wall light should I pick for an entry versus a tall facade?
Brocade comes in 10 inch, 18 inch, and 26 inch sizes. The 10 inch suits a standard entry door or a tight porch wall, the 18 inch reads correctly flanking a wider opening or garage bay, and the 26 inch is for tall two-story facades and large commercial elevations where a small fixture would disappear. All three share the same stainless steel and glass build and the same 120V AC LED engine.
5) Does the Brocade WSW1196 meet California Title 24 for outdoor residential lighting?
It is listed as CEC and Title 24 compliant, which is what a California job needs for the exterior lighting line item. Note it is not Energy Star rated, so if your spec or utility rebate calls for Energy Star specifically, this is not the fixture for it.
6) Is the Brocade WSW1196 ADA compliant for a wall next to a doorway or walkway?
No. The Brocade is not ADA compliant, so it should not be used where the fixture projects into a required accessible route or protrudes more than code allows along a circulation path. For those locations you need a shallow-projection ADA-rated sconce instead.
7) Will the Brocade WSW1196 match 3000K fixtures already installed on the rest of my building?
Yes, the Brocade runs a 3000K warm white LED with CRI 90, so it blends with other 3000K exterior fixtures on the same elevation. CRI 90 means stone, brick, and wood finishes render closer to their true color than they would under a typical 80 CRI exterior LED, so expect the Brocade area to look a little richer, not a different color.
8) Does the LED in the Brocade outdoor wall light have to be replaced as a whole fixture when it fails?
No. The LED engine is a replaceable module rather than a sealed-in board, so the fixture body stays on the wall. It is rated at 50,000 hours, and the lamp comes with the fixture, so nothing extra is needed at install.
9) Does the Brocade throw light up and down, or only down?
It is a wall-mounted downlight with a flood beam spread, so the usable illumination goes down the wall surface. The perforated stainless steel body also casts patterned light around the fixture itself, which is the design intent, but do not spec it as a source of uplight on a facade.
10) Is there an installation guide for the WAC Brocade outdoor wall light?
Yes, WAC publishes an installation guide PDF for the Brocade, and it is the document to follow for junction box mounting and gasketing on a wet-location install. Download it at https://zensupply.com/content/pdf/wac-lighting/installation-guide-759f5d.pdf
