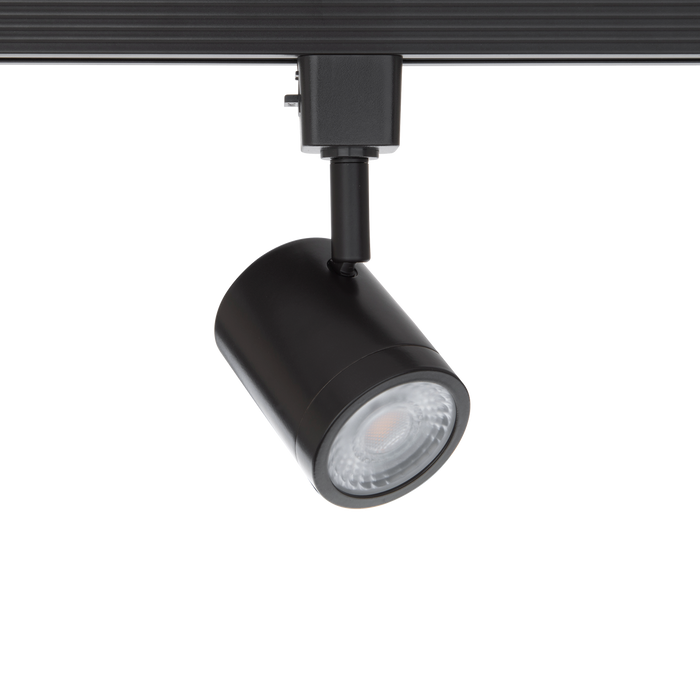

WAC Lighting Charge 8010 LED Line Voltage Track Head WAC-J-8010-30

WAC Lighting Charge 8010 LED Line Voltage Track Head J-8010-30

(No reviews yet) Write a Review

Model: J-8010-30-BK
From the Charge Collection
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$44.00
$29.95
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

WAC Lighting Charge LED Track Head 10W 3000K CRI 90

  • Delivered Lumens: 850lm
  • CBCP: 1196
  • 3000K
  • CRI: 90
  • Power: 11W
  • Input: 120 VAC, 50/60Hz
  • ELV Dimming: 100-5%
  • TRIAC Dimming: 100-5%
  • Rated Life: 50000 Hours
  • Construction: Die-cast aluminum with frosted TIR lens
  • 350�� horizontal and 90�� vertical aiming
  • Driver concealed within the fixture

Product Specs

ADA Compliant:
Yes
Bulb Base:
Driver
Bulb Shape:
LED Module
Bulbs Included:
Yes
Collection:
Charge
Dimmable:
ELV, TRIAC
Hardwired or Portable:
Plugin
Lumens:
1050
Number of Bulbs:
1
Product Type:
Line Voltage Heads
Shade/Glass Description:
Clear Glass Lens
Warranty:
5 Years Functional, 2 Years Finish
Product Group:
Indoor Lighting
Product Subgroup:
Track Lights
Avg Rated Hours:
50000
Base Material:
Aluminum
Location Rating:
Dry
Brand Family:
WAC Limited
CEC Listed:
Yes
CRI:
90
Energy Star:
Yes
Subcategory:
J Track Fixture
Certification:
ETL, cETL
Glass Finish:
Clear Glass Lens
Location Indoor/ Outdoor:
Indoor
Shade Material:
Glass
Title 24 Compliant:
Yes
Bulb Type:
LED
Segment:
Lighting
Product Voltage:
120V
Product Length:
3"
Light Temperature:
3000K
Product Style:
Functional
Product Height:
5.88"
Product Category:
Track Lighting
Product Width:
2.38"
Product Wattage:
11W

WAC Lighting J-8010-30-BK – Frequently Asked Questions

1) Will the WAC Charge 8010 track head fit standard J-type track?
Yes. The Charge 8010 head is built for J track (also called H/J-style three-circuit track in some lines) and is catalogued as a J track fixture running on 120V line voltage. It is a line voltage head, so no remote transformer is needed, and the LED driver sits inside the fixture body rather than on the track.
2) Can I dim these LED track heads on my existing wall dimmer?
The Charge 8010 dims on ELV or TRIAC controls, 100 percent down to 5 percent on either. TRIAC means a standard forward-phase incandescent-style dimmer will work; ELV means a reverse-phase electronic low voltage dimmer will too. It will not dim correctly on a 0-10V or DALI control.
3) Does the WAC Charge 8010 track head meet California Title 24?
Yes, it is Title 24 compliant and CEC listed, which is what a California permit inspection looks for. It is also Energy Star rated and ETL and cETL certified, so it clears both US and Canadian listing requirements for a commercial fit-out.
4) Can I use these heads on a covered exterior walkway or in a bathroom?
No. The Charge 8010 is rated for dry locations and indoor use only, so keep it out of covered patios, open soffits, shower zones, and anywhere exposed to moisture. For those areas you need a wet or damp listed fixture.
5) Is 3000K at 90 CRI the right pick for retail or gallery display lighting?
For merchandise, artwork, and millwork, yes. 3000K is warm white, so wood, skin tones, and warm finishes read naturally, and a CRI of 90 keeps color separation accurate on fabric and print. If your space is already lit at 3500K or 4000K, pick a matching color temperature instead so the accent heads don't read yellow next to the ambient layer.
6) How much space does this track head take up below the ceiling?
The Charge 8010 body measures 5.88 inches high, 3 inches long, and 2.38 inches wide. That's the drop to plan for in a low-ceiling retail bay or under a soffit, and it's measured from the track, so add your track's own profile height.
7) Do I need to buy lamps separately for the WAC Charge 8010?
No lamp to order. It is a one-piece LED module with the driver built into the head, so the light source is included and there is no socket or bulb base to match. Rated life is 50,000 hours, and when the module reaches end of life the head is replaced rather than relamped.
8) What is the actual power draw per head so I can size the track circuit?
Each Charge 8010 head draws 11W at 120 VAC, 50/60Hz. Divide your track circuit's rated capacity by 11W to get the maximum head count per run, and leave margin if you are mixing in higher-wattage heads on the same circuit.
9) What is the Charge 8010 head made of, and will it hold up in a high-traffic retail space?
Die-cast aluminum housing with a frosted TIR lens. Cast aluminum both stiffens the head so repeated re-aiming doesn't loosen it and acts as the heat sink for the LED, which is what the 50,000 hour rating depends on. The TIR optic controls the beam rather than relying on a reflector.
