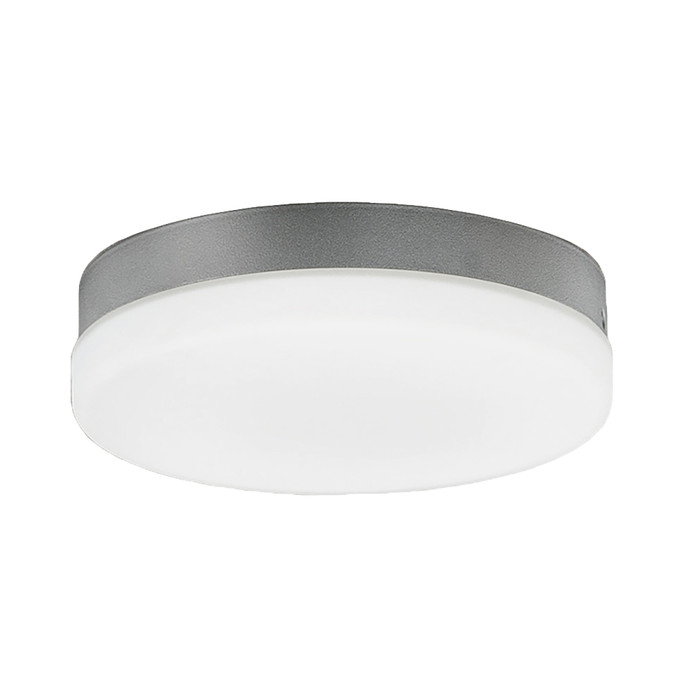

Modern Forms F-1811-LED LED Light Kit for Aviator 54in Fans
The Modern Forms F-1811-LED is a purpose-built LED light kit for Aviator 54in Flush Mount or Downrod Fans (FH-W1811-54 or FR-W1811-54), delivering 1600 delivered lumens at 19.5W with a 90 CRI for bright, even illumination. A twist-lock design allows for fast, tool-light installation, while mouth blown opal etched triplex glass diffuses light evenly across the fixture. The kit is UL & cUL Wet Location Listed, making it suitable for both indoor and outdoor fan installations.
Key Features
- Fan Compatibility: Designed specifically for Aviator 54in Flush Mount or Downrod Fans (FH-W1811-54 or FR-W1811-54).
- Light Output: 1600 delivered lumens at 19.5W with 90 CRI for bright, true-color illumination.
- Color Temperature Options: Available in 2700K, 3000K, and 3500K — order according to desired application.
- Twist-Lock Installation: Simplifies mounting and removal for easy servicing or replacement with a cover.
- Premium Glass Diffuser: Mouth blown opal etched triplex glass provides bright, even light distribution.
- Finish Options: Available in Graphite and Matte Black to complement the Aviator fan finish.
- Code Compliance: CEC Title 24/Title 20 compliant with 90 CRI performance.
Certifications & Compliance
- UL & cUL Wet Location Listed for Indoor or Outdoor Applications
- CEC Title 24/Title 20 Compliant
Technical Specifications
- Collection: Modern Forms Fans
- Product Type: Accessories
- Warranty: 5 years LED module
- Country of Origin: China
- Location Rating: Wet
Typical Applications
- Ceiling Fan Lighting Upgrades and Retrofits
- Residential Living Rooms and Bedrooms
- Covered Outdoor Patios and Porches (Wet Location Rated)
- Replacement Light Kit for Aviator 54in Fan Models
- New Construction and Renovation Fan Installations
Why Modern Forms?
Modern Forms engineers the F-1811-LED light kit with mouth blown triplex glass, a 90 CRI LED source, and UL & cUL Wet Location Listing to deliver reliable, code-compliant illumination for the Aviator 54in fan platform. Backed by a 5-year LED module warranty, it's built for consistent performance whether installed indoors or in covered outdoor spaces.
Manufacturer Resources
Specification Sheet
Product Specs
- Collection:
- Modern Forms Fans
- Product Type:
- Accessories
- Subcategory:
- Light Kit
- Material:
- Glass
- Location Rating:
- Wet
Modern Forms F-1811-LED-27-GH – Frequently Asked Questions
1) Which ceiling fans does the Modern Forms F-1811-LED light kit fit?
The F-1811-LED is built for the Aviator 54in fan only, in either the flush mount or downrod version (FH-W1811-54 or FR-W1811-54). It is not a universal light kit, so it won't mount to other Modern Forms fan platforms or other sizes of Aviator. If your fan carries a different model number, this kit is the wrong part.
2) Can this LED fan light kit be used on a covered patio or porch?
Yes. The F-1811-LED carries a wet location rating and is UL and cUL Wet Location Listed, so it can go outdoors on a covered patio or porch as well as indoors, provided the Aviator 54in fan it mounts to is installed in a location suitable for that fan.
3) What color temperatures and finishes do I have to choose when ordering the F-1811-LED?
Two things to specify: color temperature and finish. Color temperature choices are 2700K, 3000K and 3500K, and the finish is either Graphite or Matte Black to match the Aviator fan. Pick the finish that matches the fan body already installed, since the kit sits on the underside of the motor housing and is visible.
4) Can I replace a failed light on an existing Aviator 54in fan with this kit?
Yes, that is one of its intended uses. The F-1811-LED is the factory light kit for the Aviator 54in flush mount and downrod fans, and the twist-lock mount means the old kit comes down and the new one goes up at the same port. If you are replacing one on a fleet of fans, match the finish (Graphite or Matte Black) and the color temperature to the kits already installed so the rooms stay consistent.
5) How bright is the Modern Forms F-1811-LED, and is it enough for a living room?
1600 delivered lumens at 19.5W, with 90 CRI. That output is in the range of a typical single-fixture ceiling fan light for a bedroom or living room, and the 90 CRI means colors read accurately rather than washed out. The mouth blown opal etched triplex glass spreads the light rather than throwing a hot spot.
6) Is the F-1811-LED hard-wired or does it twist into the fan?
It uses a twist-lock design, so the kit locks into the fan's light port without a wiring-intensive install, and it comes off the same way for service or replacement. That also means an Aviator 54in fan running without a light can take this kit later without rewiring the fan.
7) Does this light kit meet California Title 24 requirements?
The F-1811-LED is CEC Title 24 and Title 20 compliant and delivers 90 CRI, which is what matters on a California job where high-efficacy, high-CRI lighting is specified. That makes it usable in new construction and renovation work in that jurisdiction.
8) What is the diffuser on the F-1811-LED made of, and can it go outside without clouding?
Glass, specifically mouth blown opal etched triplex glass. It is a glass diffuser rather than an acrylic lens, and the whole kit is wet-location listed, so it is rated for covered outdoor use.
9) Where can I get the spec sheet and installation instructions for the F-1811-LED?
Both documents are published for this kit: a specification sheet and an installation guide, hosted alongside the product at ZenSupply. The installation guide covers the twist-lock mounting sequence for the Aviator 54in fan.
